| FUWEI FSD23 Laser Measurement Sensor | |
|---|---|
| Mounting Type | Vertical downwards |
| Manufacturing Date Code | 2024 |
| Model Number | FSD23 |
| Brand Name | FUWEI |

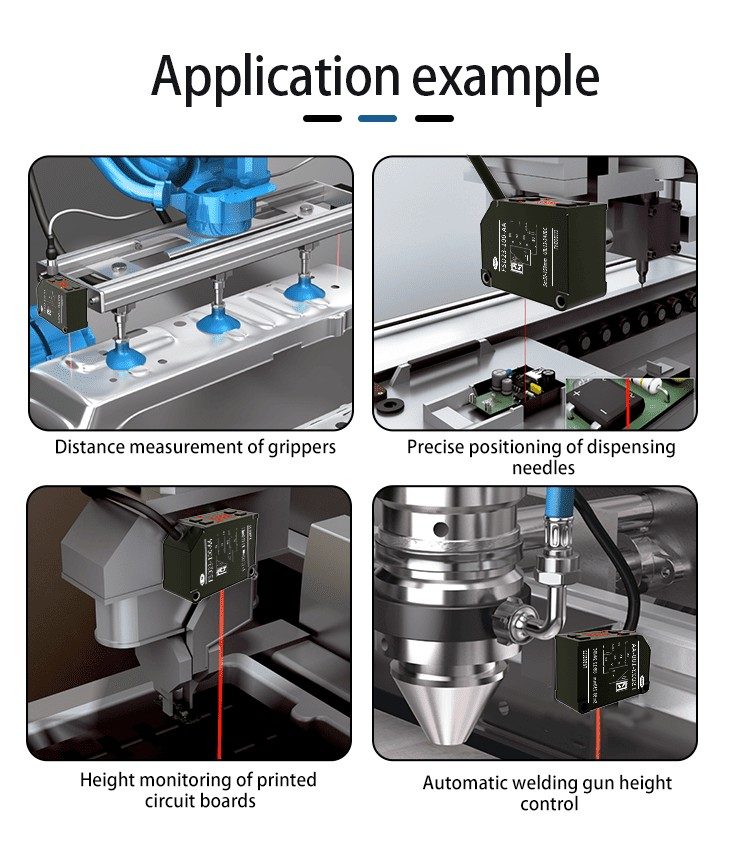

| Usage | Precise measurement |
| Description | Laser measurement sensor |
| Type | Measurement sensor |
| Series | FSD23 |
| Features | Laser measurement sensor |
| Place of Origin | Guangdong, China |
| Theory | Triangular laser |
| Output | Analog output |

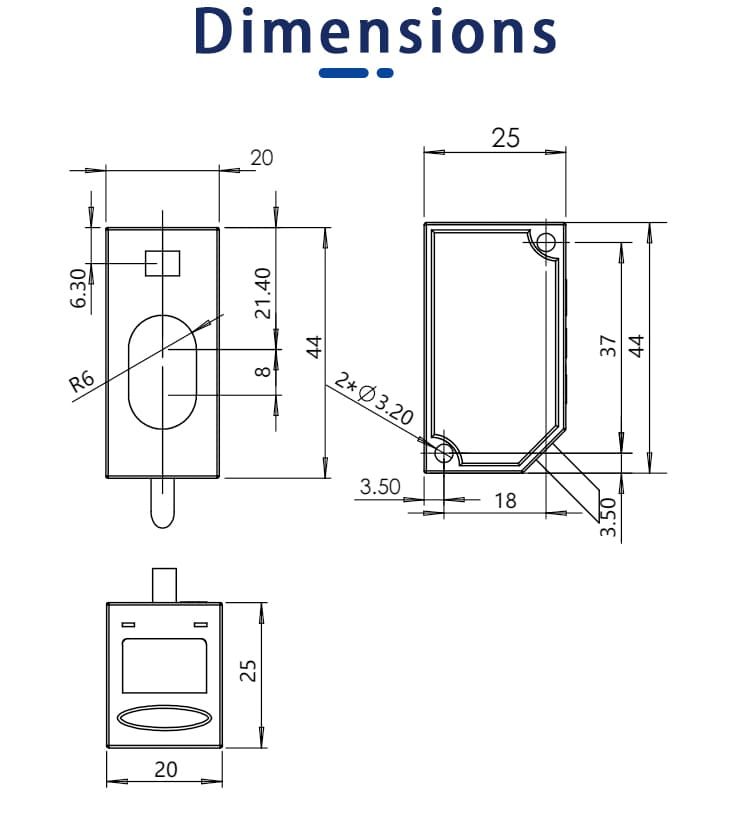

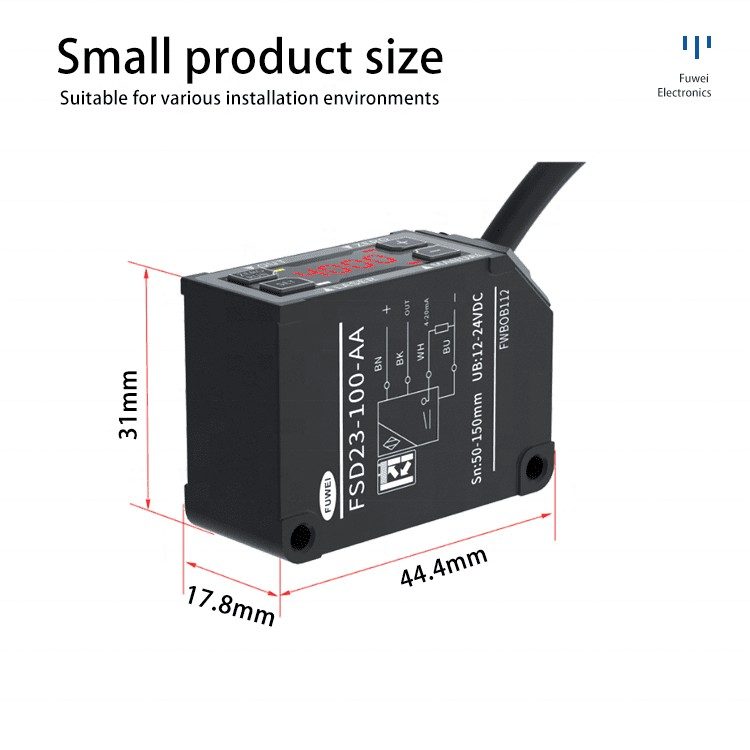

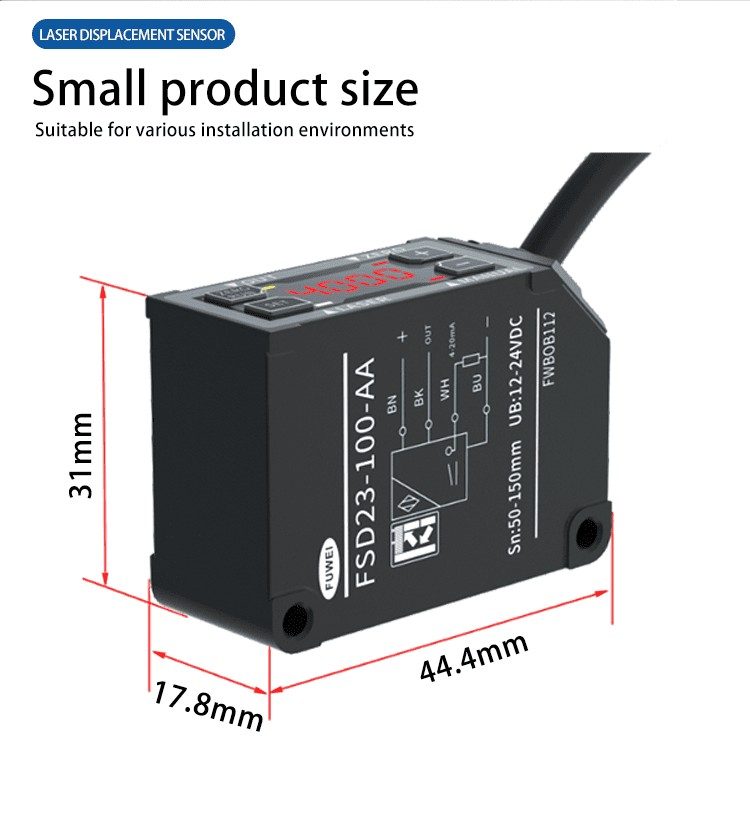

| Size | 17.8 × 31 × 44.4 mm |

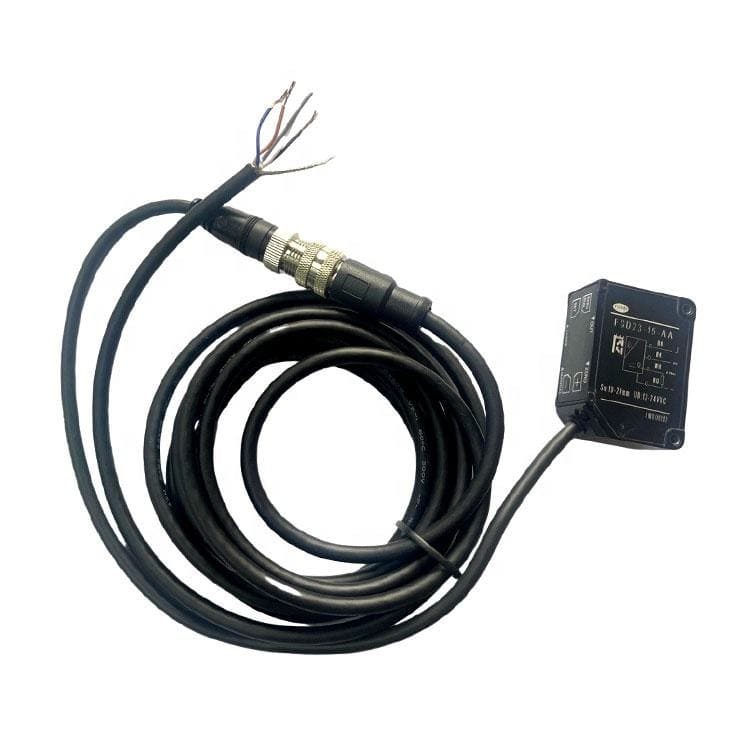

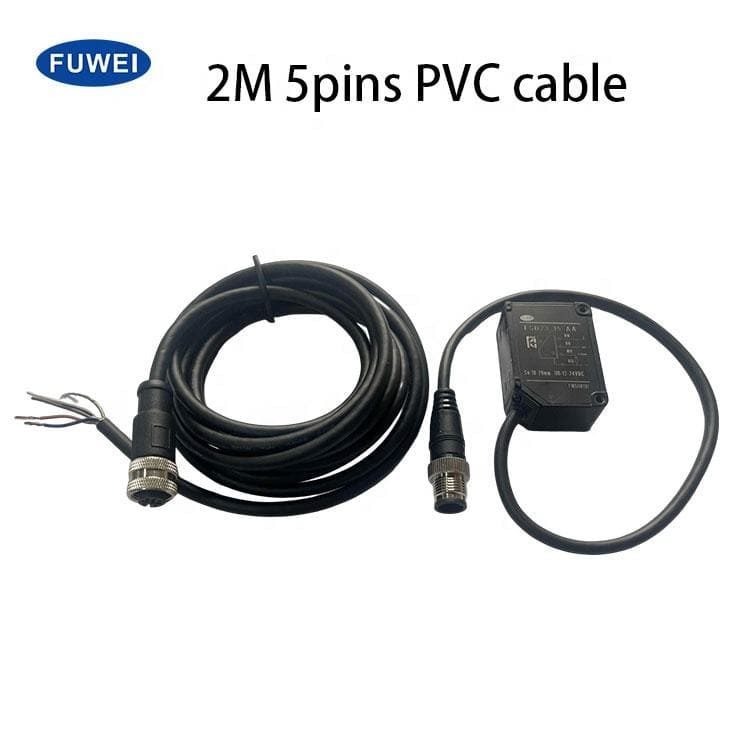

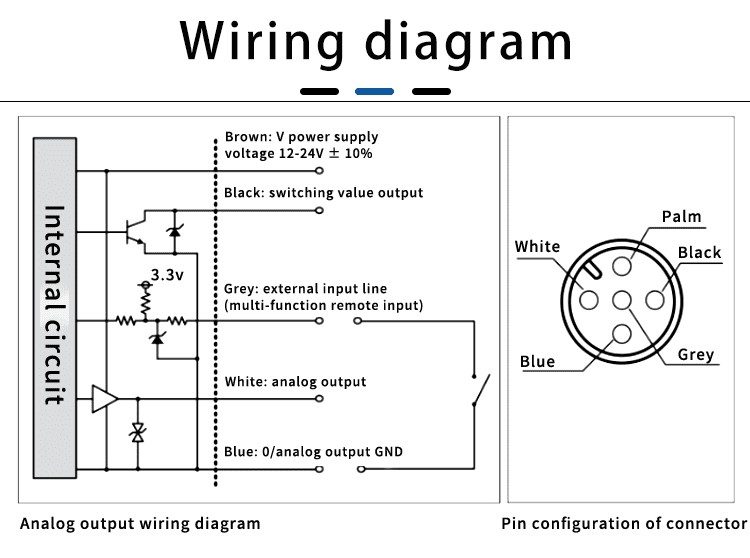

| Connection | 2m 5pins PVC cable |
| Supply Voltage | 12-24 VDC |
| Response Time | 0.5 ms / 1 ms / 2 ms / 4 ms Settable |
| Power Consumption | ≤70 mW |
| Temperature Drift | ±0.02% F.S./℃ |
| Protection Level | IP67 |

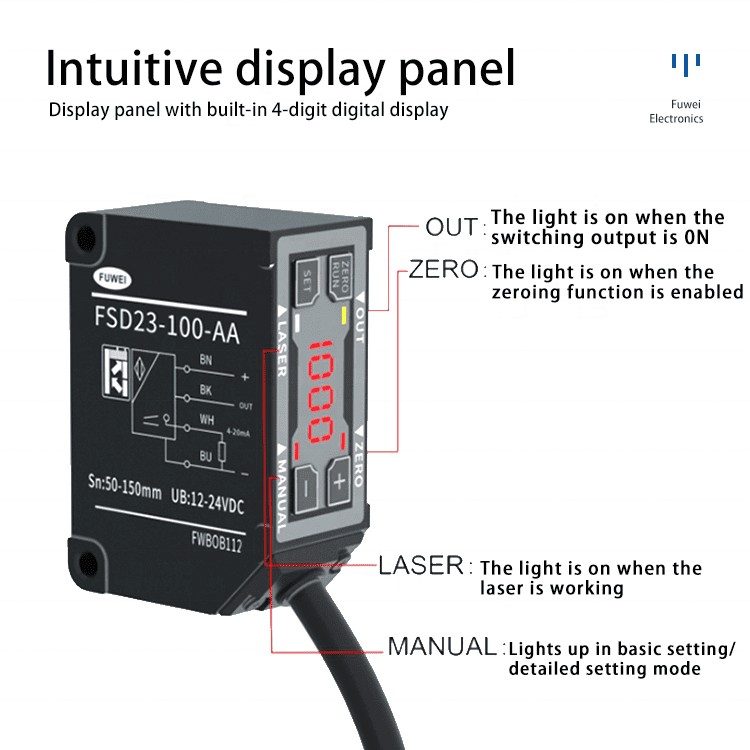

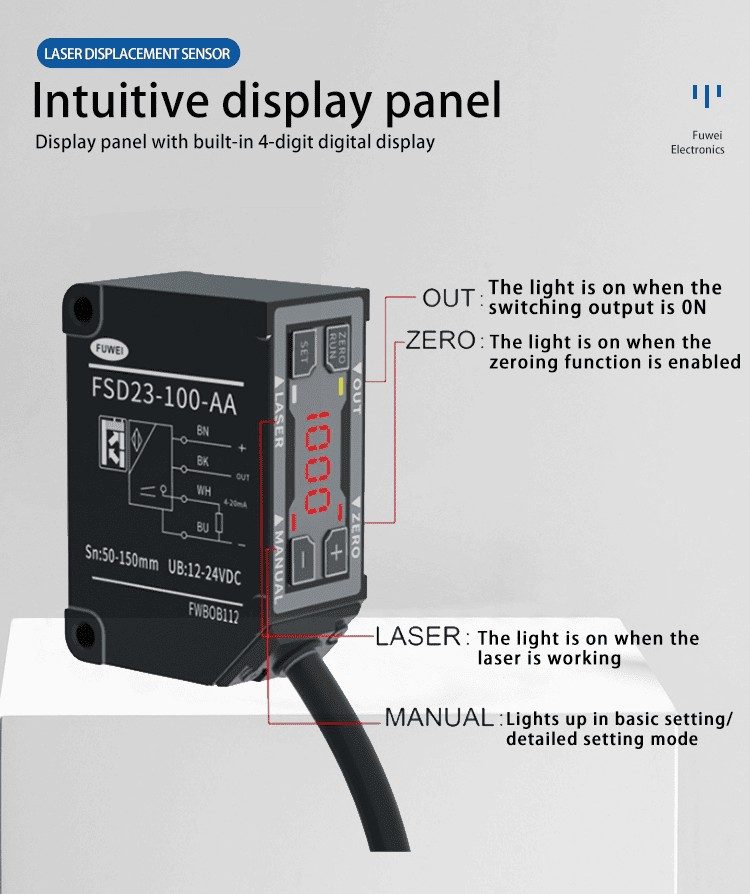

| Panel Introduction | 4-position red LED screen |
| Light Source | Red laser (650 nm) |
| Laser Level | Class 2 |
| Packaging & Delivery | |
| Selling Units | Single item |
| Single Package Size | 18 × 11.5 × 5 cm |
| Single Gross Weight | 0.250 kg |
