| Mounting Type |
Screw fixing |
| Manufacturing Date Code |
2023 |
| Model Number |
FSD23-100-AA |
| Brand Name |
FUWEI |
| Usage |

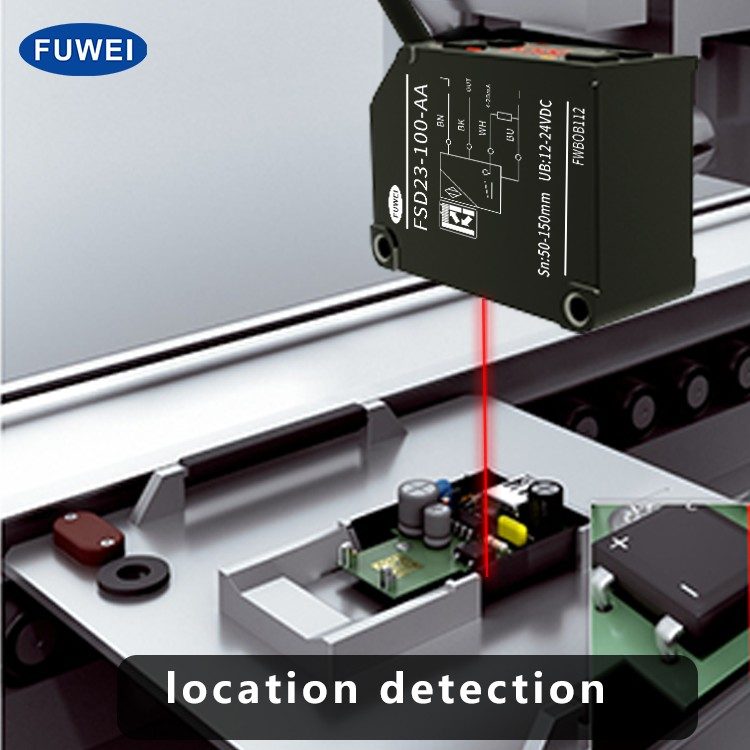

Distance control |
| Description |
High precision laser displacement sensor |
| Type |
Linear Displacement Sensor |
| Series |
FSD23 |
| Features |
High precision laser displacement sensor |
| Place of Origin |
Guangdong, China |
| Theory |
Laser triangulation principle measurement method |
| Output |
Analog current 4-20mA / NPN / PNP |

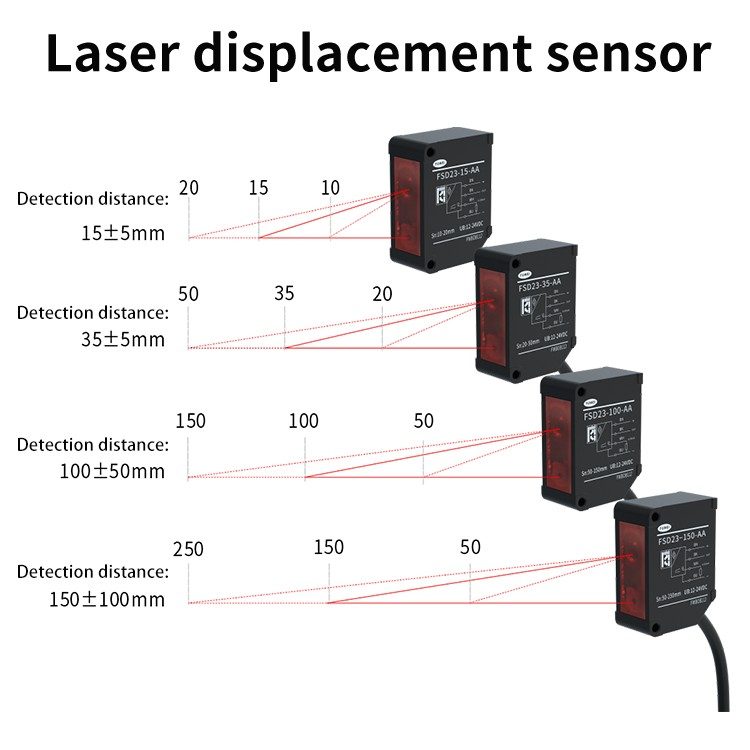

| Center of Measurement Range |
100 mm |
| Measurement Range |
±50 mm |
| Spot Size |
0.6 × 0.7 mm |
| Linearity |
±0.1% F.S. |
| Repeatability |
20 μm |
| Sampling Period |
500 μs / 1000 μs / 2000 μs / 4000 μs / AUTO |
| Medium / Wavelength |
Red laser diode (650 nm) |
| Packaging & Delivery |
| Selling Units |
Single item |
| Single Package Size |
10 × 10 × 4 cm |
| Single Gross Weight |
0.500 kg |
