| High Precision Laser Displacement Sensor – FSD23-15-RS485 | |

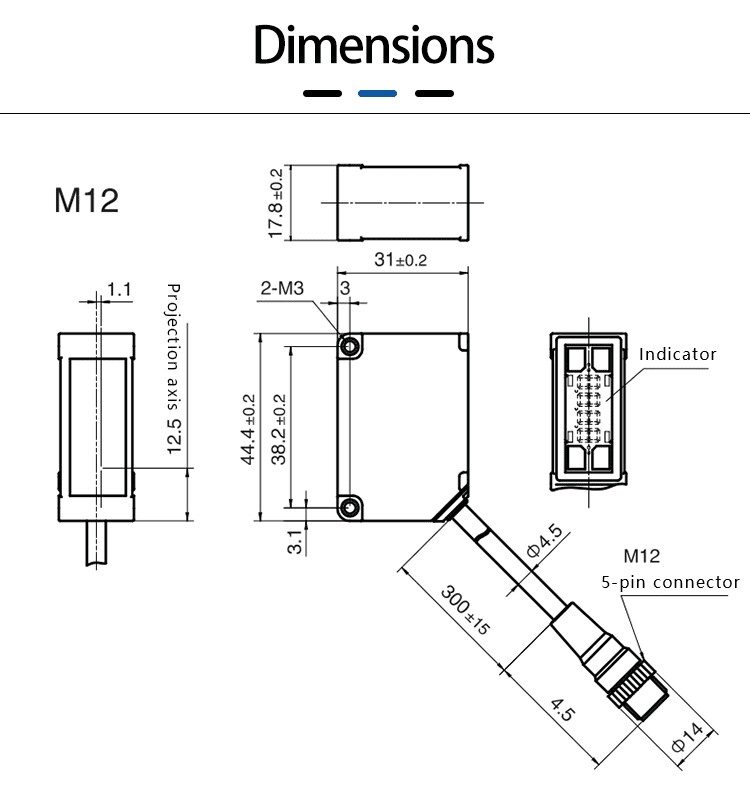

| Key Attributes | Mounting Type: Screw fixing Manufacturing Date Code: 2023 |
| Model Number | FSD23-15-RS485 |
| Brand Name | FUWEI |

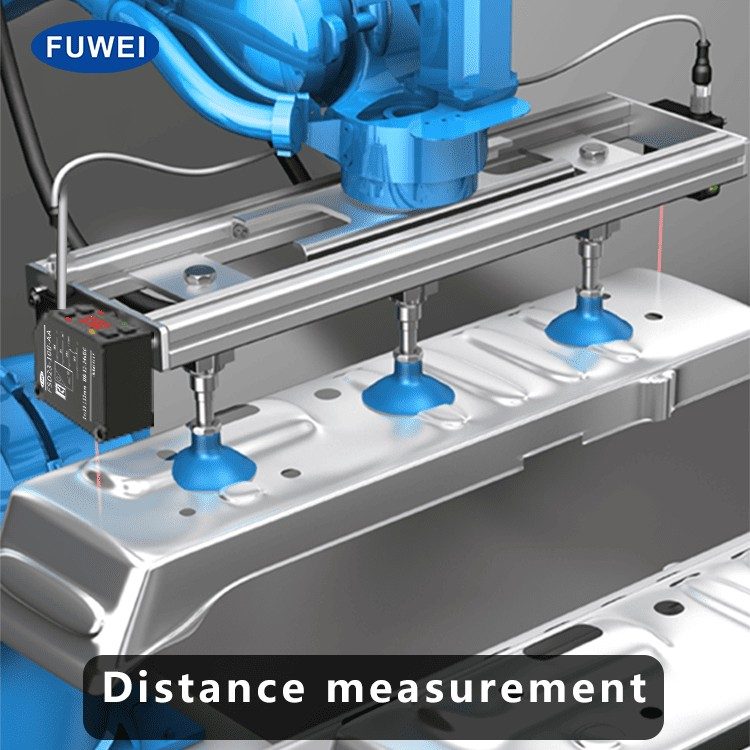

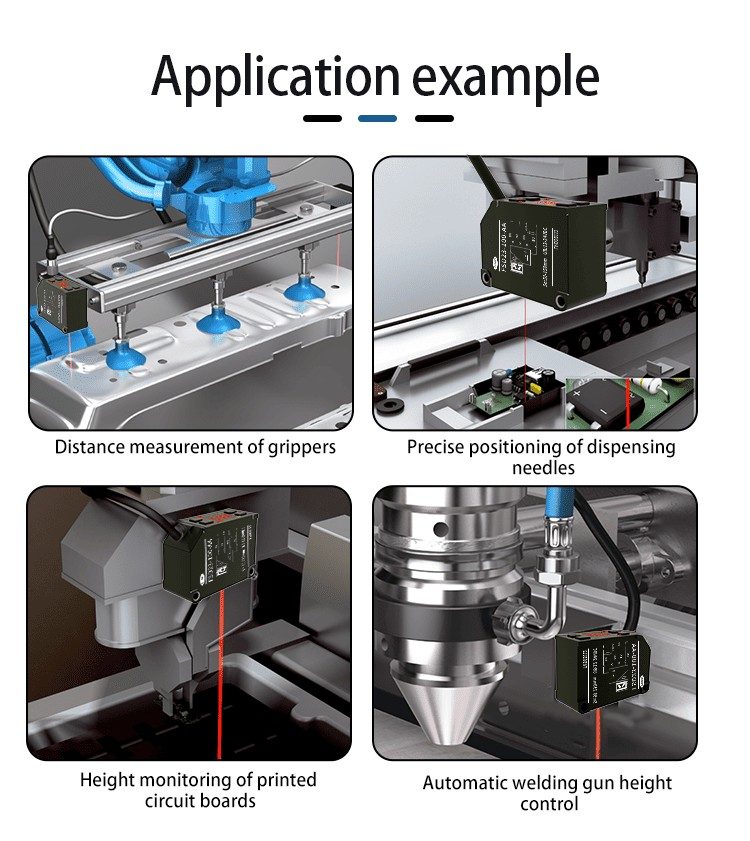

| Usage | Distance control |
| Voltage – Supply | 24V |
| Description | High precision laser displacement sensor |
| Type | Linear Displacement Sensor |
| Series | FSD23 |
| Features | High precision laser displacement sensor |
| Place of Origin | Guangdong, China |
| Theory | Laser triangulation principle measurement method |
| Output | RS485 |

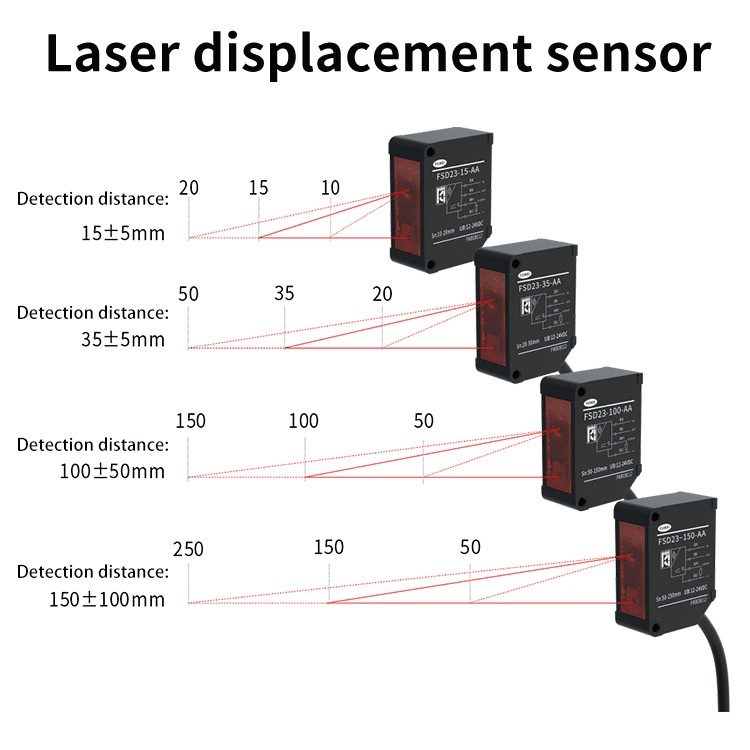

| Center of measurement range | 15mm |
| Measurement range | ±5mm |
| Spot size | 0.5 × 0.7mm |
| Linearity | ±0.1% F.S. |
| Repeatability | 1μm |
| Sampling period | 500μs / 1000μs / 2000μs / 4000μs / AUTO |
| Medium. Wavelength | Red laser Diode (wave length 650nm) |
| Packaging and Delivery | |
| Selling Units | Single item |
| Single package size | 18 × 12 × 5 cm |
| Single gross weight | 0.250 kg |
