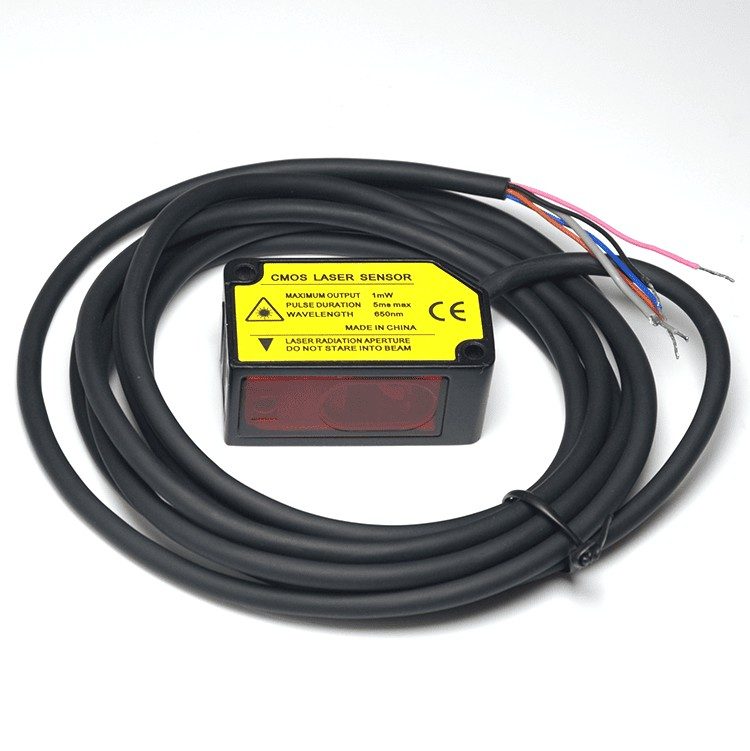

| FUWEI FSD22-50N-UI Laser Displacement Sensor Specifications | |
|---|---|
| Mounting Type | Easy Installation |
| Manufacturing Date Code | 20240126 |
| Model Number | FSD22-50N-UI |
| Brand Name | FUWEI |

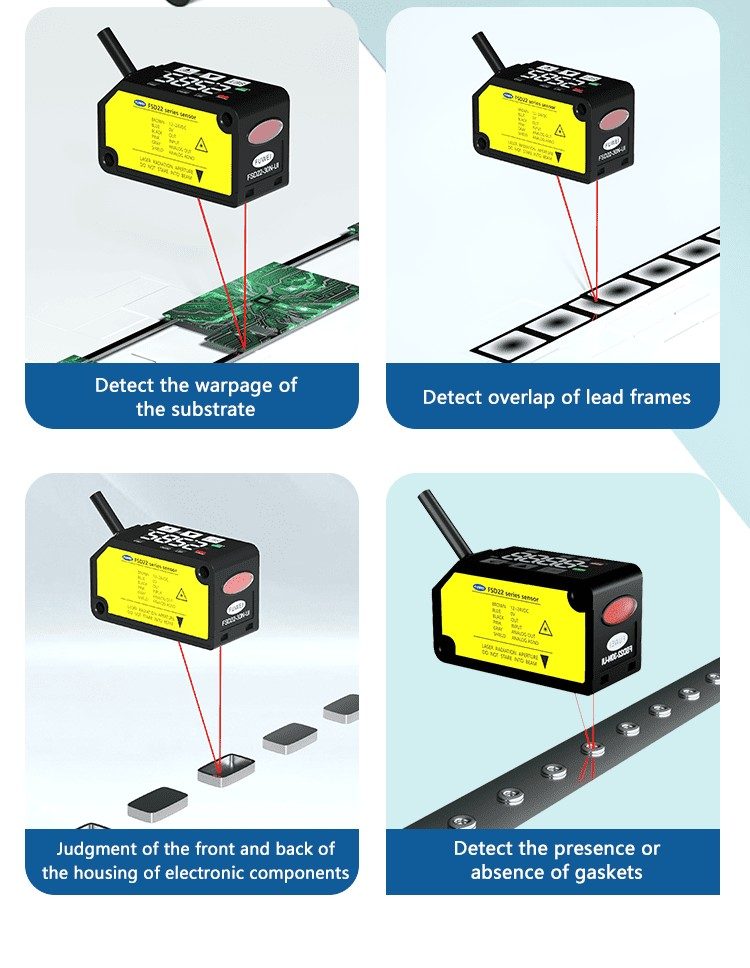

| Usage | Distance control |
| Description | High precision laser displacement sensor |
| Type | Optical sensor |

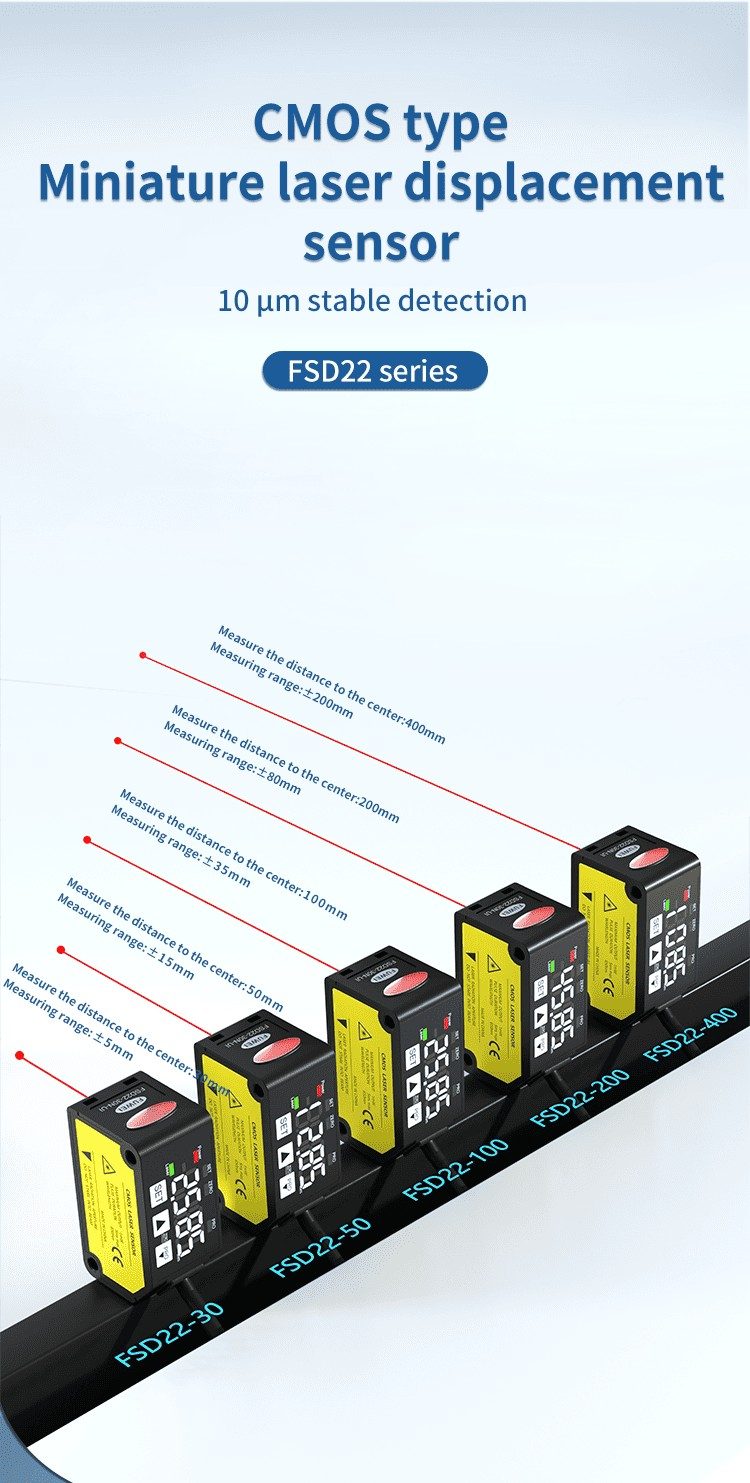

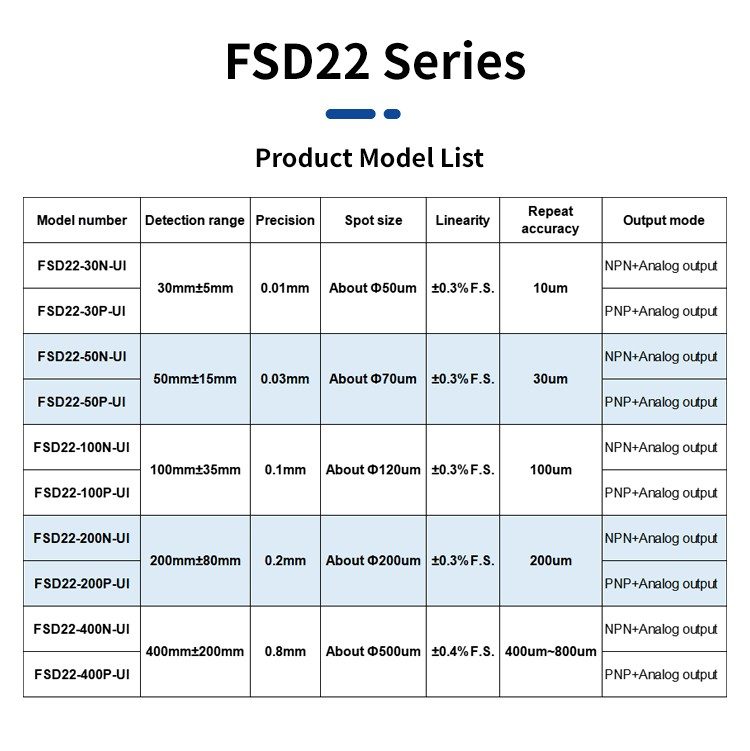

| Series | FSD22 |
| Features | High precision laser displacement sensor |
| Place of Origin | Guangdong, China |
| Theory | Laser triangulation principle measurement method |

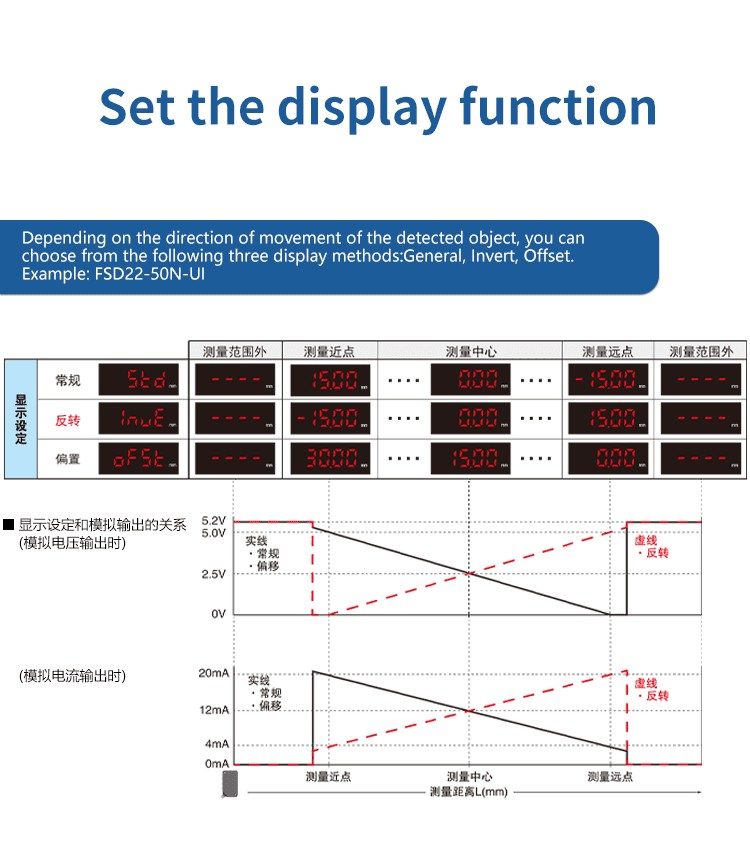

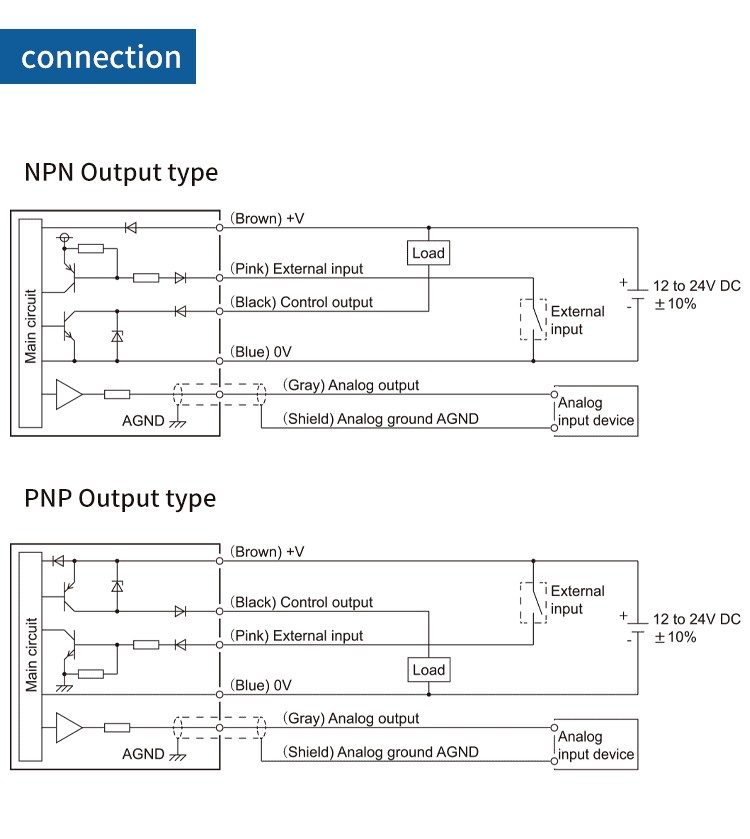

| Output | NPN / analog 0-5V / 4-20mA |

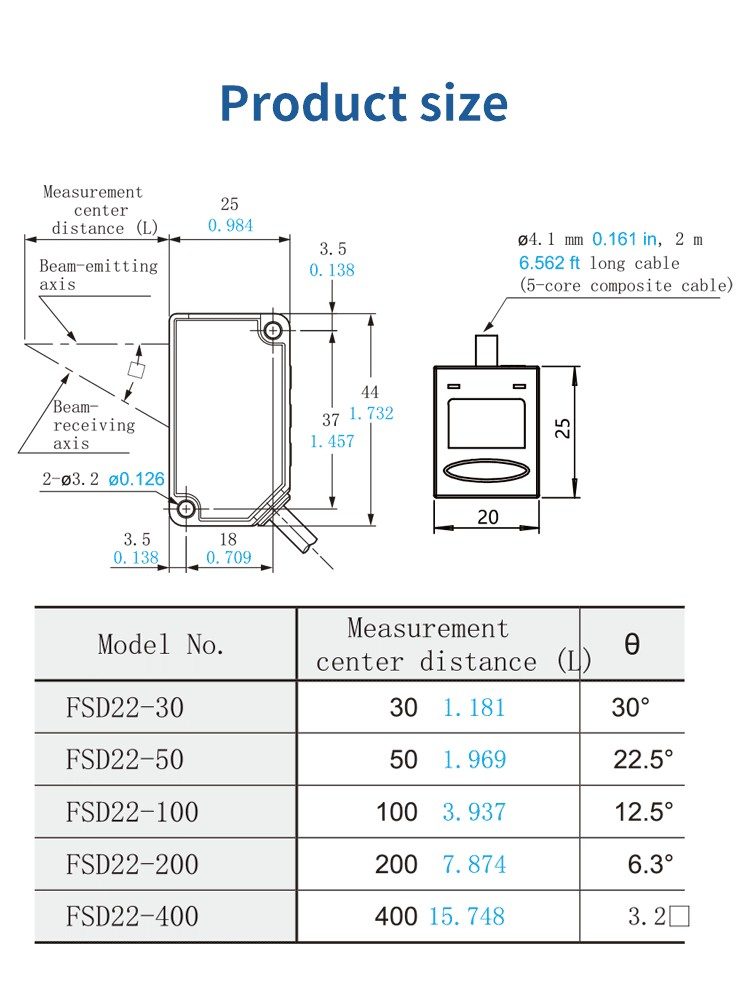

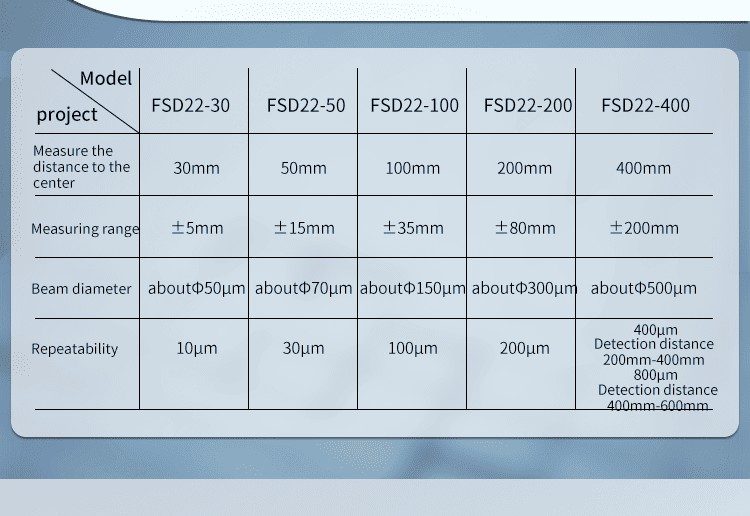

| Measurement Center Distance | 50mm |
| Measurement Range | ±35mm |
| Beam Diameter | 120μm |
| Repeatability | 100μm |
| Linearity | ±0.3% F.S. |
| Repeat Accuracy | 5μm |
| Supply Voltage | 10-30VDC |
| Full Range (F.S.) | 10mm |
| Packaging and Delivery | |
| Selling Units | Single item |
| Single Package Size | 16 × 15 × 5 cm |
| Single Gross Weight | 0.170 kg |
