| FUWEI FSD22 Laser Displacement Sensor Specifications | |
|---|---|
| Mounting Type | Bolt Mounting |
| Manufacturing Date Code | 2023 |
| Model Number | FSD22 |
| Brand Name | FUWEI |

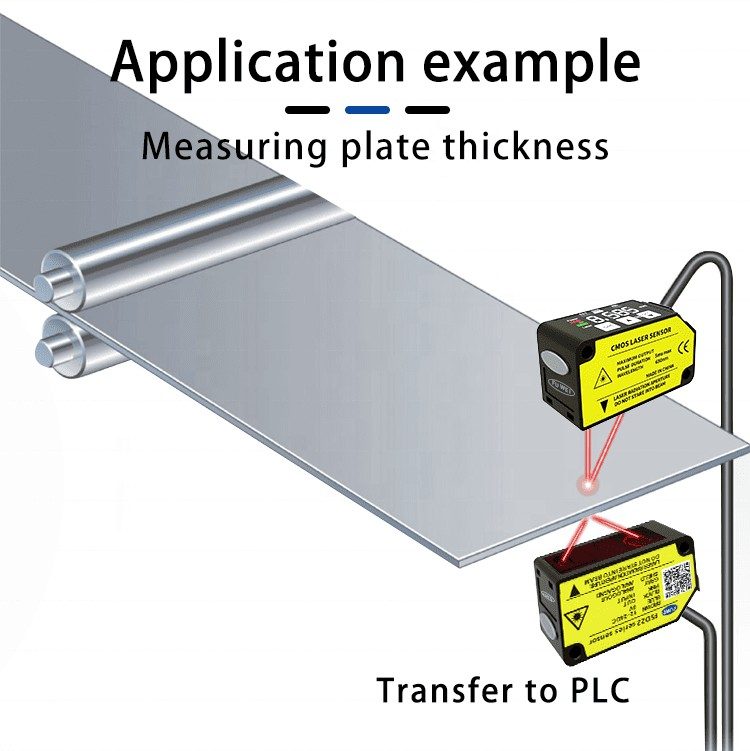

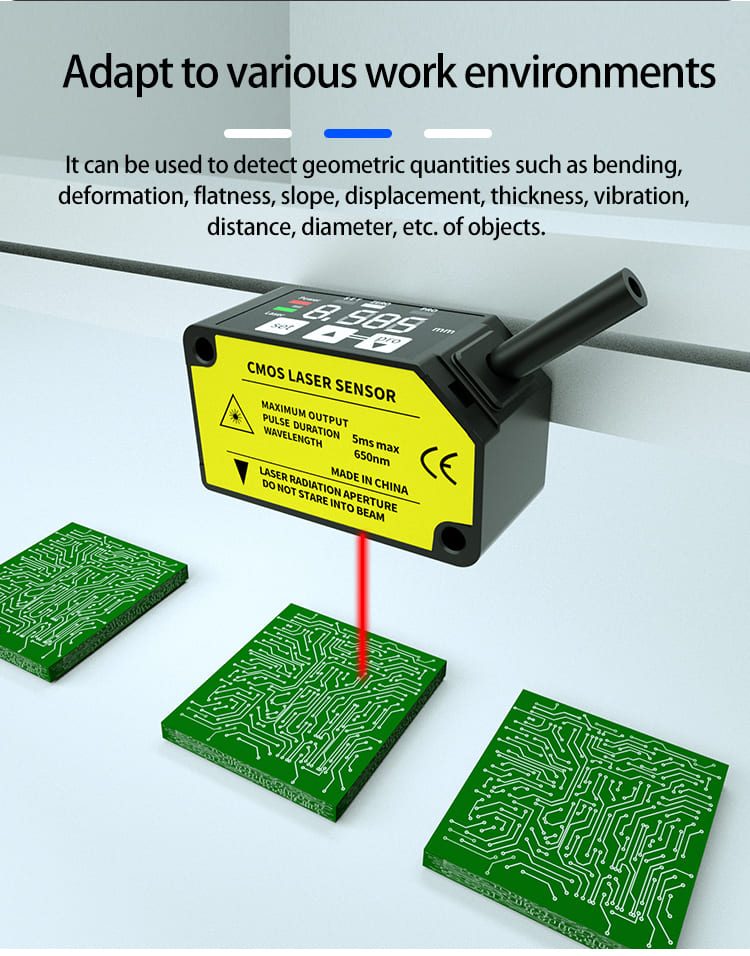

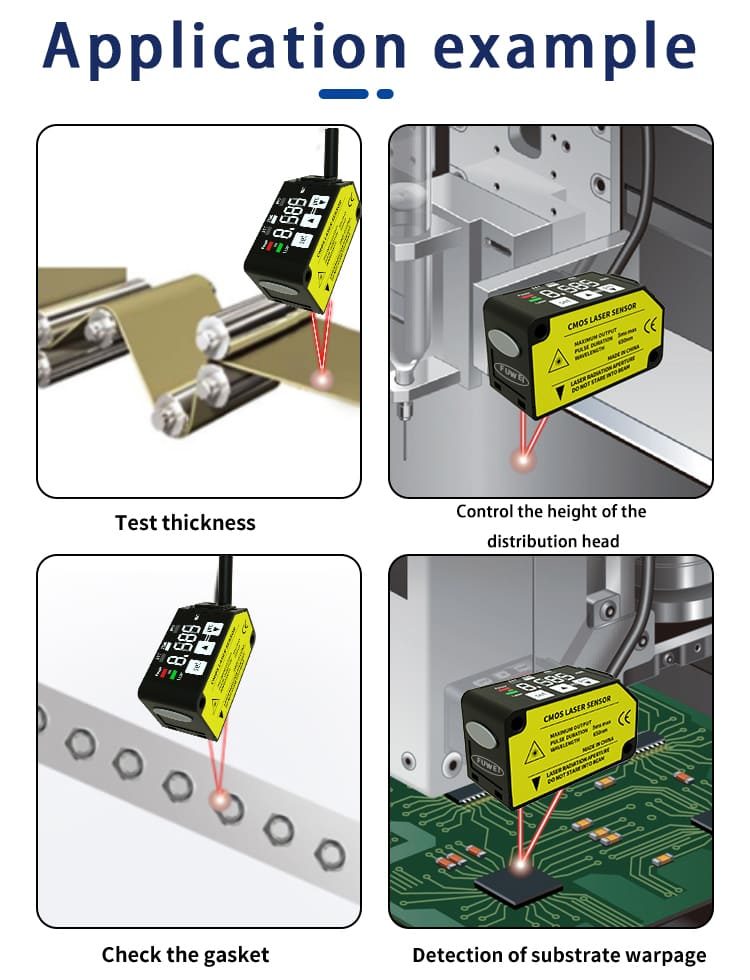

| Usage | Distance measurement, thickness measurement |
| Description | For distance and height measurement |
| Type | Displacement sensor |

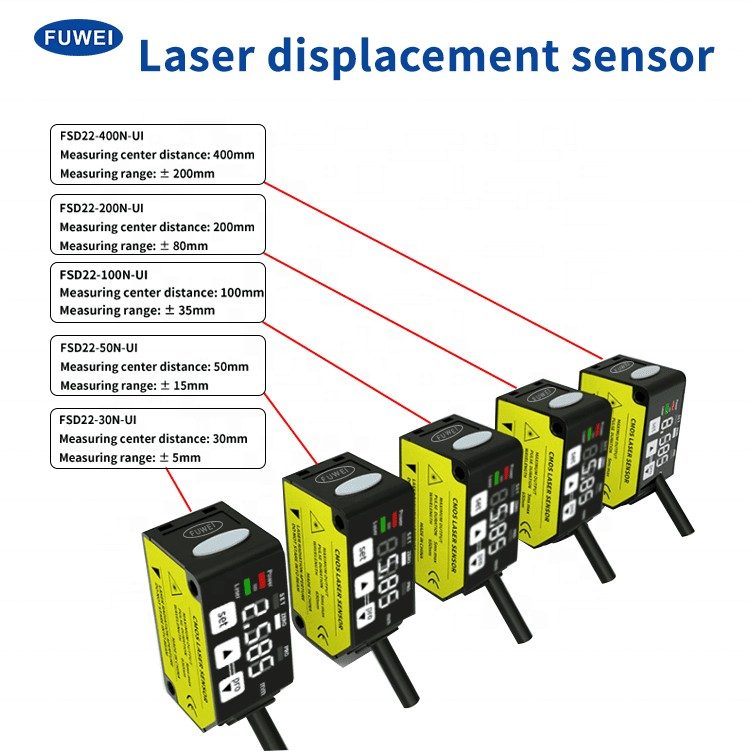

| Series | FSD22 |

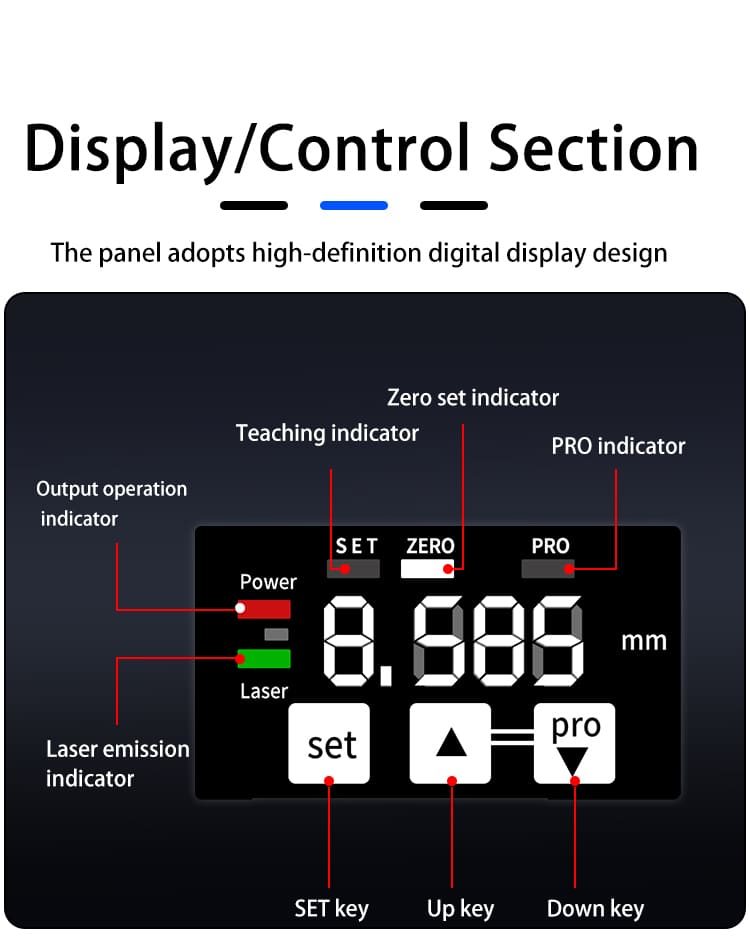

| Features | Digital Display, High Precision |
| Place of Origin | Guangdong, China |
| Theory | Laser Triangulation Principle |

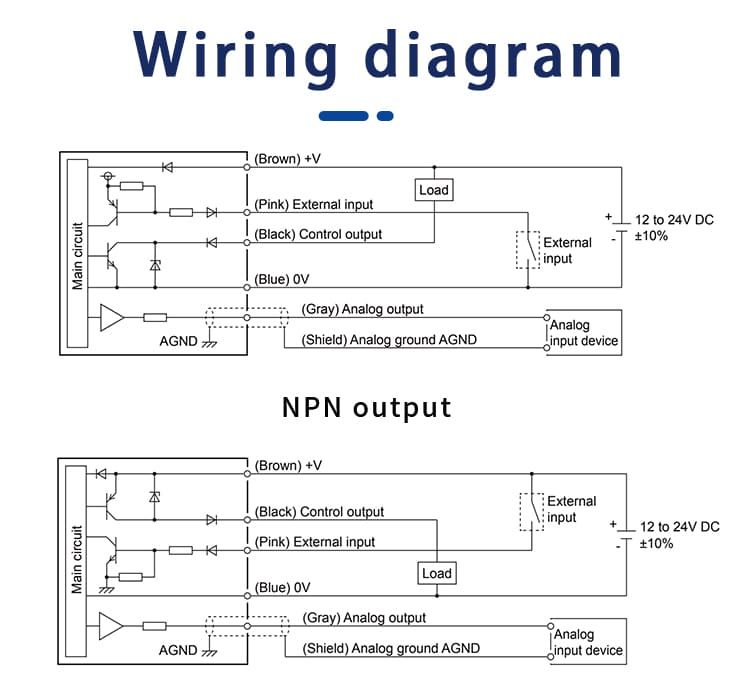

| Output | NPN/PNP Analog 0-5V/4-20mA |
| Description | Laser displacement sensor |
| Protection | IP67 (IEC) |
| Operating Altitude | 2,000m or less |
| Ambient Humidity | 35 to 85% RH, Storage: 35 to 85% RH |

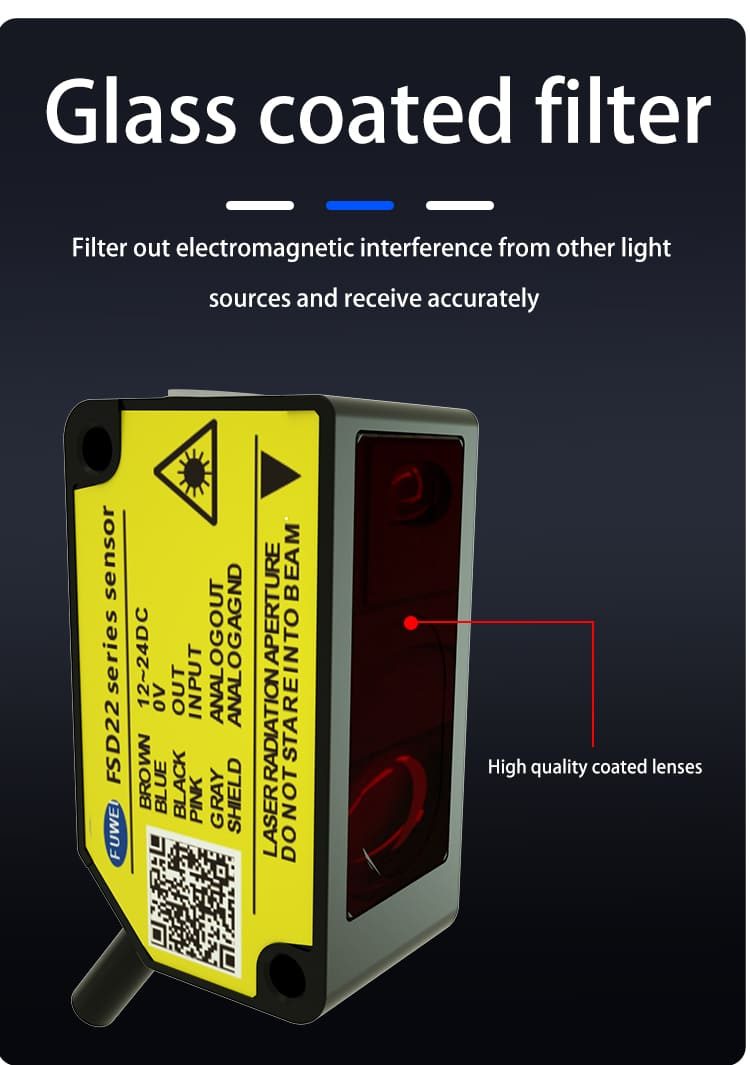

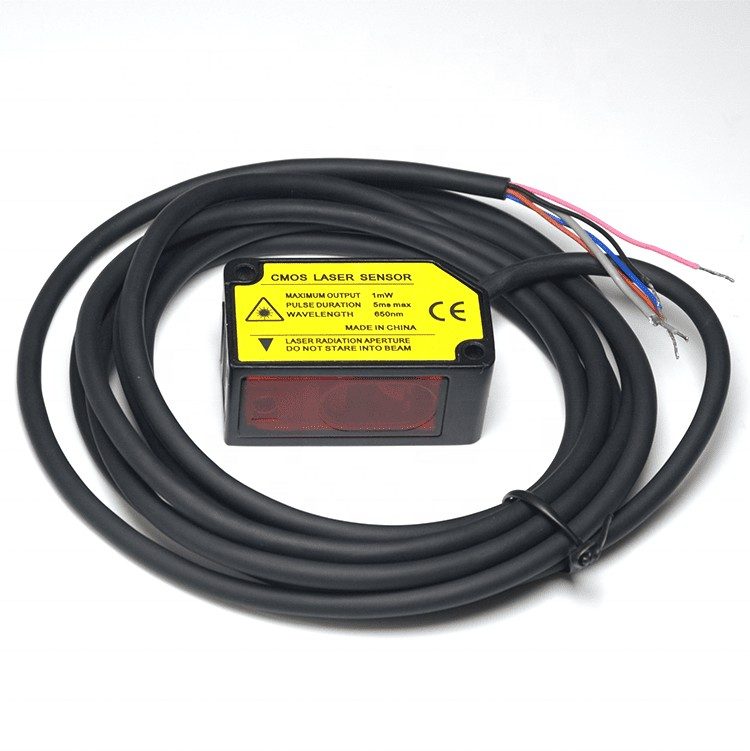

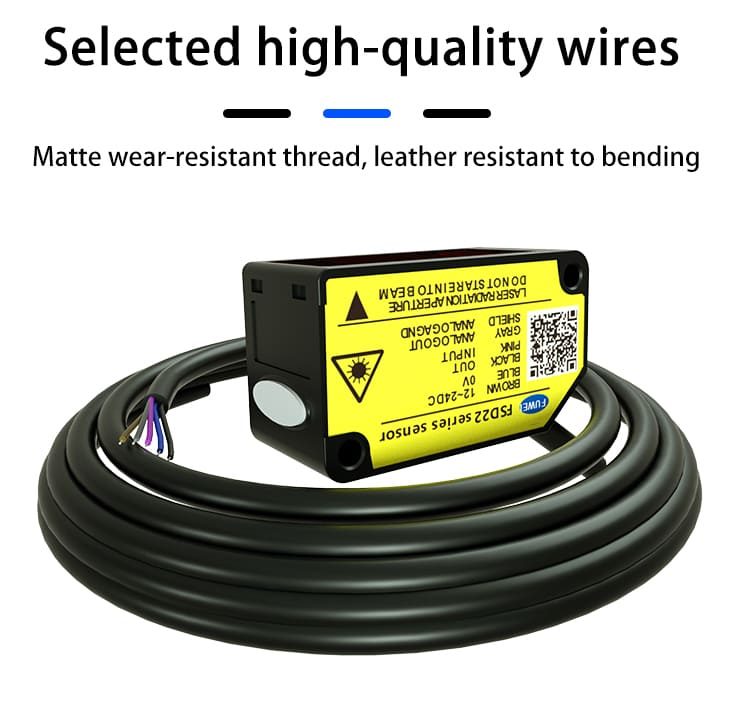

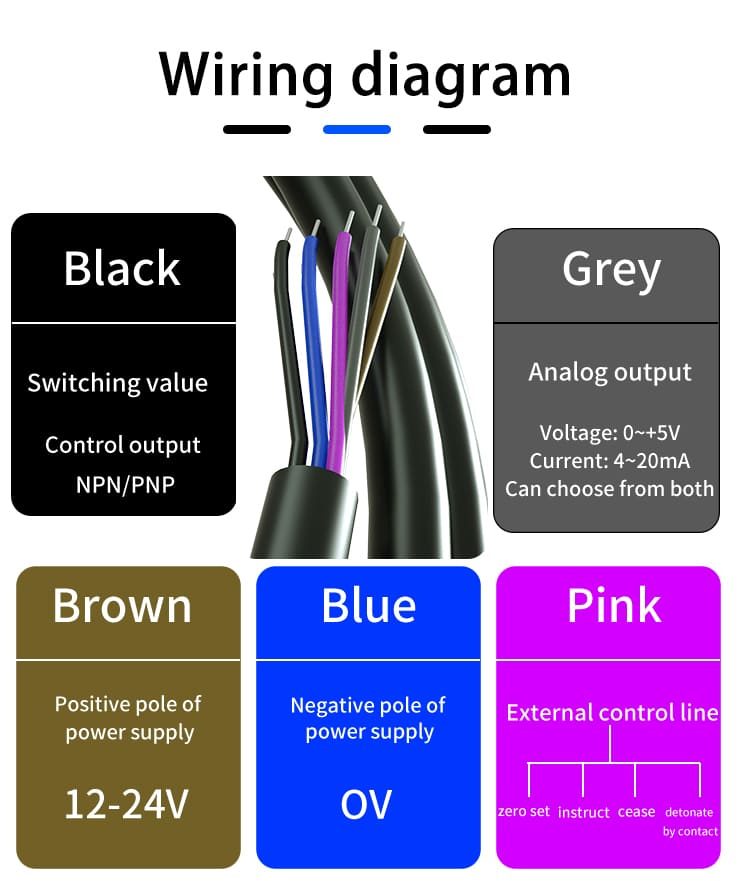

| Cable | 0.2mm² 5-core composite cable, 2m long |
| Weight | Approx. 85g (including cable) |
| Analog Voltage Output | Output range: 0 to +5V (at alarm: +5.2V), Output impedance: 100Ω |
| Analog Current Output | Output range: 4 to 20mA (at alarm: 0mA), Load impedance: 300Ω or less |
| Output Operation | Switchable either Light-ON or Dark-ON |
| Short-Circuit Protection | Incorporated (Auto reset type) |
| Supply Voltage | 12 to 24V DC ±10%, Ripple P-P 10% or less |
| Packaging and Delivery | |
| Port of Dispatch | GZ Port |
| Selling Units | Single item |
| Supply Capacity | 100 sets per week |
