| Mounting Type |
Screw fixing |
| Manufacturing Date Code |
20240524 |
| Model Number |

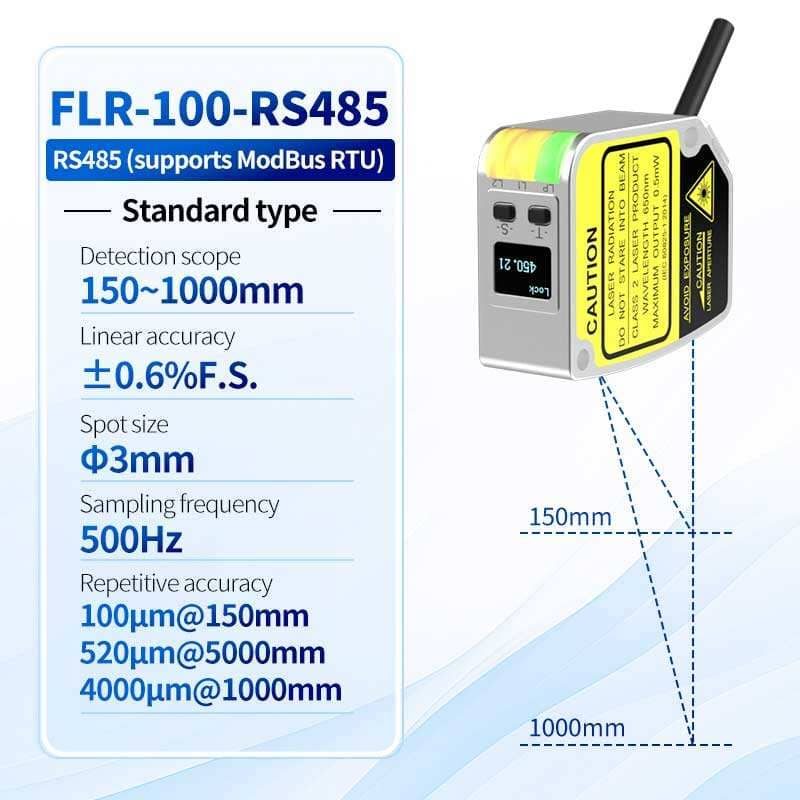

FLR-100-RS485 |
| Brand Name |
FUWEI |

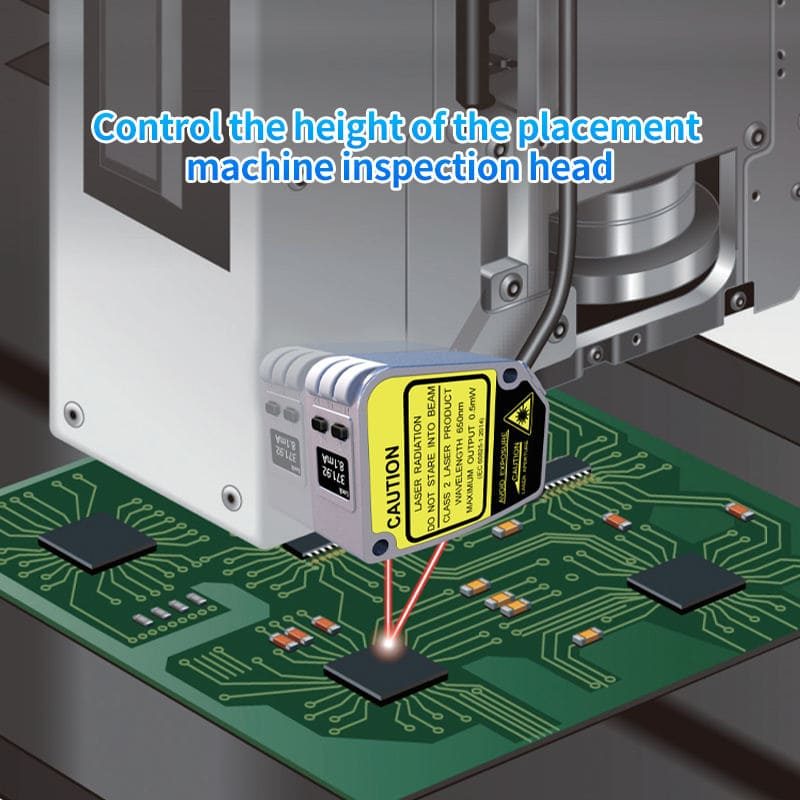

| Usage |

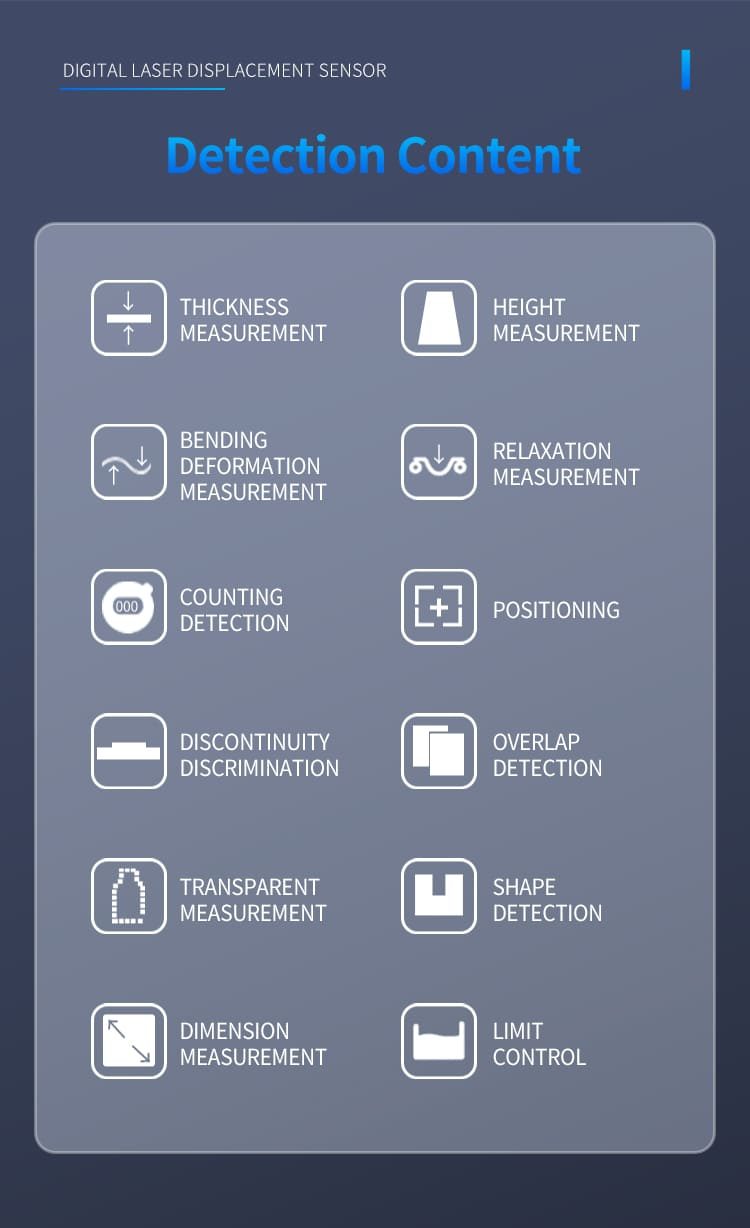

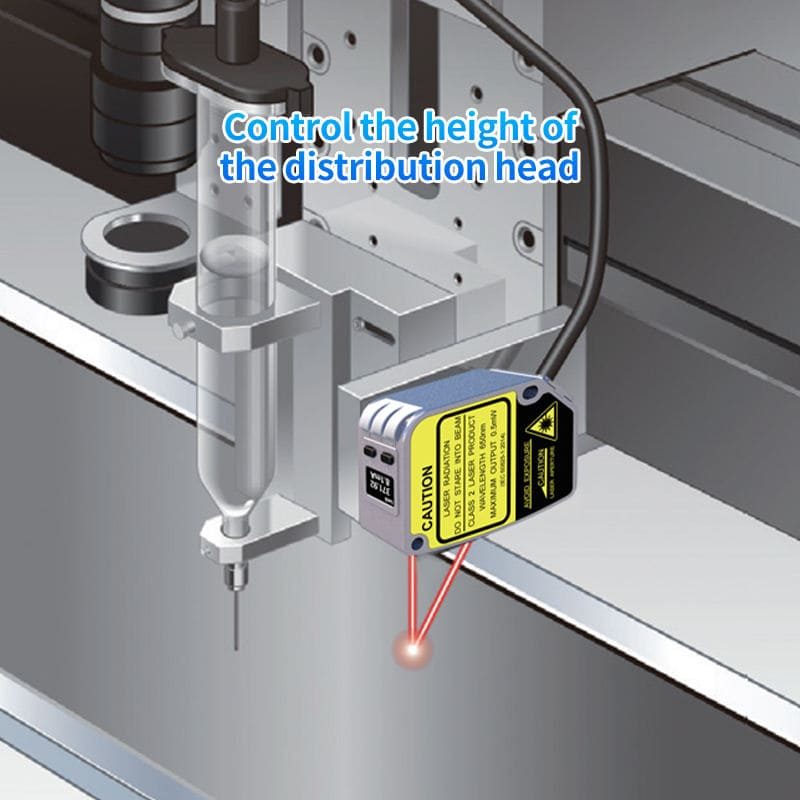

Distance control, Thickness measurement |
| Description |
High precision laser displacement sensor |
| Type |
Laser Displacement Sensor |
| Series |
FLR |
| Features |
High precision measurement |
| Place of Origin |
Guangdong, China |
| Theory |
Laser triangulation principle measurement method |

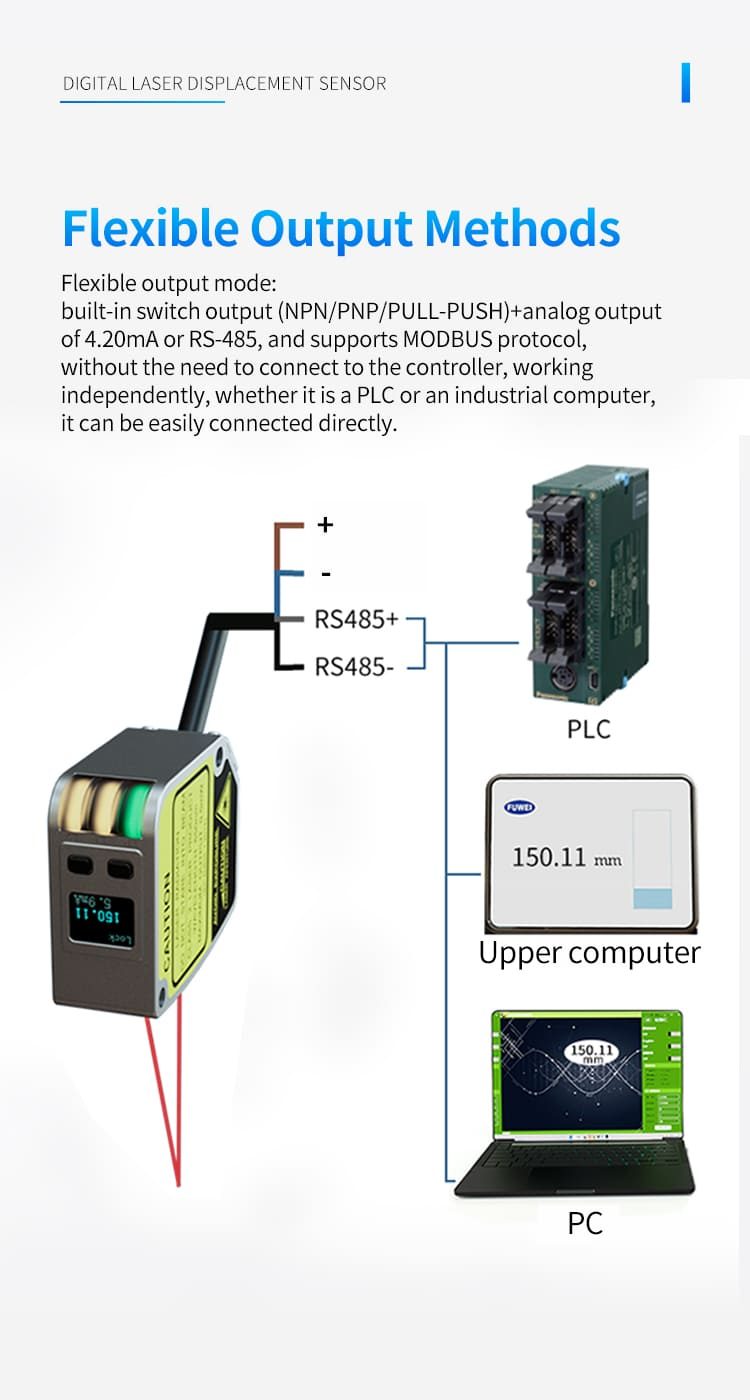

| Output |
Analog: 4…20mA (Load resistance <390Ω) |

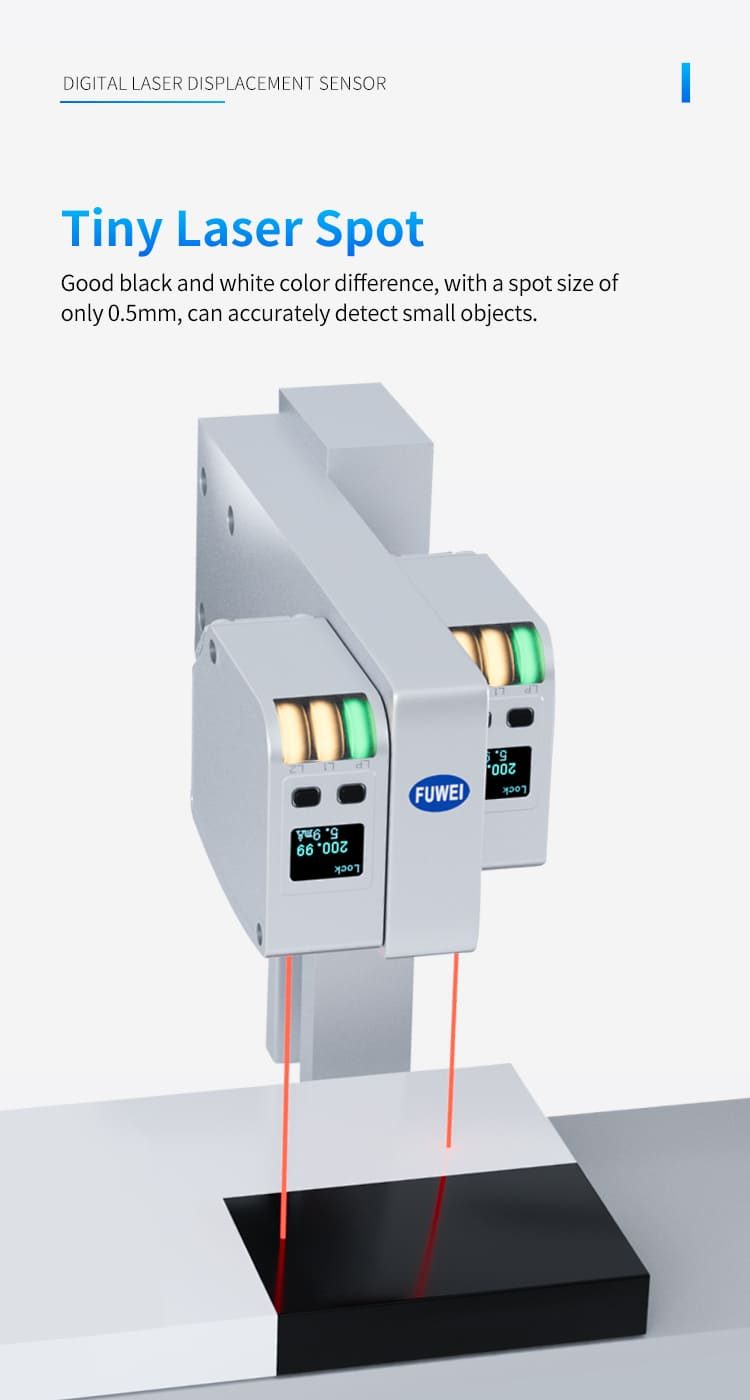

| Light Spot Size |
1*3mm@100mm |

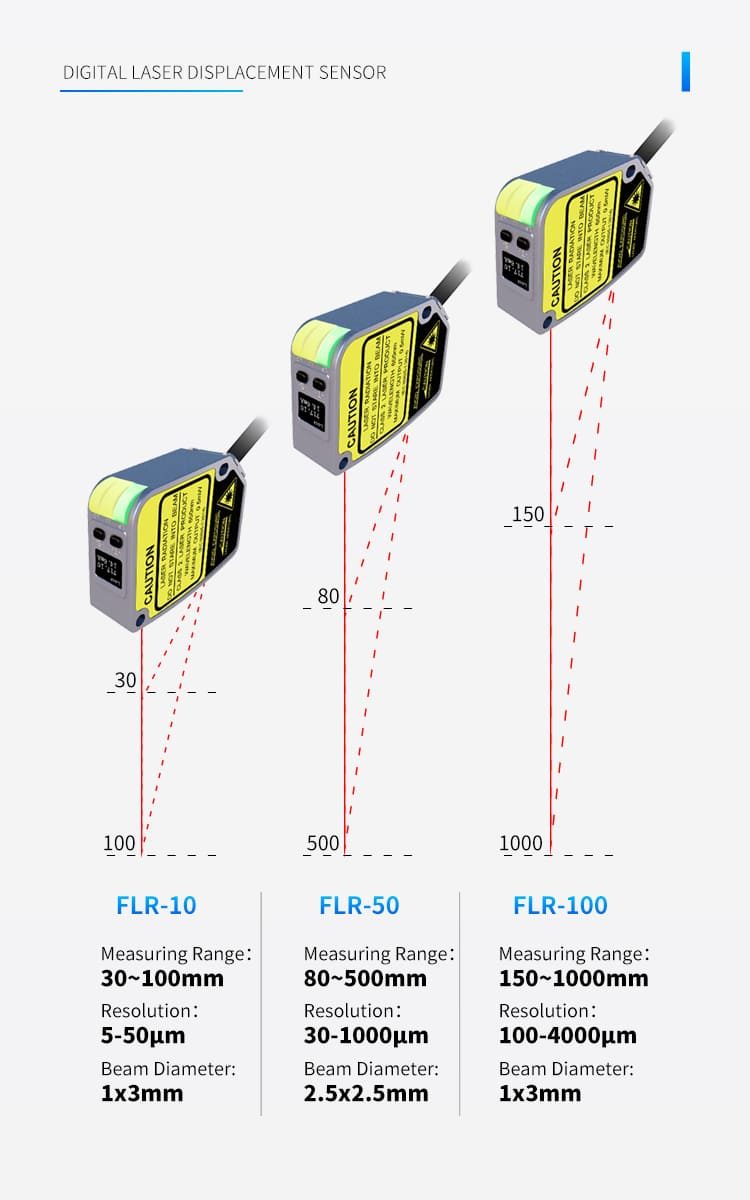

| Resolution |
5um@30mm; 50um@100mm |
| Repeat Accuracy |
10um@30mm; 30um@50mm; 100um@100mm |
| Temperature Drift |
±0.02% F.S./°C |
| Linear Accuracy |
±0.1% F.S. |
| Supply Voltage |
10-30VDC |
| Output 1 |
Analog: 4…20mA (Load resistance <390Ω) |
| Selling Units |
Single item |
| Single Package Size |
12X11X5 cm |
| Single Gross Weight |
0.410 kg |
