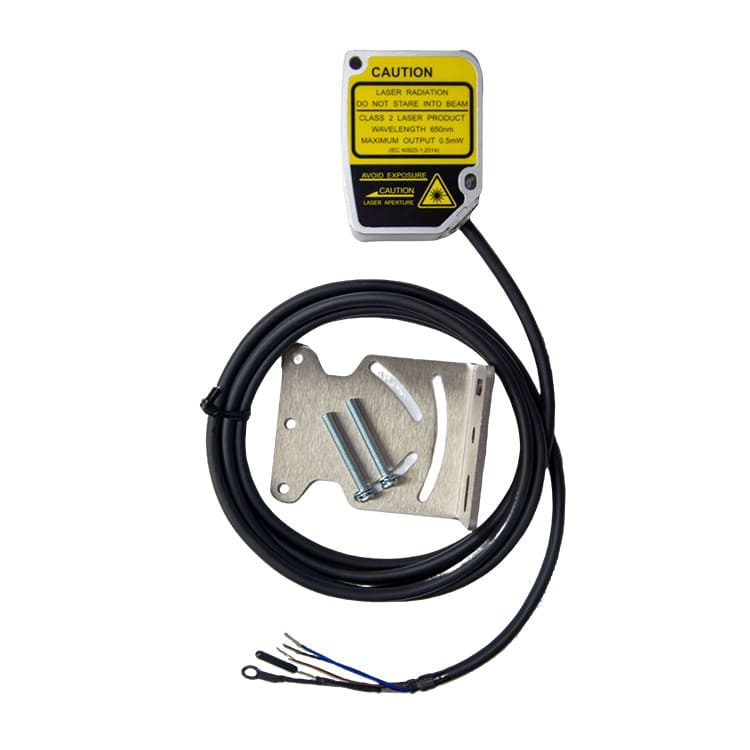

| Mounting Type |
Screw fixing |
| Manufacturing Date Code |
2023 |
| Model Number |
FLR-10-RS485-M |
| Brand Name |
FUWEI |
| Usage |

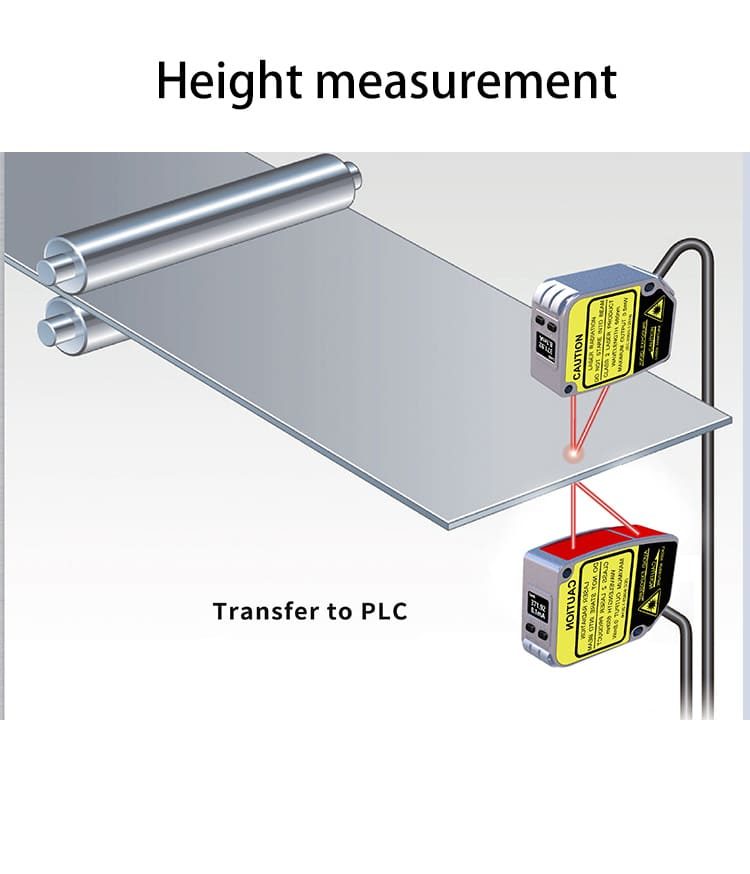

Distance control, Thickness measurement |
| Description |
High precision laser displacement sensor |
| Type |
Linear Displacement Sensor |
| Series |
FLR |
| Features |
High precision measurement |
| Place of Origin |
Guangdong, China |
| Theory |
Laser triangulation principle measurement method |
| Output |

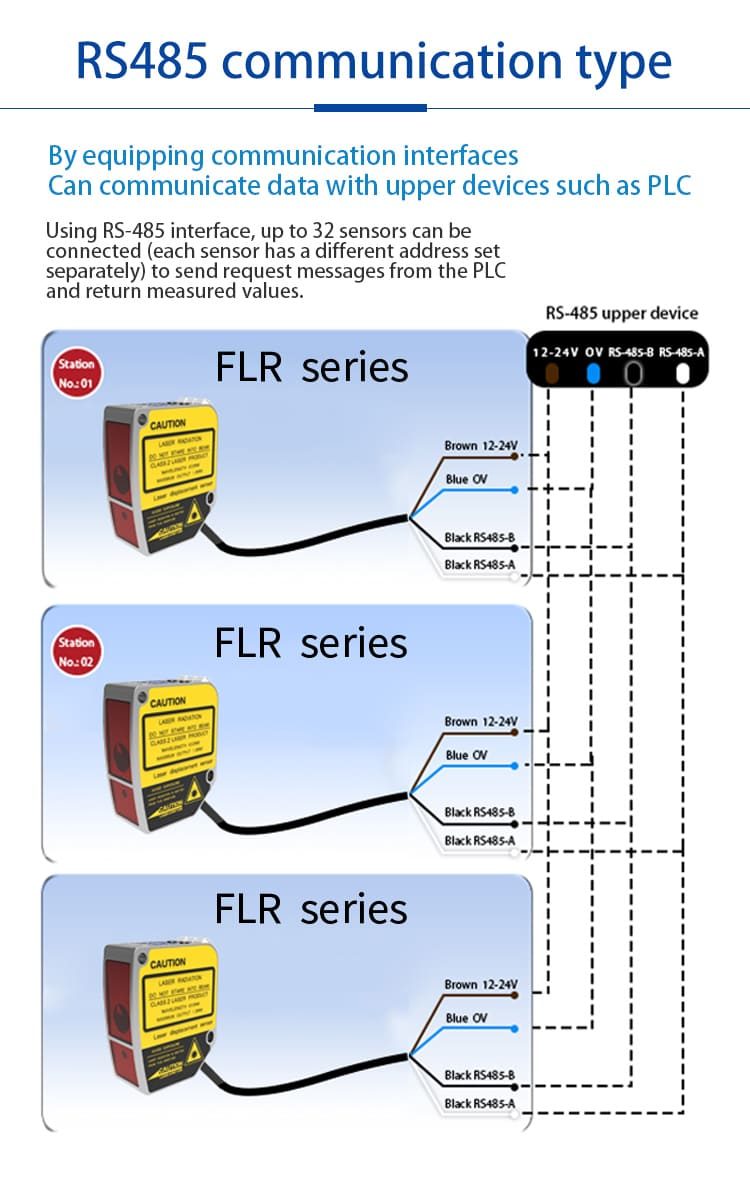

RS-485 (Support ModBus protocol) |

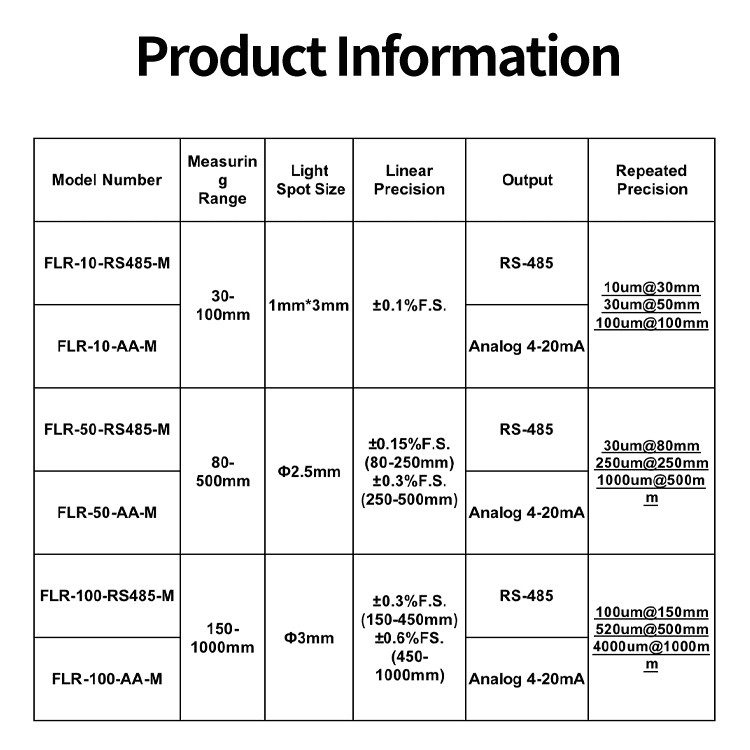

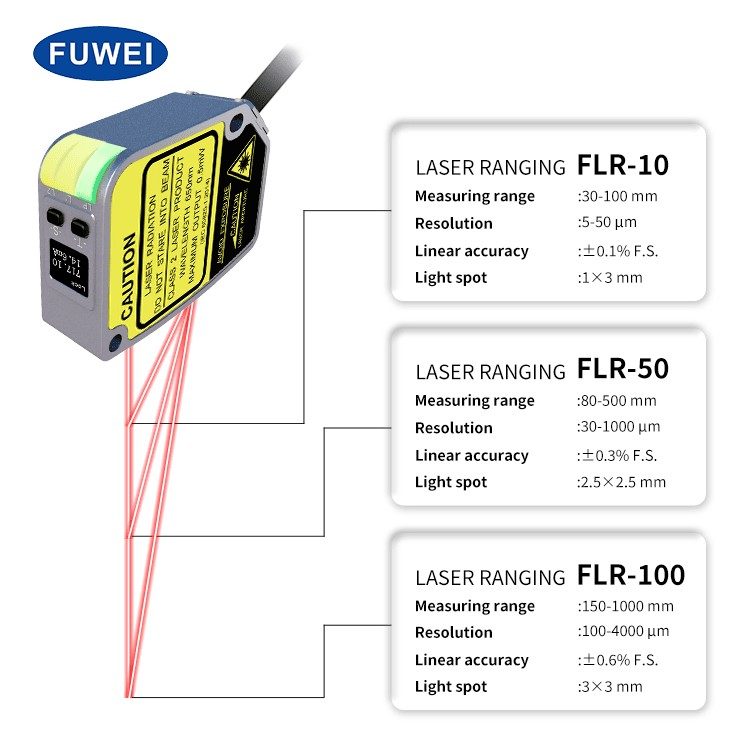

| Measuring Range |
30-100mm |
| Full Range (F.S.) |
70mm |

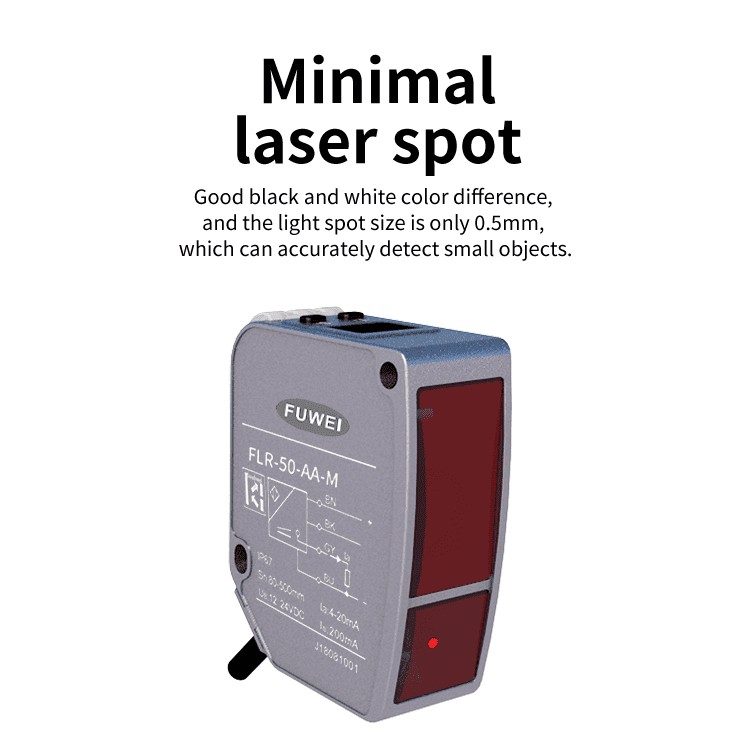

| Light Spot Size |
1 × 3mm @ 30mm |
| Resolution |
5µm @ 30mm; 50µm @ 100mm |
| Repeat Accuracy |
10µm @ 30mm; 30µm @ 50mm; 100µm @ 100mm |
| Temperature Drift |
±0.02% F.S./°C |
| Linear Accuracy |
±0.1% F.S. |
| Supply Voltage |
10-30VDC |

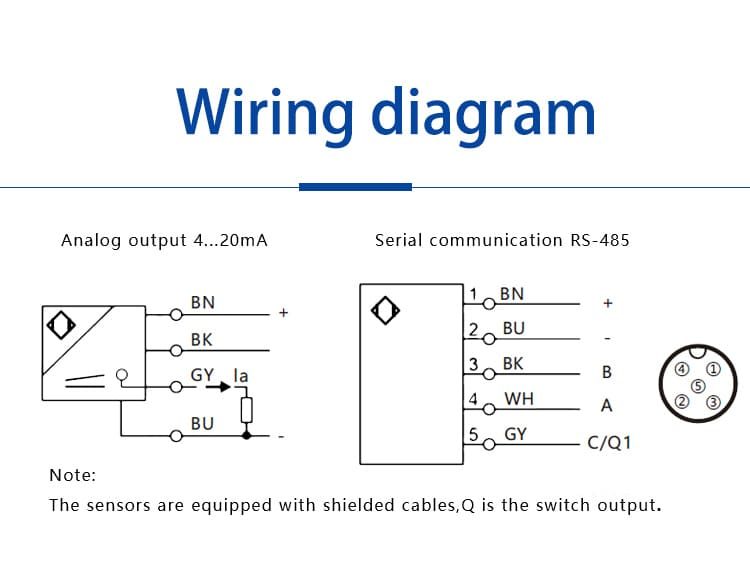

| Output 1 |
Digital value: RS-485 (Support ModBus protocol) |
| Packaging and Delivery |
| Selling Units |
Single item |
| Single Package Size |
18 × 12 × 5 cm |
| Single Gross Weight |
0.410 kg |
