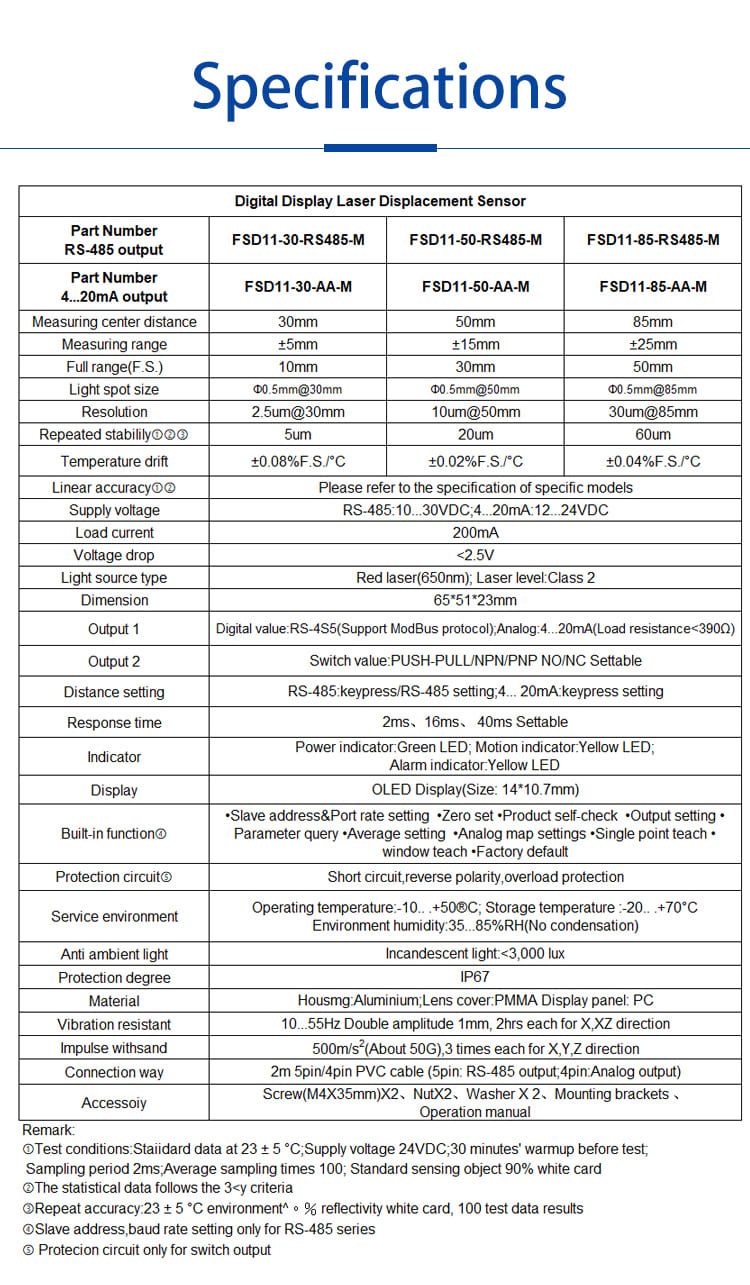

| Key Attributes | Details |
|---|---|

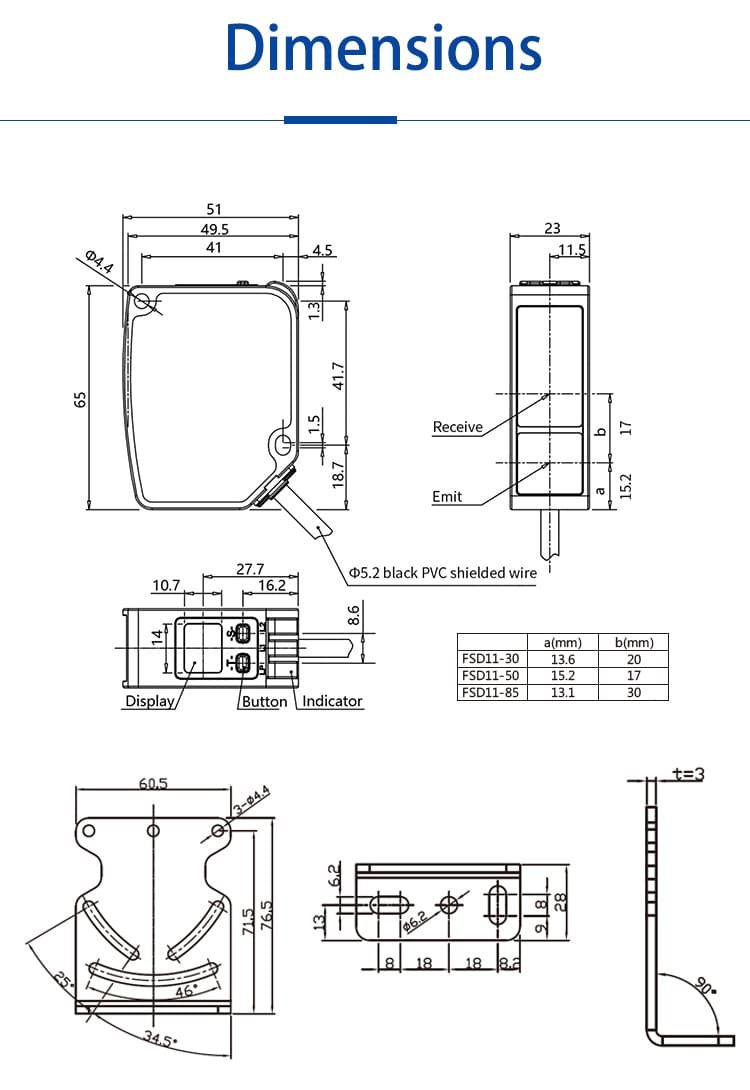

| Mounting Type | Screw fixing |
| Manufacturing Date Code | 2023 |

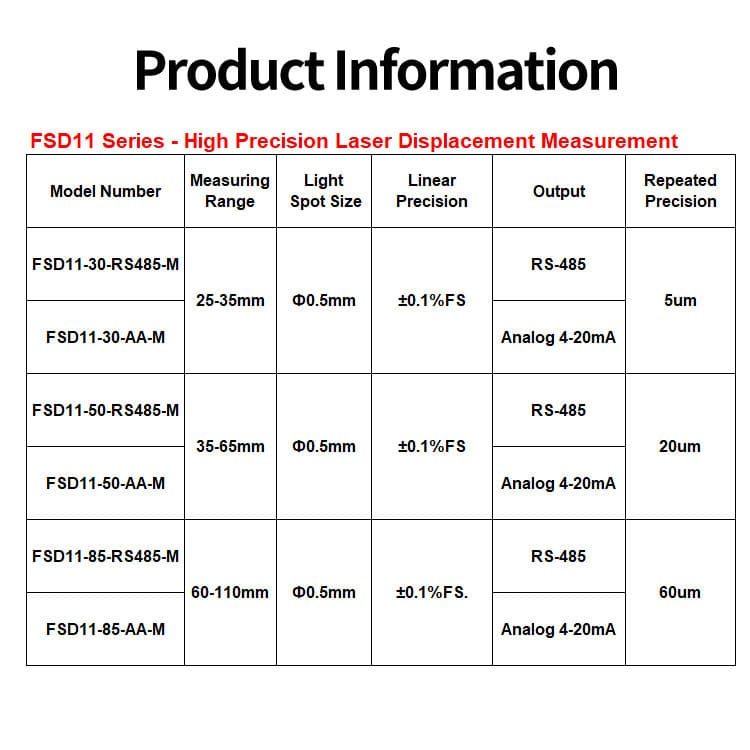

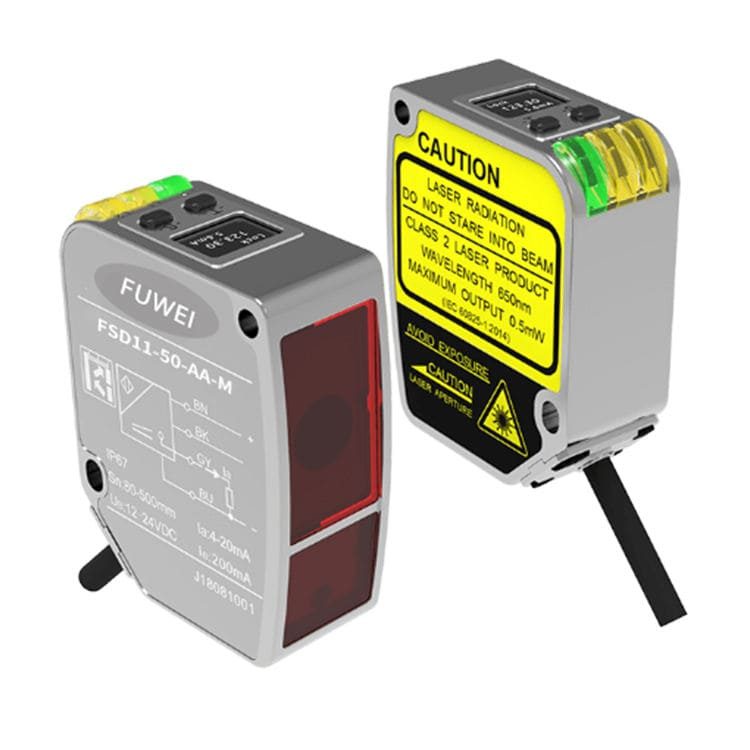

| Model Number | FSD11-85-AA-M |
| Brand Name | FUWEI |

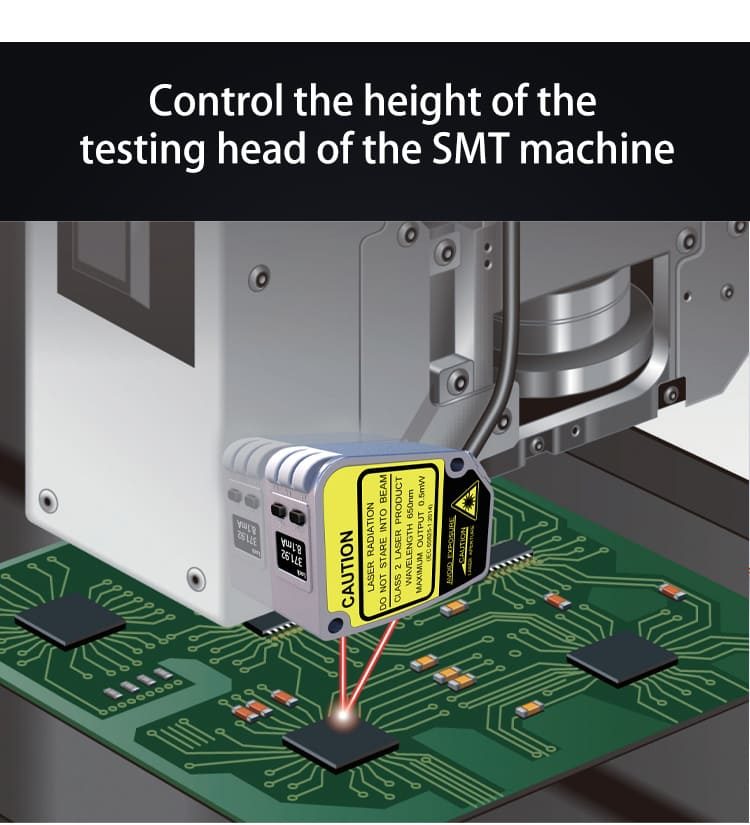

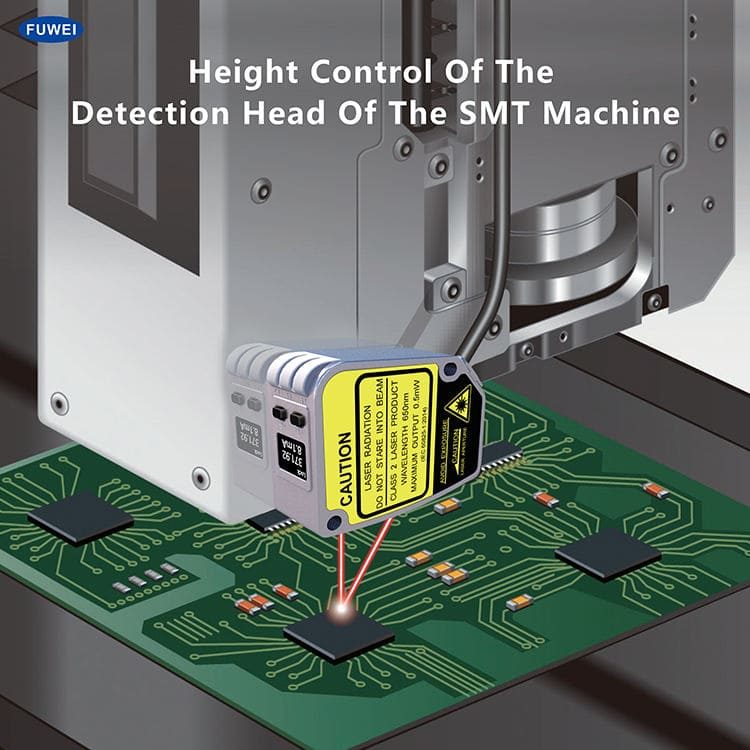

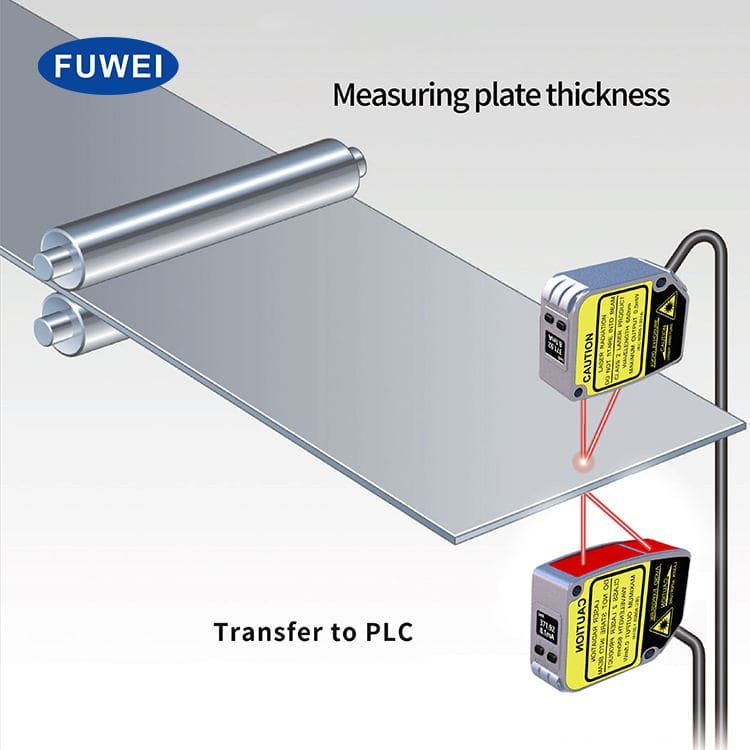

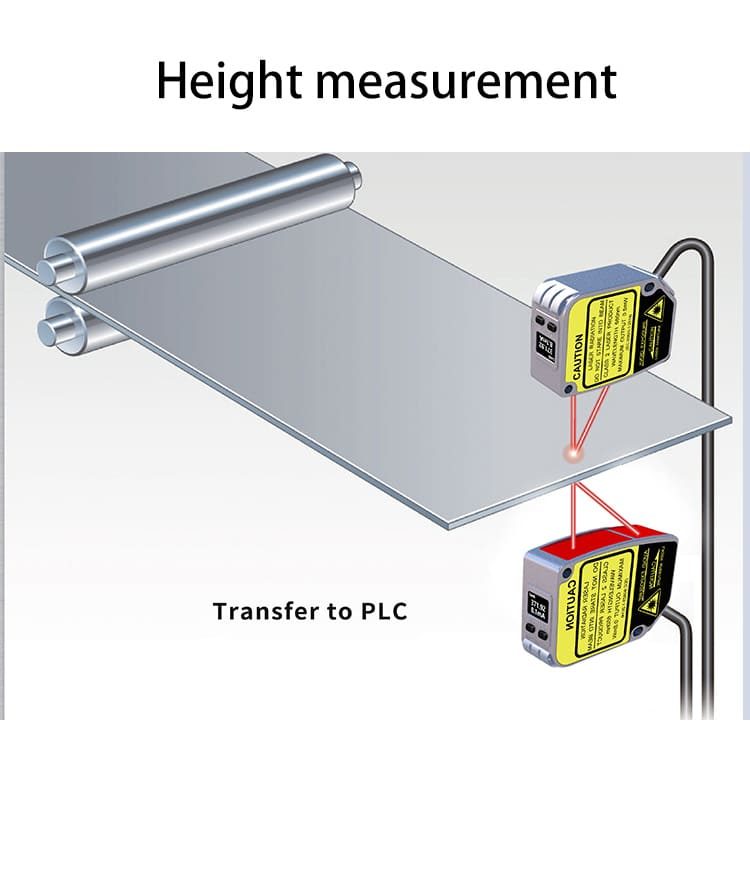

| Usage | Distance control, Thickness measurement |
| Description | High precision laser displacement sensor |
| Type | Optical sensor |
| Series | FSD11 |
| Features | High precision measurement |
| Place of Origin | Guangdong, China |

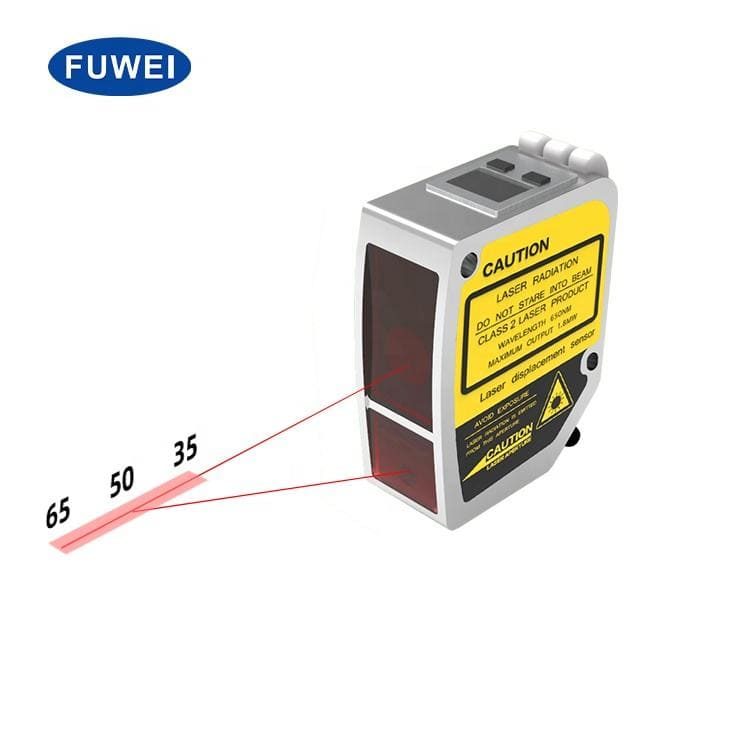

| Theory | Laser triangulation principle measurement method |
| Output | Analog 4…20mA (Load resistance <390Ω) |
| Measuring Center Distance | 85mm |
| Measuring Range | ±25mm |
| Full Range (F.S.) | 50mm |
| Light Spot Size | 0.5mm @ 85mm |
| Repeat Accuracy | 60μm |
| Temperature Drift | ±0.04% F.S./°C |
| Linear Accuracy | ±0.1% F.S. |
| Supply Voltage | 10-30VDC |
| Packaging and Delivery | Selling Units: Single item |
