| Key Attributes | |
|---|---|
| Mounting Type | Screw fixing |
| Manufacturing Date Code | 20240112 |
| Model Number | FSD11-85-RS485-M |
| Brand Name | FUWEI |
| Usage | Measuring Distance |
| Description | High precision laser displacement sensor |
| Type | Laser Displacement Sensor |
| Series | FSD11 |
| Features | High precision measurement |
| Place of Origin | Guangdong, China |
| Theory | Laser triangulation principle measurement method |

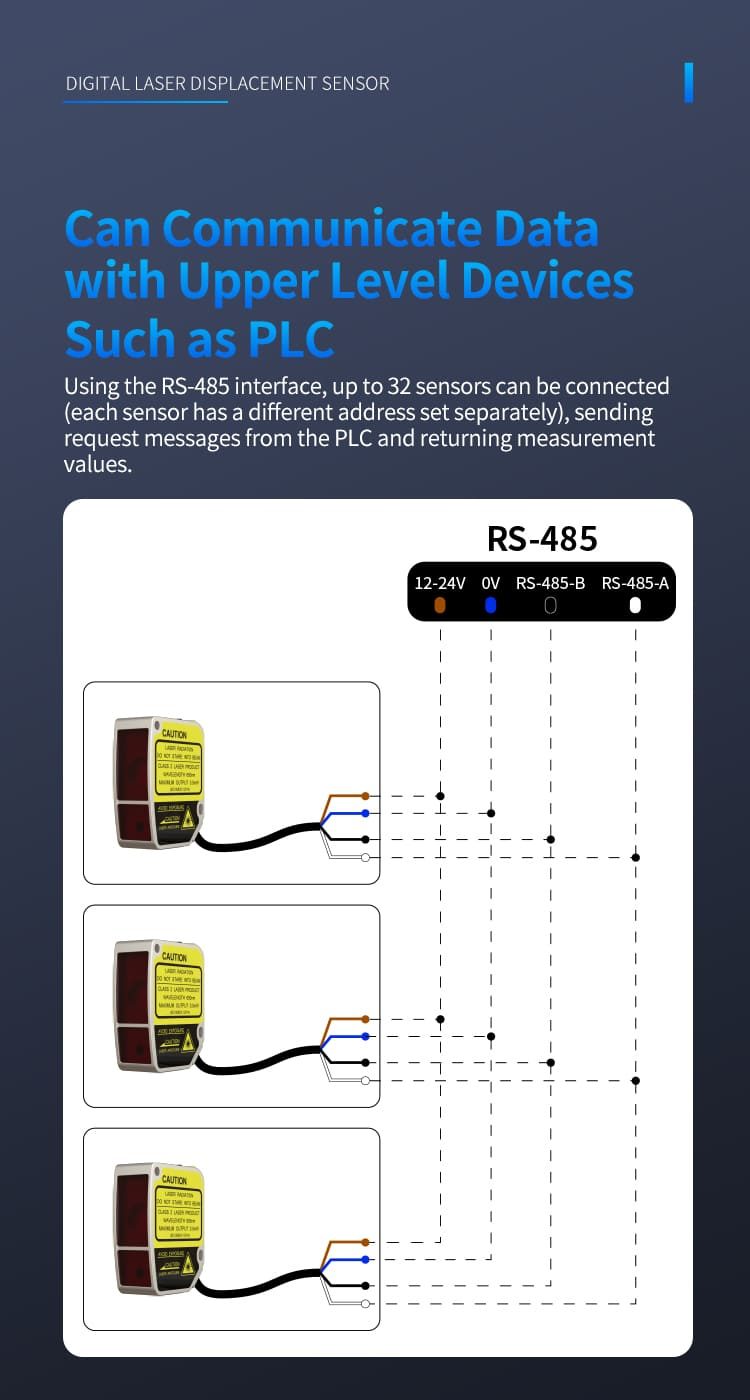

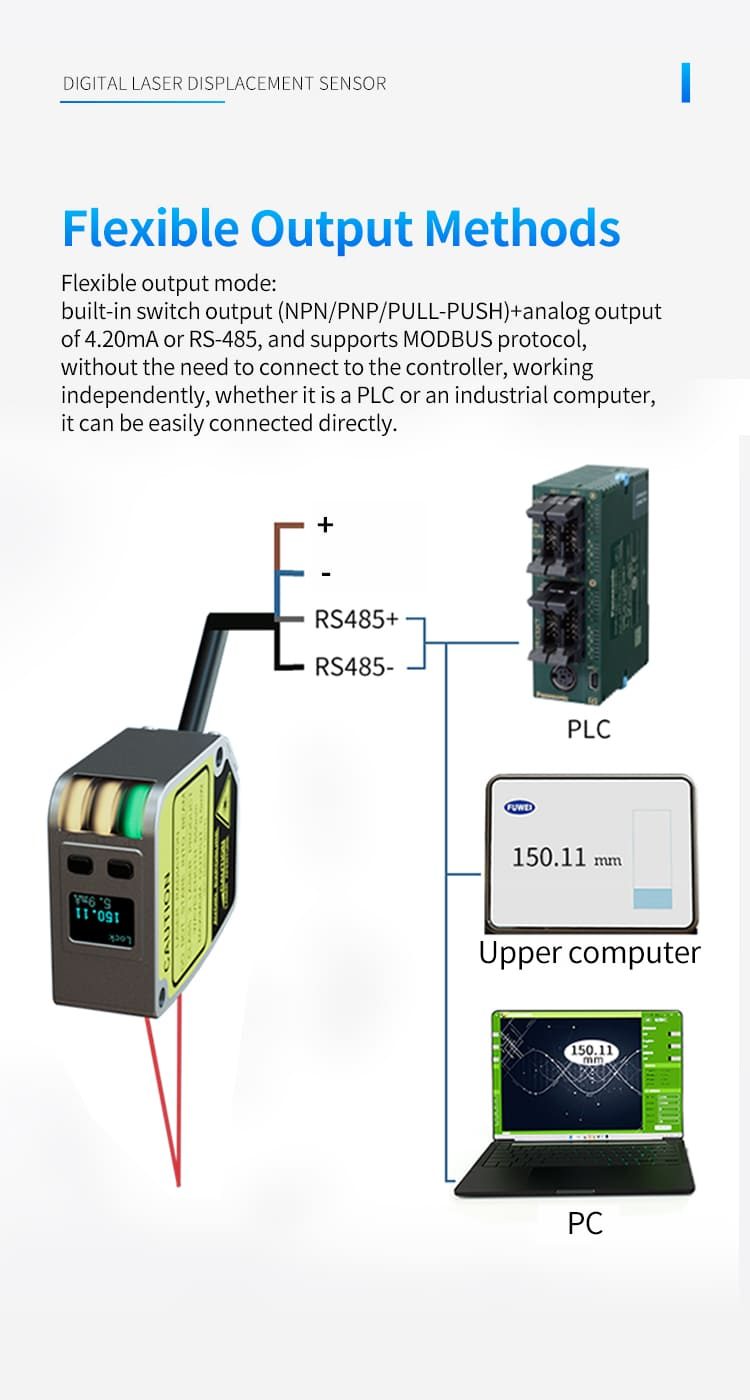

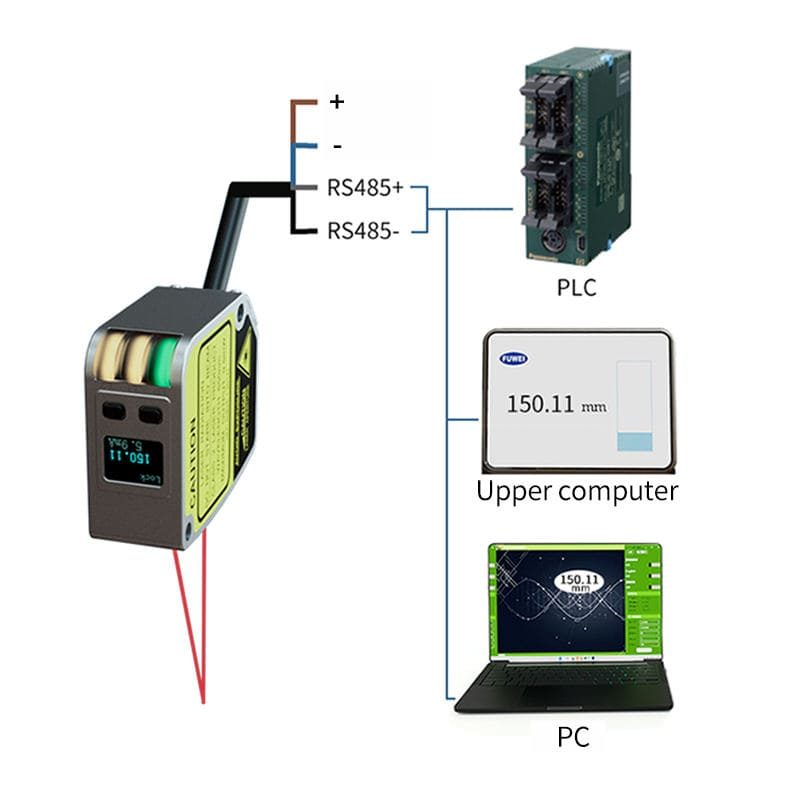

| Output | RS-485 (Support ModBus protocol) |

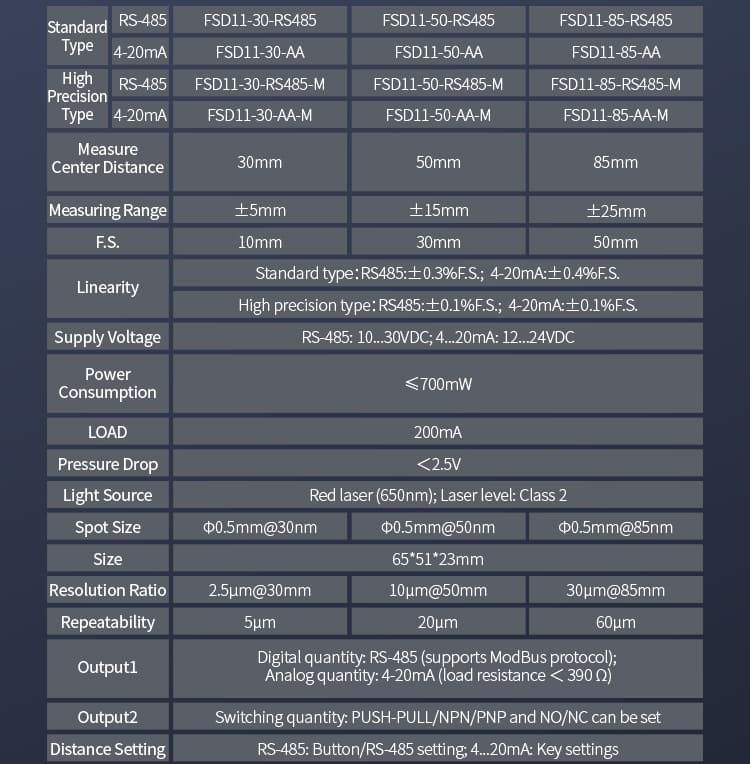

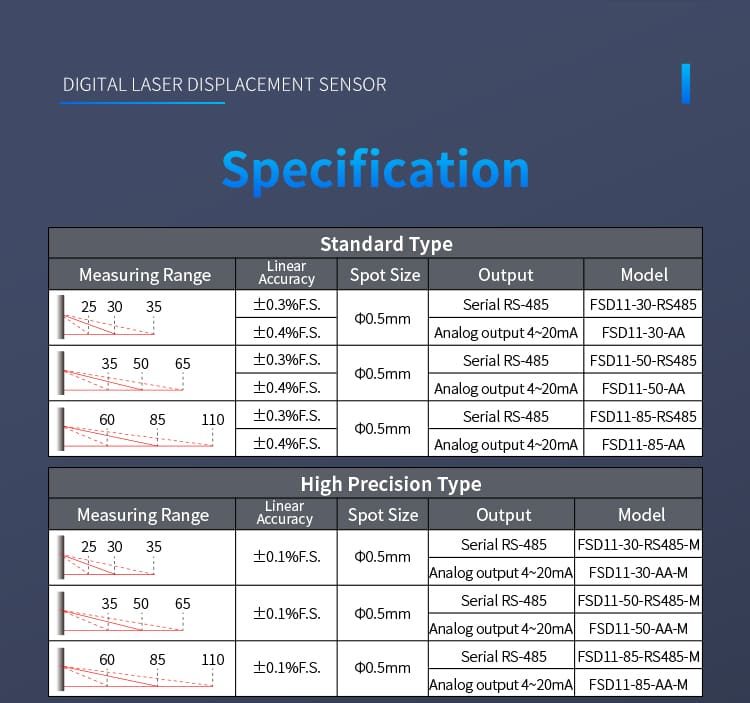

| Measuring Specifications | |

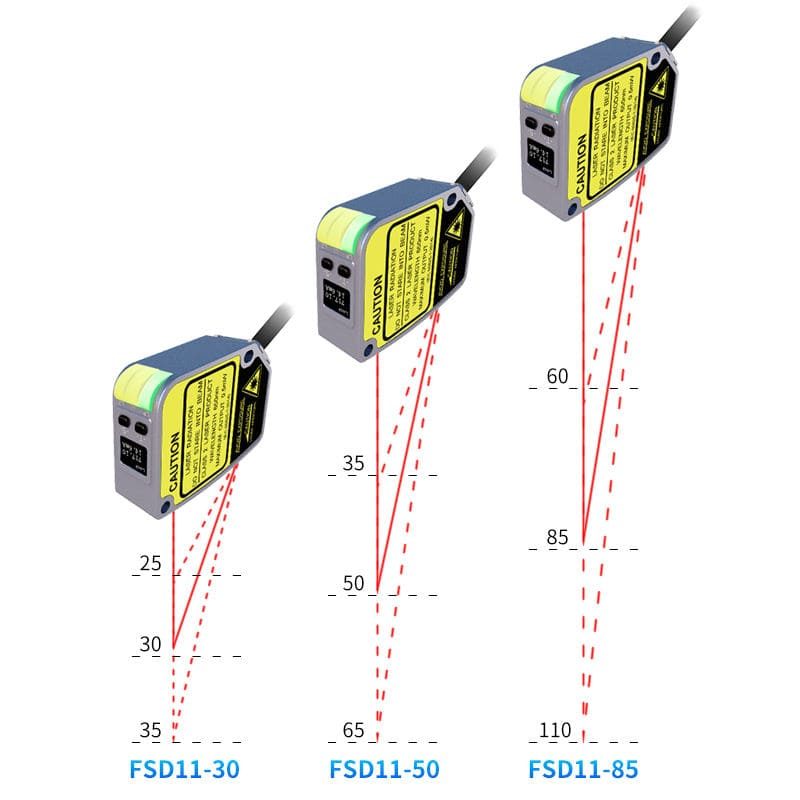

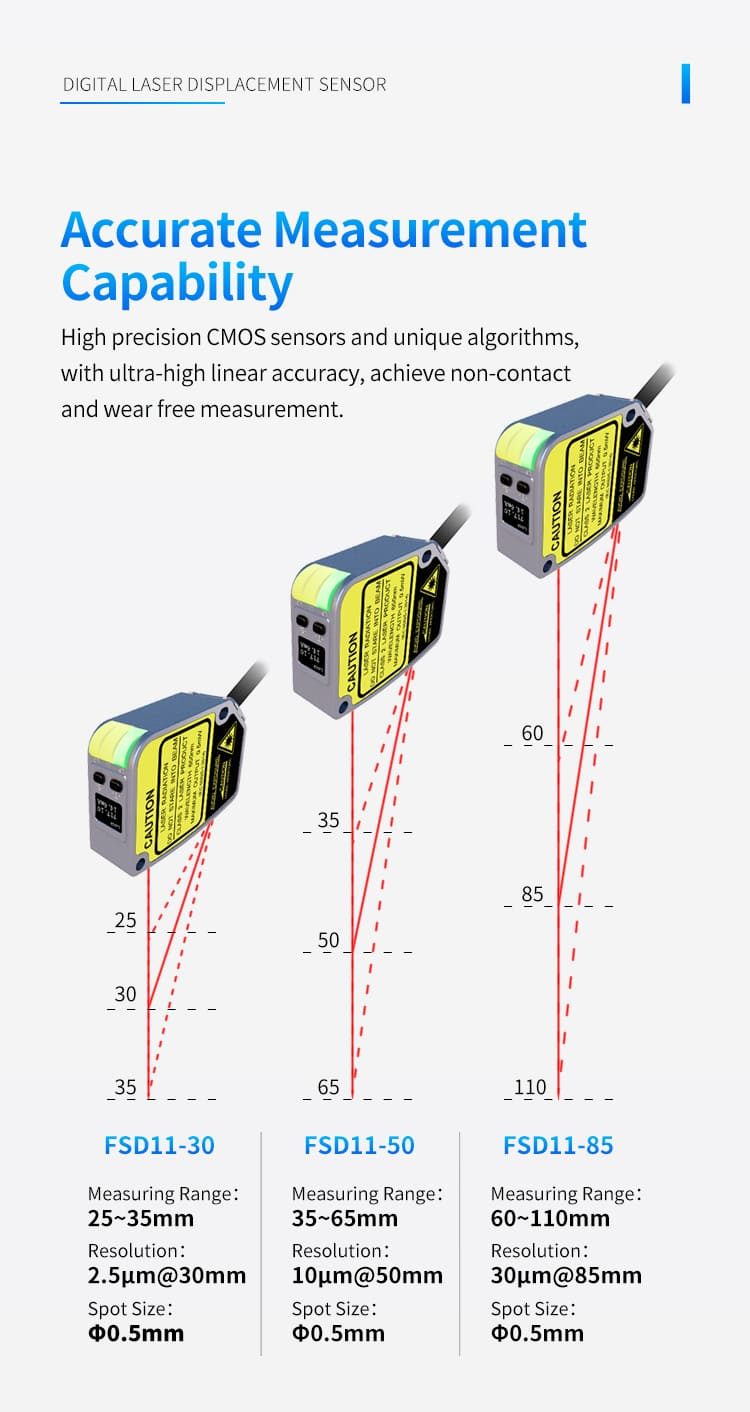

| Measuring Center Distance | 85mm |
| Measuring Range | ±25mm |
| Full Range (F.S.) | 50mm |

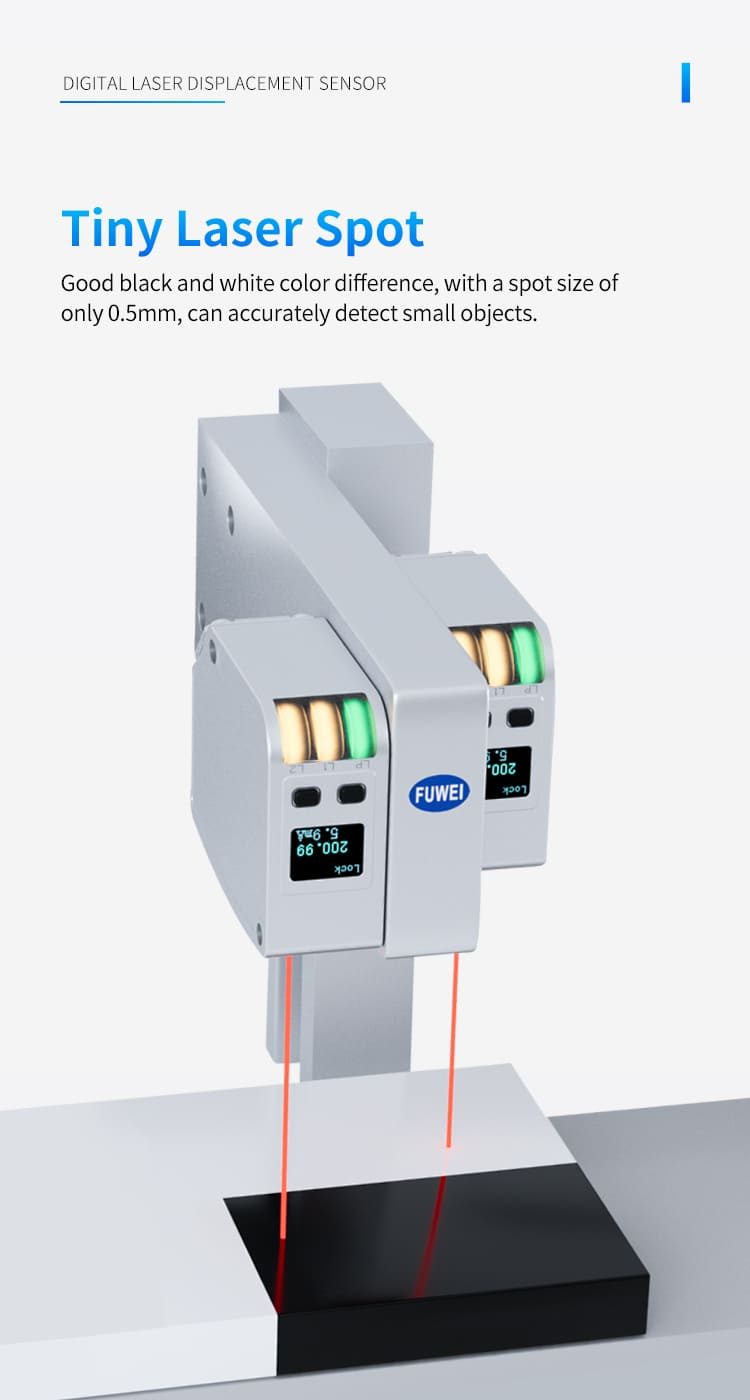

| Light Spot Size | 0.5mm @ 85mm |
| Resolution | 30µm @ 30mm |
| Repeat Accuracy | 60µm |
| Temperature Drift | ±0.04% F.S./°C |
| Linear Accuracy | ±0.1% F.S. |
| Supply Voltage | 10-30VDC |

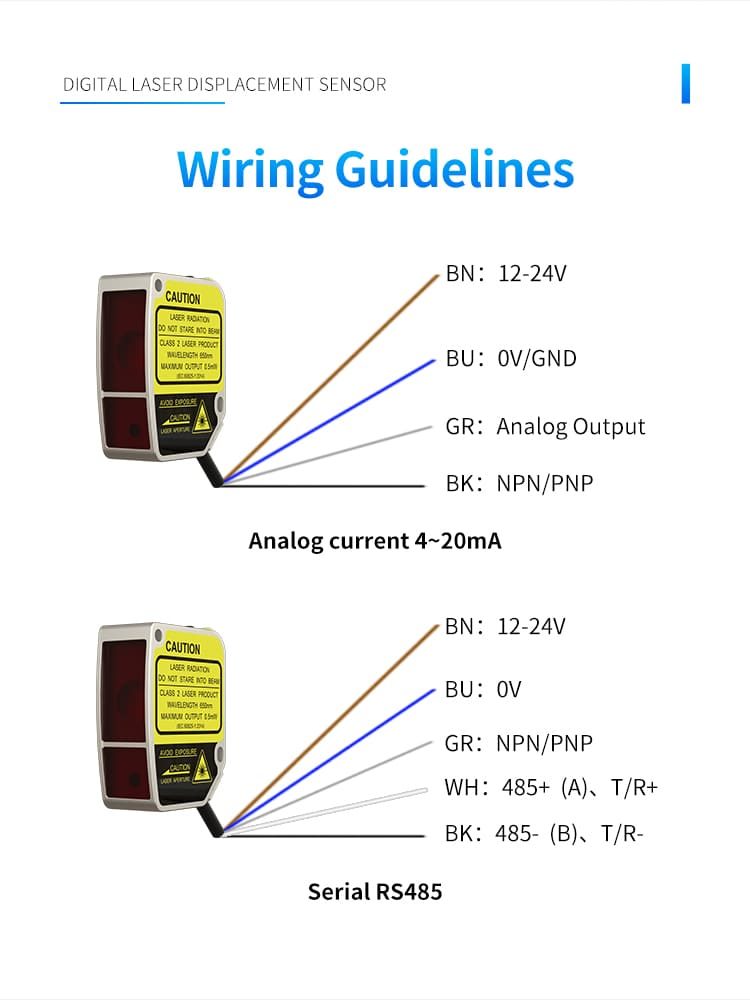

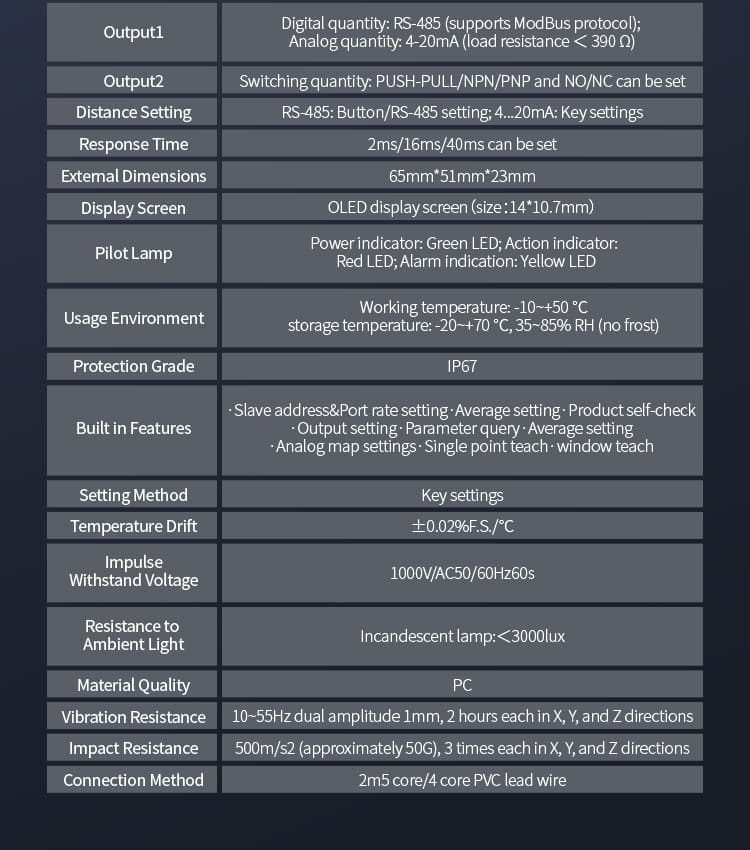

| Output 1 | Digital value: RS-485 (Support ModBus protocol) |
| Packaging and Delivery | |
| Selling Units | Single item |

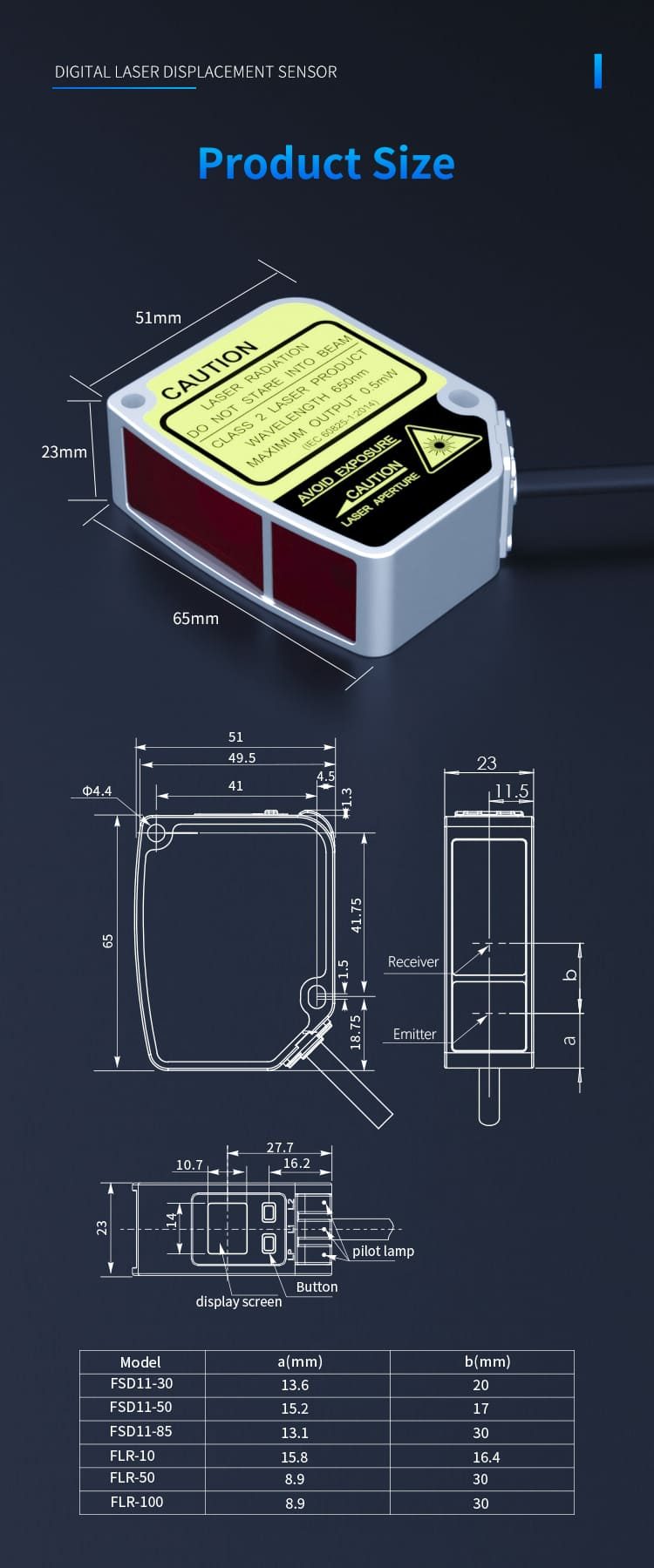

| Single Package Size | 10×10×4 cm |
| Single Gross Weight | 0.500 kg |
