| Key Attributes | Details |
|---|---|
| Mounting Type | Bundled Installation |
| Manufacturing Date Code | 2024 |

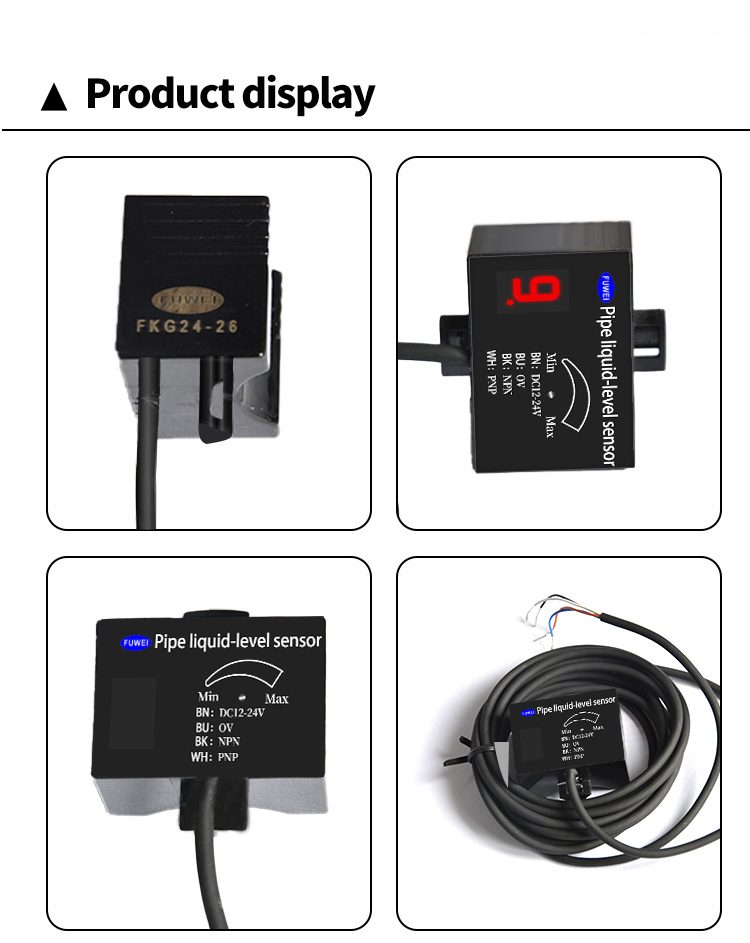

| Model Number | FKG24-26 |
| Brand Name | FUWEI |

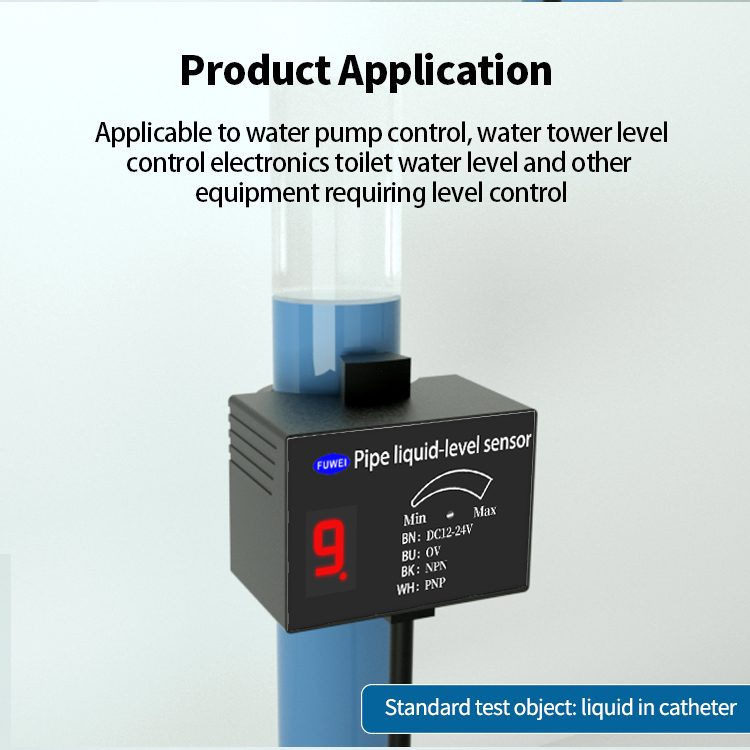

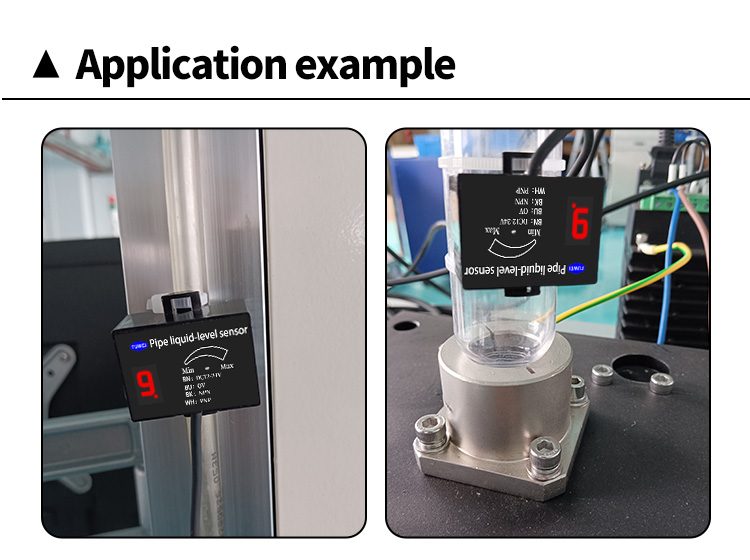

| Usage | Liquid Level Detection Control |
| Power Source | 24V |
| Description | Precise Liquid Level Measurement |
| Type | Liquid Level Sensor |
| Series | FKG24-26 |
| Features | Liquid level sensing precision |
| Place of Origin | Guangdong, China |

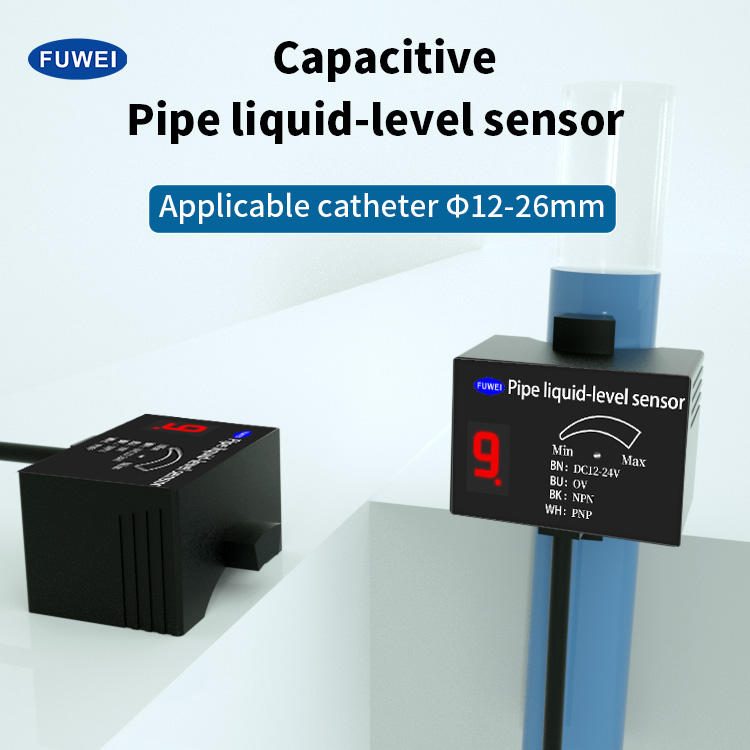

| Theory | Capacitive Detection Principle |
| Output | NPN, PNP |

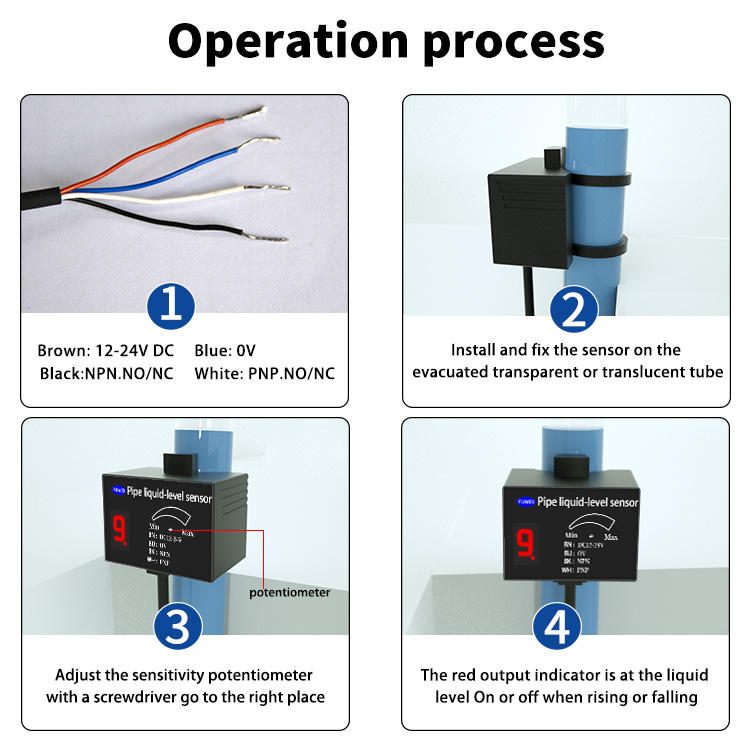

| Connection Way | 2m PVC Cable |
| Applicable Pipe Outer Diameter | 13-26mm |
| Applicable Pipe Wall Thickness | <3mm |
| Supply Voltage | 10-30VDC |
| Consumption Current | <15mA |

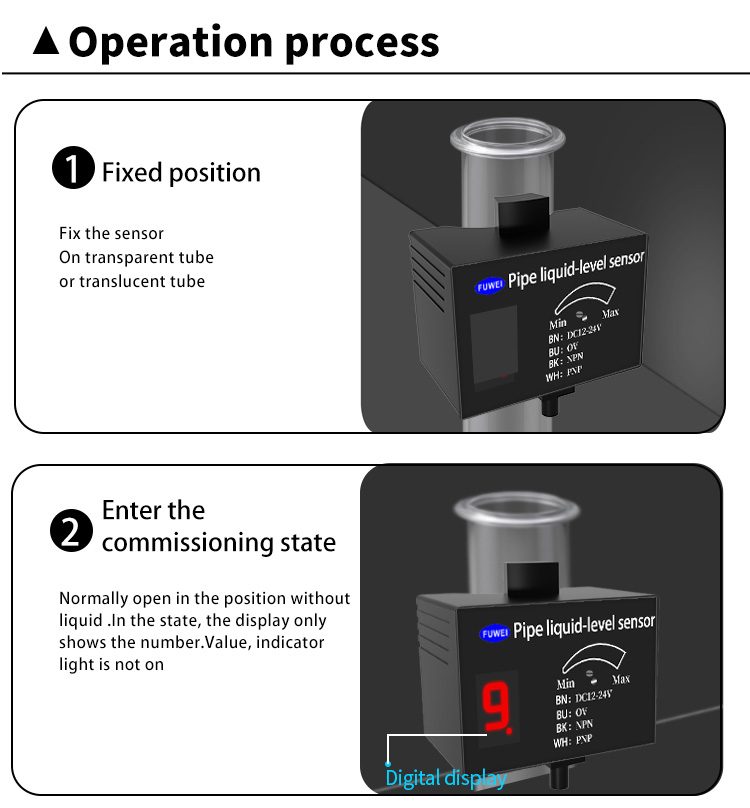

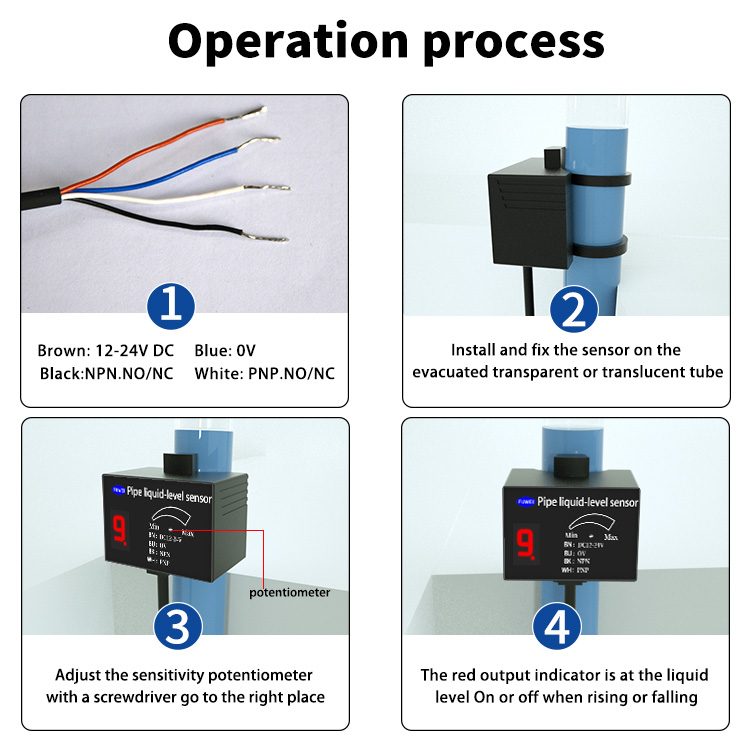

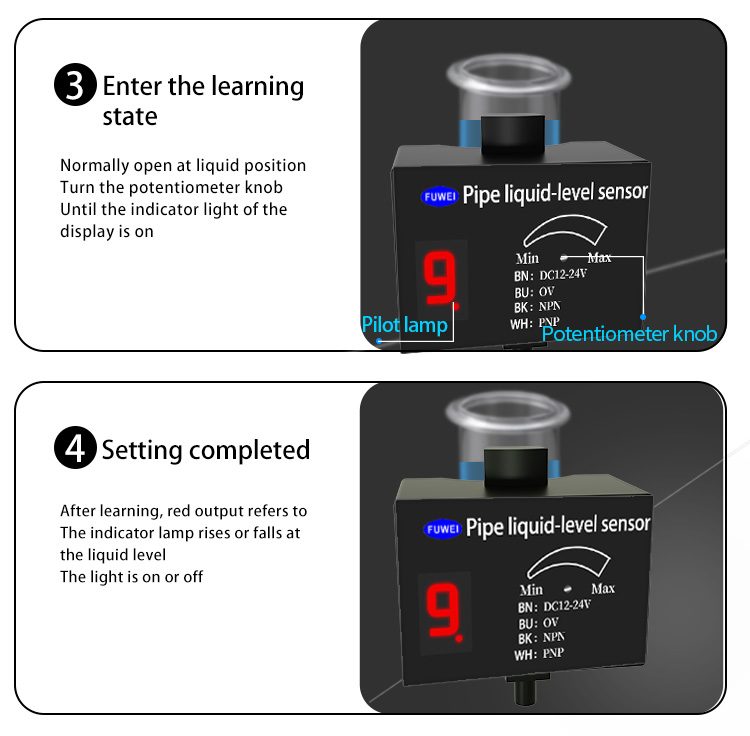

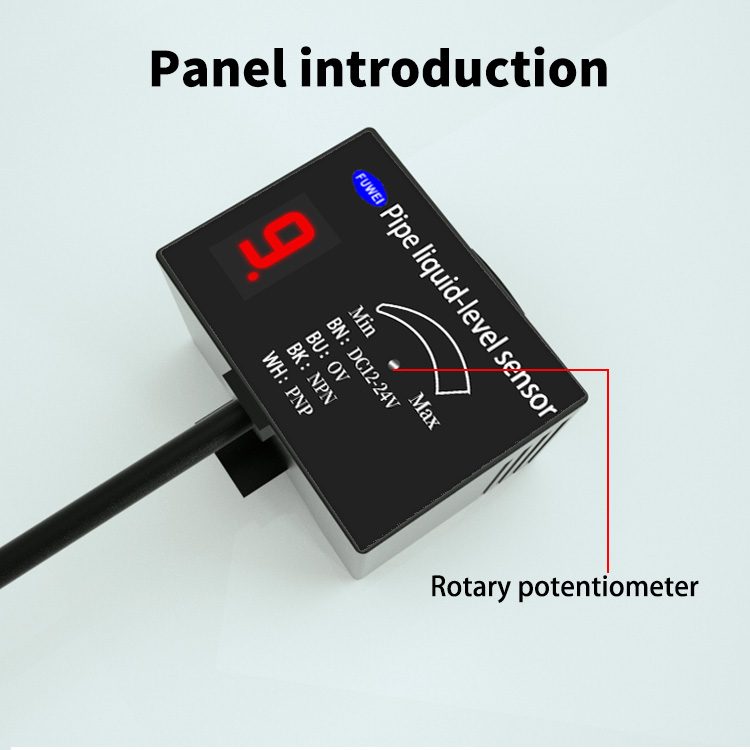

| Sensitivity Adjustment | Knob Adjustment |
| Short-circuit Protection | Built-in |
| Reverse Power Protection | Built-in |
| Ambient Temperature | -10…+55℃ |
| Ambient Humidity | 35…95% |
| Selling Units | Single Item |
| Single Package Size | 16 x 15 x 5 cm |
| Single Gross Weight | 0.085 kg |
