| Key Attributes |
|---|
| Mounting Type | Bundled Installation |
| Manufacturing Date Code | 2023 |

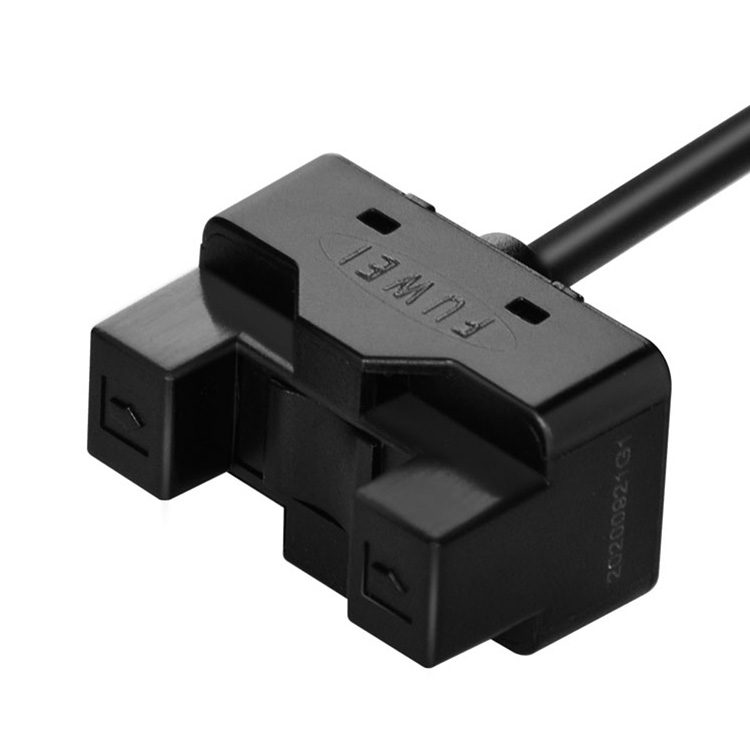

| Model Number | FGU-G613 |
| Brand Name | FUWEI |

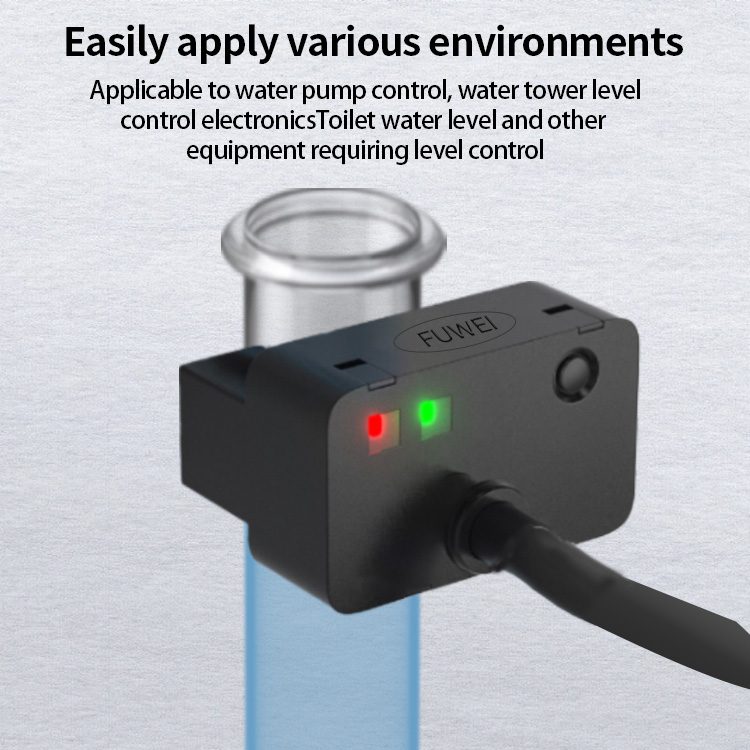

| Usage | Liquid Level Detection Control |
| Theory | Photoelectric Detection Principle |
| Description | Precise Liquid Level Measurement |

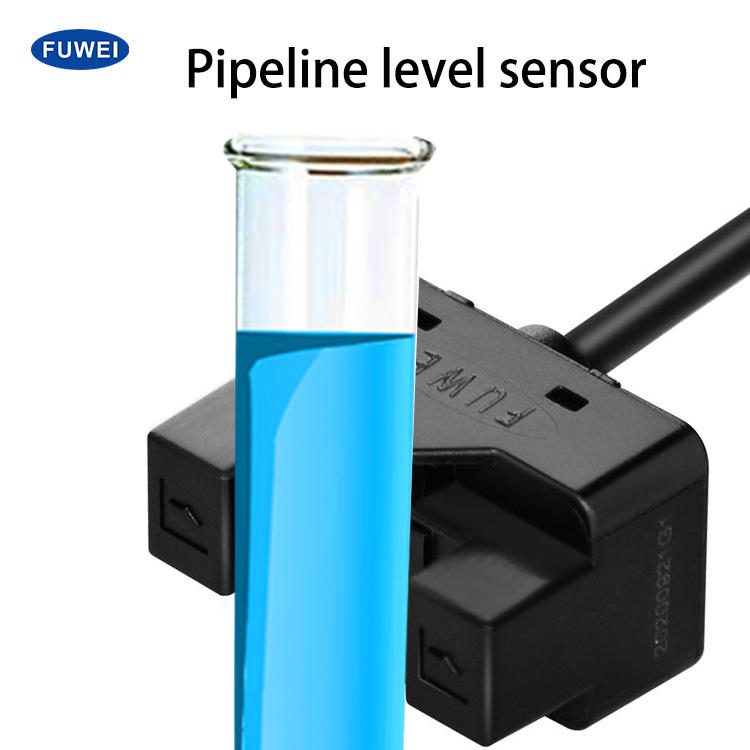

| Type | Liquid Level Sensor |
| Series | FGU-G613 |
| Features | Liquid level sensing precision |
| Place of Origin | Guangdong, China |

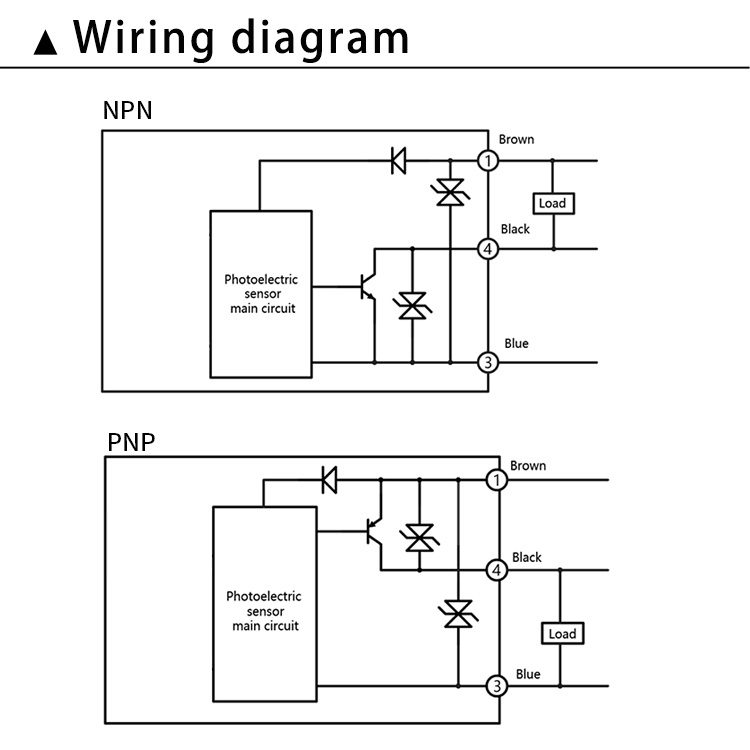

| Output | NPN, PNP |

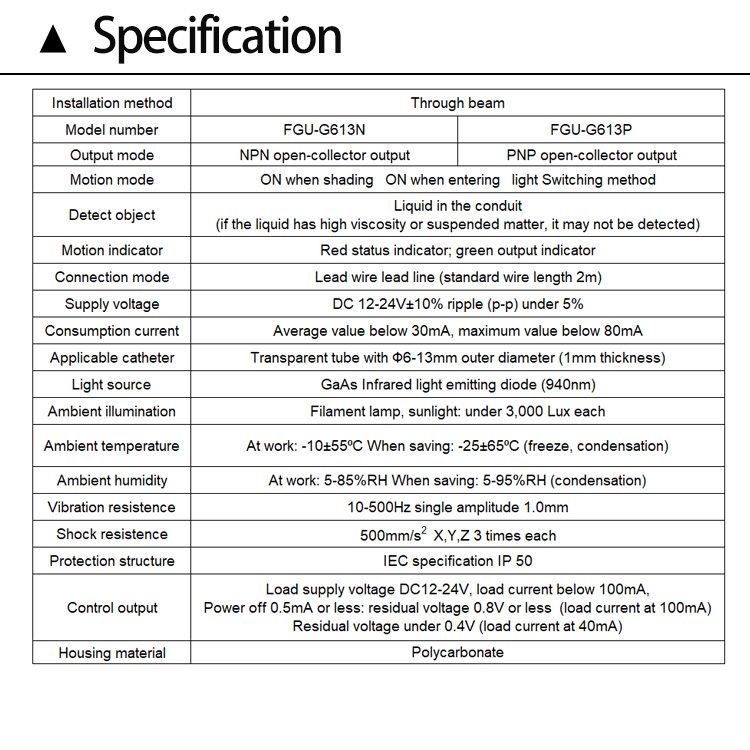

| Description | Liquid Level Sensor |

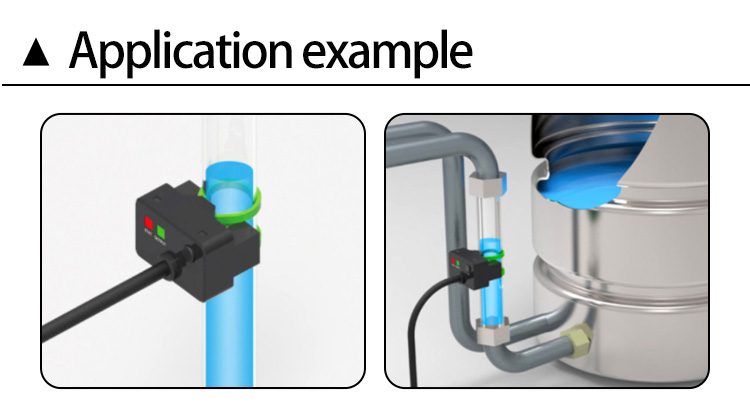

| Detect objects | Liquid in the catheter |
| Supply voltage | 12-24VDC |

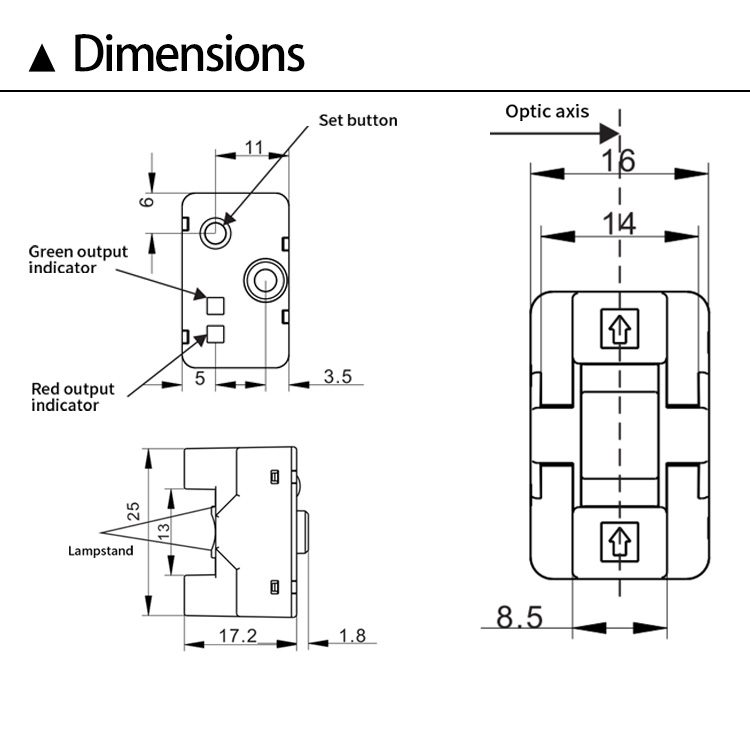

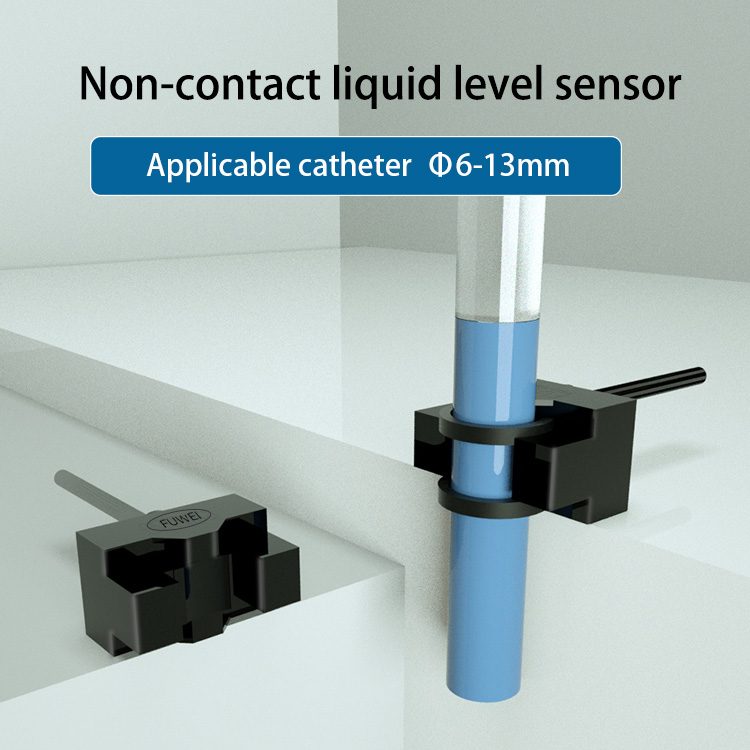

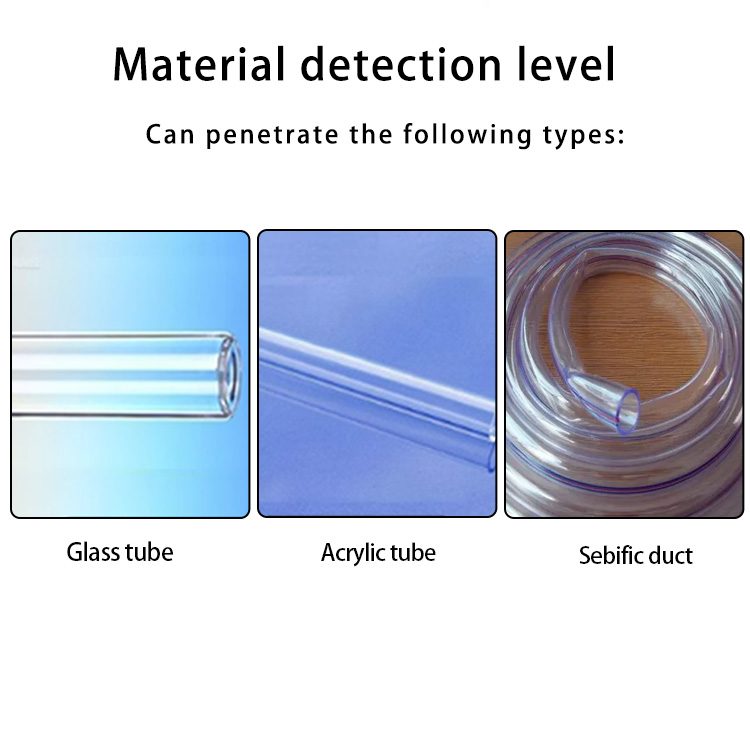

| Applicable pipe outer diameter | 6-13mm |
| Applicable pipe wall thickness | <1mm |
| Consumption current | <80mA |
| International Protection | IP50 |
| Short-circuit protection | Built-in |
| Reverse Power Protection | Built-in |

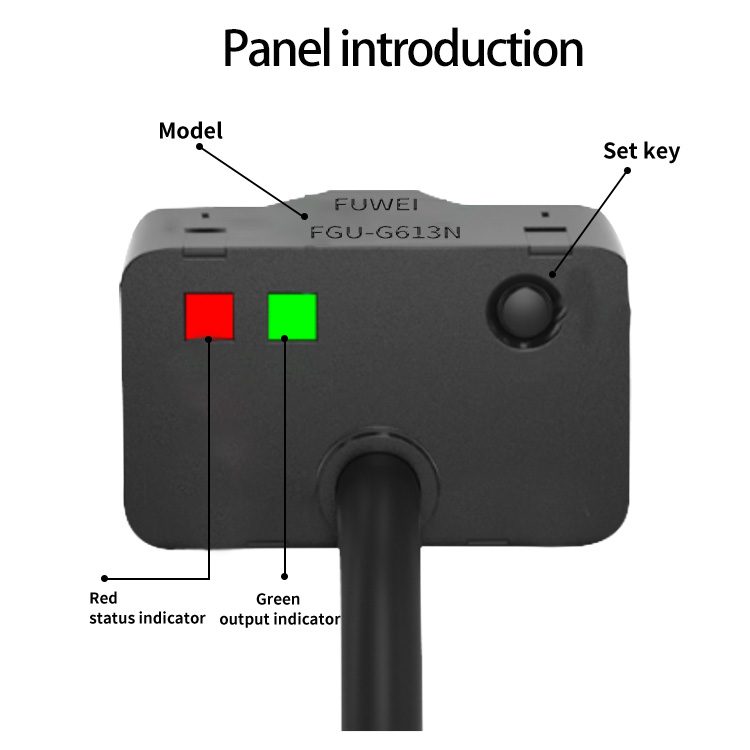

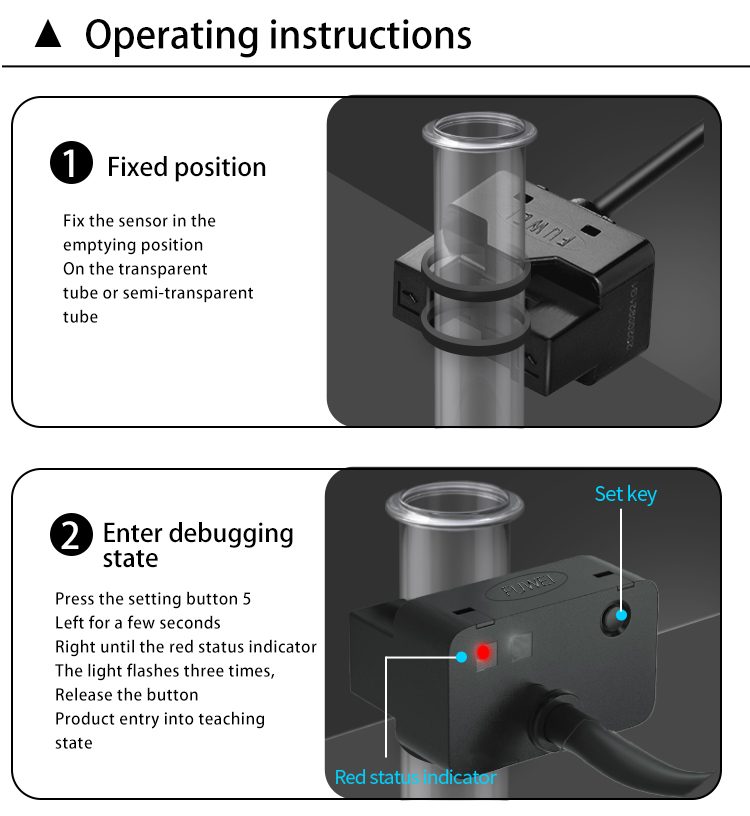

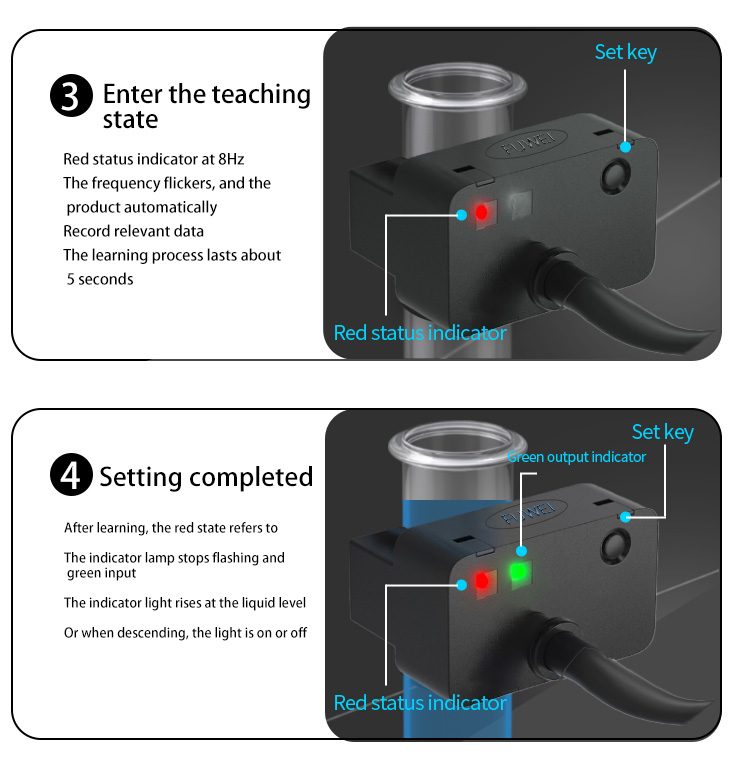

| Sensitivity adjustment | Push button self-learning |
| Connection way | 2m PVC cable |
| Packaging and Delivery |
|---|
| Selling Units | Single item |
| Single package size | 12X11X4 cm |
| Single gross weight | 0.120 kg |
