| Key Attributes |
|---|
| Mounting Type | DIN rail fixed installation |
| Manufacturing Date Code | 20240112 |

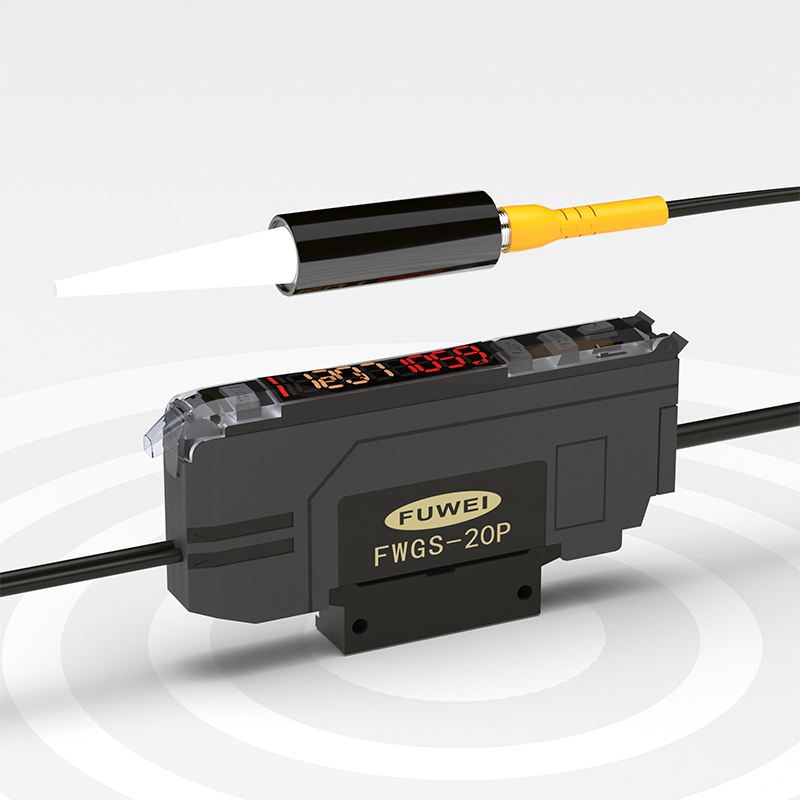

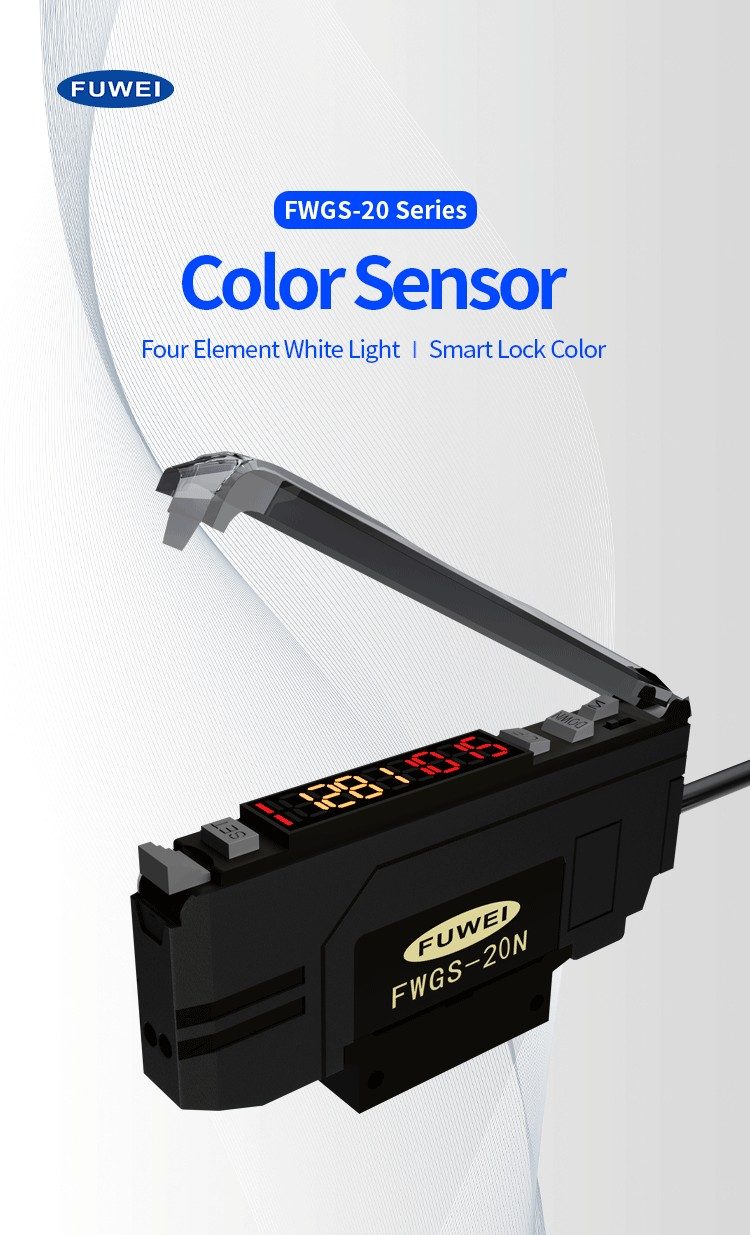

| Model Number | FWGS-20P |
| Brand Name | FUWEI |

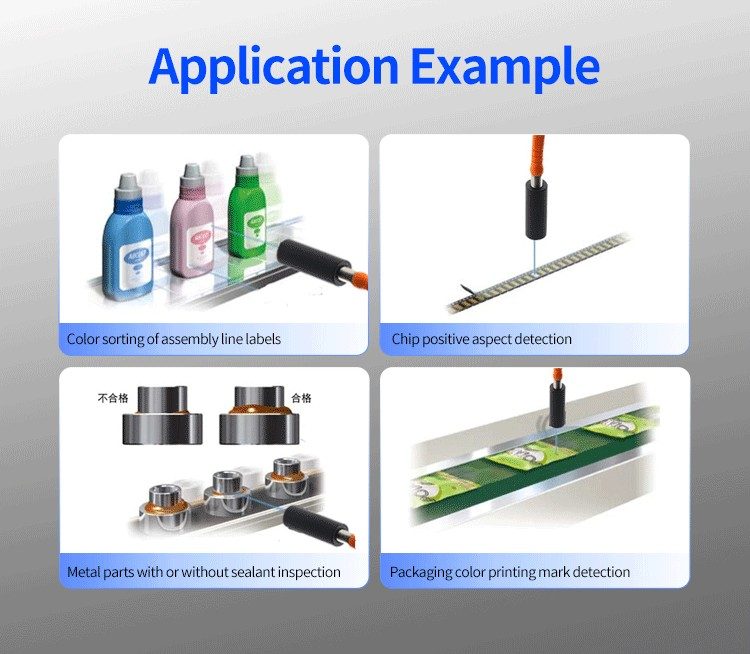

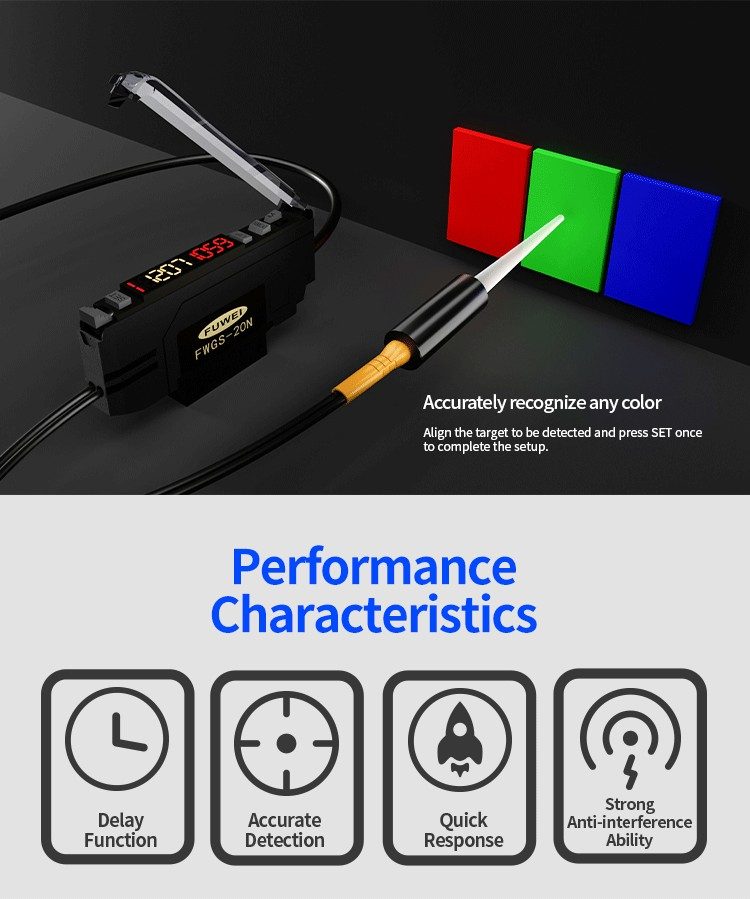

| Usage | Color recognition detection |
| Description | RGB color sensor, Color sensor |
| Type | Color Mark Sensor |
| Series | FWGS-20 |
| Features | Color Recognition Sensor |
| Place of Origin | Guangdong, China |
| Theory | RGB tricolor light source |

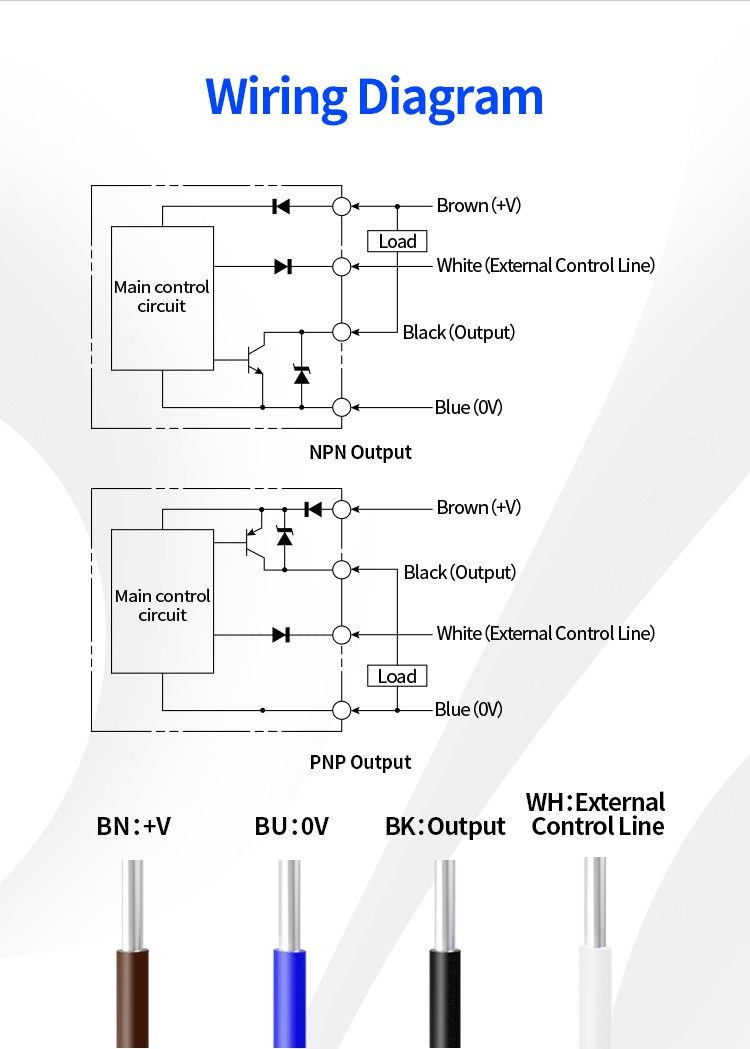

| Output | PNP |
| Description | Color Mark Sensor |

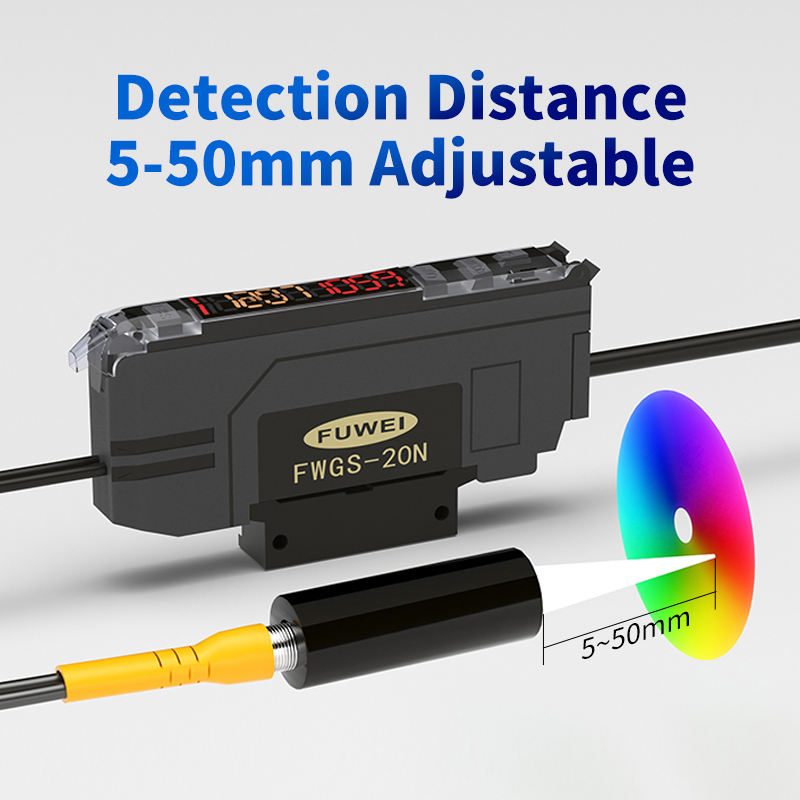

| Detection distance | 5-50mm |
| Control output | One output port |
| Spot size | 3-10mm |
| Flare Type | Round spot |
| Reaction time | Under 130µs |
| Supply voltage | 12-24VDC |

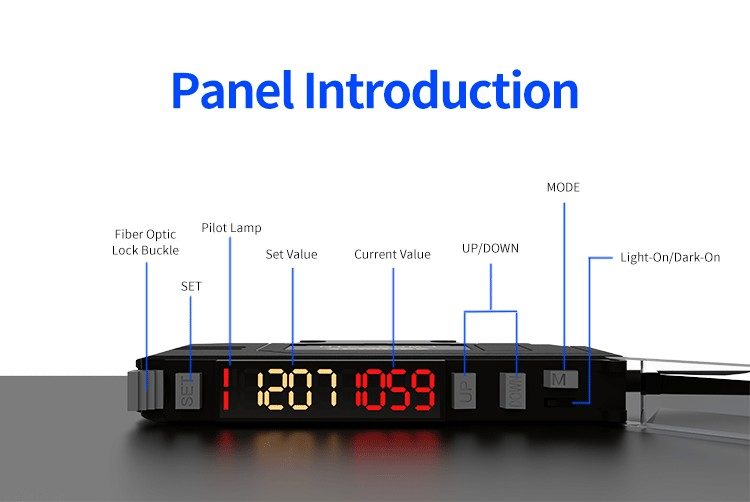

| Output Selection | LIGHT-ON / DARK-ON |
| Projection element | White, four-element LED body |
| Housing material | Polycarbonate |

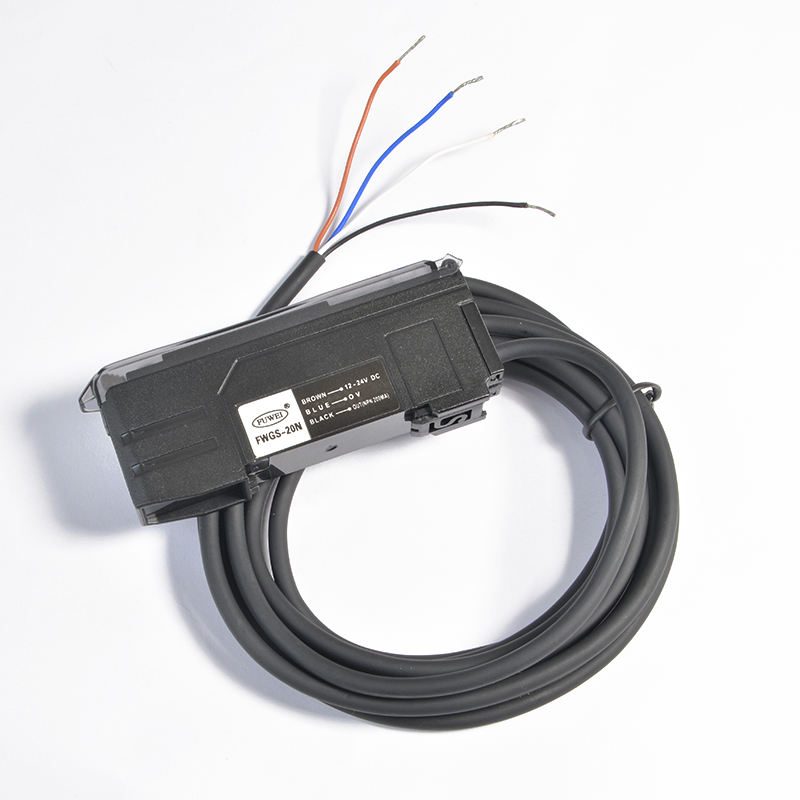

| Connection | 2m PVC |
| Packaging and Delivery |
|---|
| Selling Units | Single item |
| Single package size | 15 × 12 × 5 cm |
| Single gross weight | 0.110 kg |
