| Key Attributes | |
|---|---|

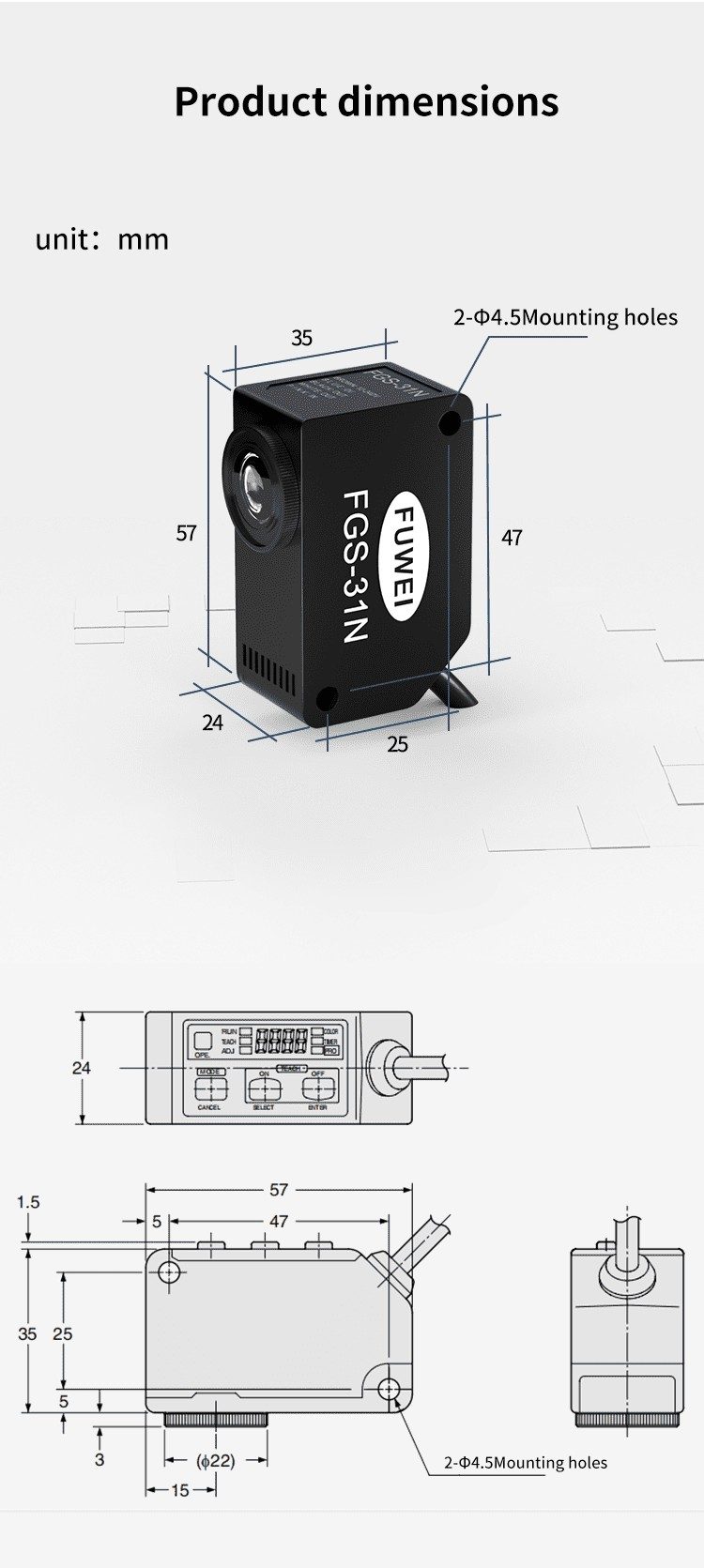

| Mounting Type | Bolt Mounting |
| Manufacturing Date Code | 2024 |
| Model Number | FGS-31P |
| Brand Name | FUWEI |
| Usage | Color identification |
| Description | Precise Color Recognition |

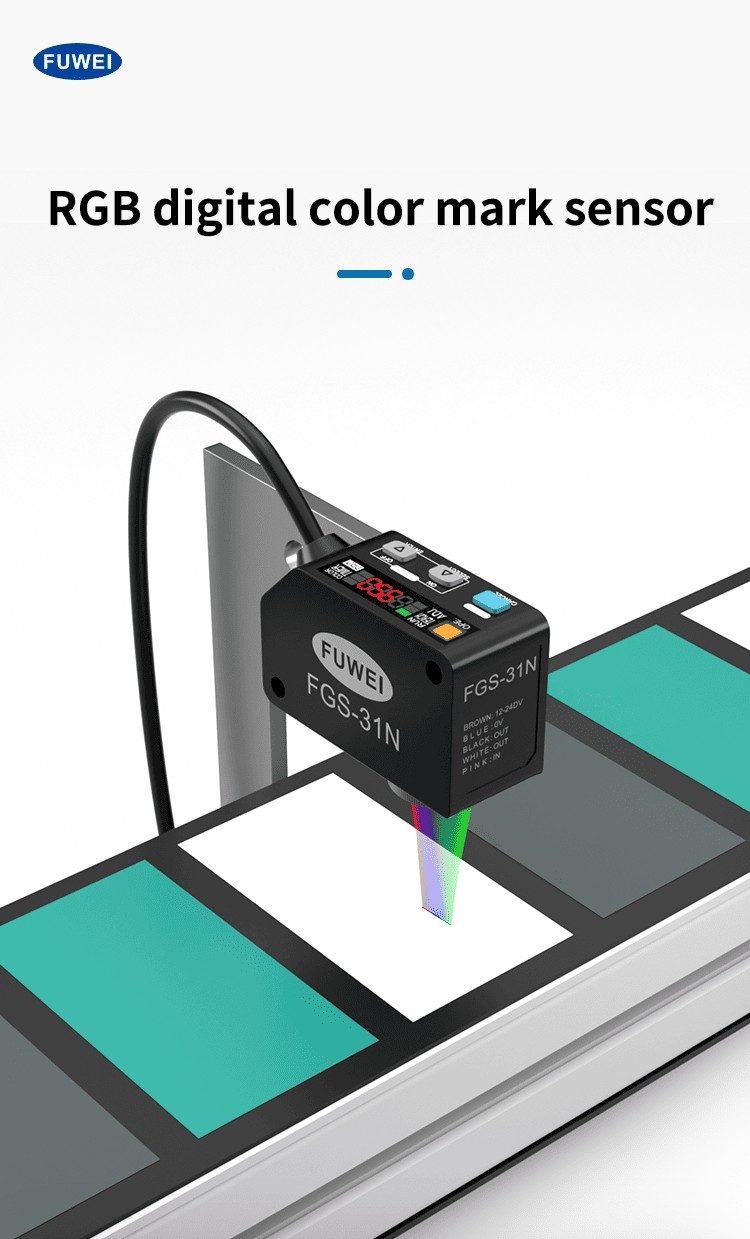

| Type | Color Mark Sensor |
| Series | FGS-31 |

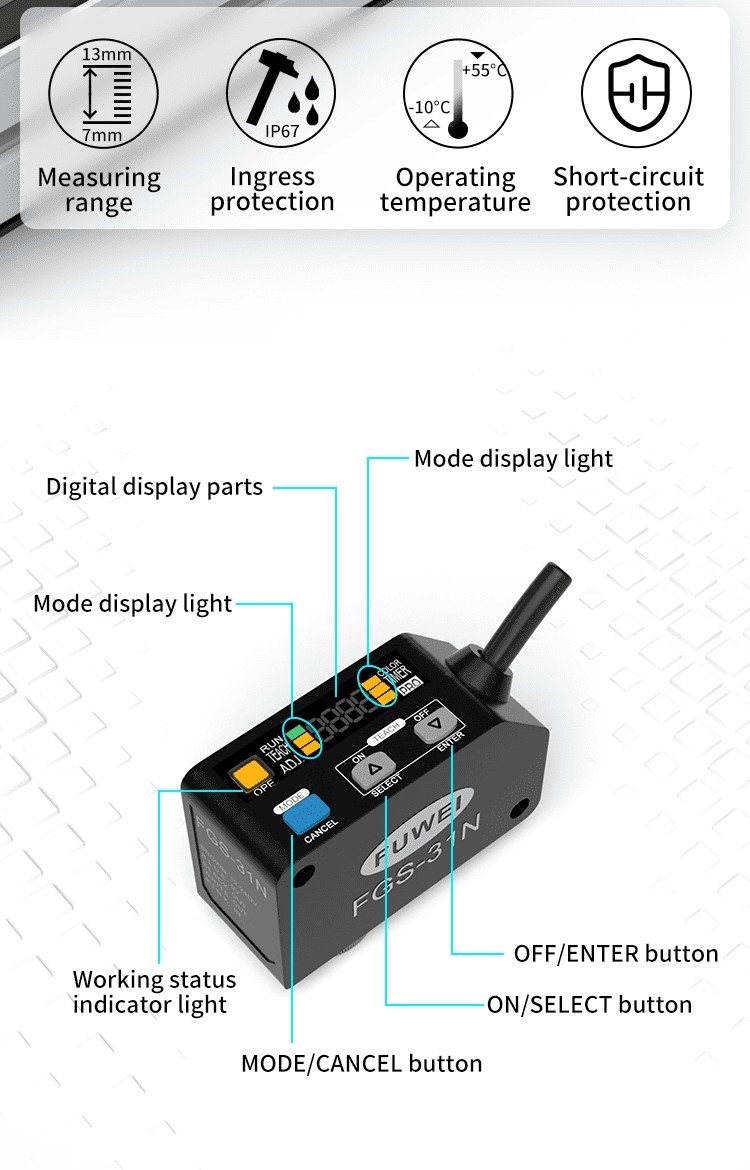

| Features | Digital display type, high precision |
| Place of Origin | Guangdong, China |
| Theory | Photoelectric Detection Principle |

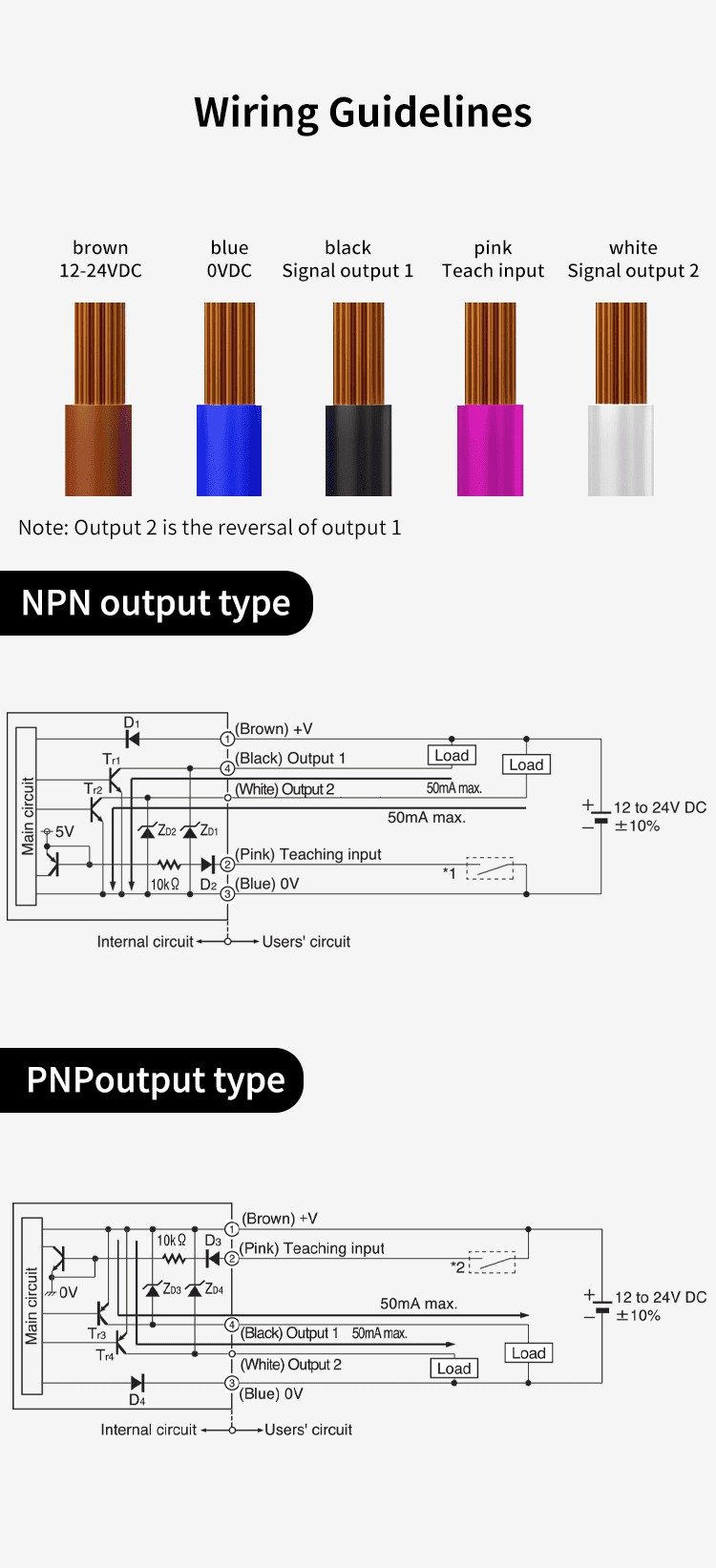

| Output | PNP |
| Description | Color sensor |

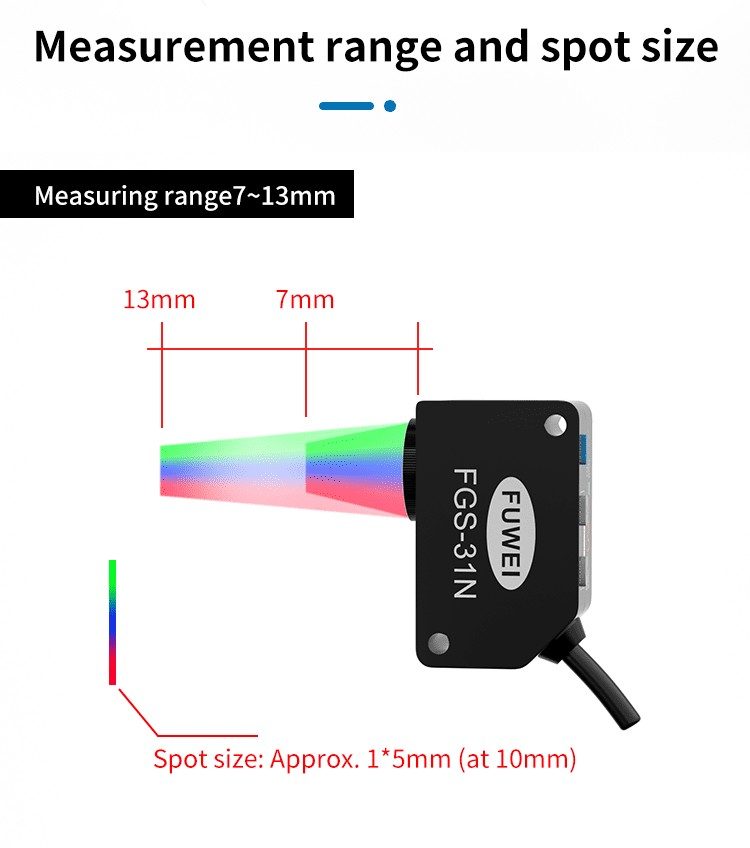

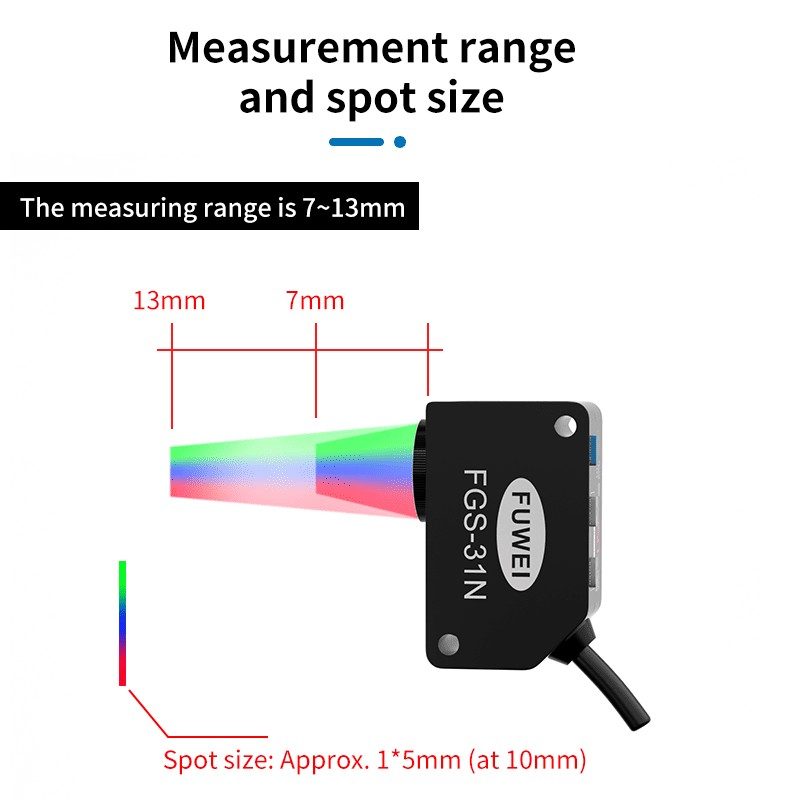

| Detection range | 10±3mm |
| Spot size | 1*5mm (setting distance: 10mm) |

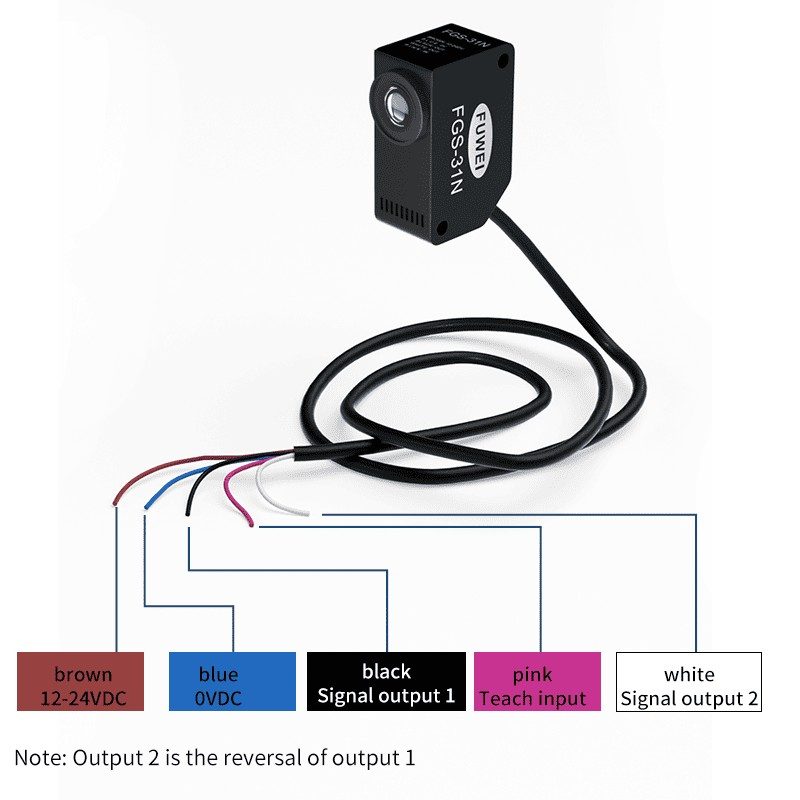

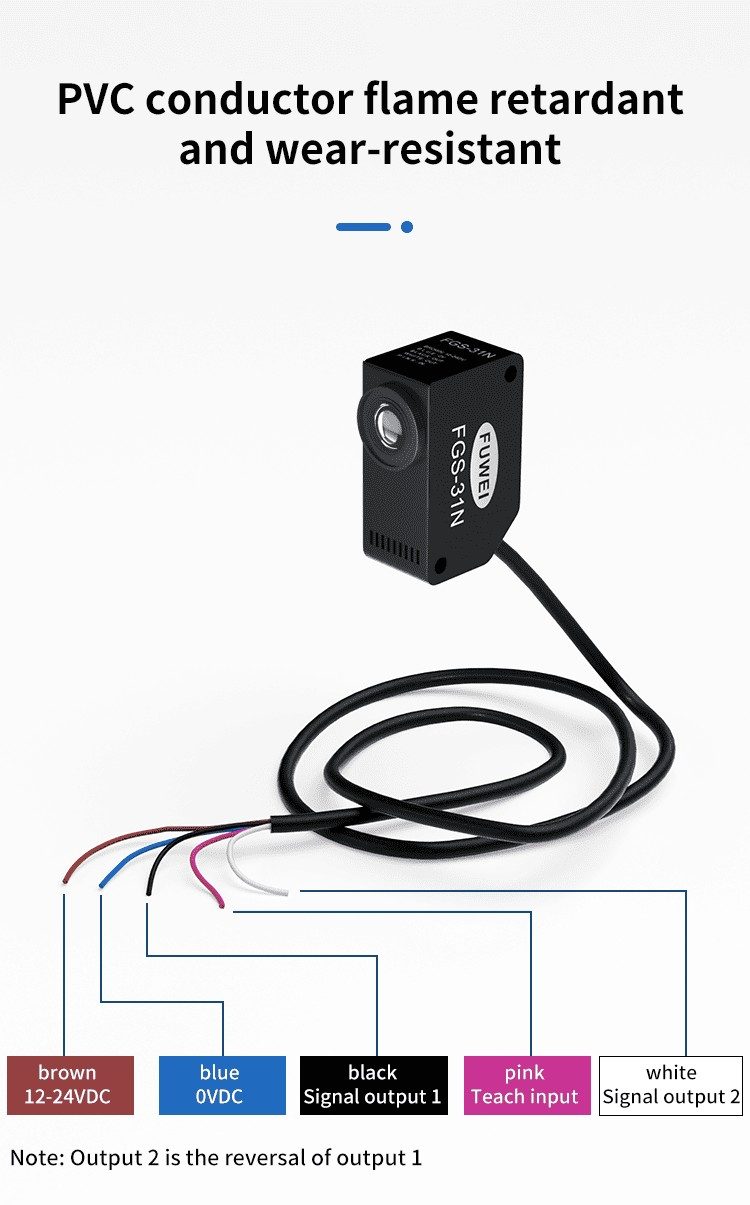

| Supply voltage | 12~24V DC |
| Consumption current | <30mA |

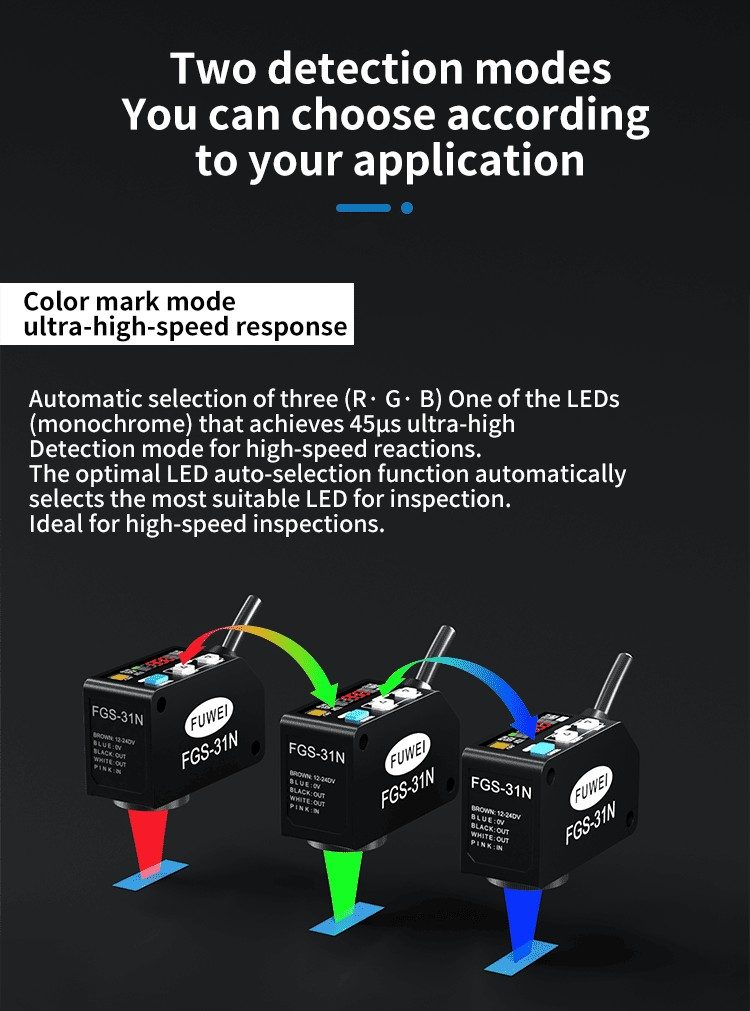

| Response time | Color scale/color mode |
| Ambient temperature | -10℃~55℃ |
| Ambient humidity | 35~88RH |
| Short-circuit protection | Built-in |
| International Protection | IP67 (IEC) |

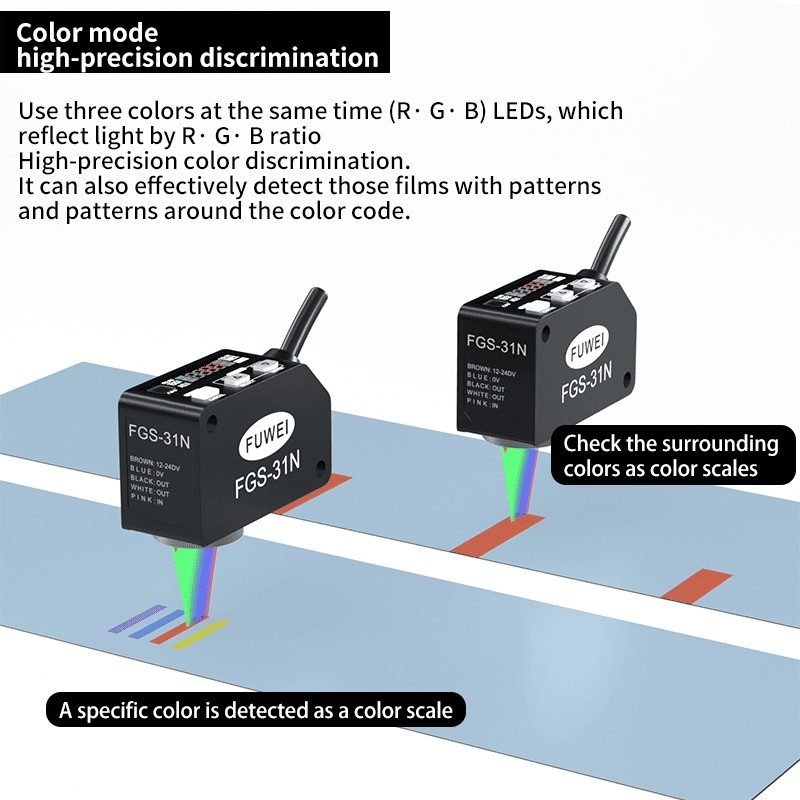

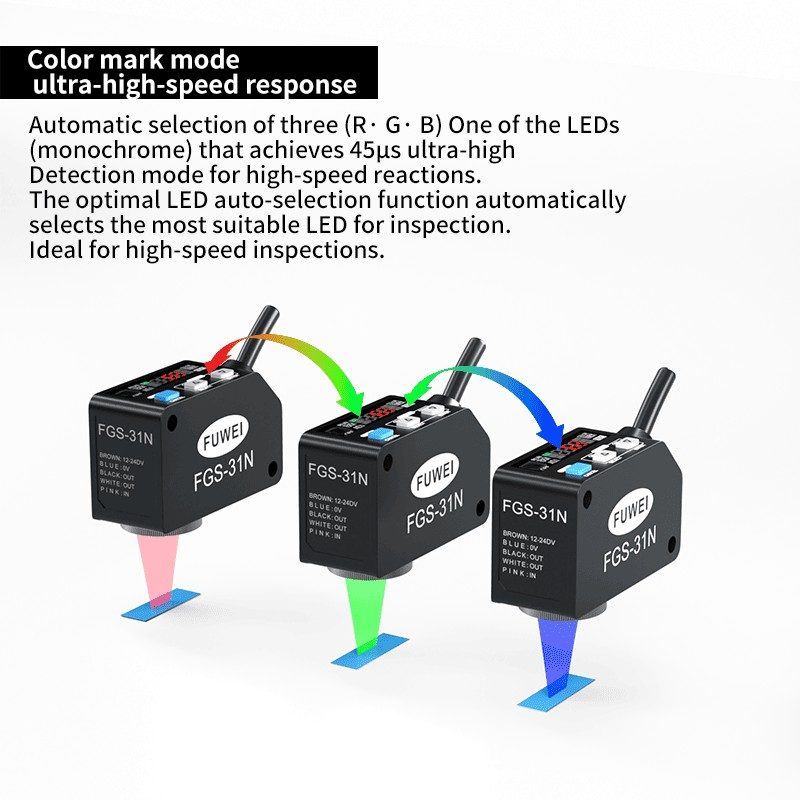

| Light source | Red/Green/Blue LED |
| Selling Units | Single item |
| Single package size | 15X12X5 cm |
| Single gross weight | 0.230 kg |
