| Key Attributes | |
|---|---|

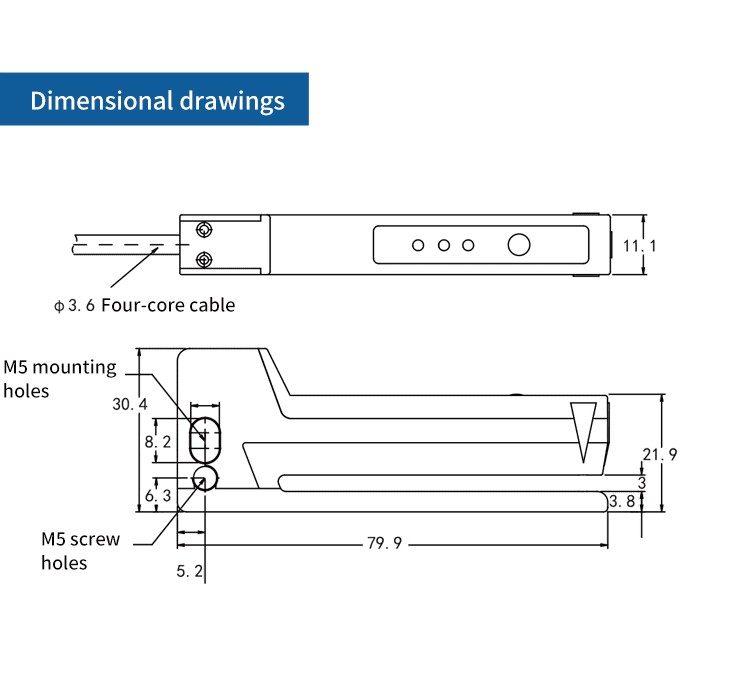

| Mounting Type | Bolt Installation |
| Manufacturing Date Code | 2024-01-08 |
| Model Number | FGU-03N-X |
| Brand Name | FUWEI |
| Usage | Labeling Machine Label Positioning |

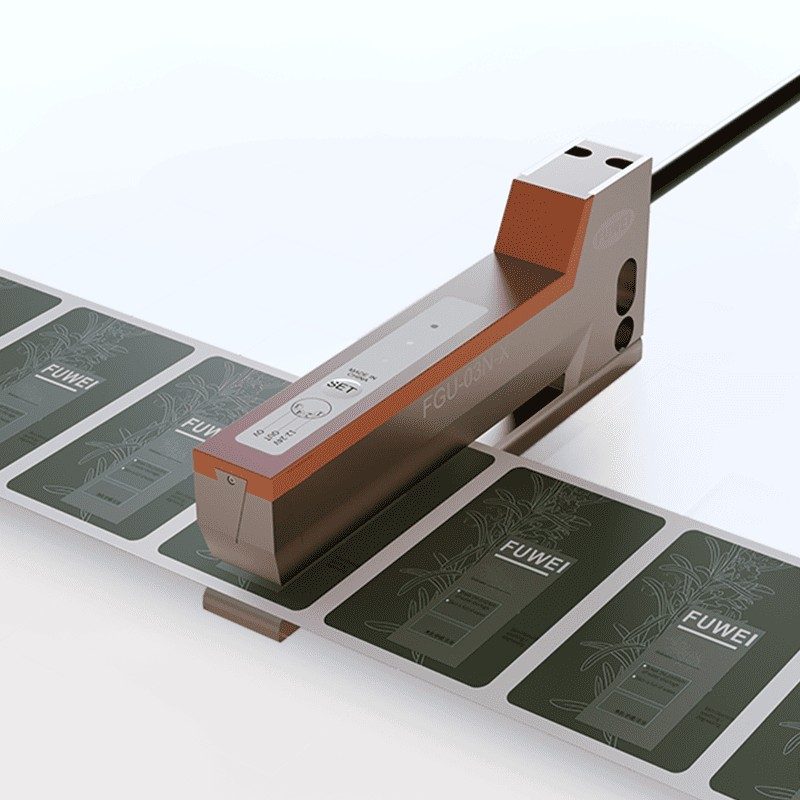

| Description | Photoelectric Label Gap Sensor |
| Type | Label Sensor |
| Series | FGU-03N-X |
| Features | Photoelectric Label Sensor |
| Place of Origin | Guangdong, China |
| Theory | Photoelectric Label Sensor |

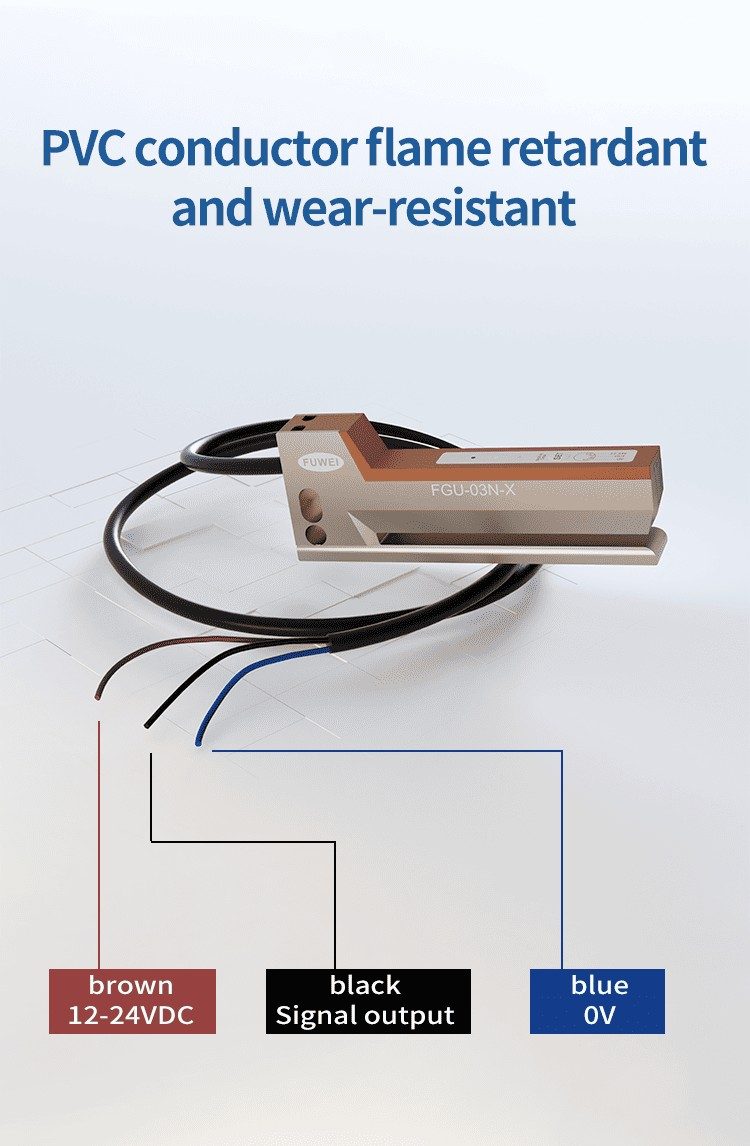

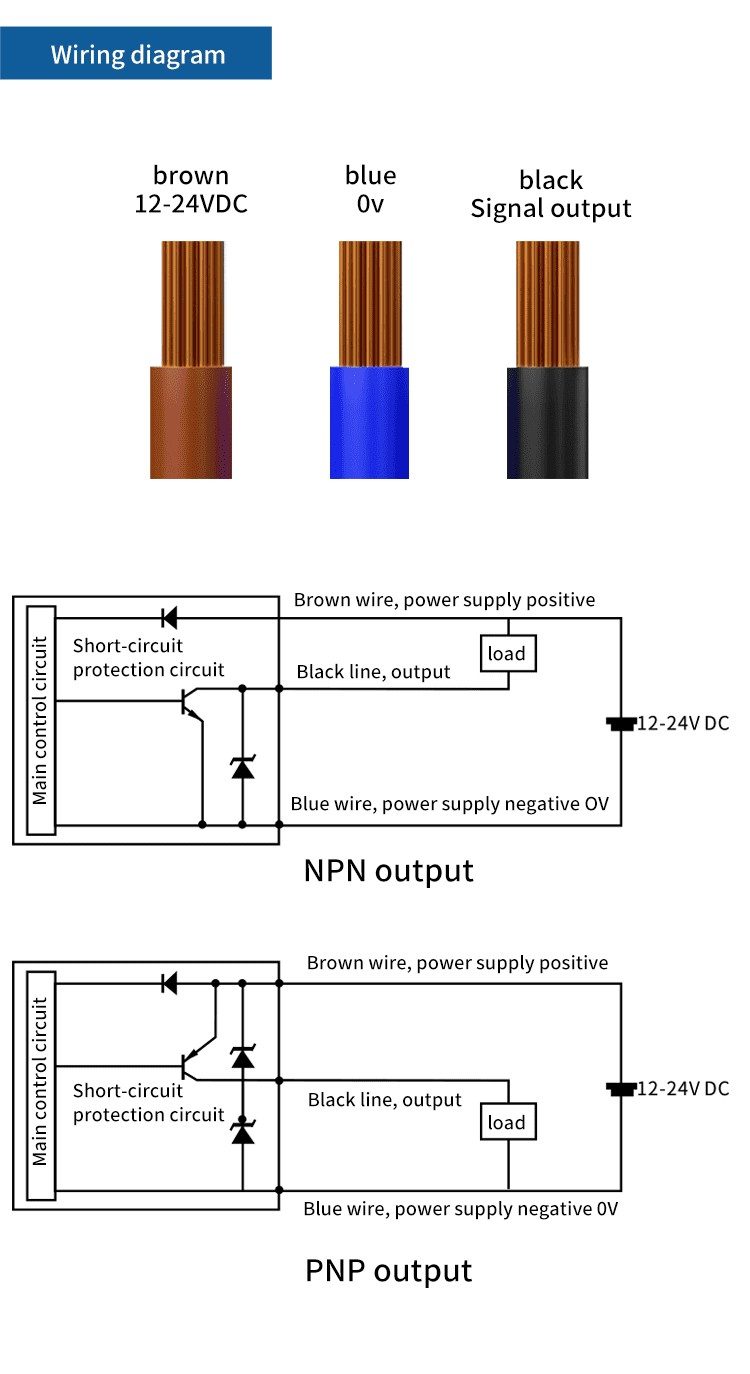

| Output | NPN |

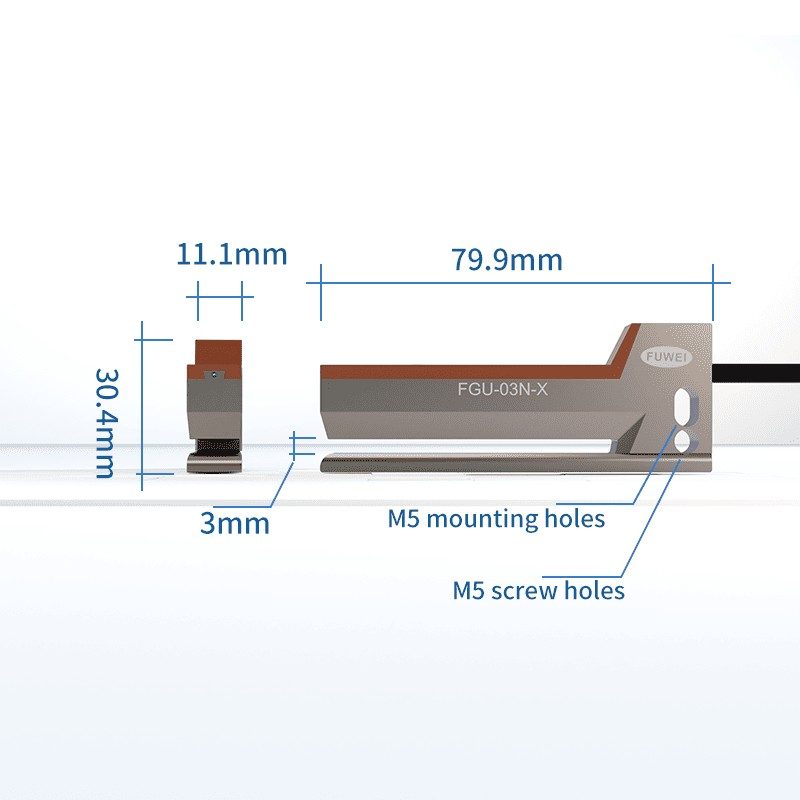

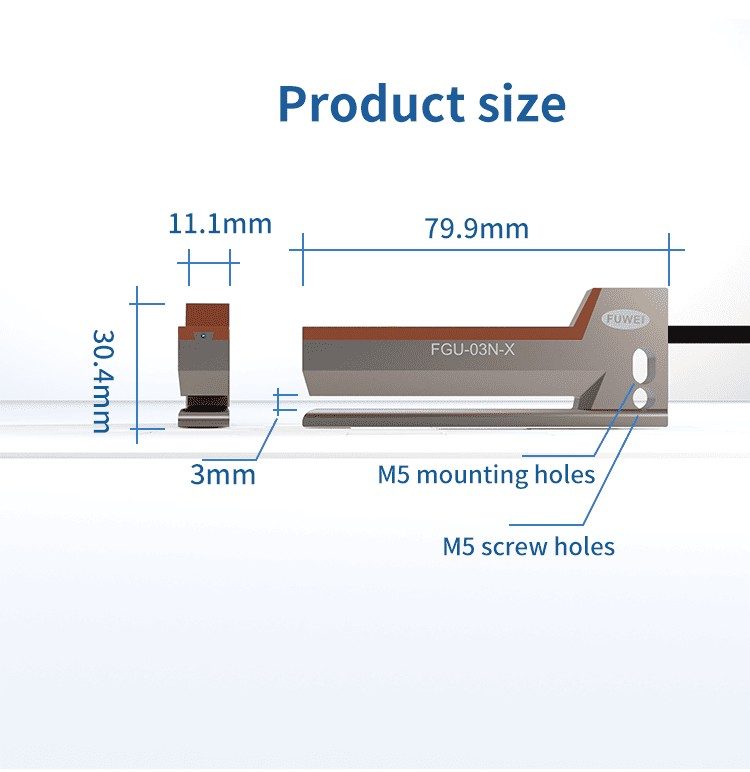

| Slot Width | 3mm |
| Slot Depth | 60mm |

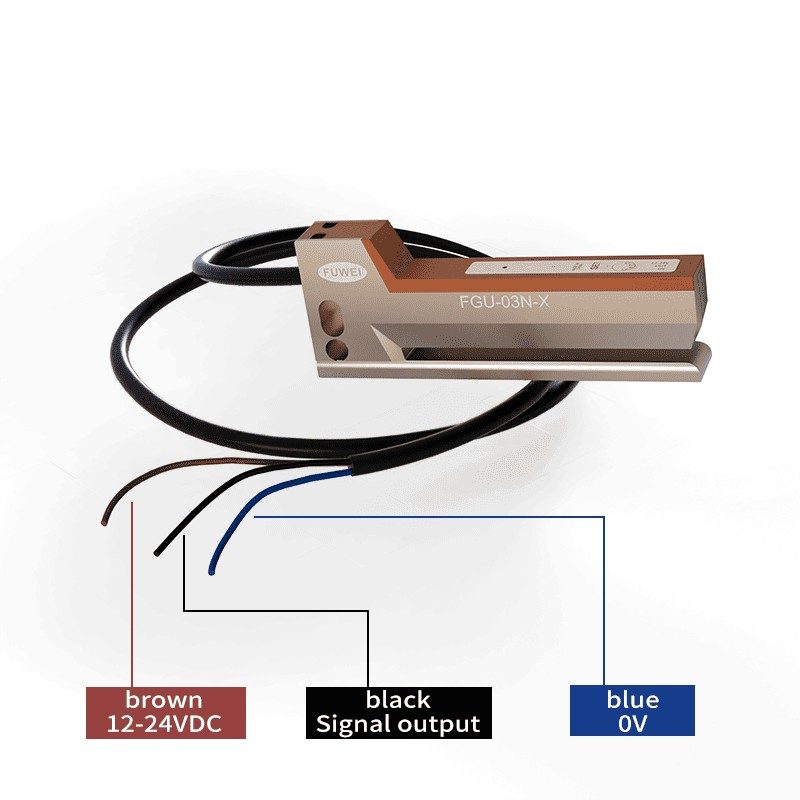

| Operating Voltage | 12-24V DC |
| Light Source | 940nm |

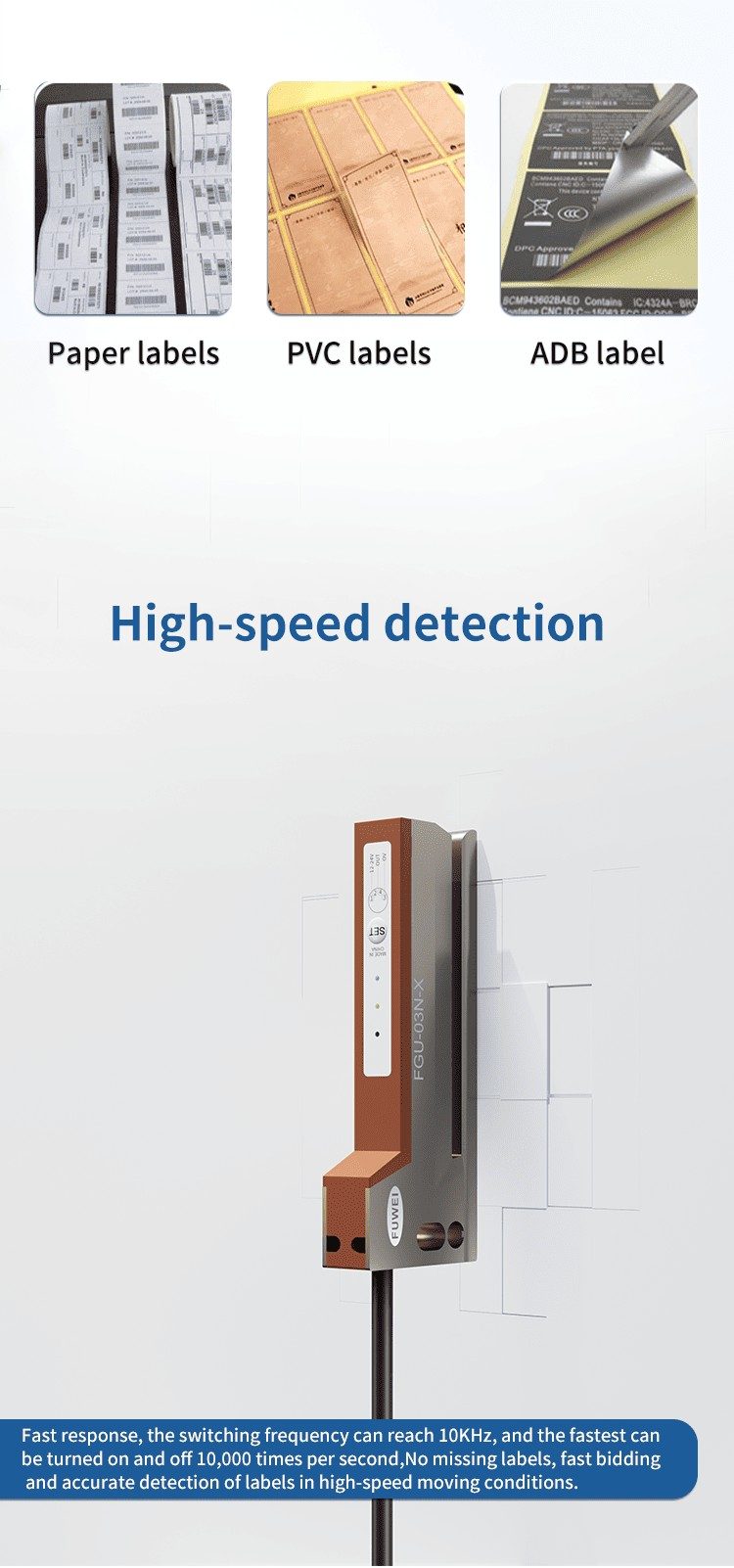

| Response Time | 50µs |
| Switching Frequency | 10kHz |

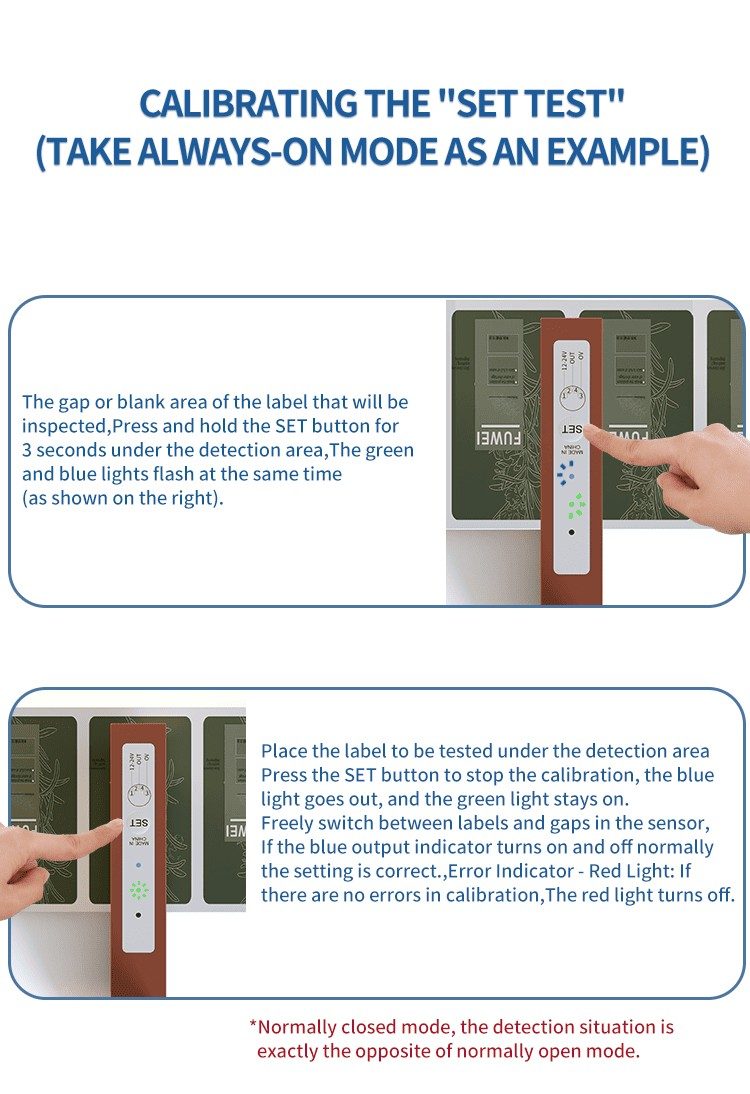

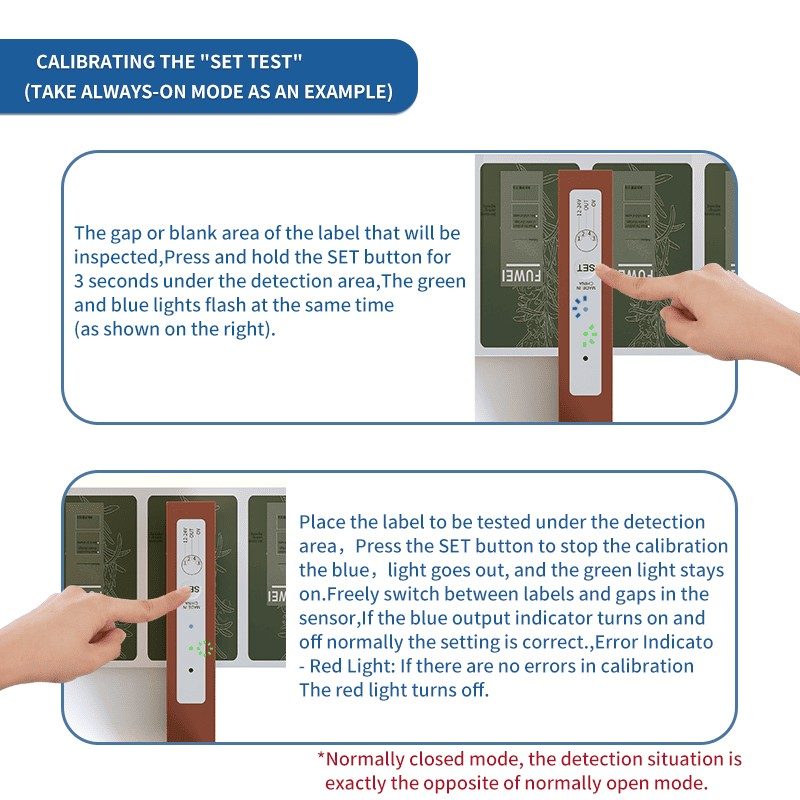

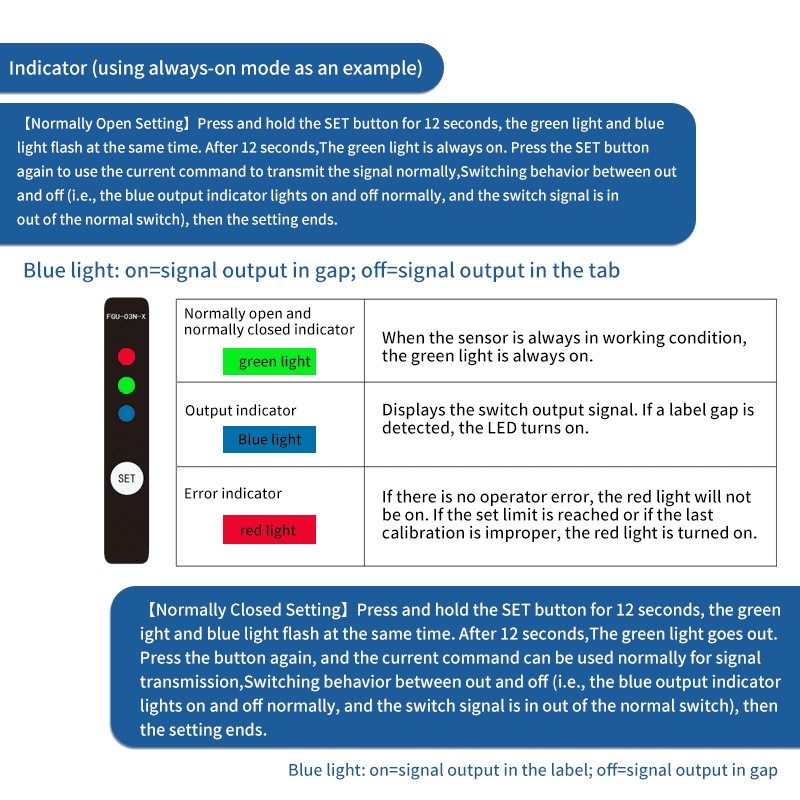

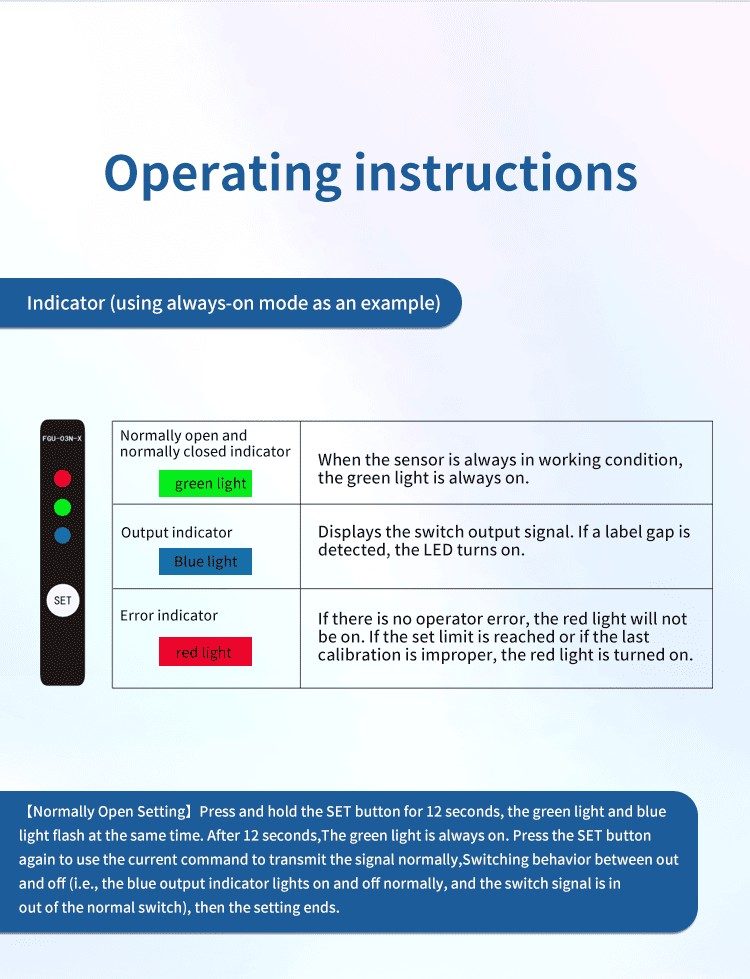

| Sensitivity | Key Adjustment |

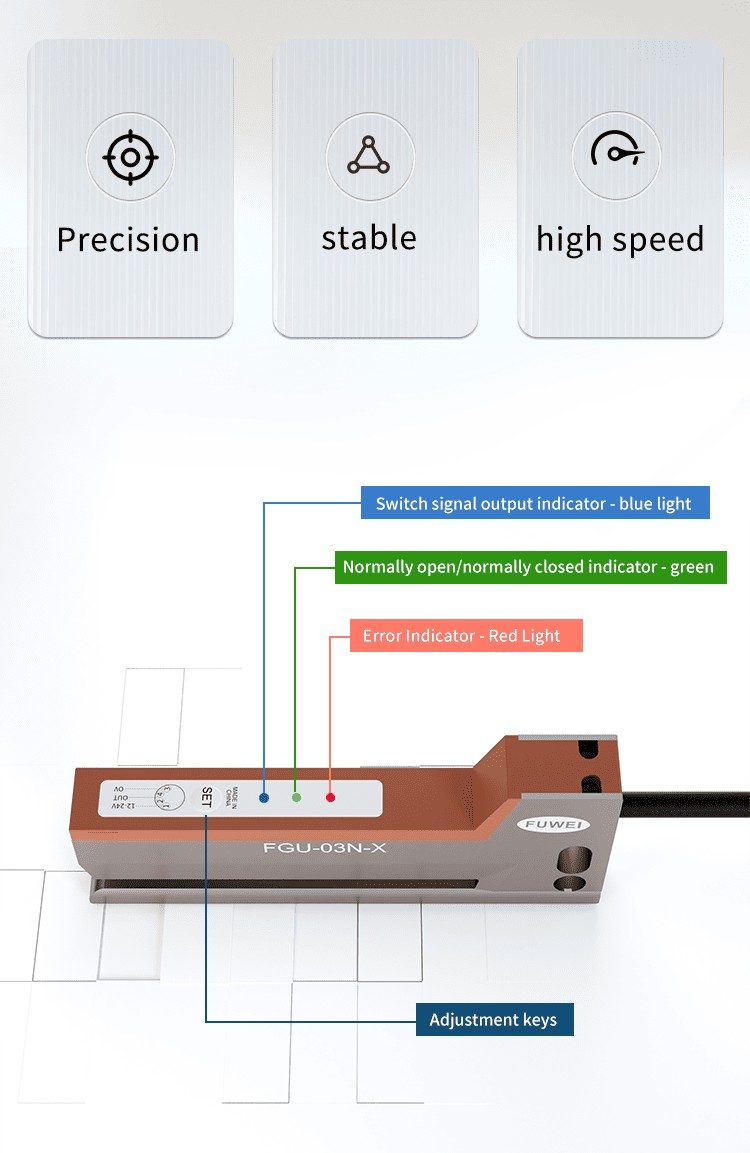

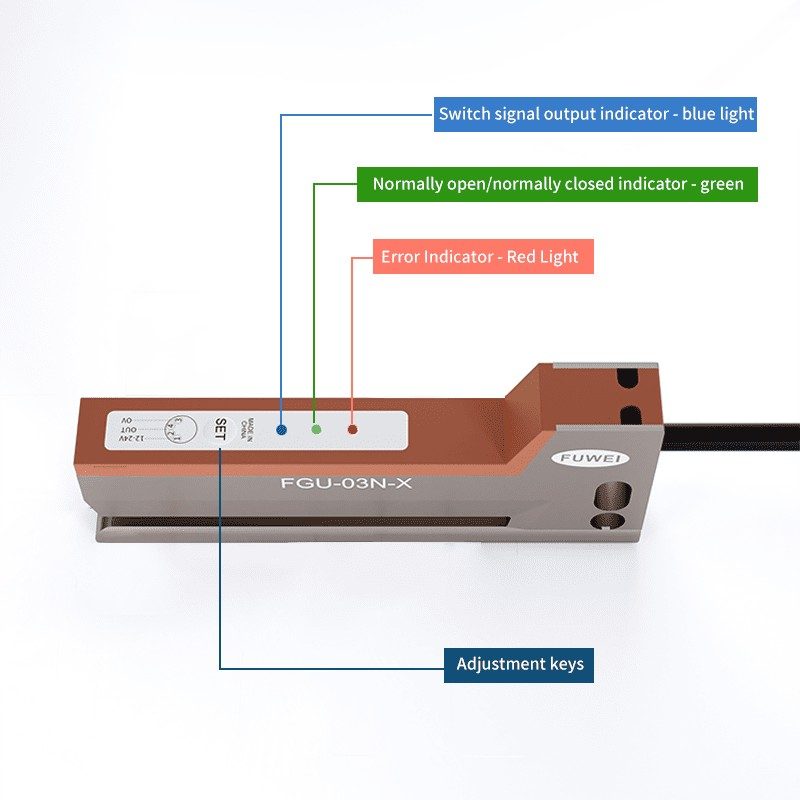

| Red Light Indicator | Proofreading Errors / Operational Errors |
| Green Light Indicator | NO / NC |

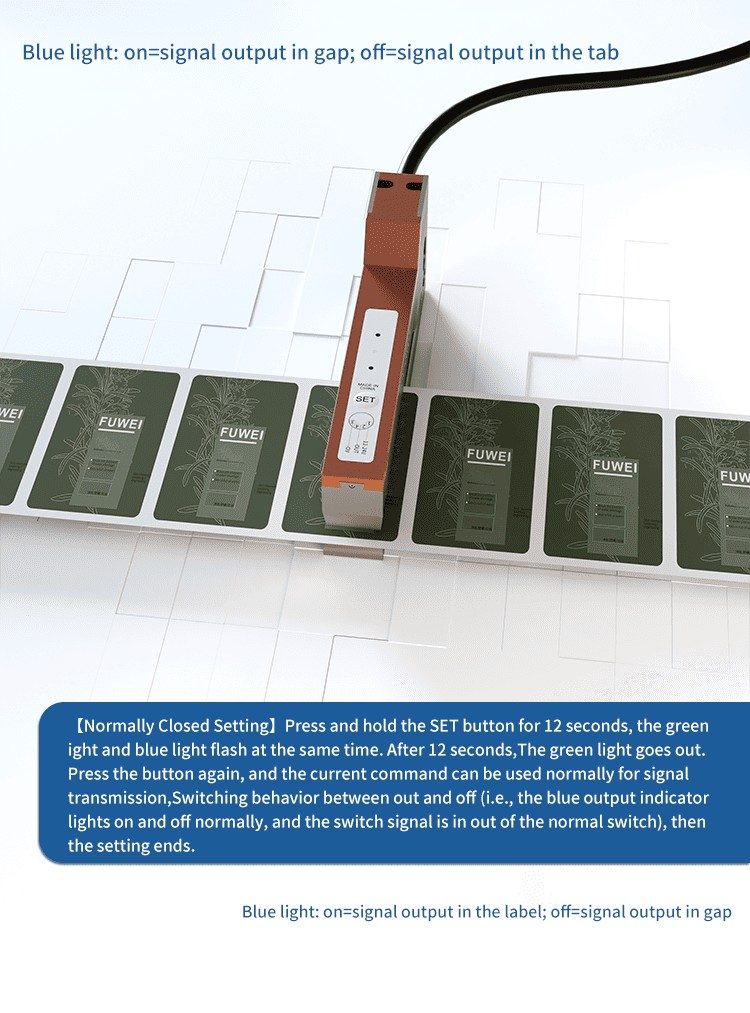

| Blue Light Indicator | Switching Signal Output |
| Packaging and Delivery | |
| Selling Units | Single Item |
| Single Package Size | 12X11X4 cm |
| Single Gross Weight | 0.170 kg |
