| Key Attributes |
| Mounting Type | Bolt Installation |
| Manufacturing Date Code | 2024-01-08 |

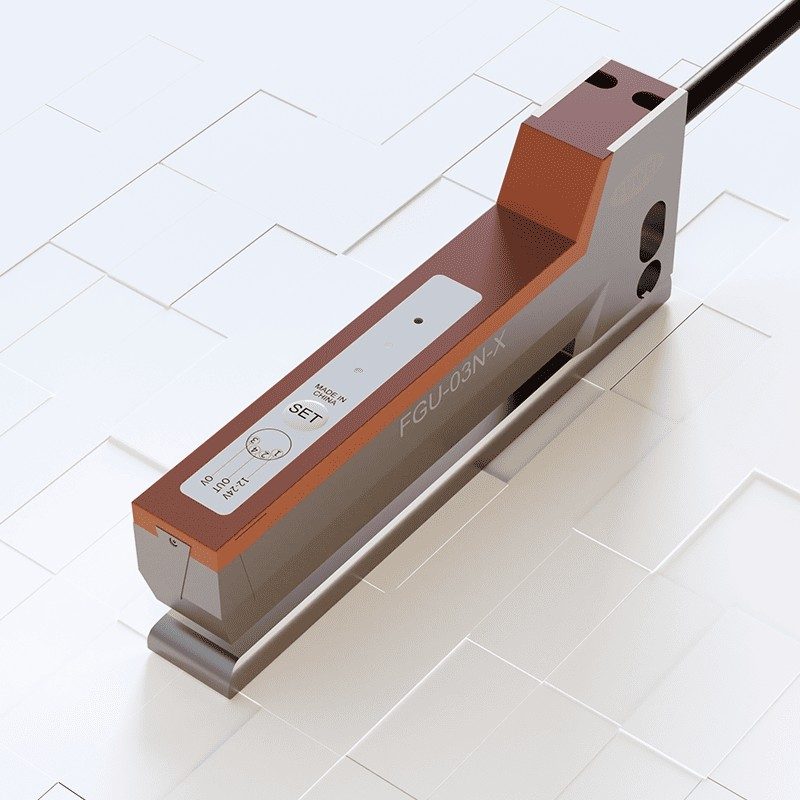

| Model Number | FGU-03N-X |
| Brand Name | FUWEI |

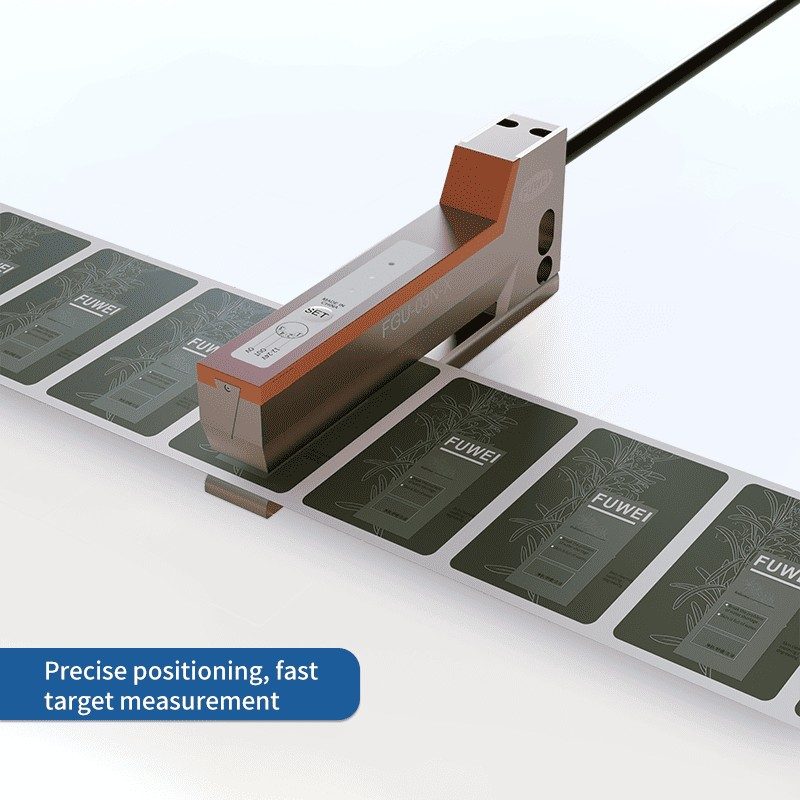

| Usage | Labeling Machine Label Positioning |
| Description | Photoelectric Label Gap Sensor |
| Type | Label Sensor |
| Series | FGU-03N-X |
| Features | Photoelectric Label Sensor |
| Place of Origin | Guangdong, China |
| Theory | Photoelectric Label Sensor |

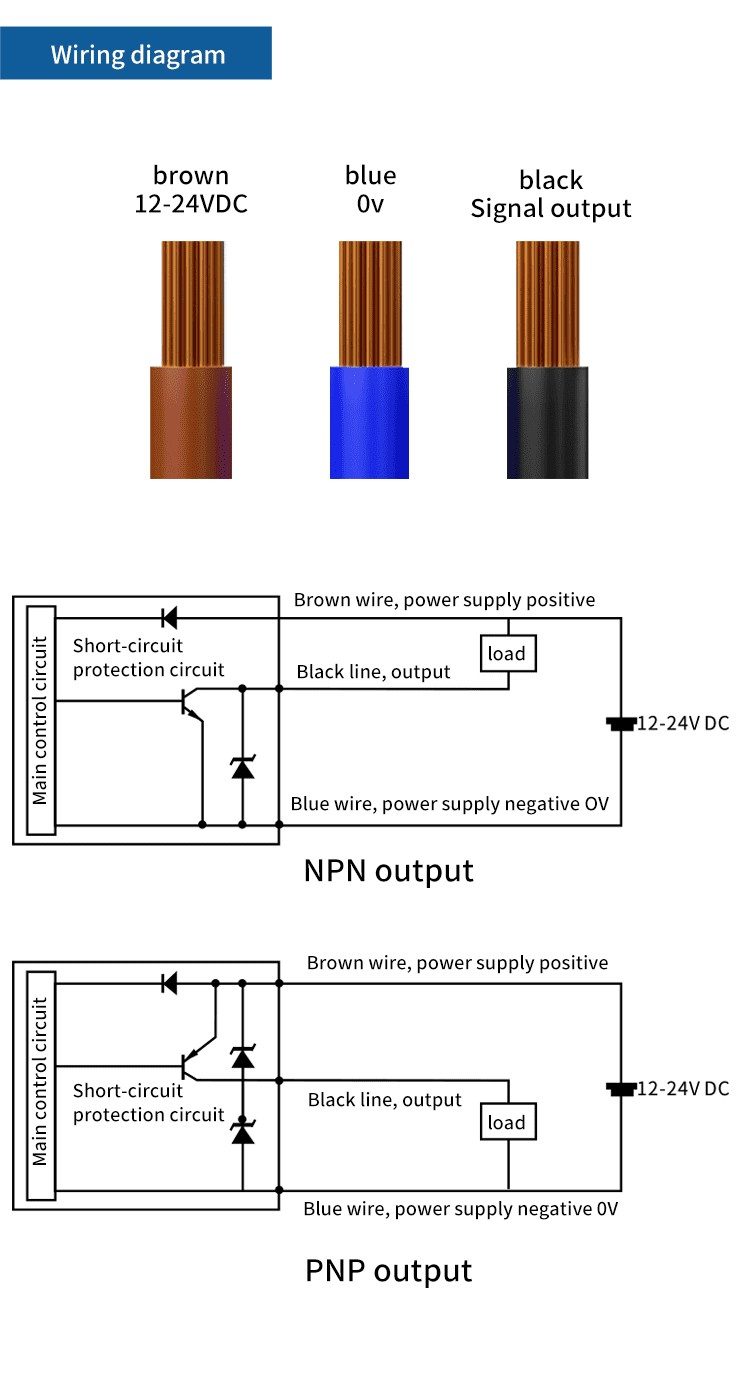

| Output | NPN |

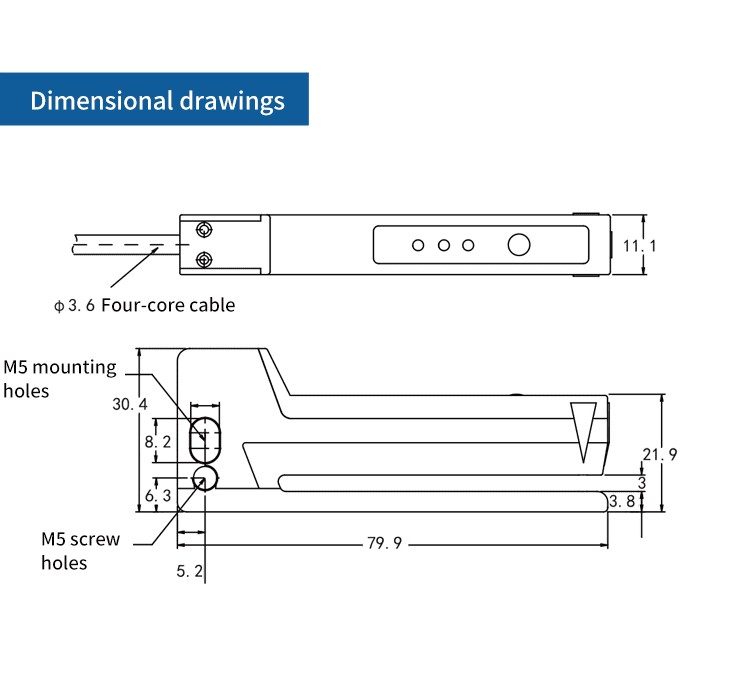

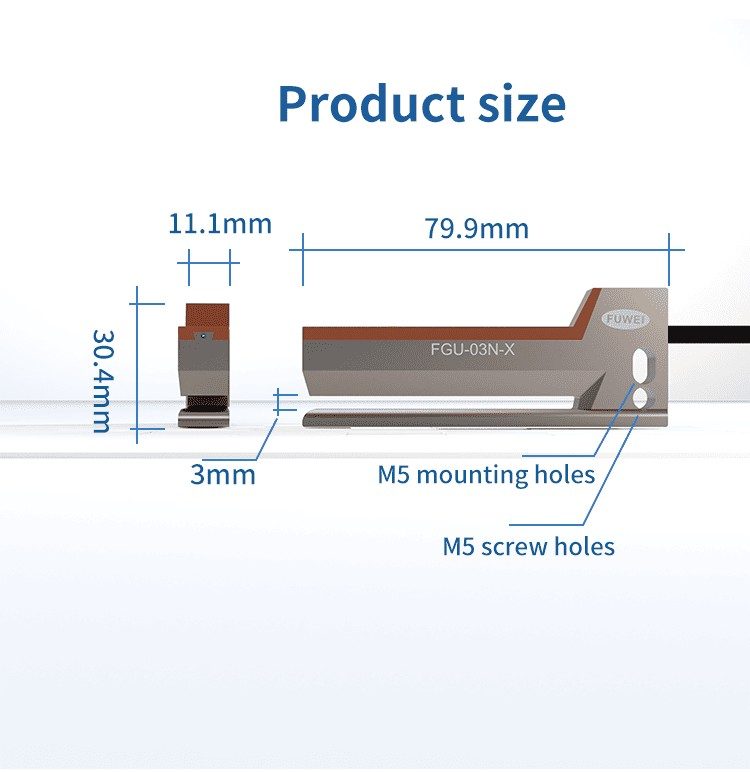

| Slot Width | 3mm |
| Slot Depth | 60mm |

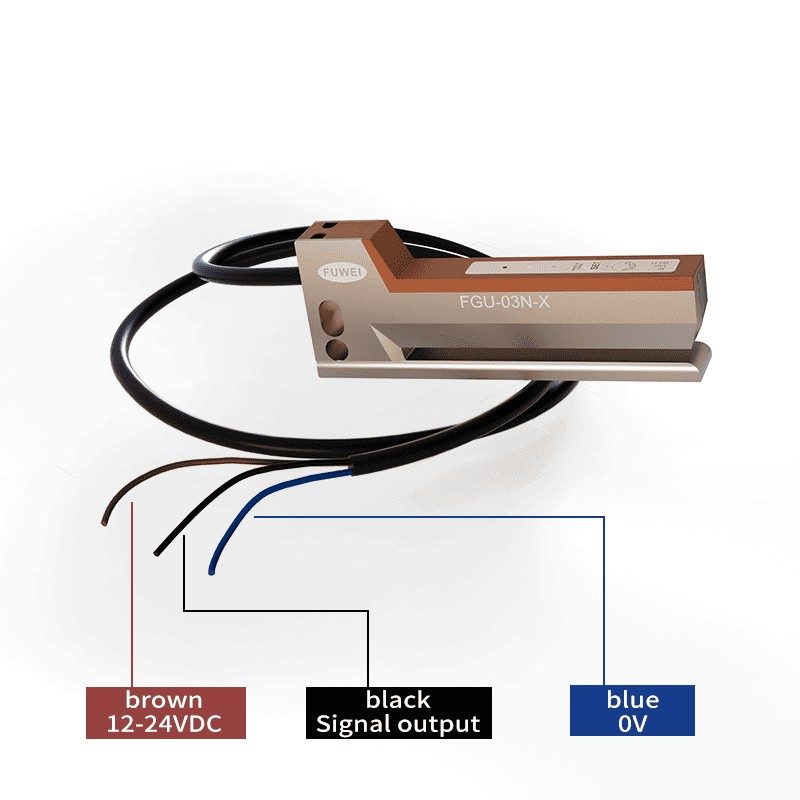

| Operating Voltage | 12-24V DC |
| Light Source | 940nm |
| Response Time | 50µs |

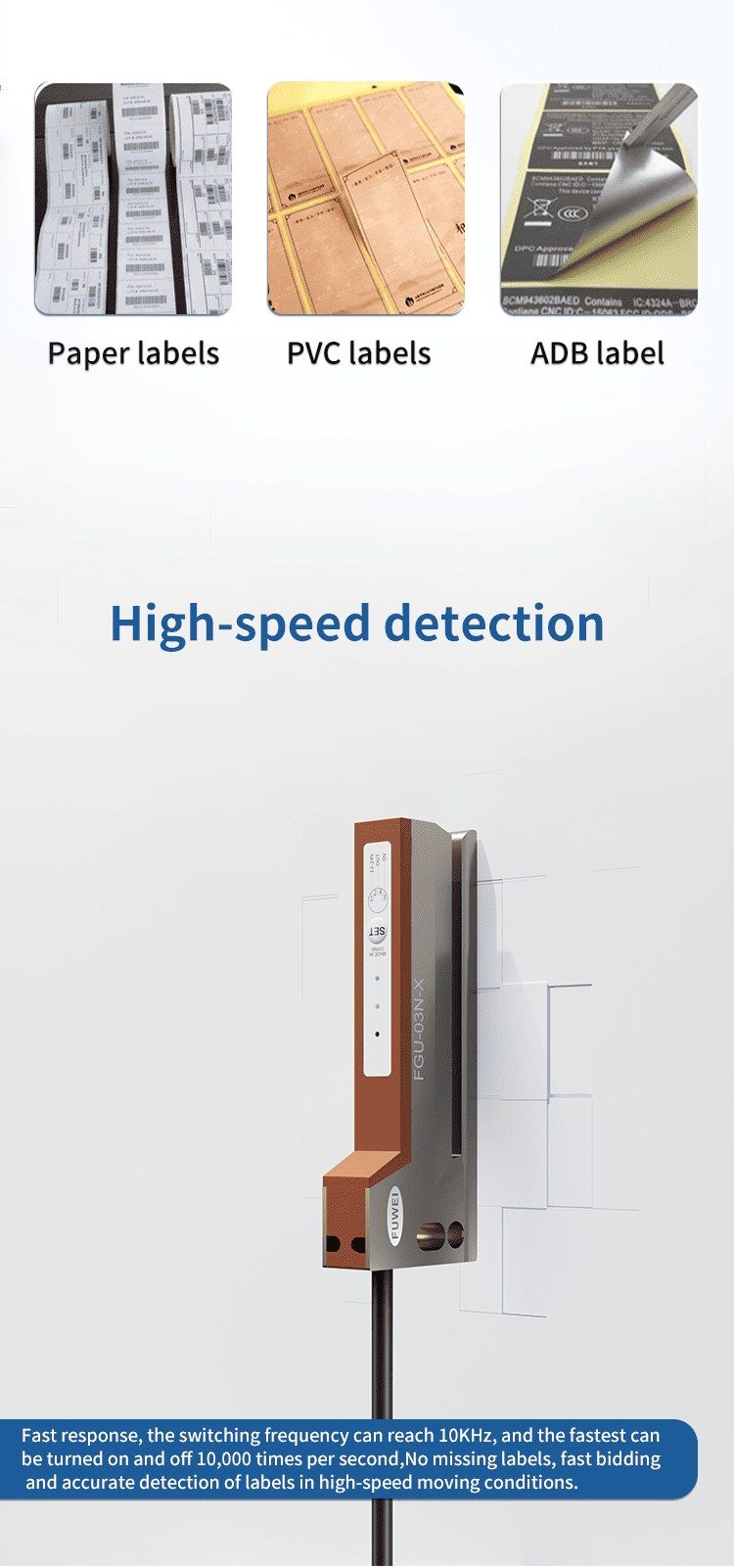

| Switching Frequency | 10kHz |

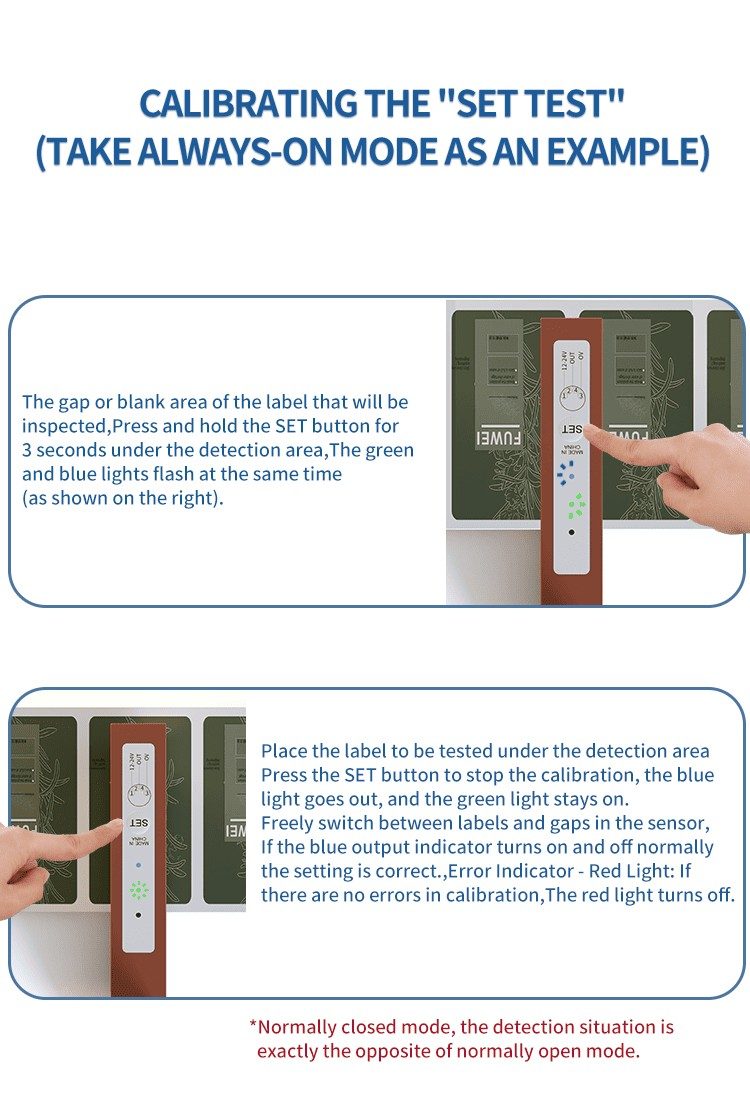

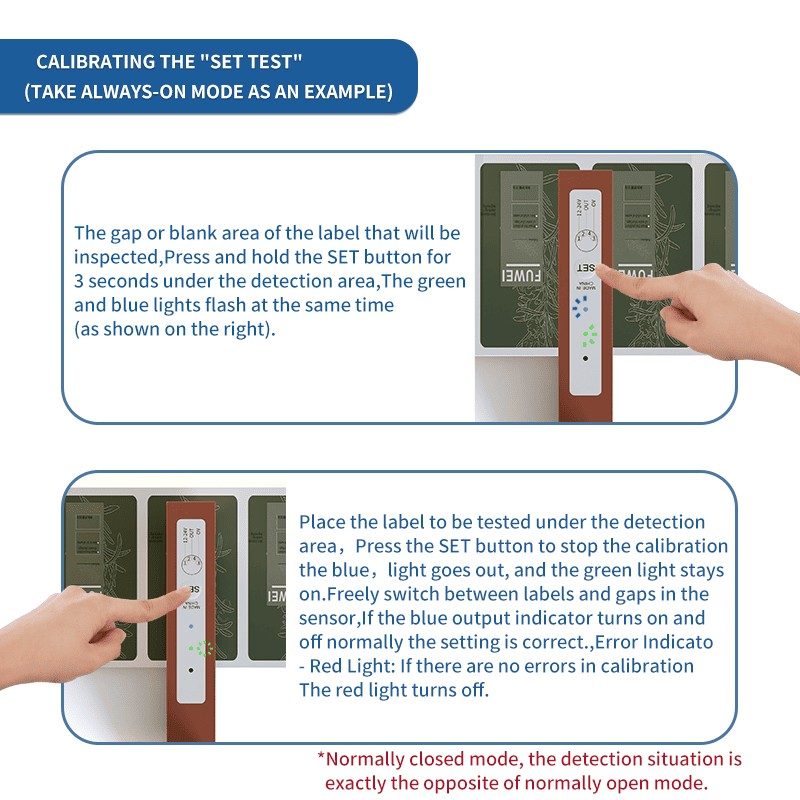

| Sensitivity | Key Adjustment |

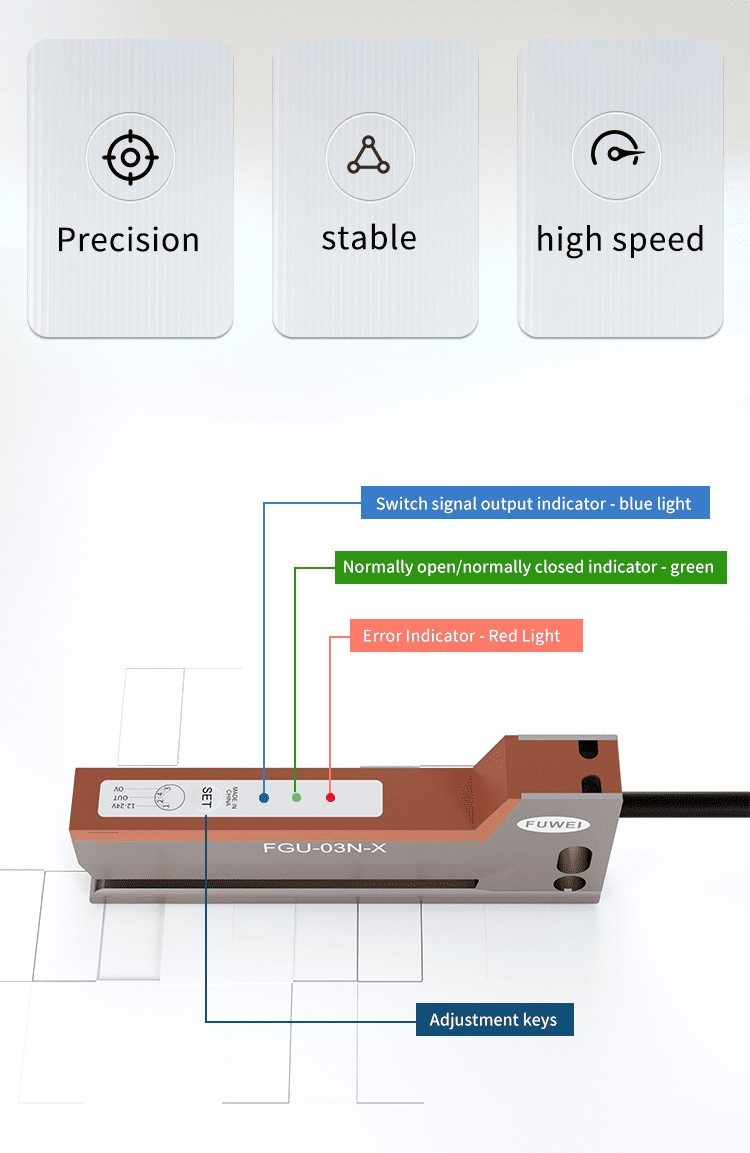

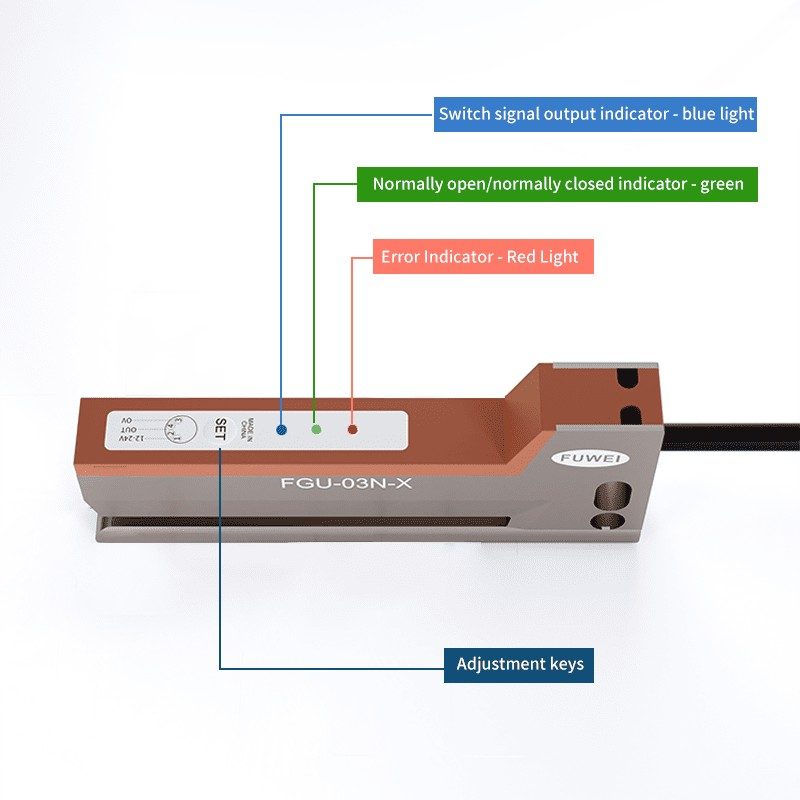

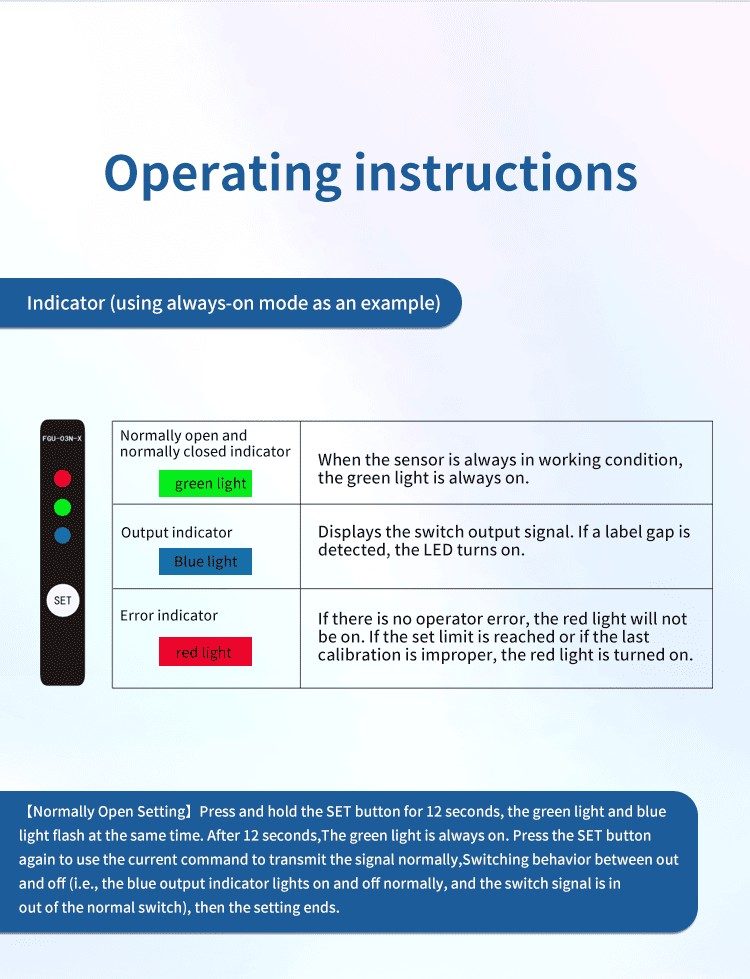

| Red Light Indicator | Proofreading Errors / Operational Errors |

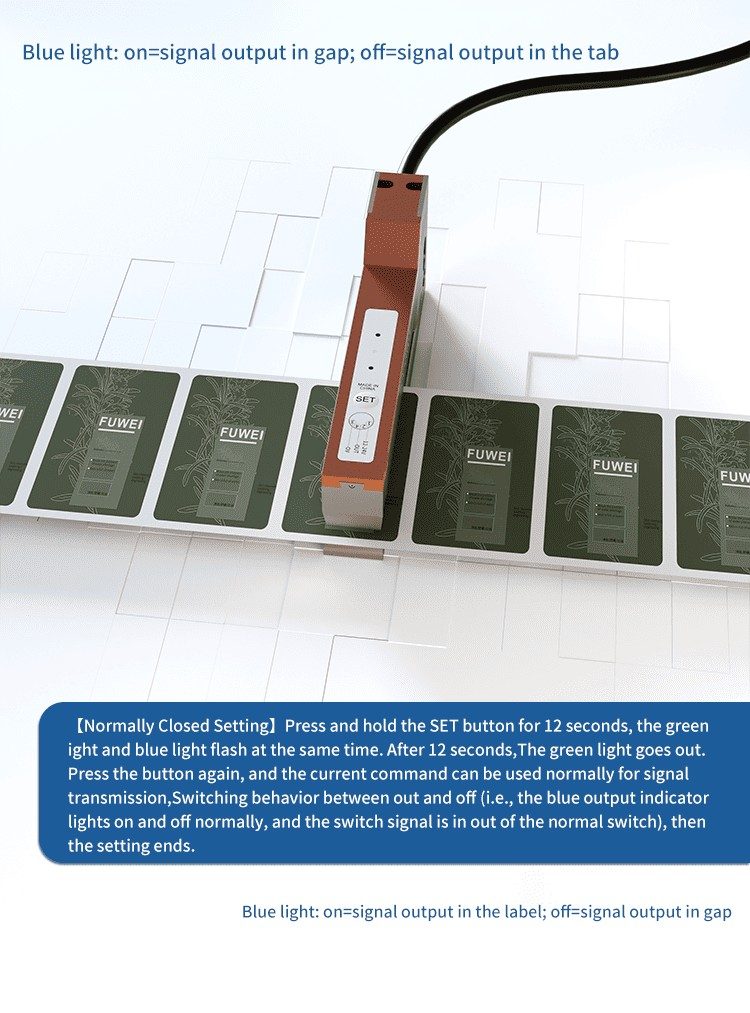

| Green Light Indicator | NO / NC |
| Blue Light Indicator | Switching Signal Output |
| Packaging and Delivery |
| Selling Units | Single Item |
| Single Package Size | 10X10X5 cm |
| Single Gross Weight | 0.085 kg |
