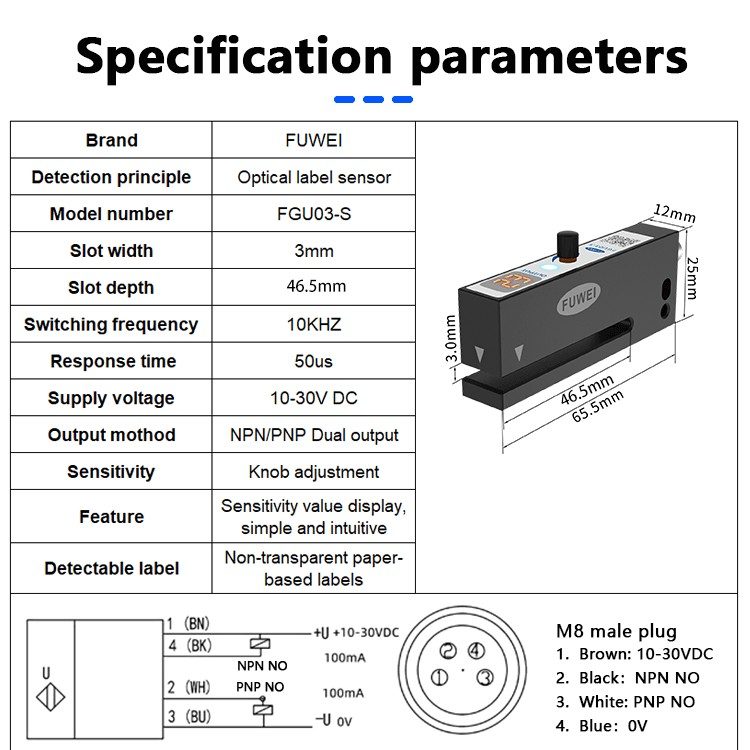

| Key Attributes |
| Mounting Type | Bolt Mounting |
| Manufacturing Date Code | 2023 |
| Model Number | FGU03-S |
| Brand Name | FUWEI |

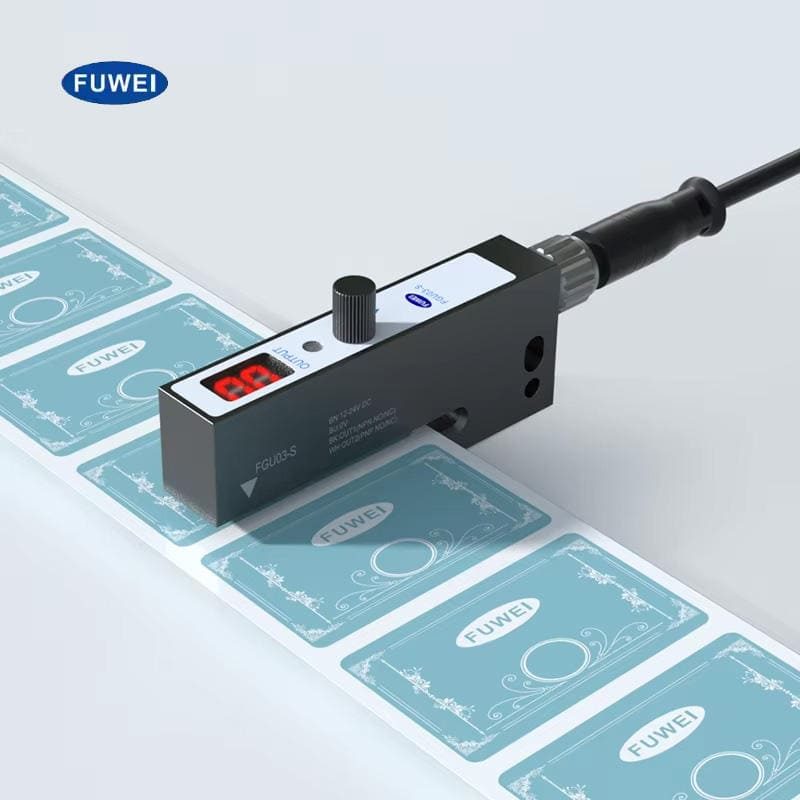

| Usage | Labeling Machine Label Detection |
| Description | Non-transparent Labeling Machine, Label Sensor |
| Type | Label Sensor |
| Series | FGU03-S |
| Features | Sensitivity value display |
| Place of Origin | Guangdong, China |
| Theory | Photoelectric Detection Principle |
| Output | NPN, PNP Dual Output |
| Detect Object | Non-transparent labels |
| Connection Mode | M8 4PIN Connector |
| Supply Voltage | 10-30VDC |

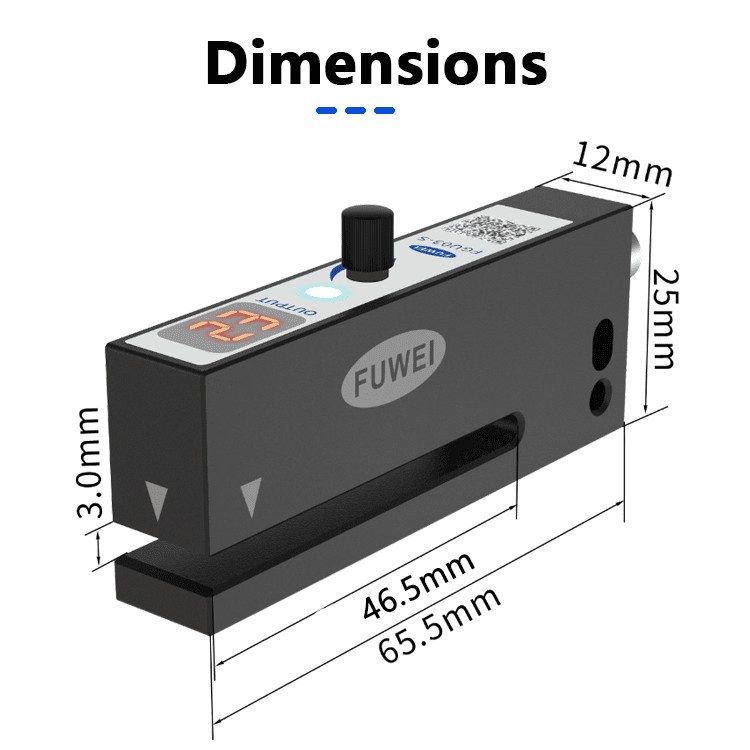

| Slot Width | 3mm |
| Slot Depth | 45mm |
| Control Output | Transistor open-collector output |
| Maximum Output Current | 100mA |

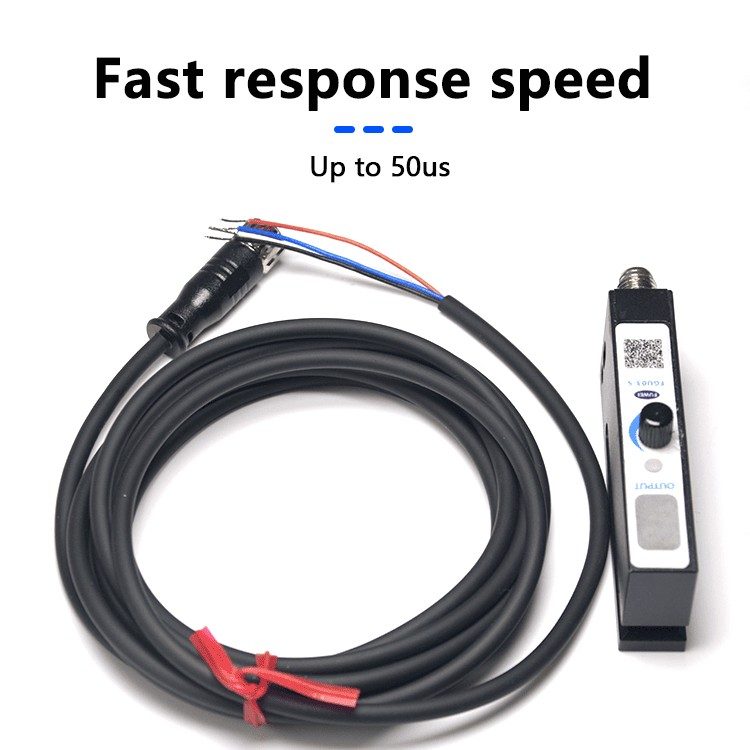

| Response Time | 0.1ms |
| Switch Frequency | 10KHZ |
| Packaging and Delivery |
| Selling Units | Single Item |
| Single Package Size | 15X12X5 cm |
| Single Gross Weight | 0.130 kg |
