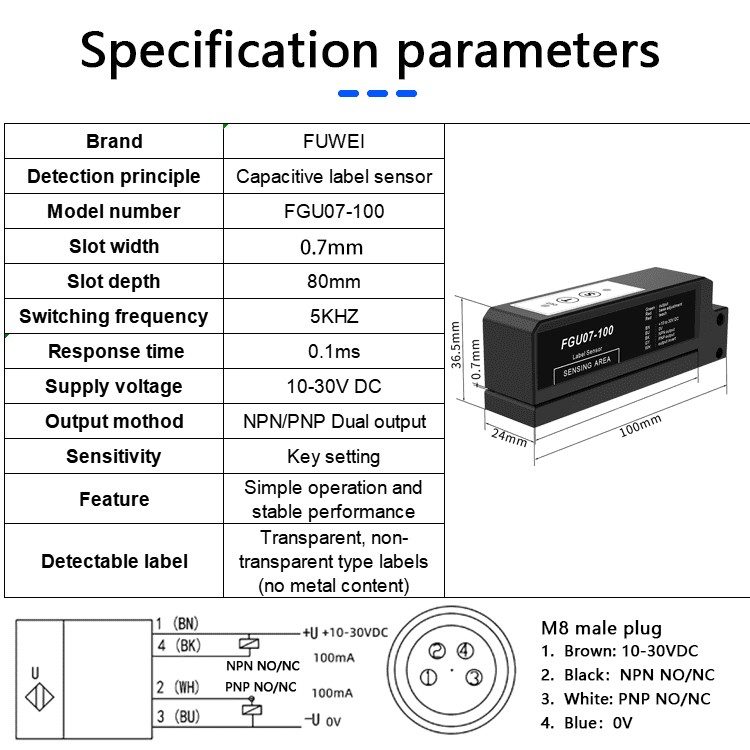

| Key Attributes |
| Mounting Type | Bolt Mounting |
| Manufacturing Date Code | 20240820 |
| Model Number | FGU07-100 |
| Brand Name | FUWEI |

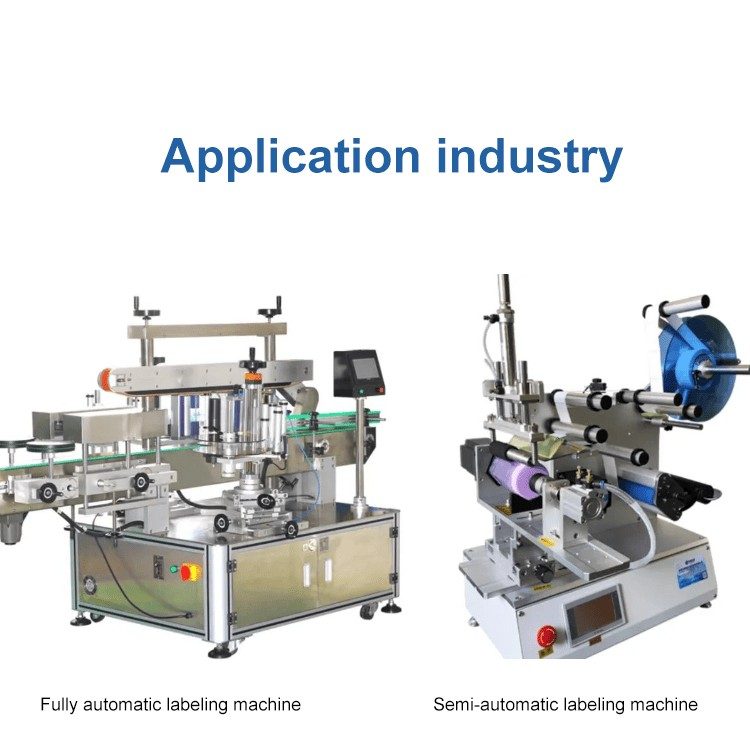

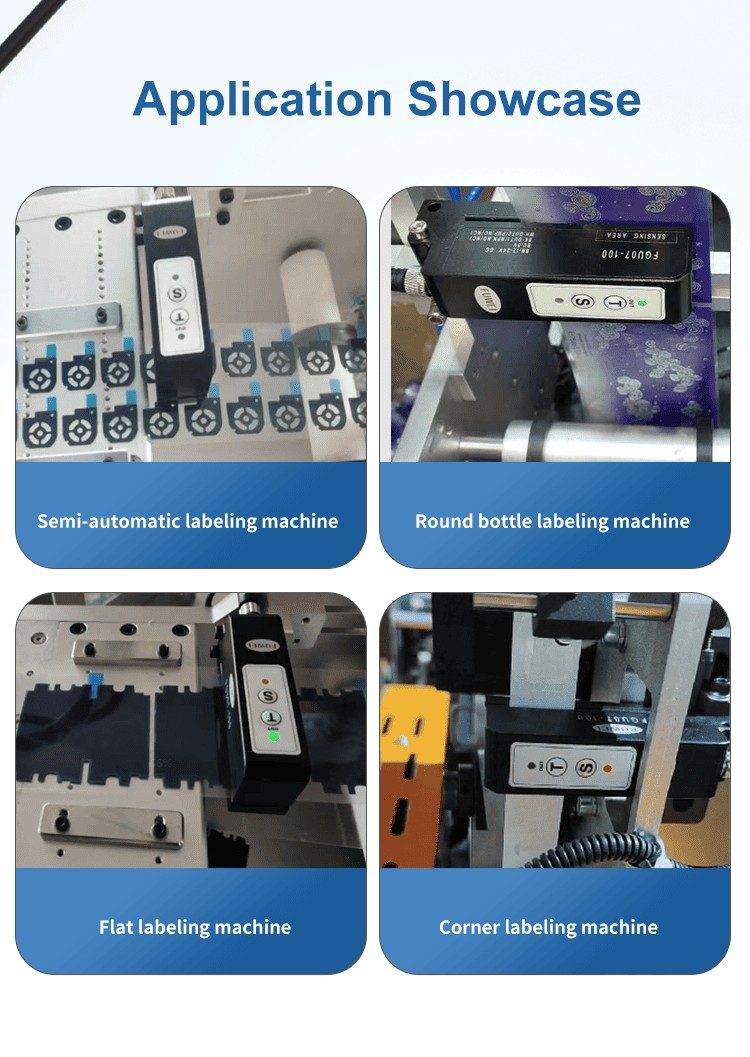

| Usage | Labeling machine label detection |

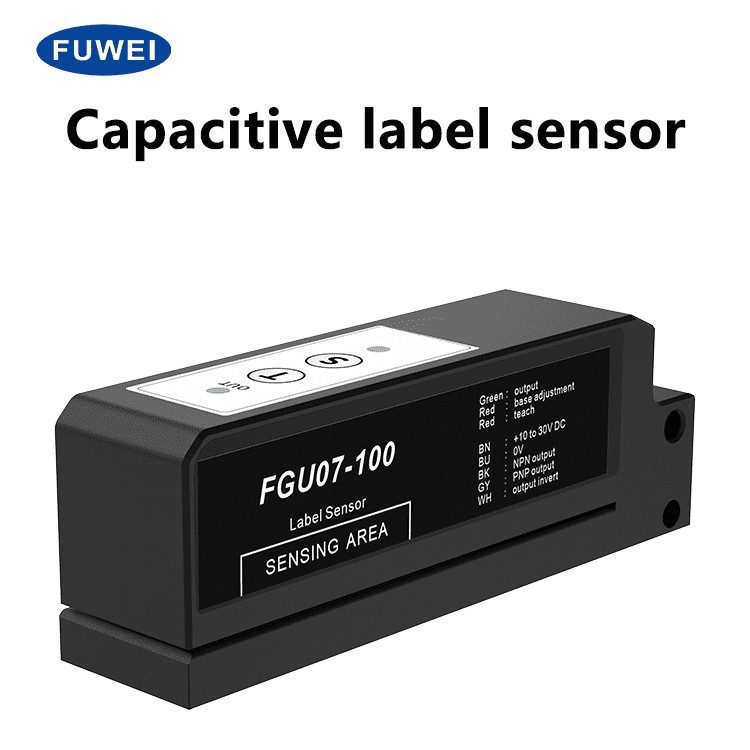

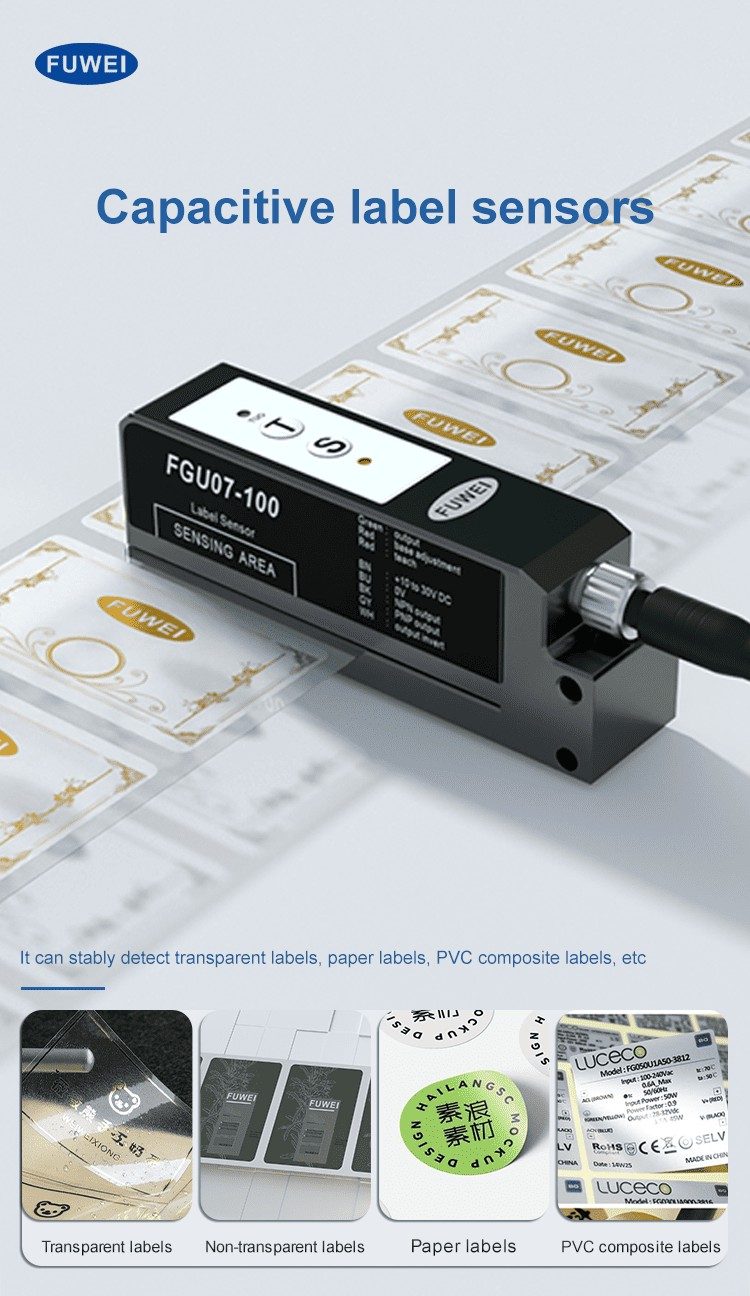

| Description | Labeling Machine / Label Sensor |
| Type | Capacitive Sensor |
| Series | FGU07-100 |
| Features | Sensing sensitivity |
| Place of Origin | Guangdong, China |
| Theory | Capacitive Detection Principle |

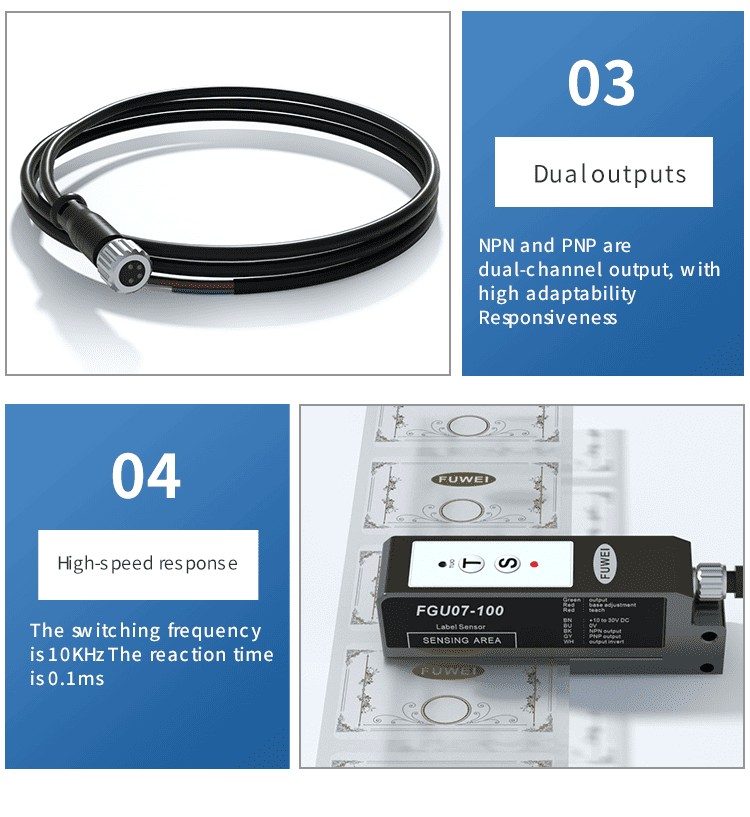

| Output | NPN + PNP Dual Output |

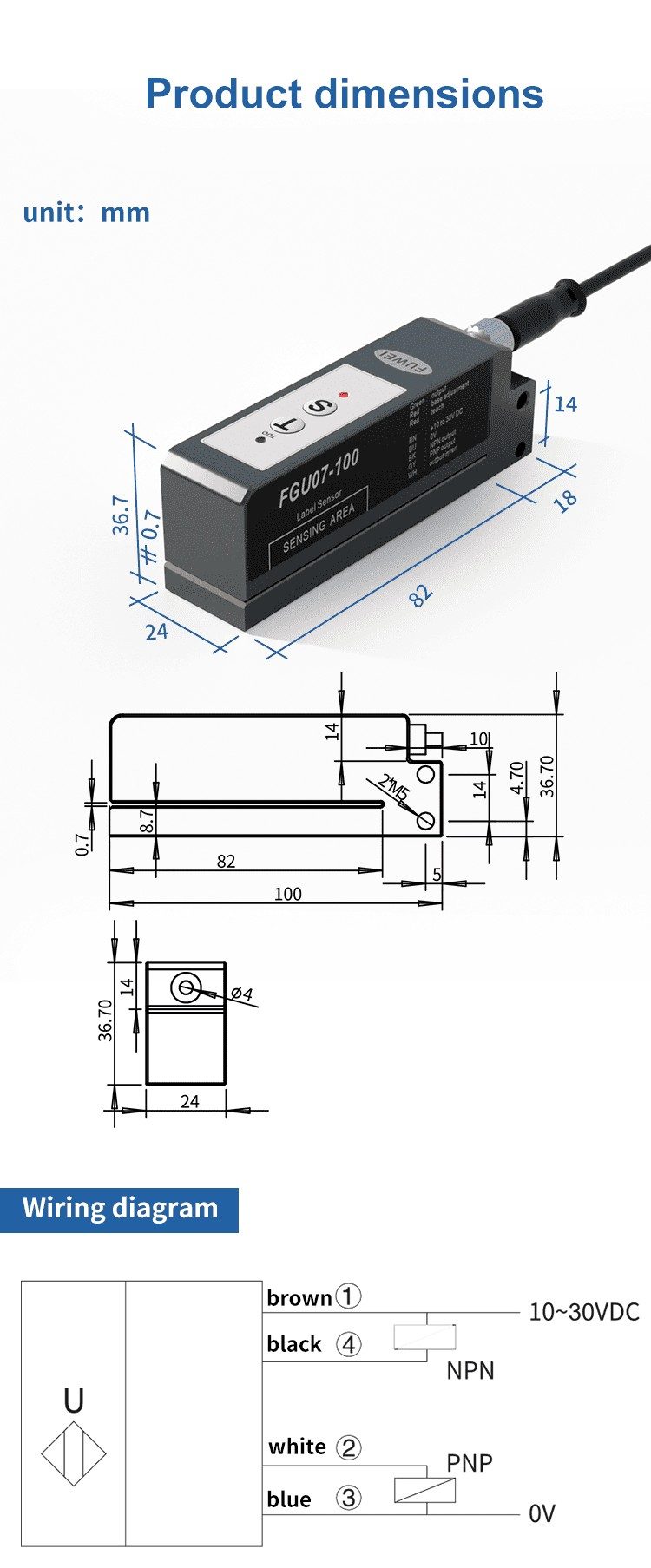

| Slot Width | 0.7mm |
| Slot Depth | 80mm |
| Switch Frequency | 5KHZ |
| Response Time | 0.1ms |
| Supply Voltage | 10-30VDC |
| Consumption Current | <25mA |
| Output Current | 100mA |

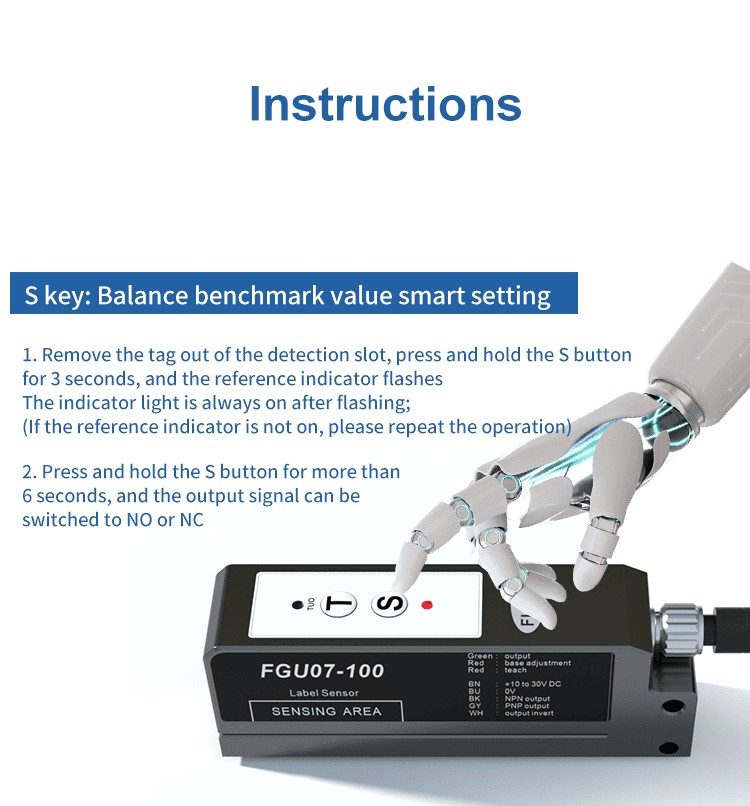

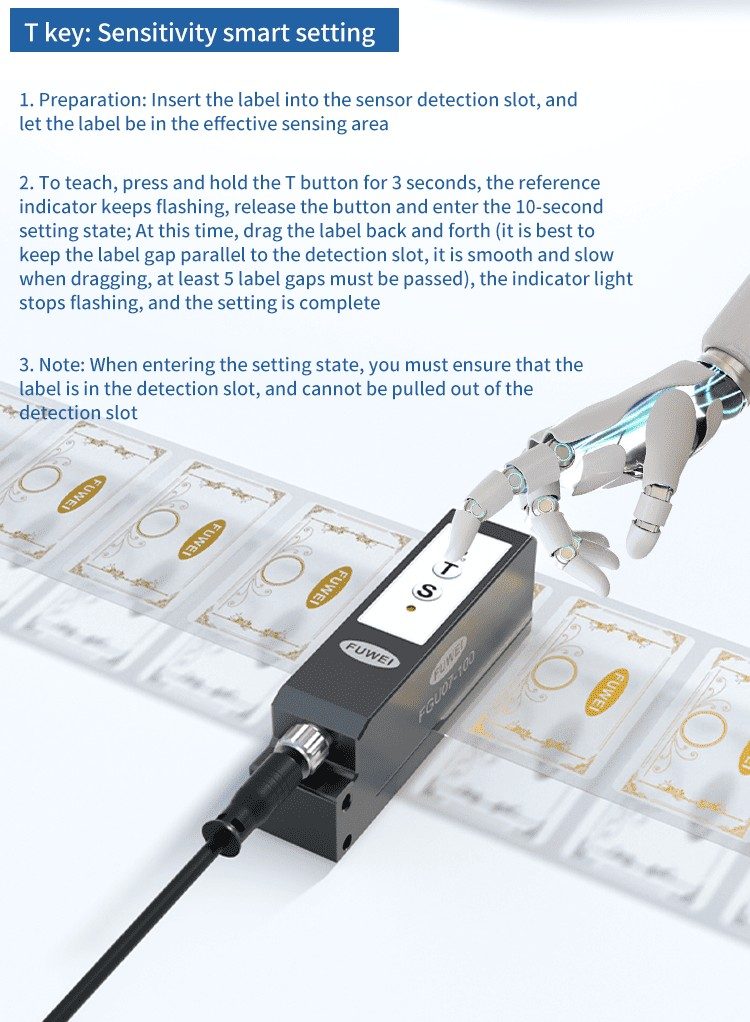

| Sensitivity Setting | Key Setting |
| Operating Temperature | -20~+60℃ (No Freezing) |

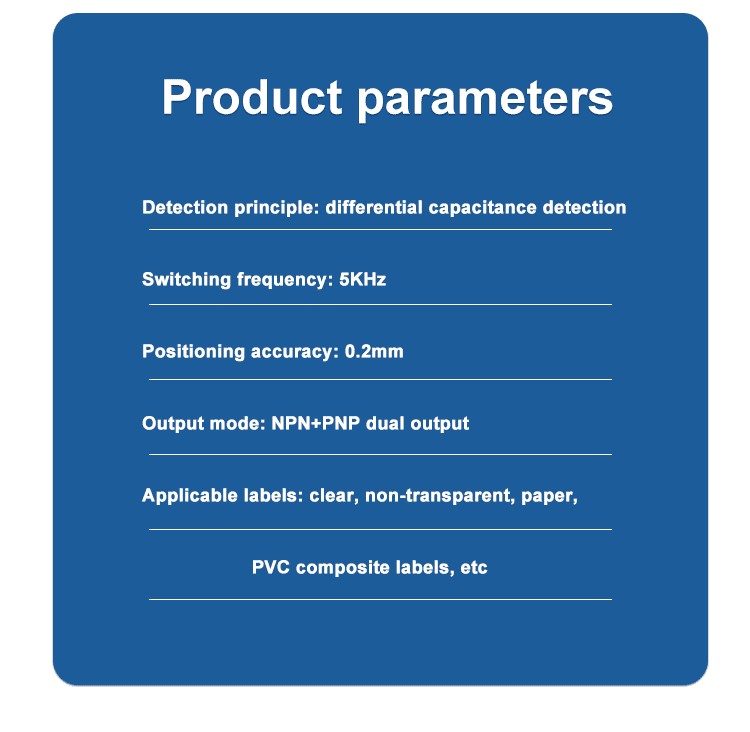

| Detection Principle | Differential Capacitance Detection |
| Packaging and Delivery |
| Selling Units | Single Item |
| Single Package Size | 18X15X8 cm |
| Single Gross Weight | 0.450 kg |
