| Key Attributes | |
|---|---|
| Mounting Type | Bolt Mounting |
| Manufacturing Date Code | 2023 |
| Model Number | FGNT08-08N-B |
| Brand Name | FUWEI |

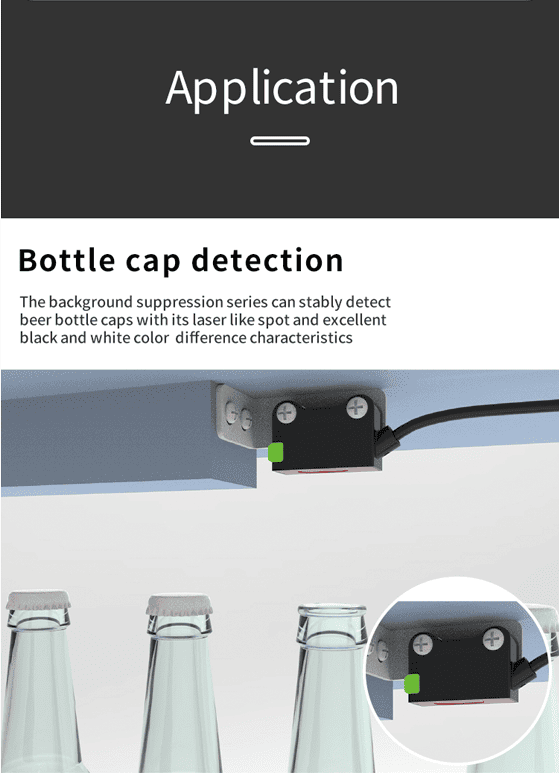

| Usage | Judgment, detection in place |

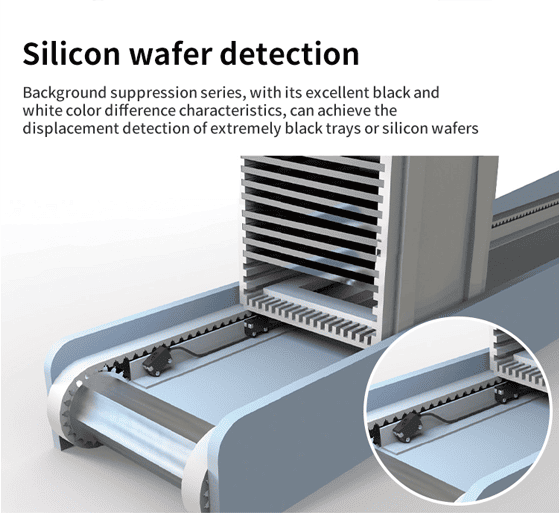

| Description | Background suppression |

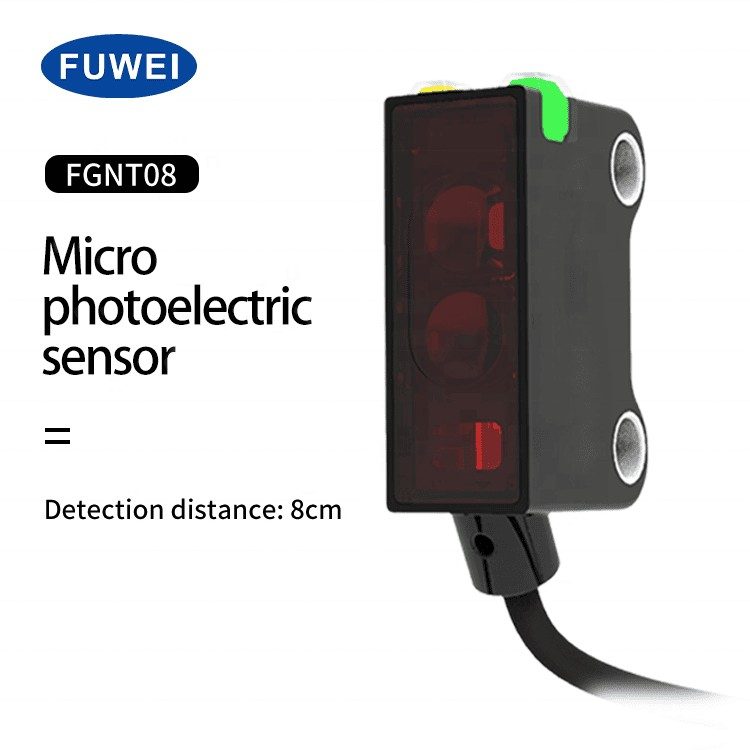

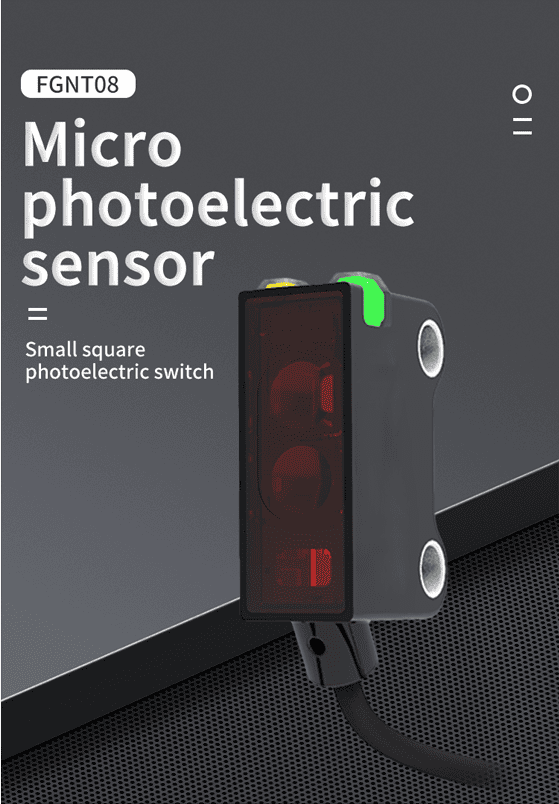

| Type | Photoelectric Sensor |
| Series | FGNT08-08N-B |
| Features | Not affected by color |
| Place of Origin | Guangdong, China |
| Theory | Photoelectric Detection Principle |

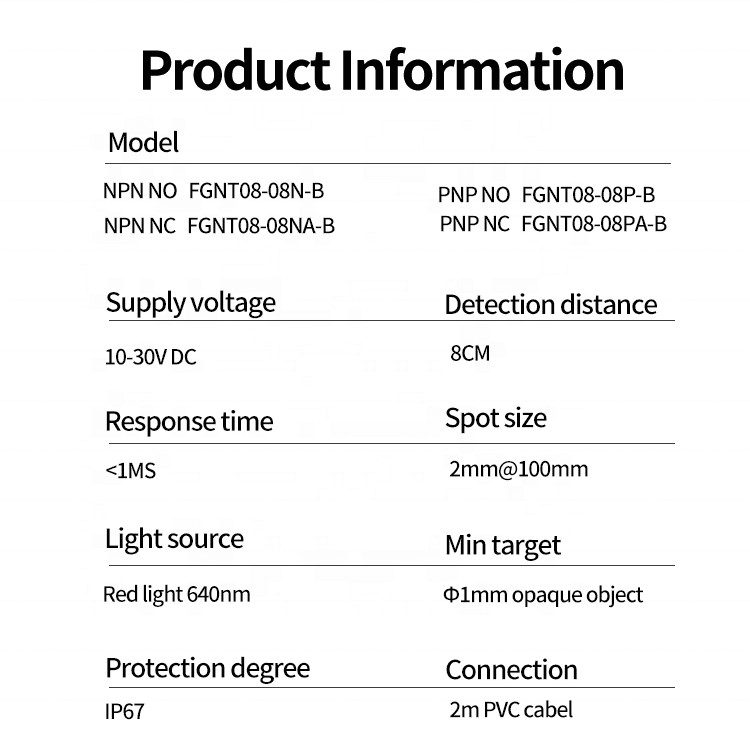

| Output | NPN, PNP |
| Description | Photoelectric sensor |
| Sensing Distance | 8CM |
| Dead Zone | <20mm |
| Standard Target | 100×100mm white card |
| Light Spot Size | 2mm@100mm |
| Color Sensitivity | >90% |
| Hysteresis | <20% |
| Supply Voltage | 10…30VDC |
| Consumption Current | ≤15mA |
| Operating Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~70℃ |
| Packaging and Delivery | |
| Selling Units | Single item |
| Single Package Size | 16×15×6 cm |
| Single Gross Weight | 0.032 kg |
