| Mounting Type |
Easy installation |
| Manufacturing Date Code |
20240808 |
| Model Number |
FGNH04-30N-B |
| Brand Name |
FUWEI |
| Usage |
Detecting object |
| Description |

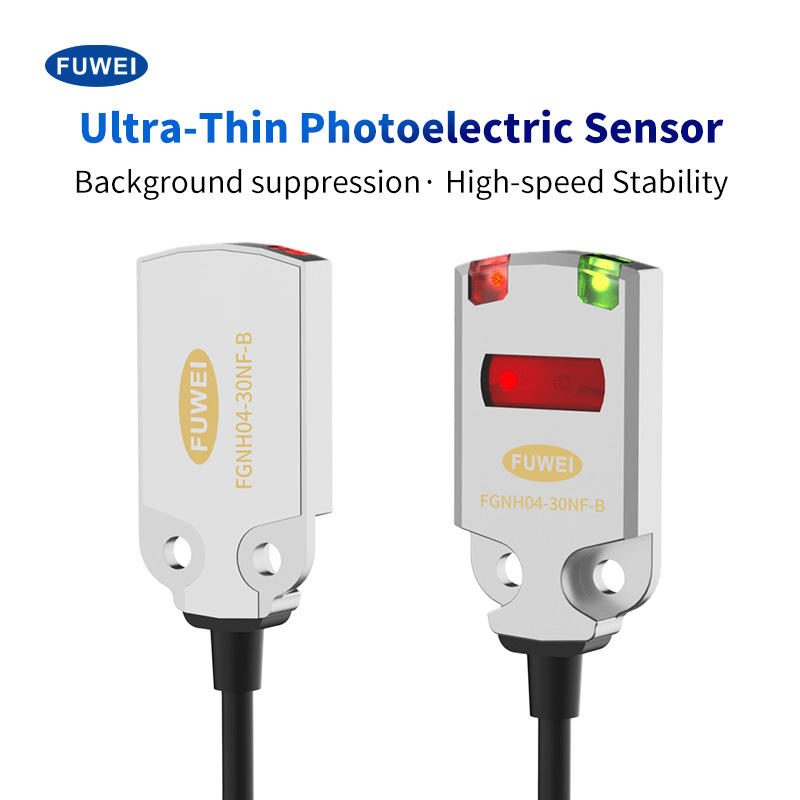

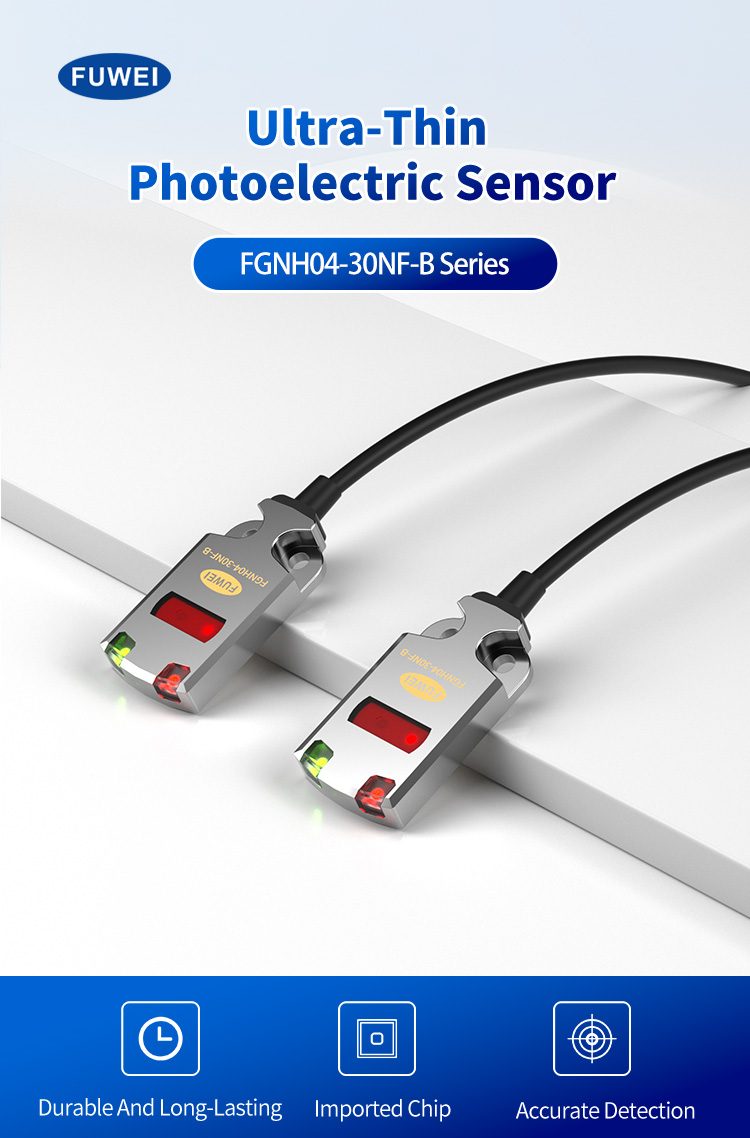

Ultra-Thin Photoelectric Sensor |
| Type |
Photoelectric Sensor |
| Series |
FGNH04-30N-B |
| Features |
Light for accurate detection |
| Place of Origin |
Guangdong, China |
| Theory |
Optics |
| Output |
NPN PNP |
| Voltage – Supply |
10V-30VDC |
| Wavelength |
650nm |
| Product Name |
Ultra-Thin Photoelectric Sensor |
| Product Model |
FGNH04 Series |
| Output Mode |

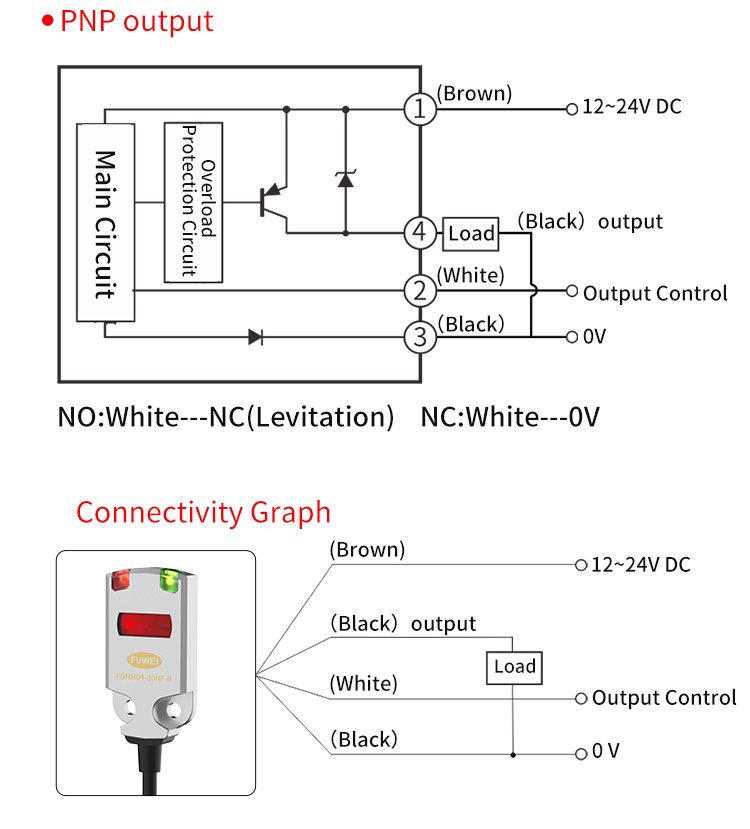

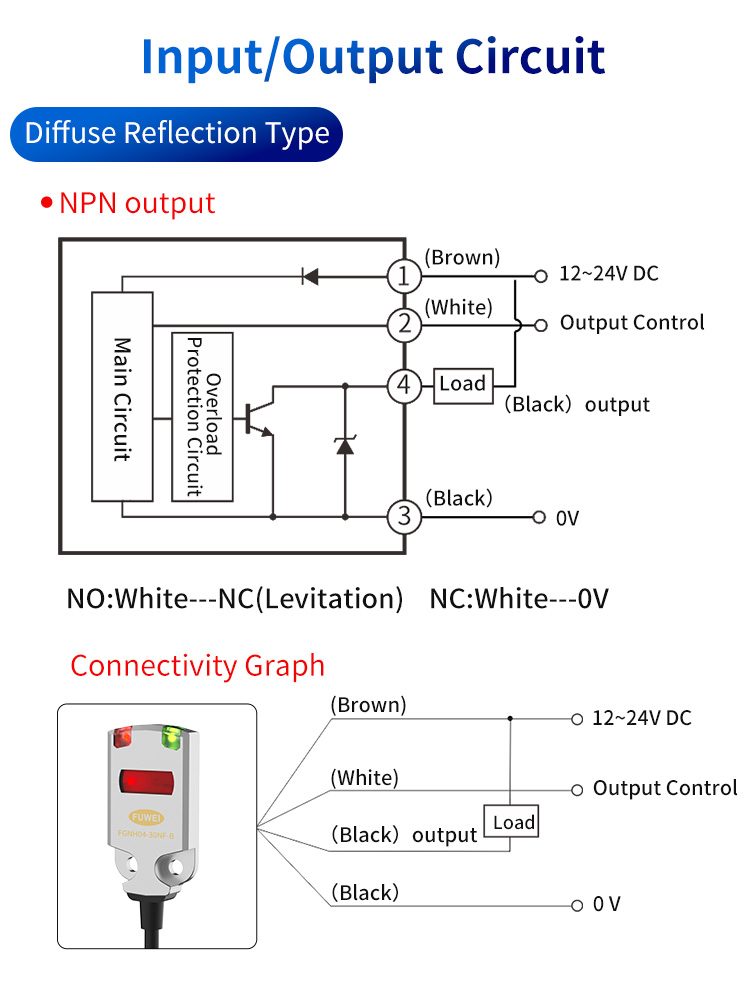

NPN.NO+NC / PNP.NO+NC |
| Detection Distance |

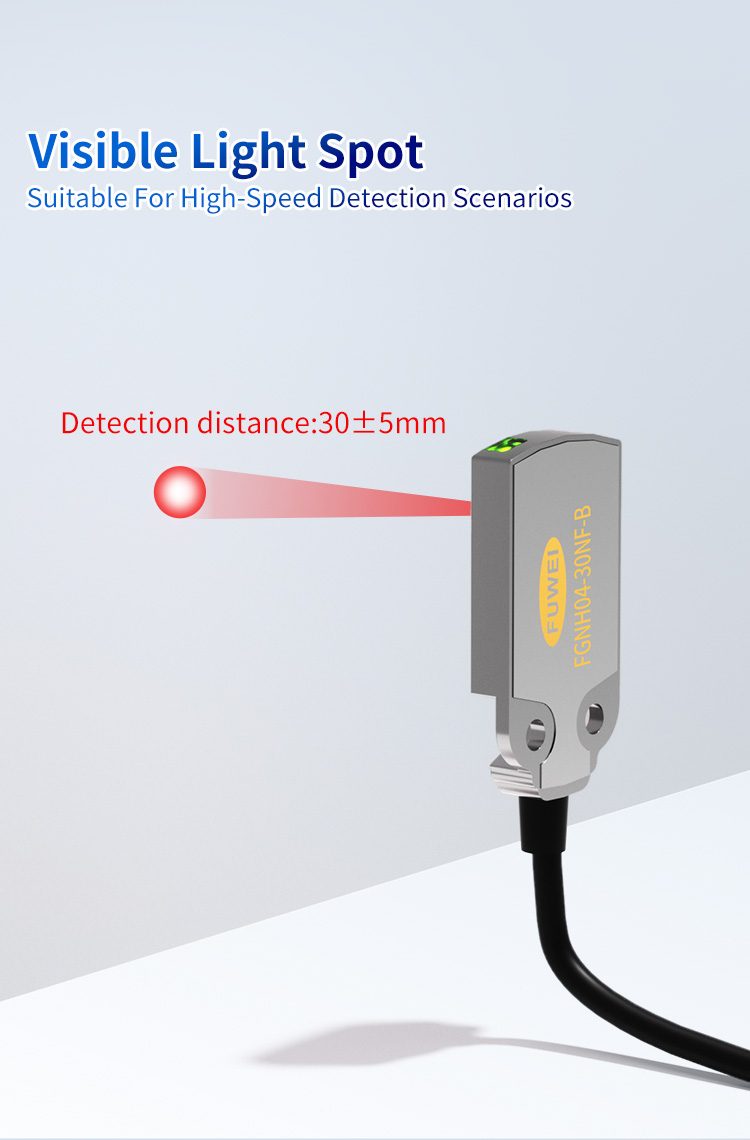

30±5mm |
| Response Time |
<1ms (Action/Reset) |
| Power Supply Voltage |
12-30VDC With Ripple Current(P-P)10% |
| Current Consumption |
19mA |
| Indicator Light |

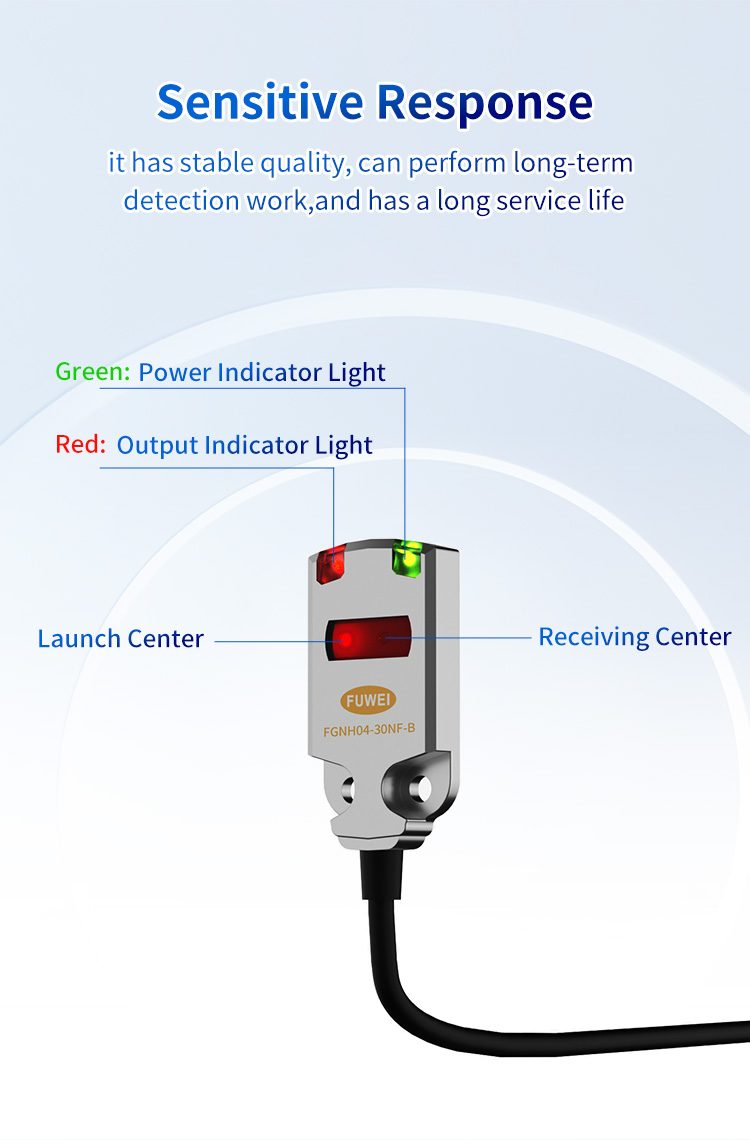

Green: Power Indicator Light; Red: Output Indicator Light |
| Protective Structure |
IP65 |
| Ambient Temperature |
-25~+55°C |
| Selling Units |
Single item |
| Single Package Size |
16 x 15 x 5 cm |
| Single Gross Weight |
0.023 kg |
