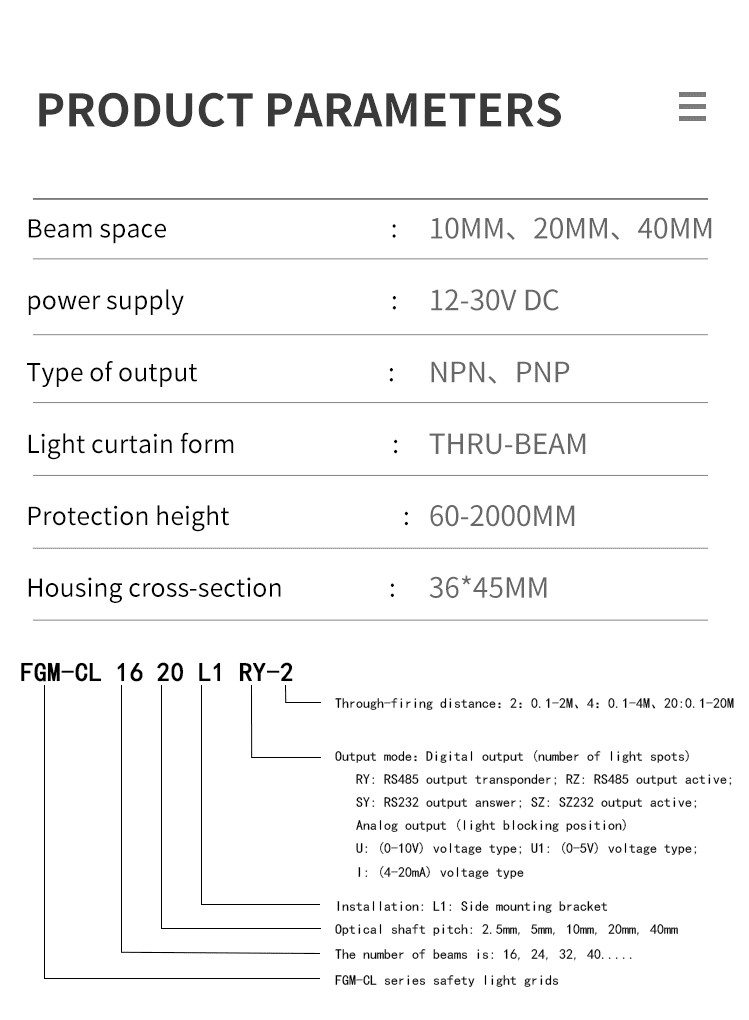

| Key Attributes |

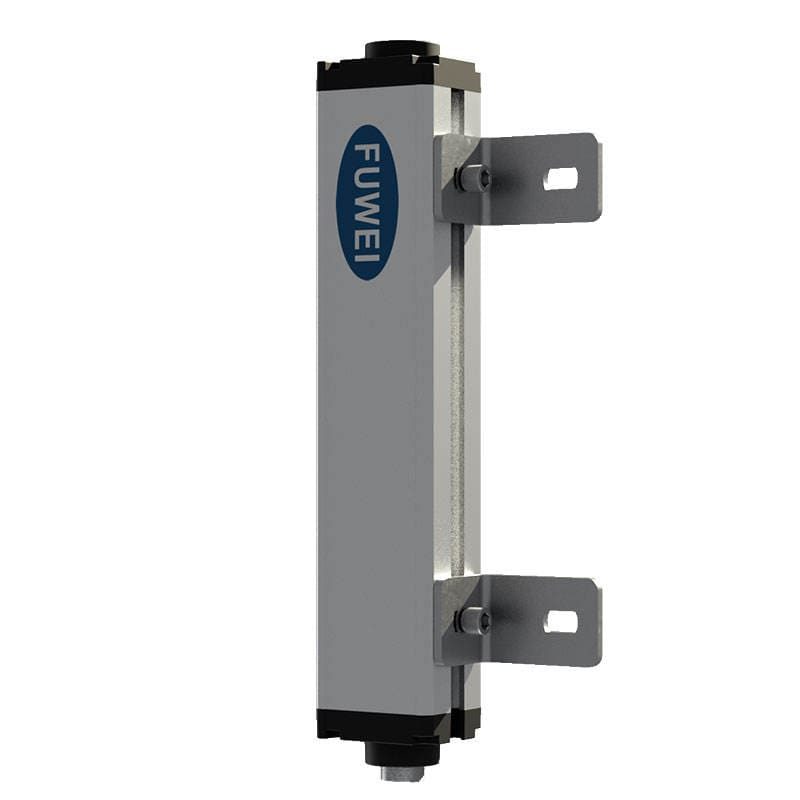

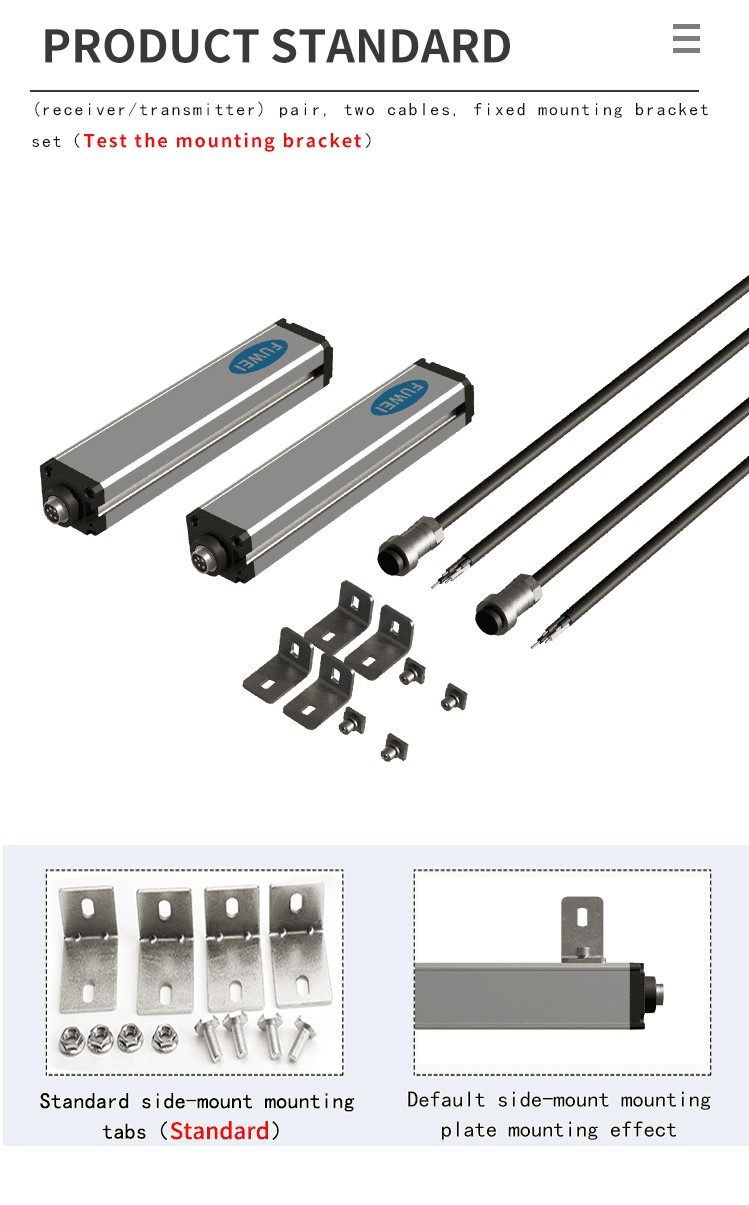

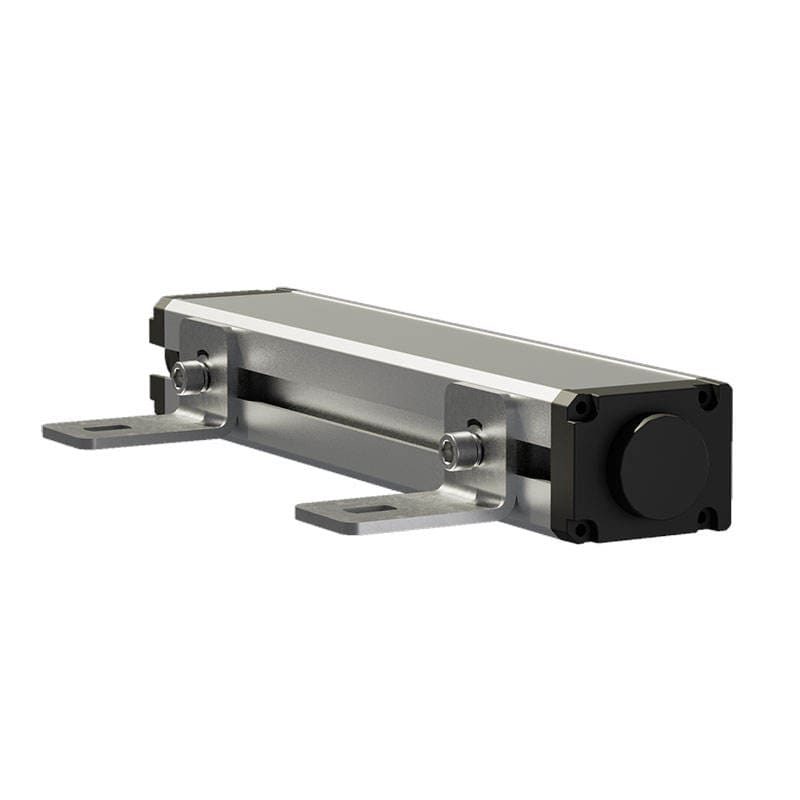

| Mounting Type | Side mounting screws |
| Manufacturing Date Code | 2023 |
| Model Number | FGM-CL |
| Brand Name | FUWEI |

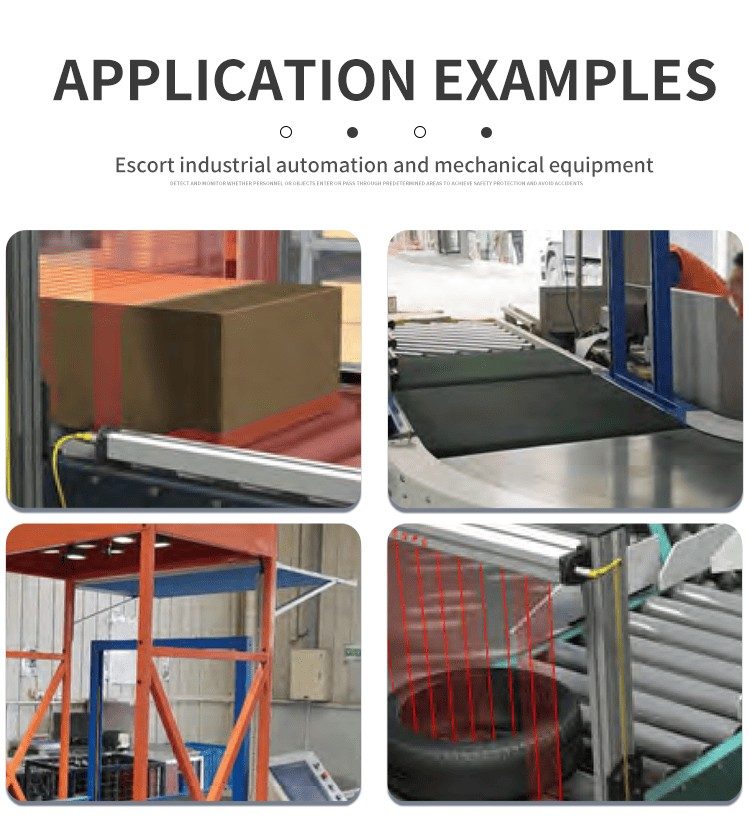

| Usage | Machine safety protection |
| Description | Machine safety protection |

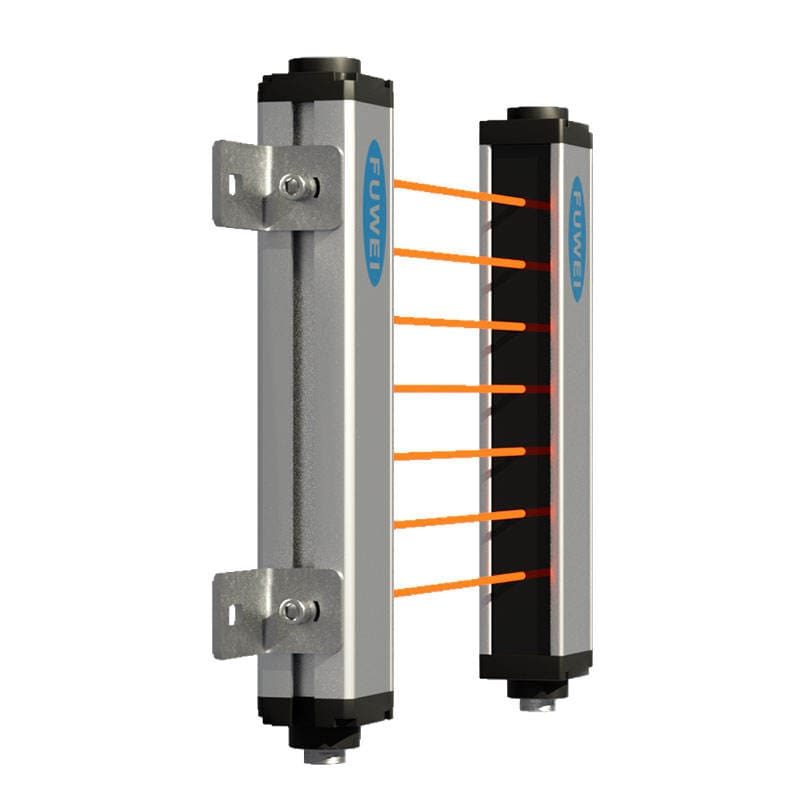

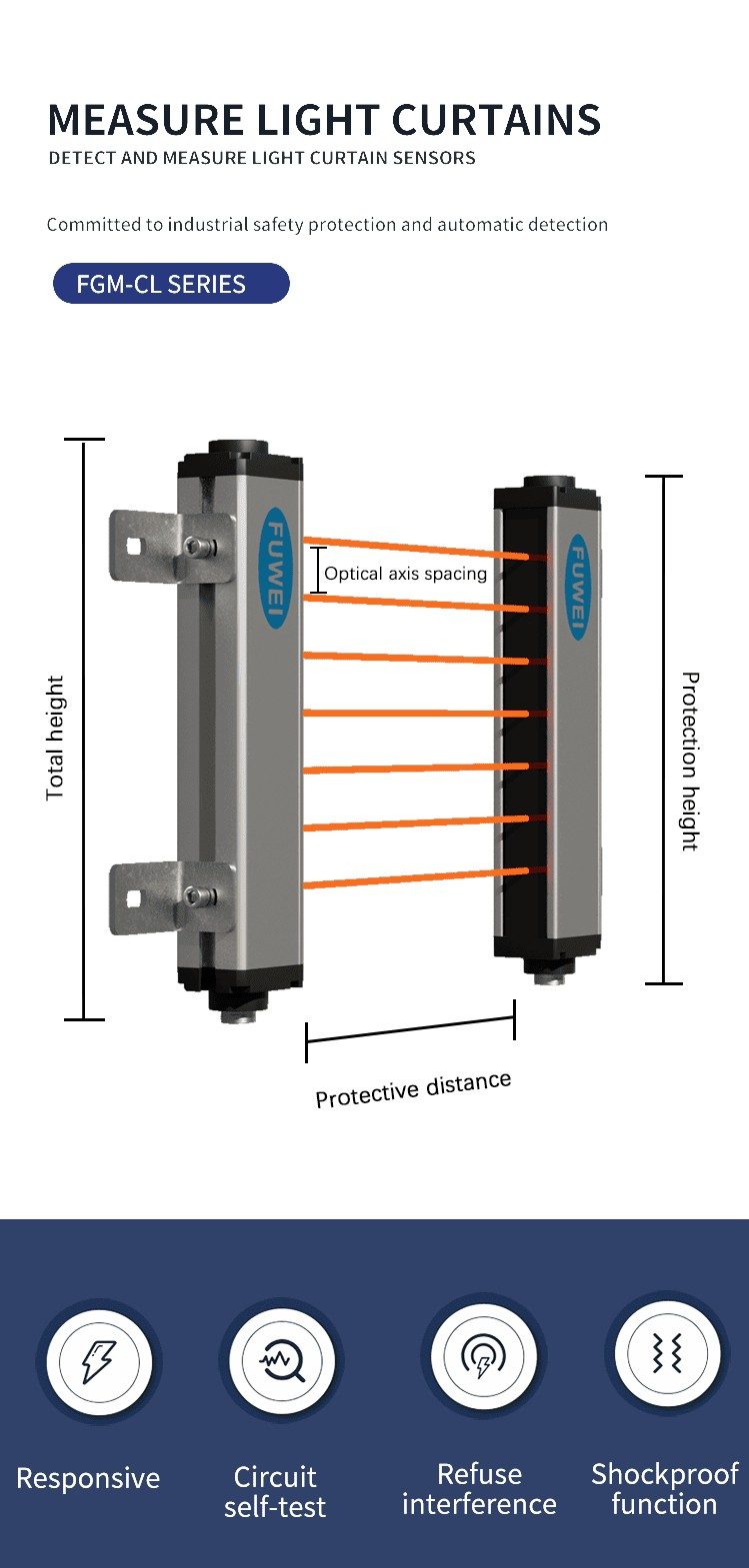

| Type | Infrared Safety Light Sensor |
| Series | FGM series |
| Place of Origin | Guangdong, China |
| Theory | Correlation infrared sensor |

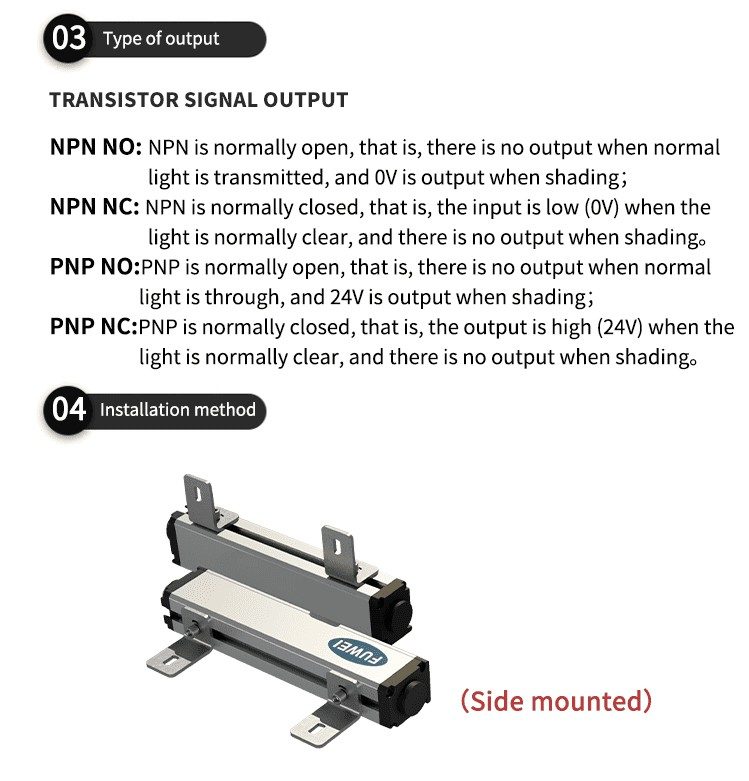

| Output | NPN/PNP |
| Description | Safety light curtain sensors |

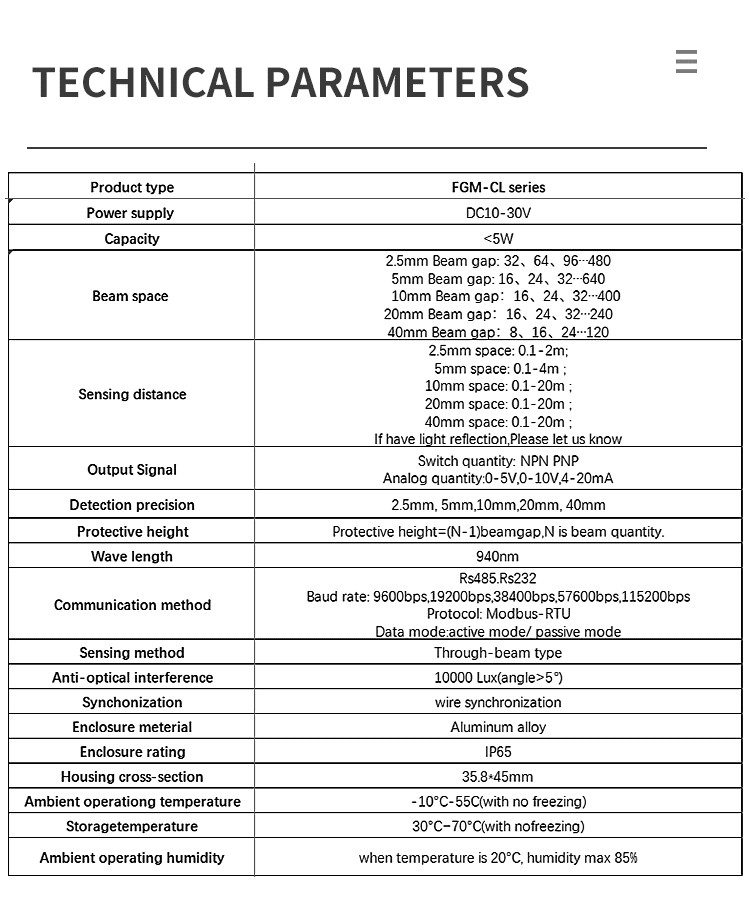

| Product Type | FGM-CL series |
| Power Supply | DC10-30V |
| Capacity | <5W |
| Anti-optical Interference | 10000 Lux (angle > 5°) |
| Ambient Operating Temperature | -10°C ~ 55°C (no freezing) |

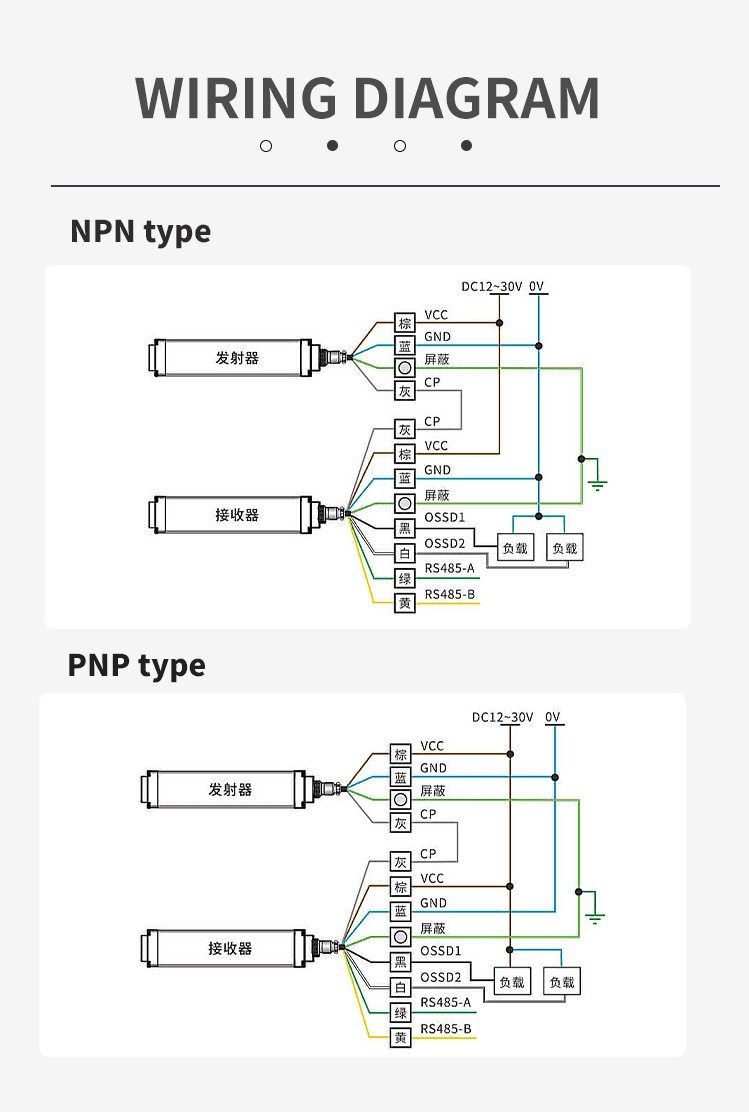

| Output Signal | Switch quantity: NPN/PNP, Analog quantity: 0-5V, 0-10V, 4-20mA |

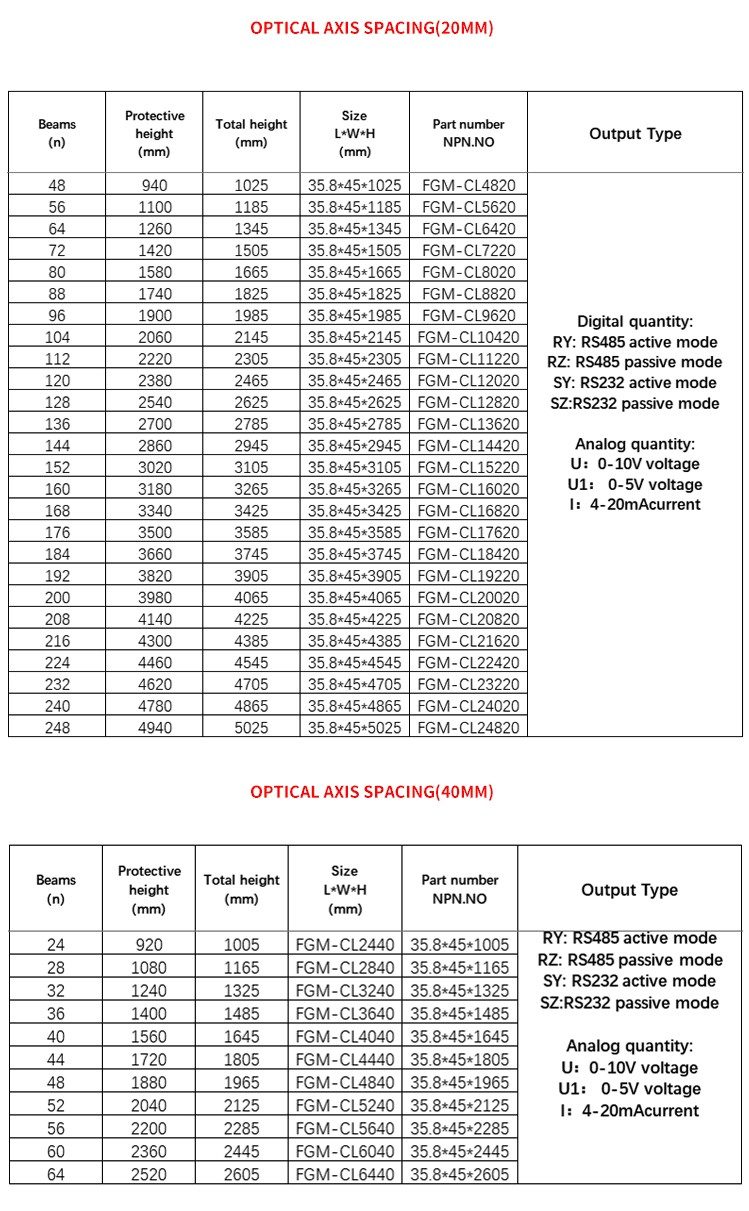

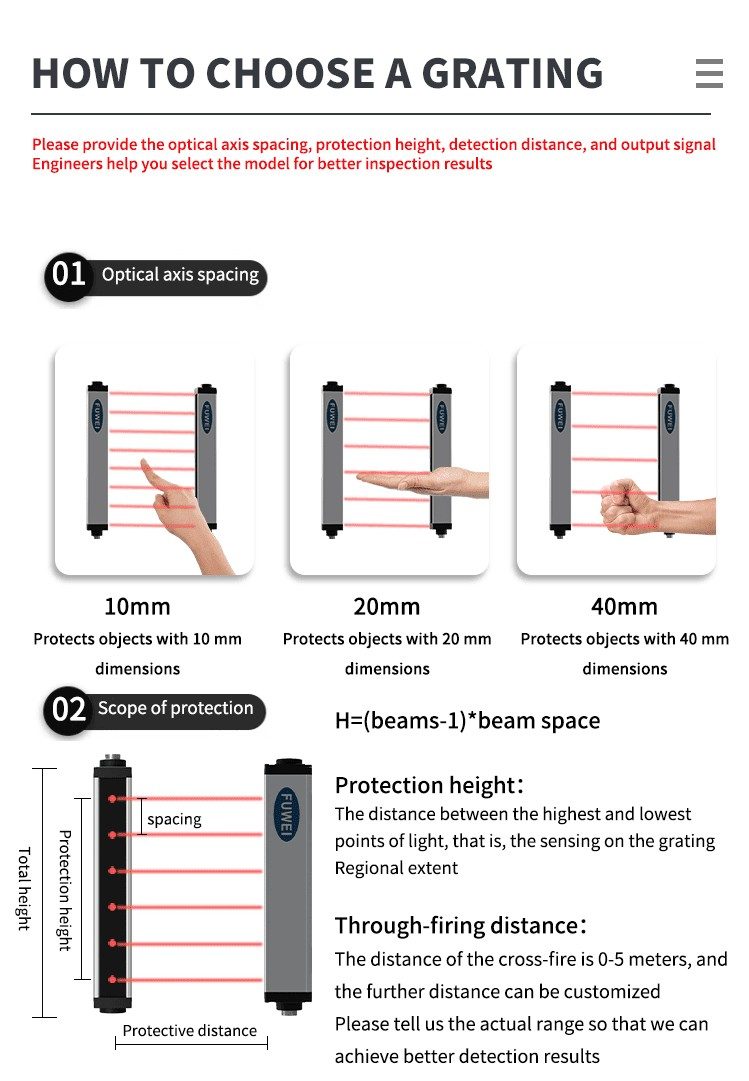

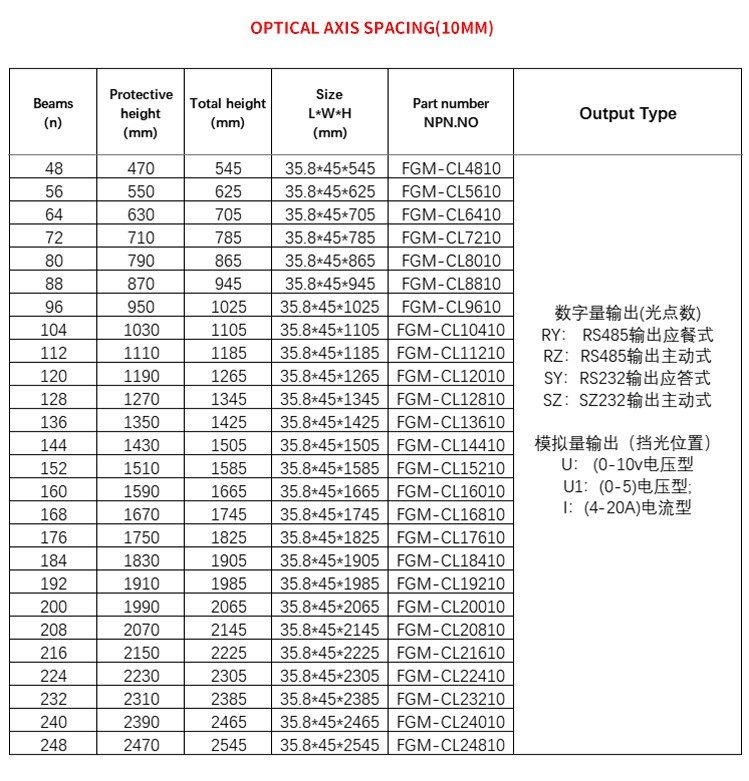

| Detection Precision | 2.5mm, 5mm, 10mm, 20mm, 40mm |
| Wavelength | 940nm |
| Enclosure Rating | IP65 |

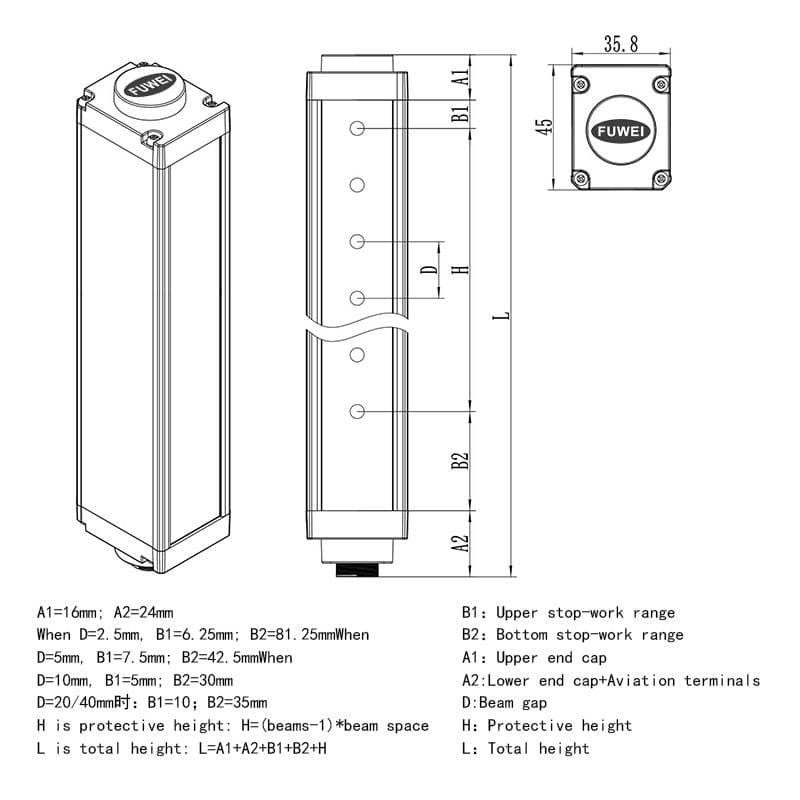

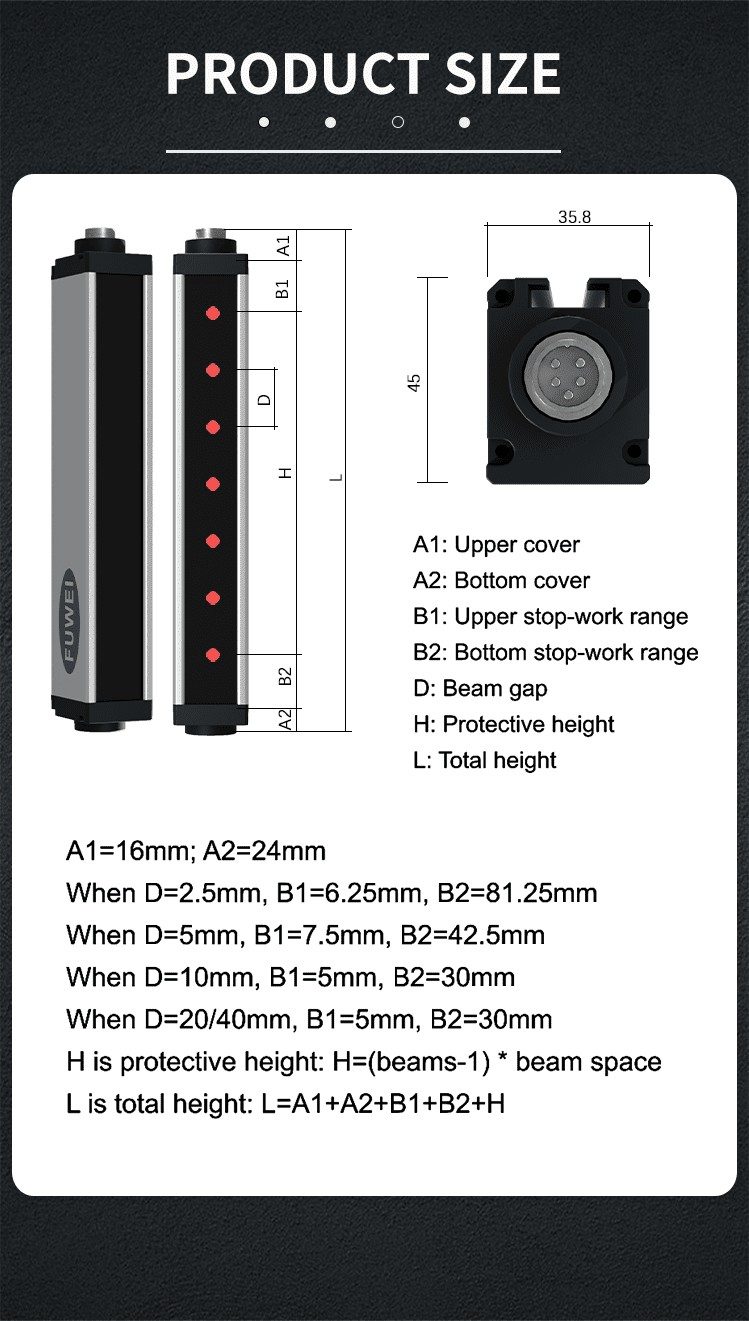

| Housing Cross-section | 35.8 × 45mm |
| Packaging & Delivery |
| Selling Units | Single item |
| Single Package Size | 50 × 20 × 20 cm |
| Single Gross Weight | 2.000 kg |
