| Key Attributes |
| Mounting Type | Side mounting screws |
| Manufacturing Date Code | 2023 |
| Model Number | FGM-CBD |
| Brand Name | FUWEI |

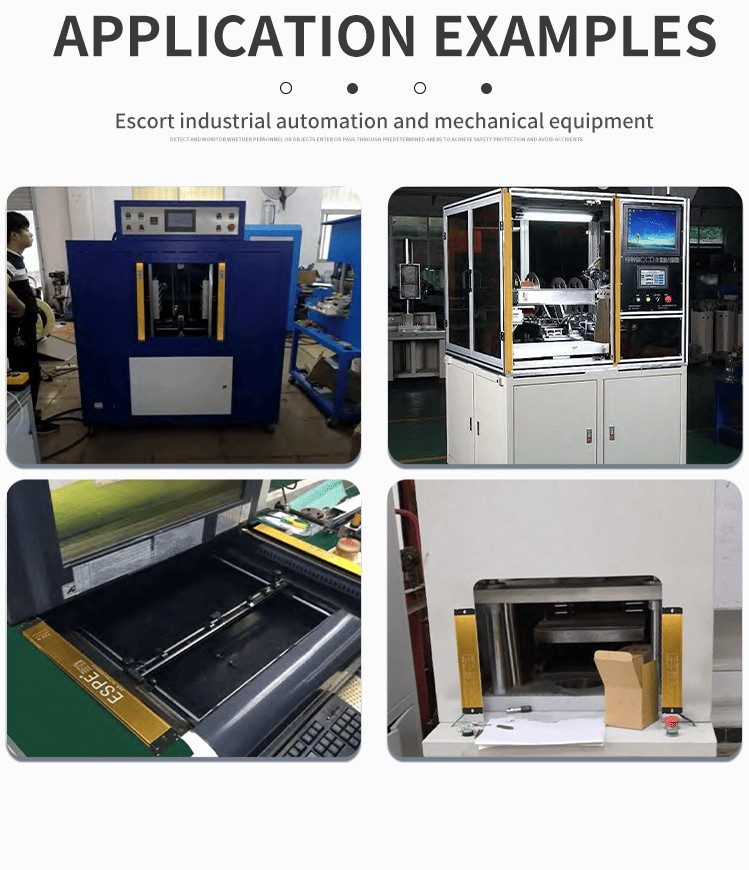

| Usage | Machine safety protection |
| Description | Machine safety protection |

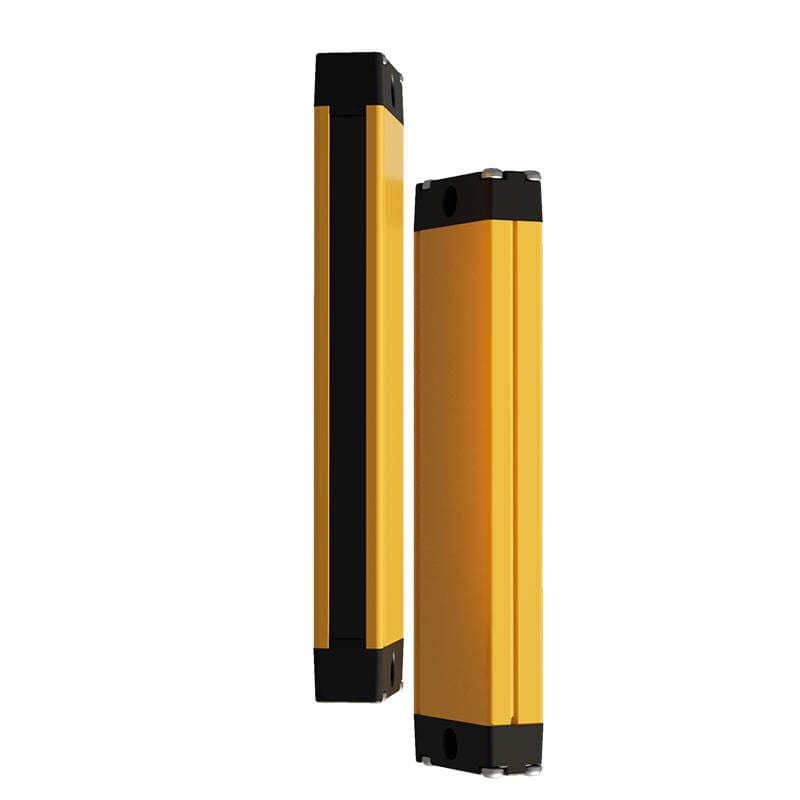

| Type | Infrared Safety Light Sensor |
| Series | FGM-CBD series |
| Place of Origin | Guangdong, China |
| Theory | Correlation infrared sensor |

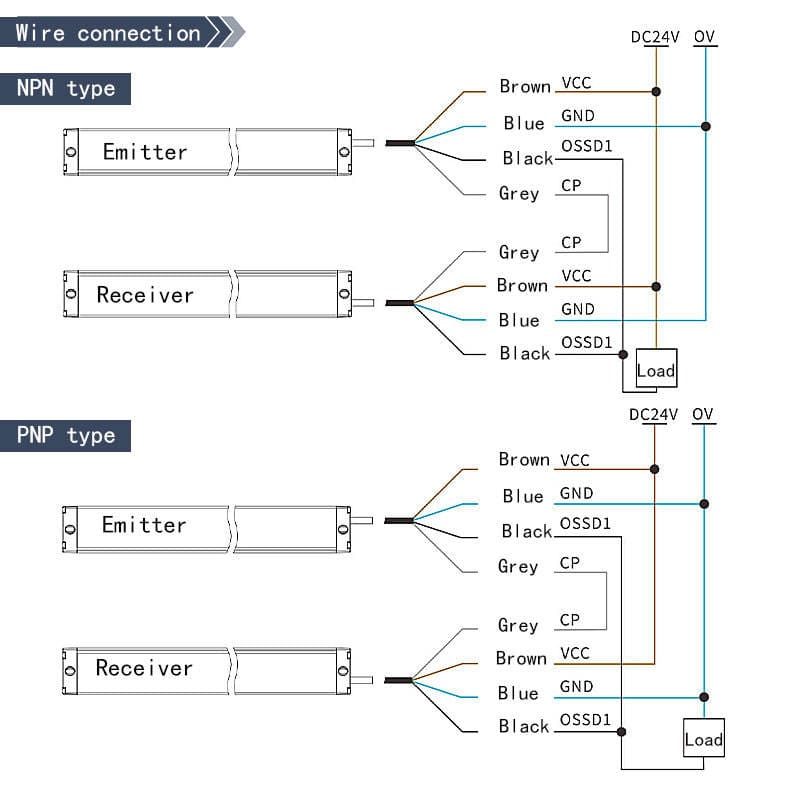

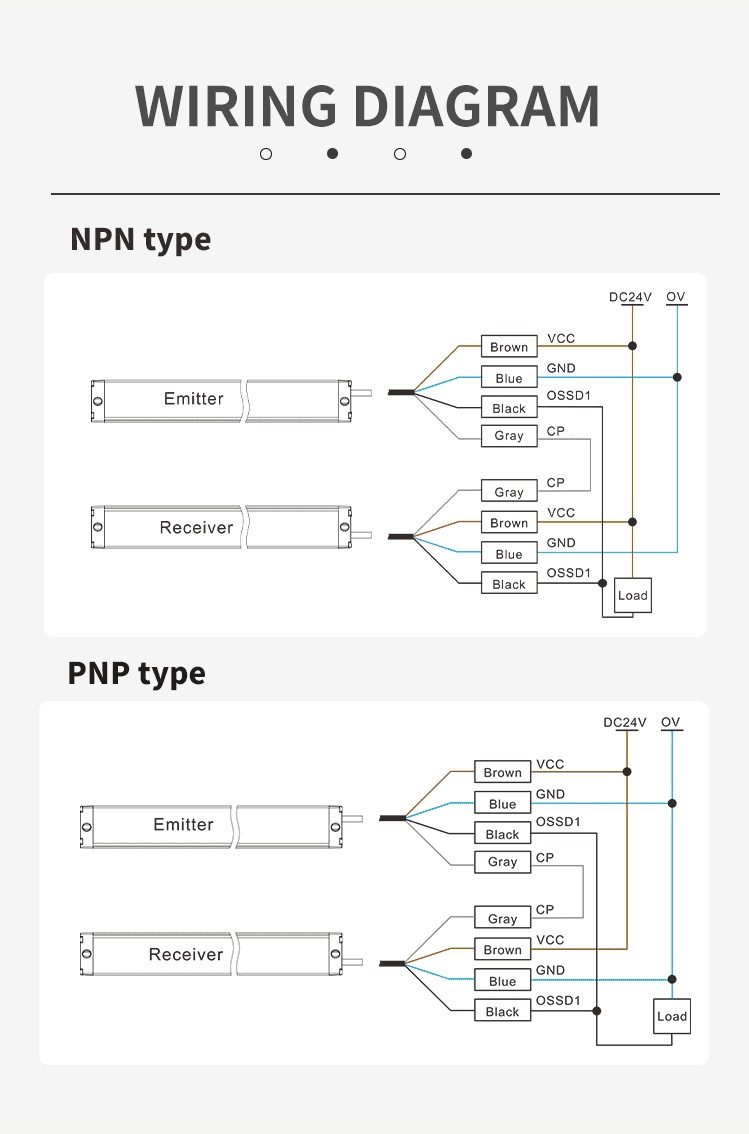

| Output | NPN/PNP |
| Description | Safety light curtain sensors |

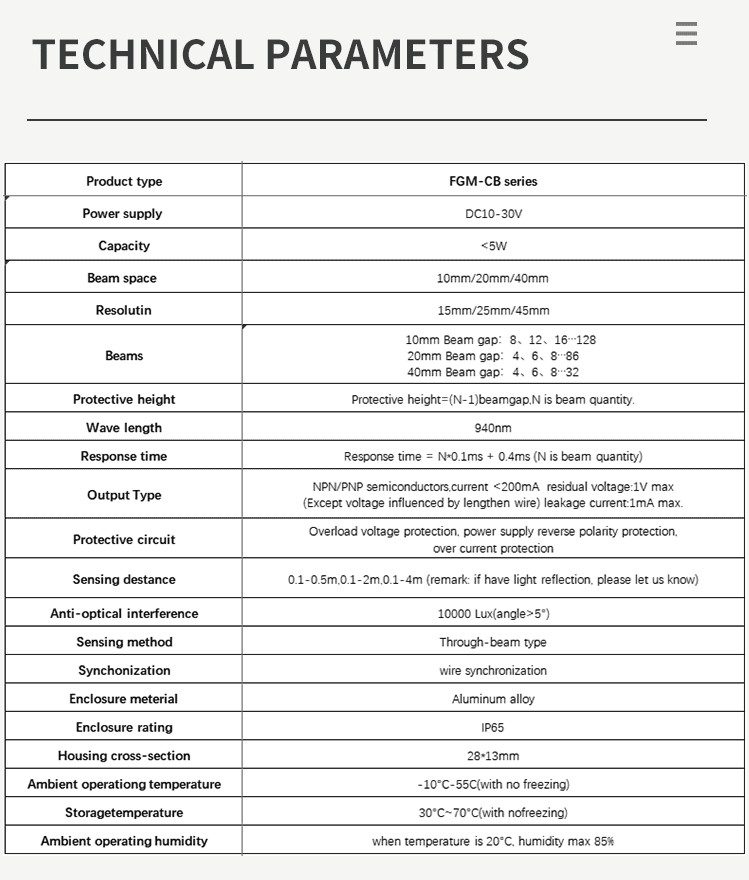

| Power Supply | DC10-30V |

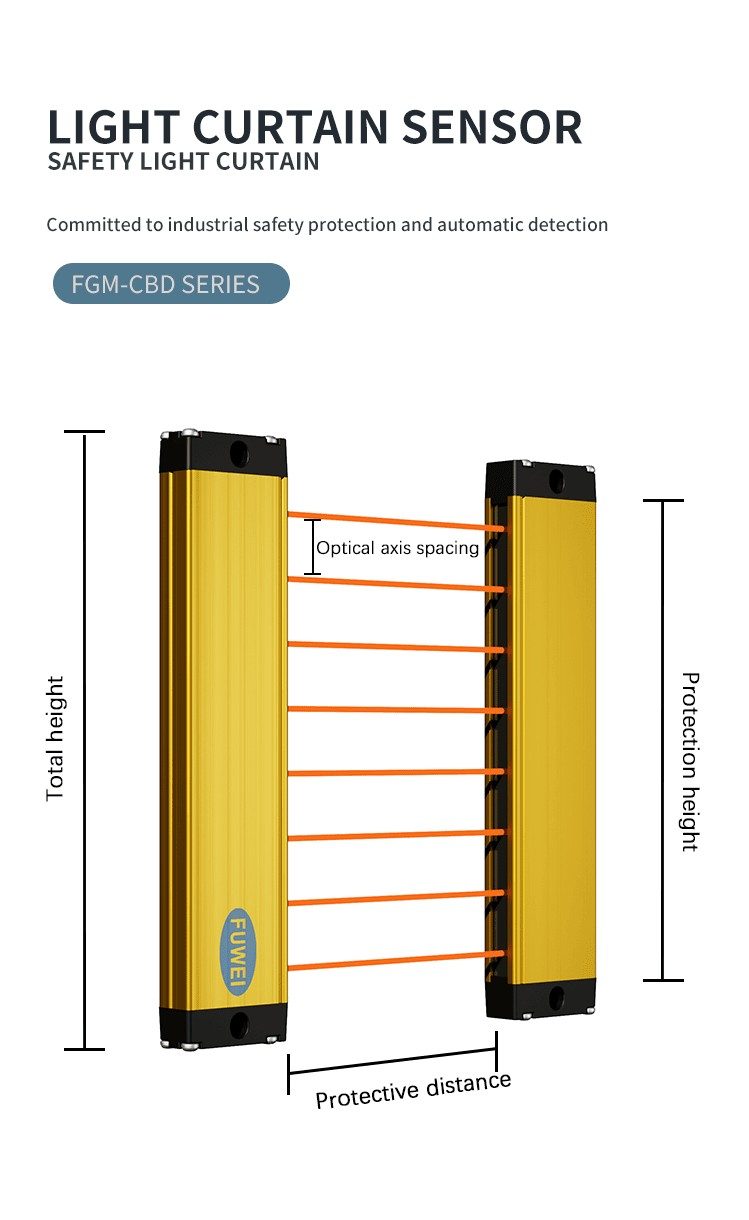

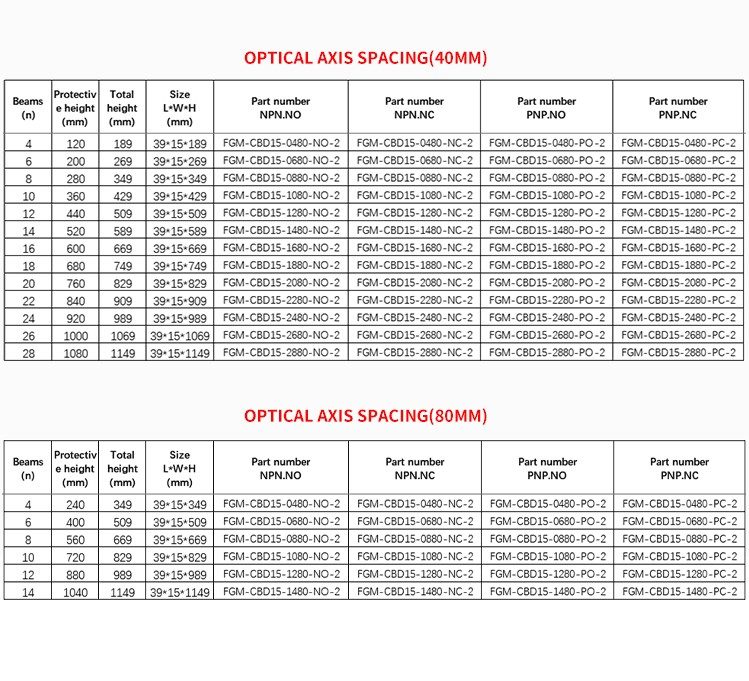

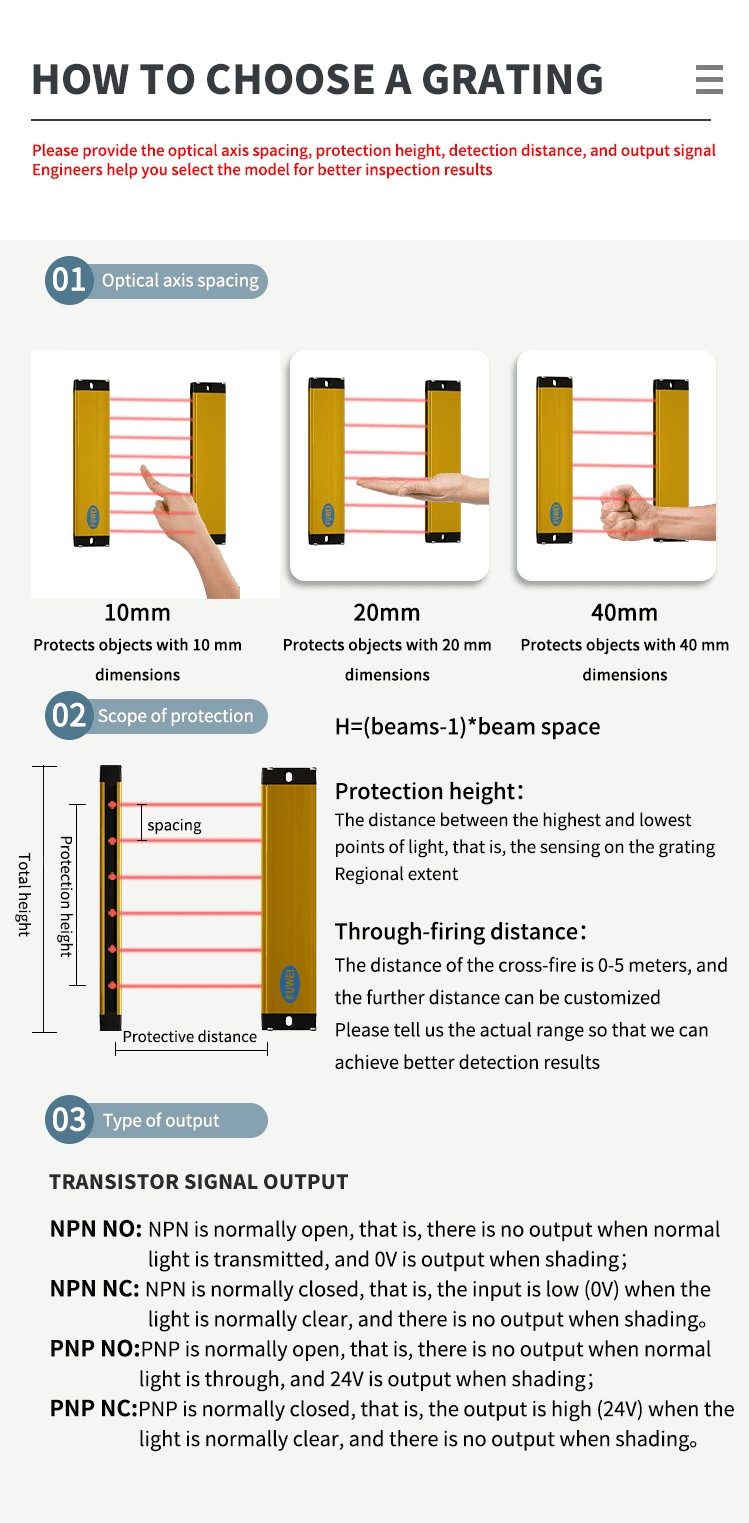

| Beam Space | 10mm / 20mm / 40mm |
| Resolution | 20mm / 30mm / 45mm |
| Sensing Distance | 0.1 ~ 2m |
| Anti-optical Interference | 10000 Lux (angle > 5°) |

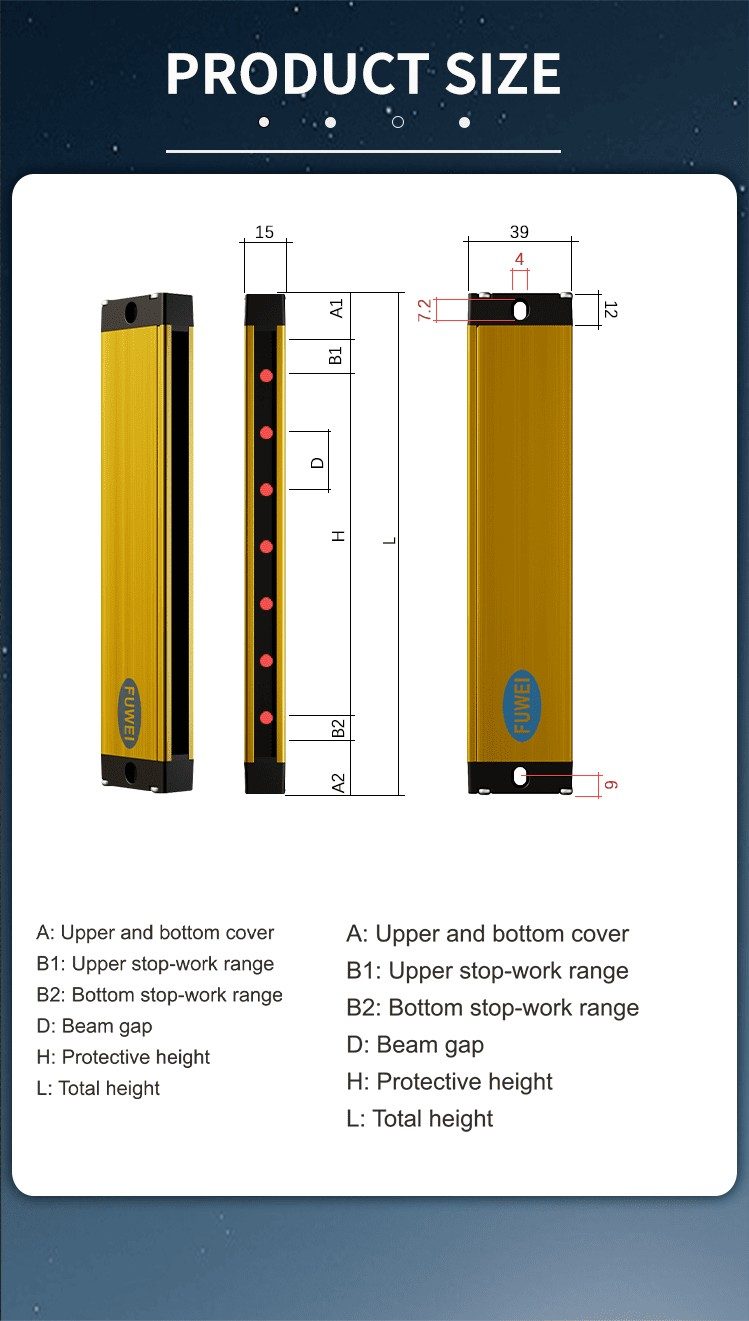

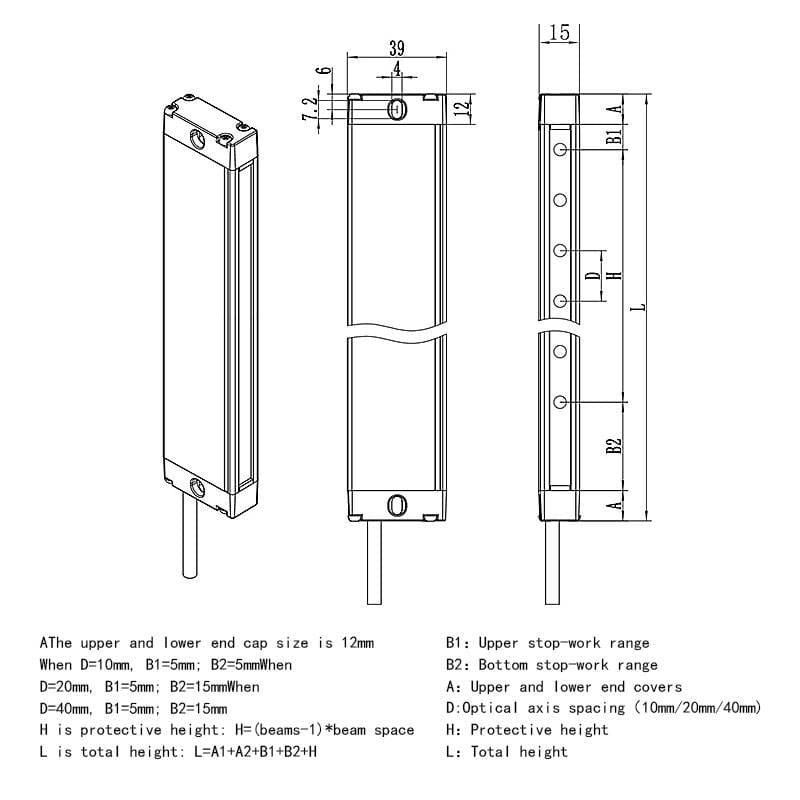

| Housing Cross-section | 35 × 15mm |
| Enclosure Rating | IP65 |
| Ambient Operating Temperature | -10°C ~ 55°C (no freezing) |
| Packaging & Delivery |
| Selling Units | Single item |
| Single Package Size | 50 × 50 × 26 cm |
| Single Gross Weight | 1.000 kg |
