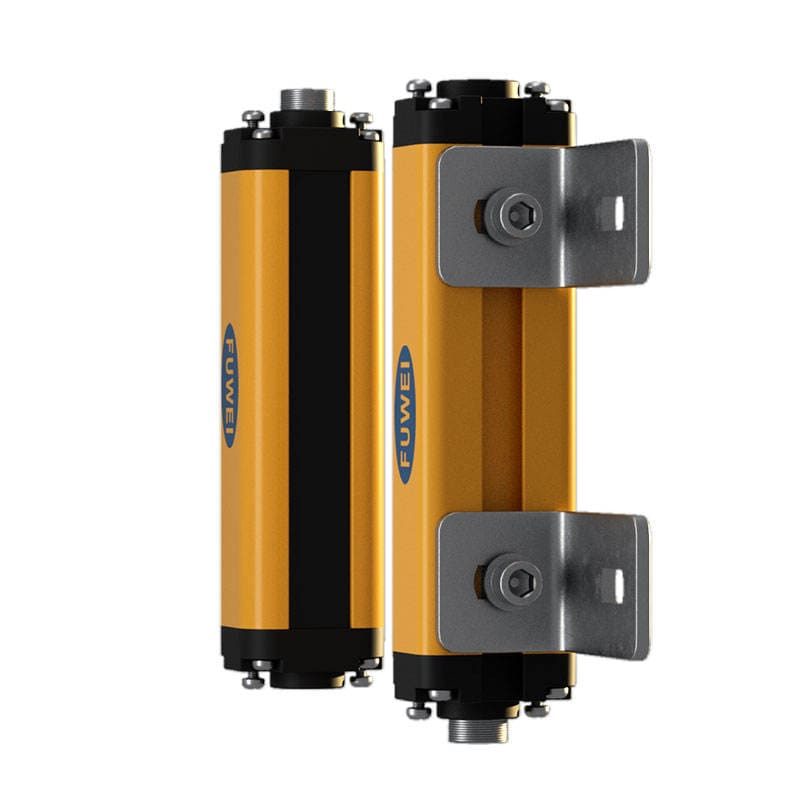

| Mounting Type |

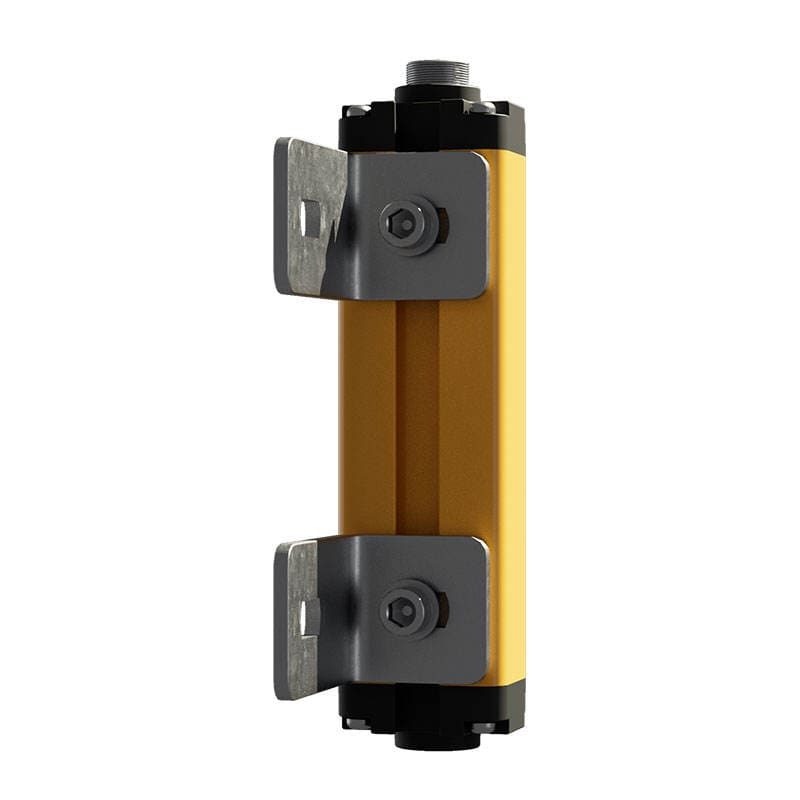

Side mounting screws |
| Manufacturing Date Code |
2023 |
| Model Number |
FGM-LG 20mm |
| Brand Name |
FUWEI |

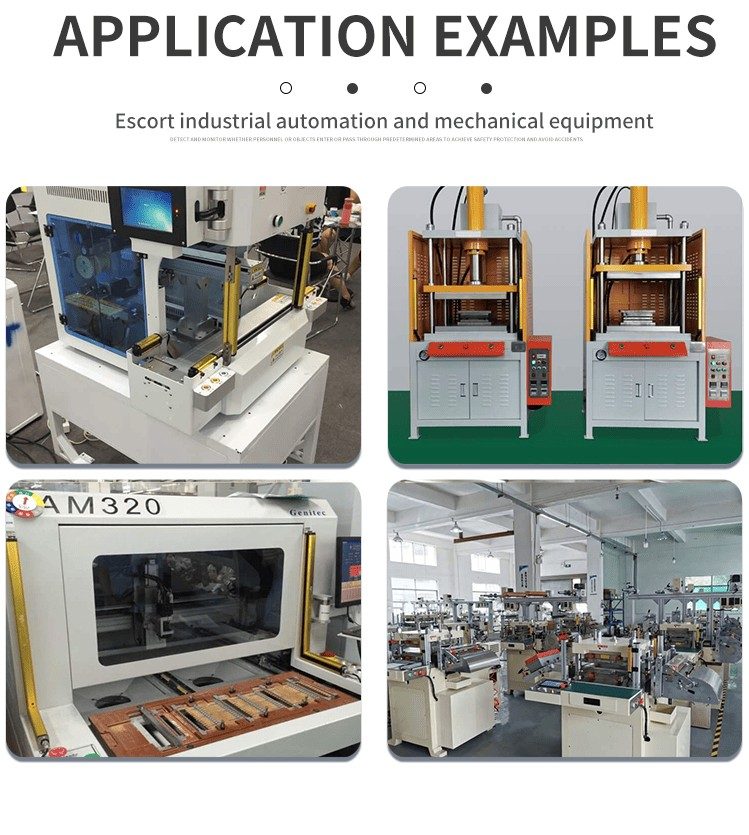

| Usage |
Machine safety protection |
| Description |
Machine safety protection |
| Type |

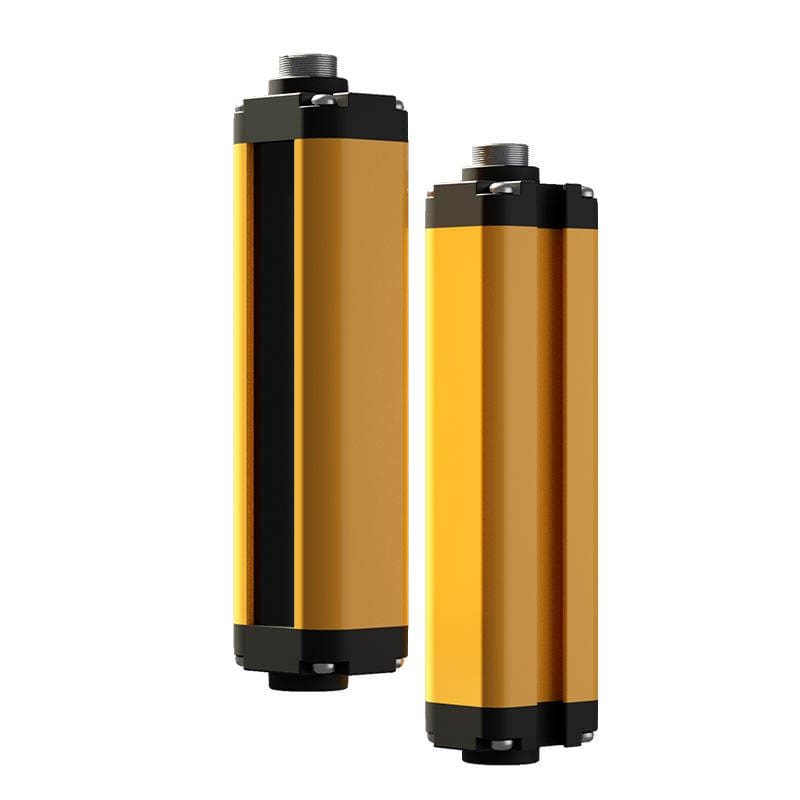

Infrared Safety Light Sensor |
| Series |
FGM-LG series |
| Place of Origin |
Guangdong, China |
| Theory |
Correlation infrared sensor |

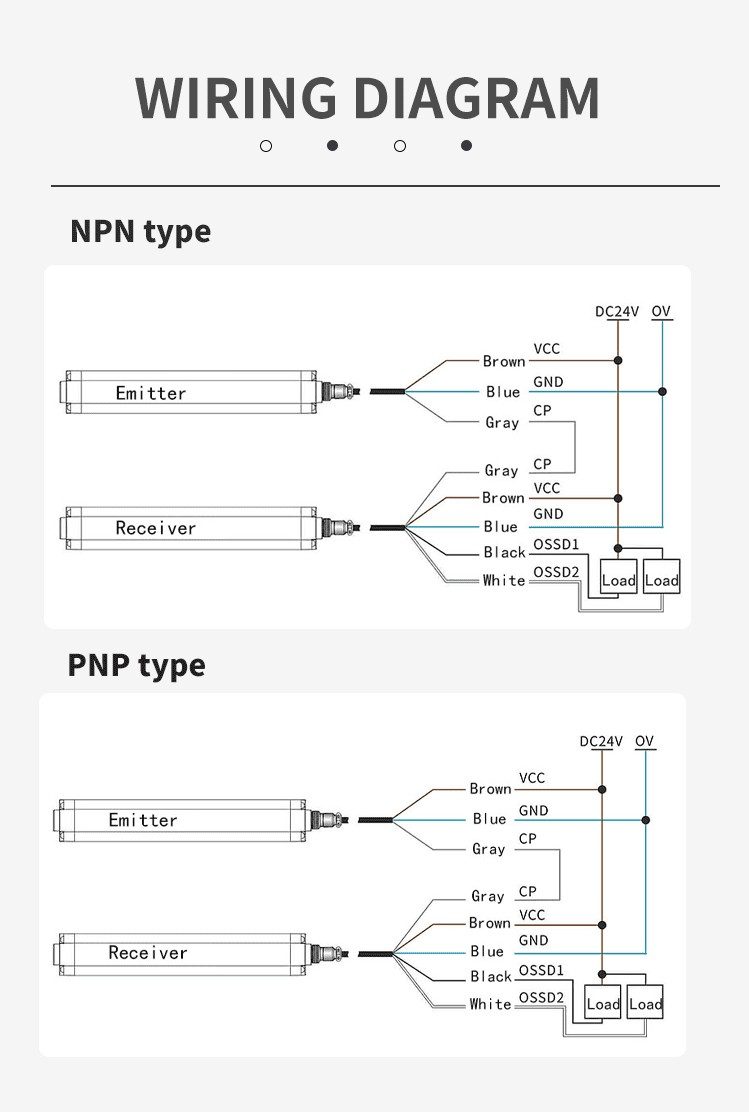

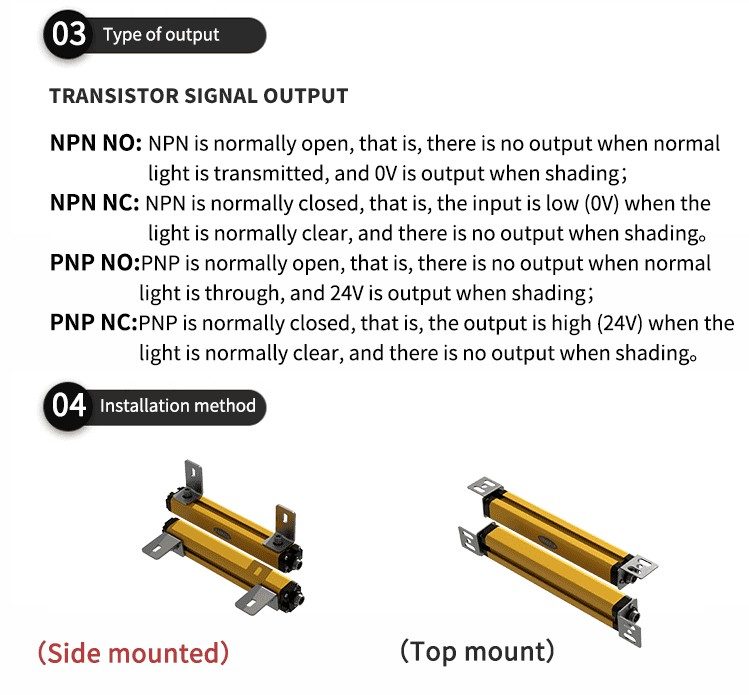

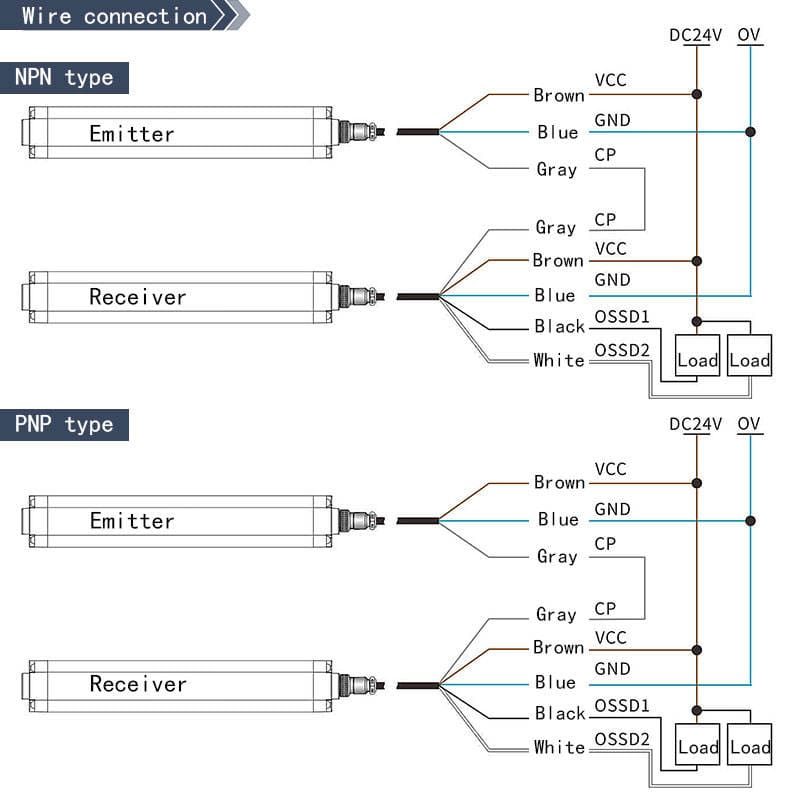

| Output |
NPN/PNP |
| Description |
Safety light curtain sensors |

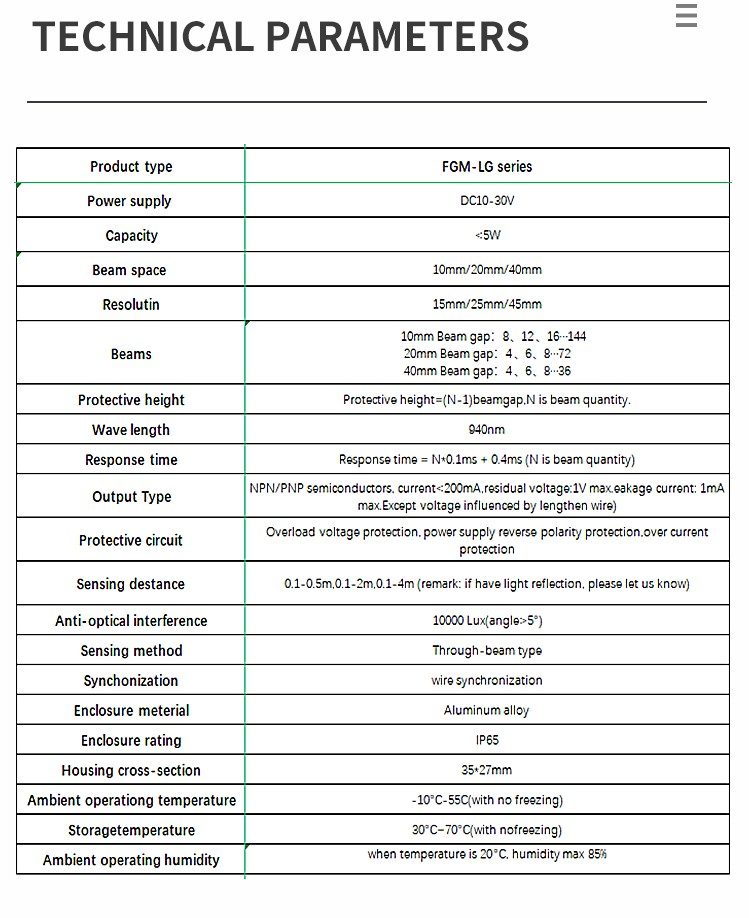

| Power supply |
DC10-30V |

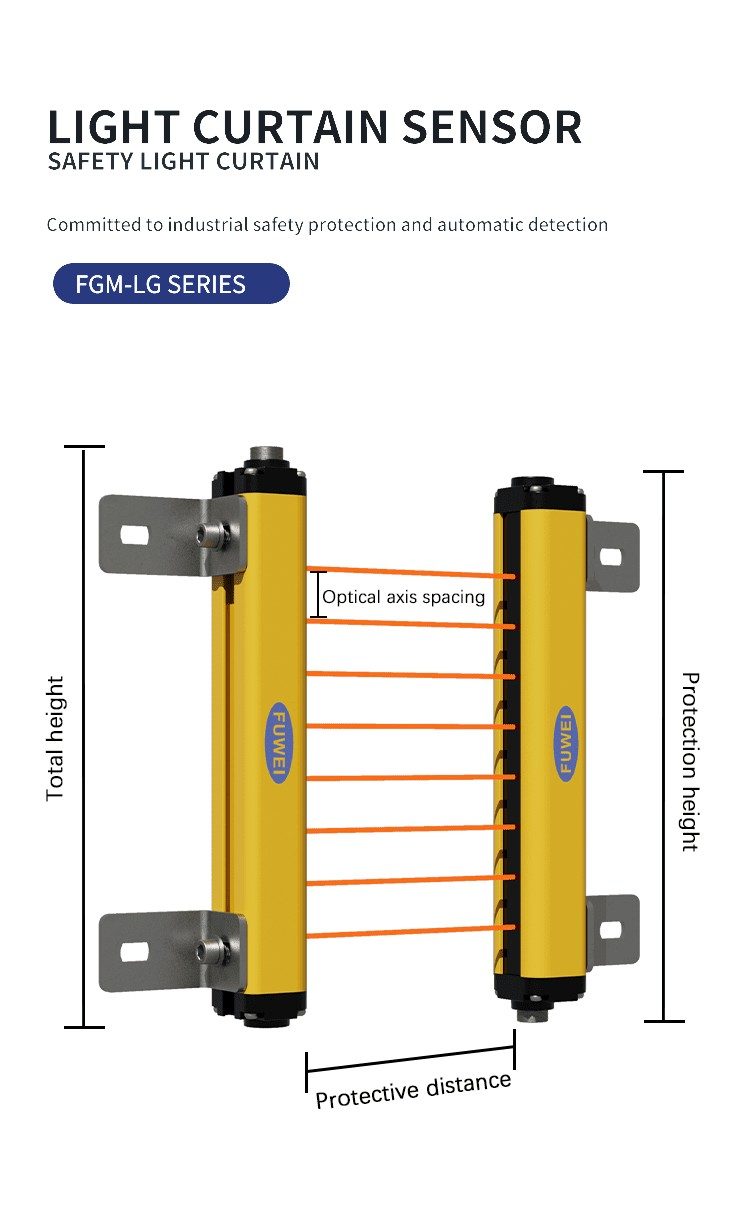

| Beam space |
10mm / 20mm / 40mm |
| Resolution |
20mm / 30mm / 50mm |
| Sensing distance |
0.1 ~ 2m |
| Anti-optical interference |
10000 Lux (angle > 5°) |

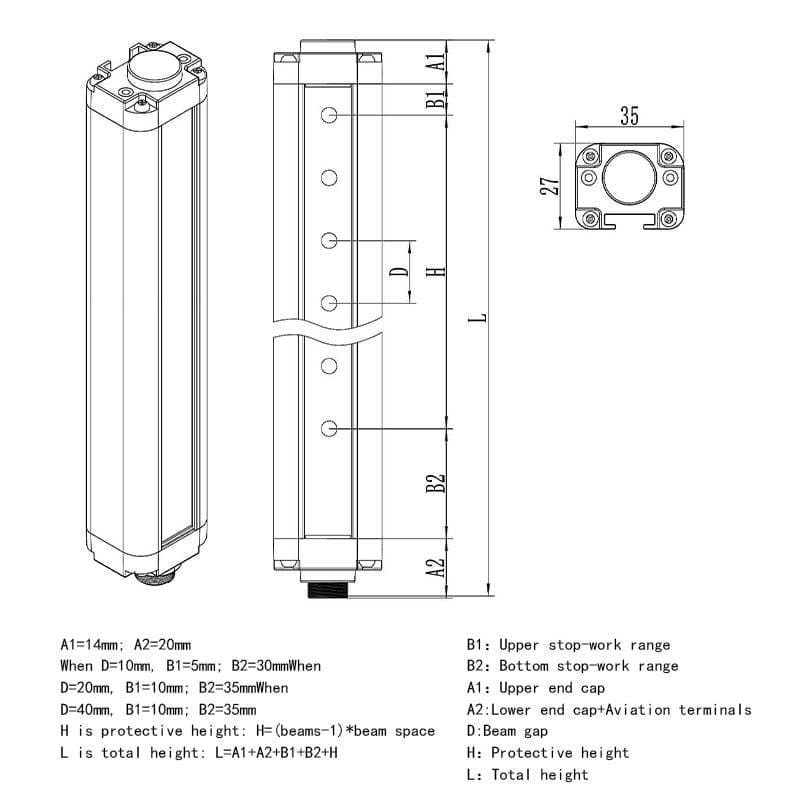

| Housing cross-section |
35 × 27mm |
| Enclosure rating |
IP65 |
| Ambient operating temperature |
-10°C ~ 55°C (no freezing) |
| Packaging and Delivery |
| Selling Units |
Single item |
| Single package size |
69 × 12 × 4 cm |
| Single gross weight |
0.963 kg |
