| Mounting Type |
Side mounting screws |
| Manufacturing Date Code |
2024 |
| Model Number |

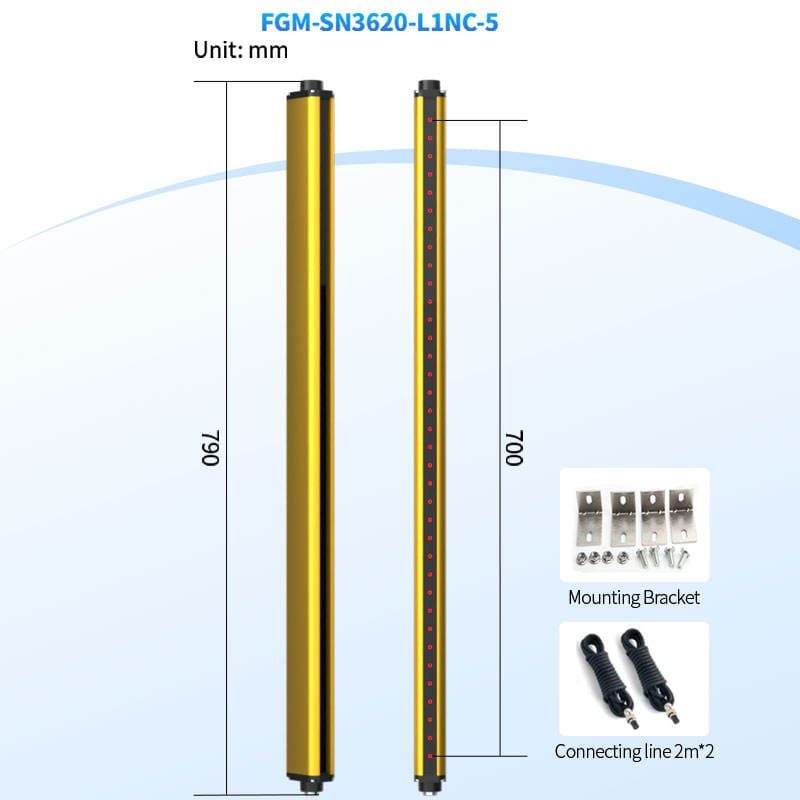

FGM-SN3620-L1NC-5 |
| Brand Name |
FUWEI |
| Usage |

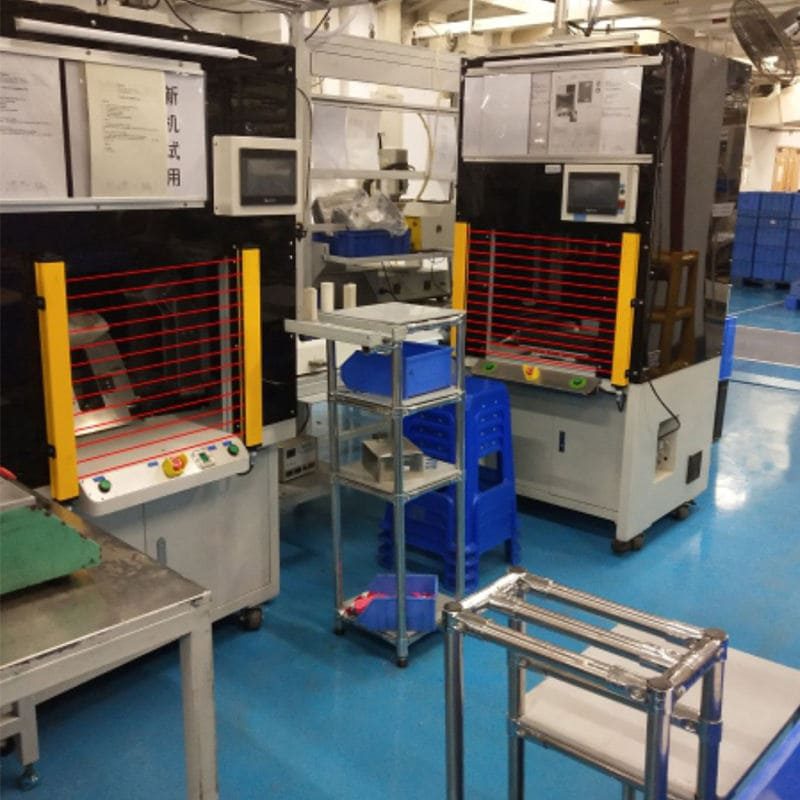

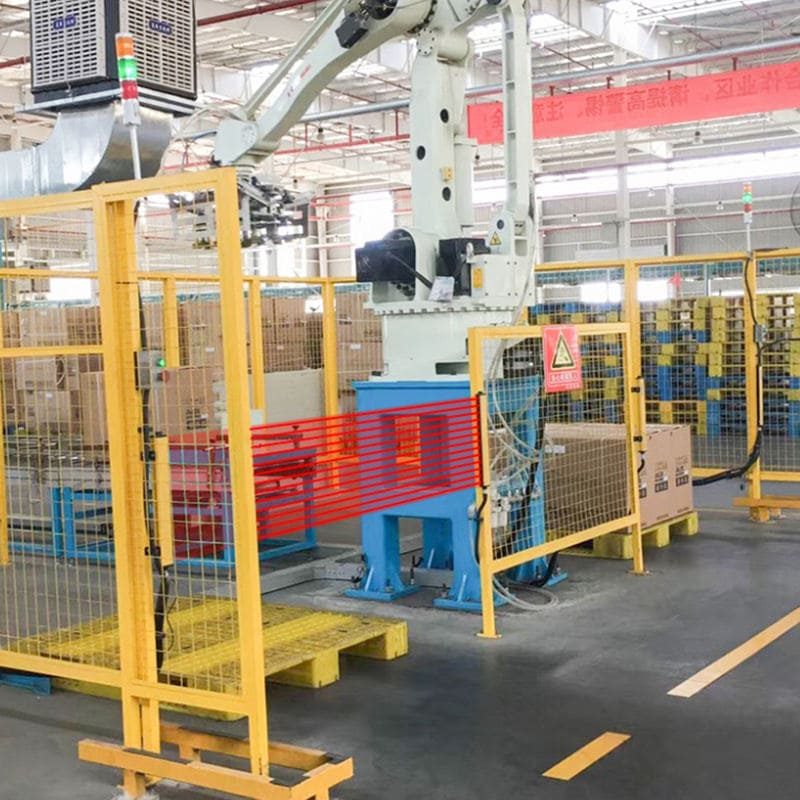

Machine safety protection |
| Description |
Machine safety protection |
| Type |

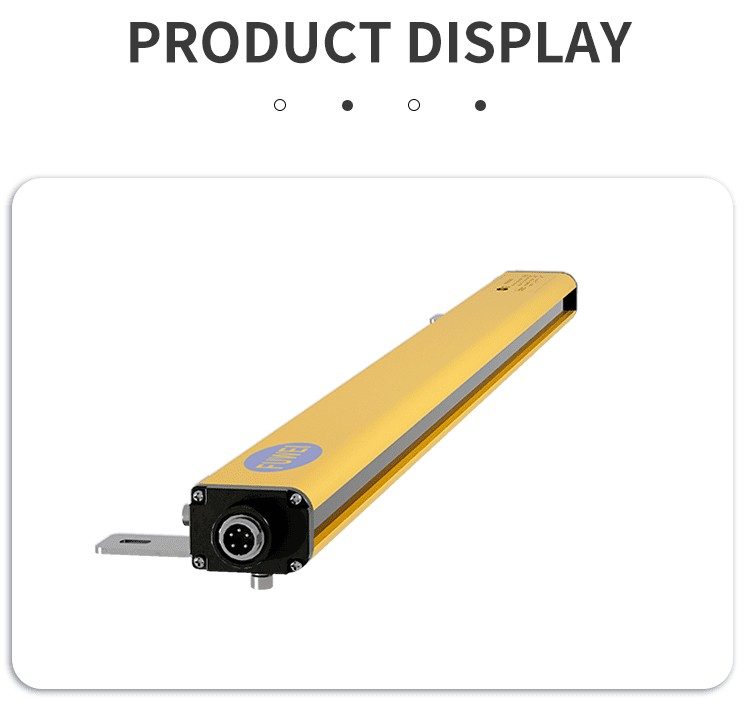

Infrared Safety Light Sensor |
| Series |
FGM-SN series |
| Place of Origin |
Guangdong, China |
| Theory |
Correlation infrared sensor |

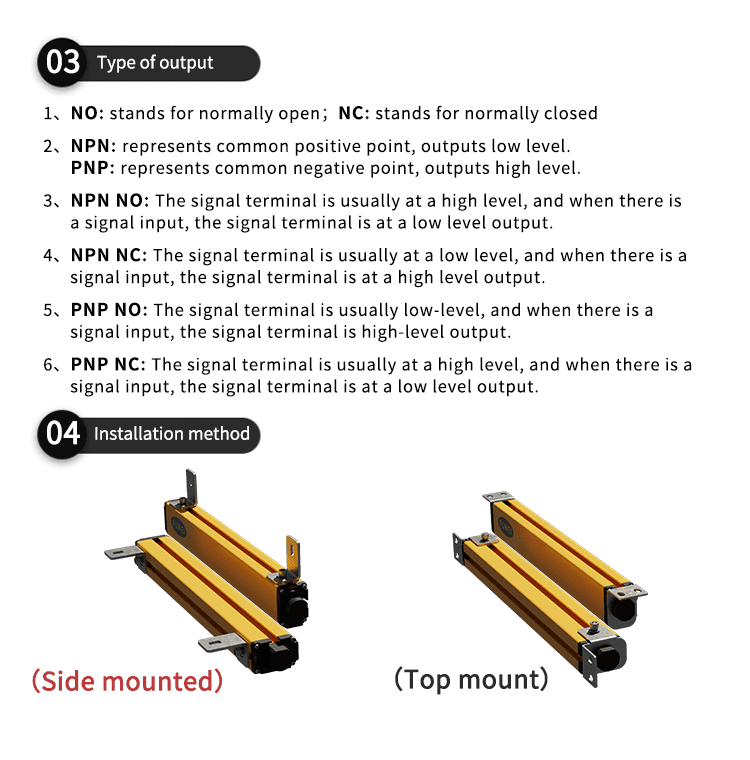

| Output |
NPN/PNP |
| Description |

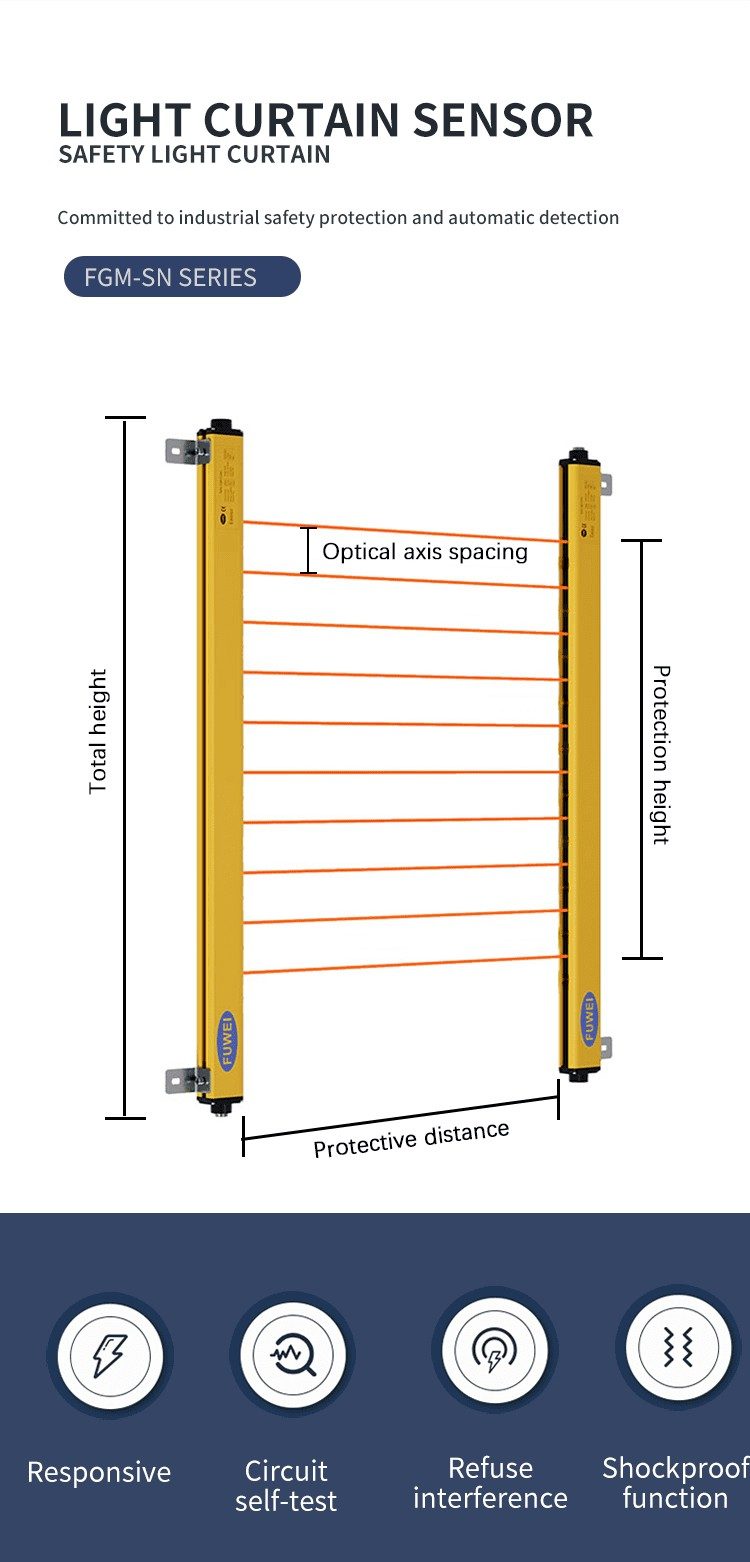

Safety light curtain sensors |
| Power supply |
DC10-30V |
| Beam space |
10mm/20mm/40mm |
| Resolution |
20mm/30mm/50mm |
| Sensing distance |
0.1~5m |
| Anti-optical interference |
10000 Lux (angle>5°) |
| Housing cross-section |
35×50mm |
| Enclosure rating |
IP65 |
| Ambient operating temperature |
-10°C~55°C (with no freezing) |
| Packaging and Delivery |
| Selling Units |
Single item |
| Single package size |
80×15×10 cm |
| Single gross weight |
4.000 kg |
