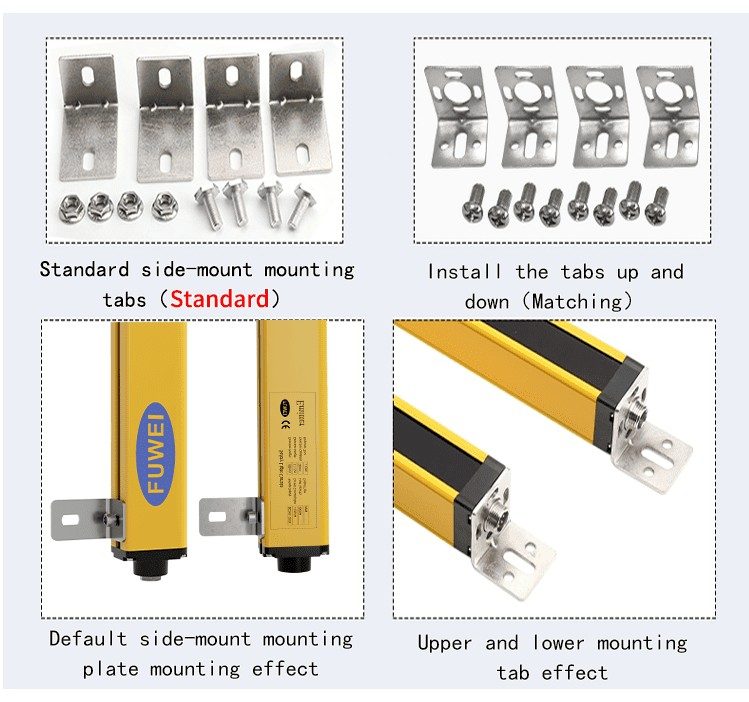

| Mounting Type |
Side mounting screws |
| Manufacturing Date Code |
2024 |
| Model Number |

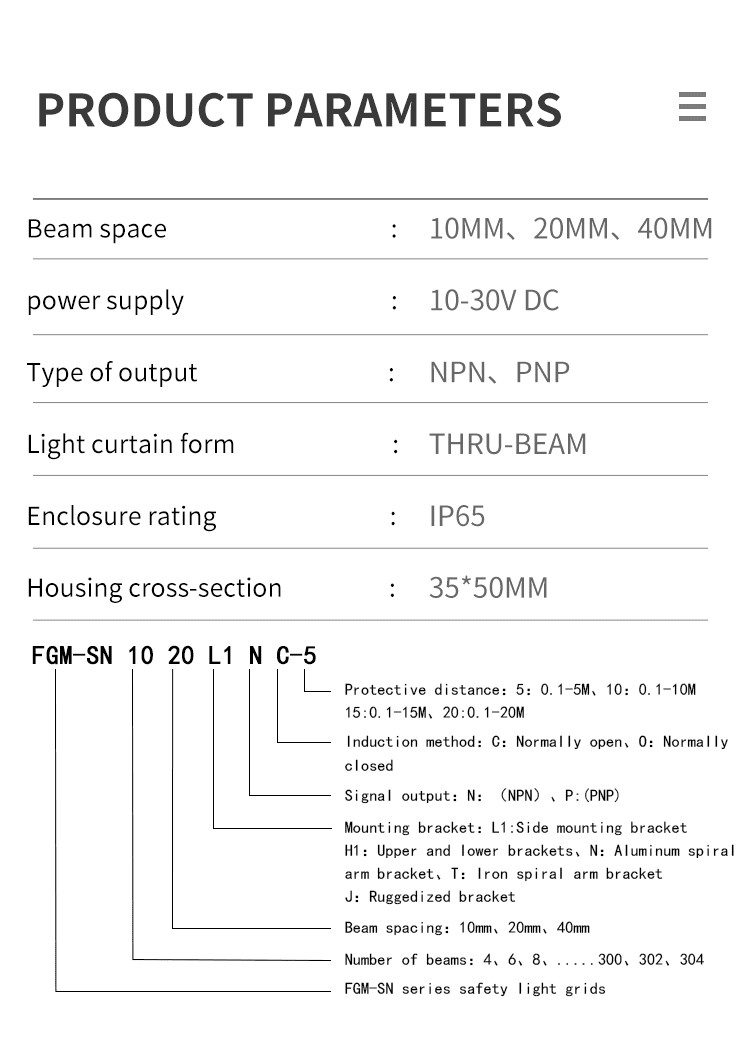

FGM-SN1240L1NC-5 |
| Brand Name |
FUWEI |

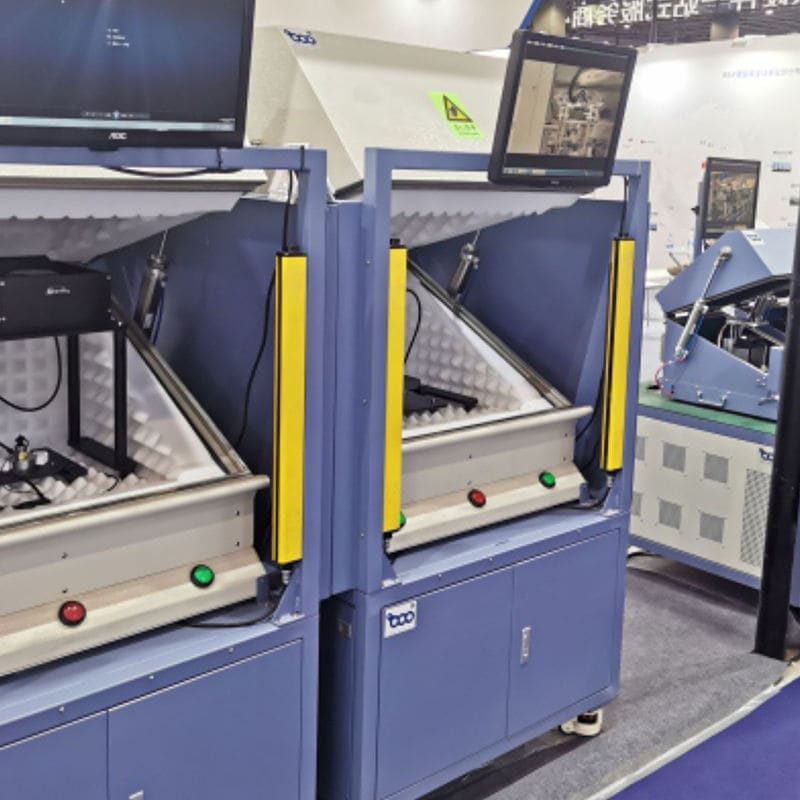

| Usage |

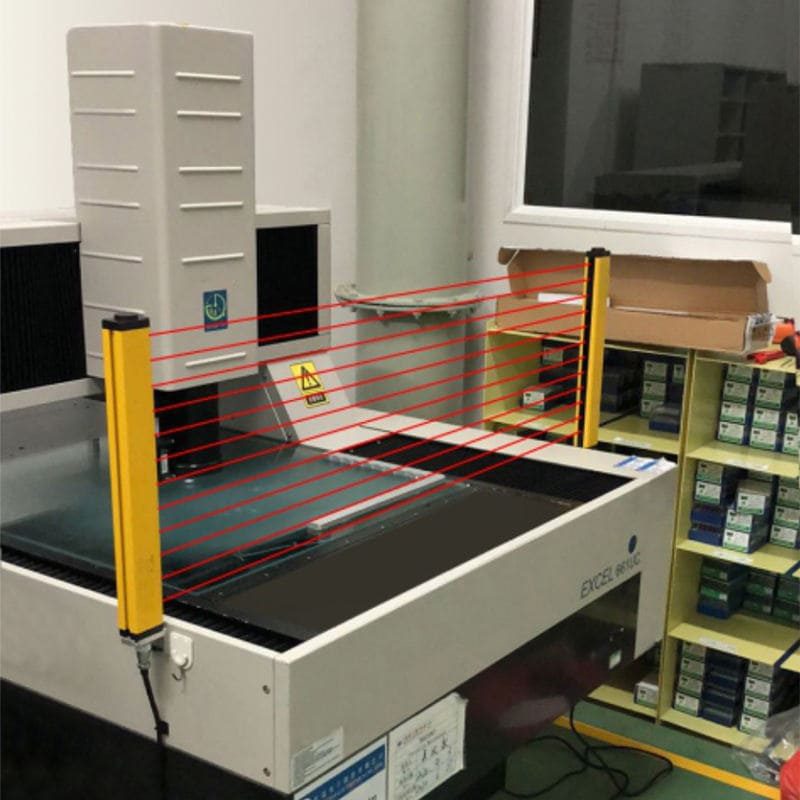

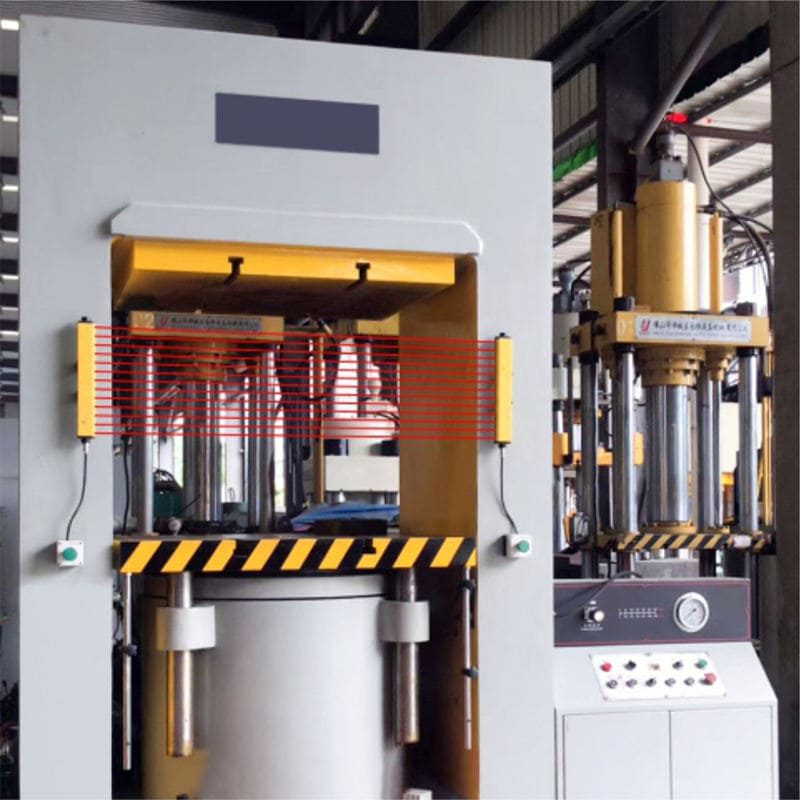

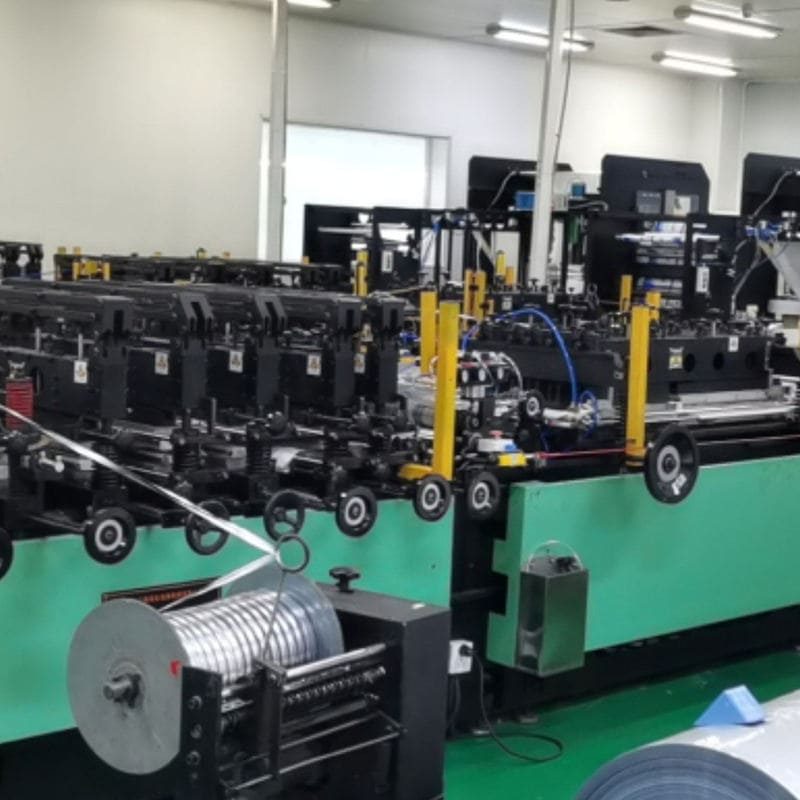

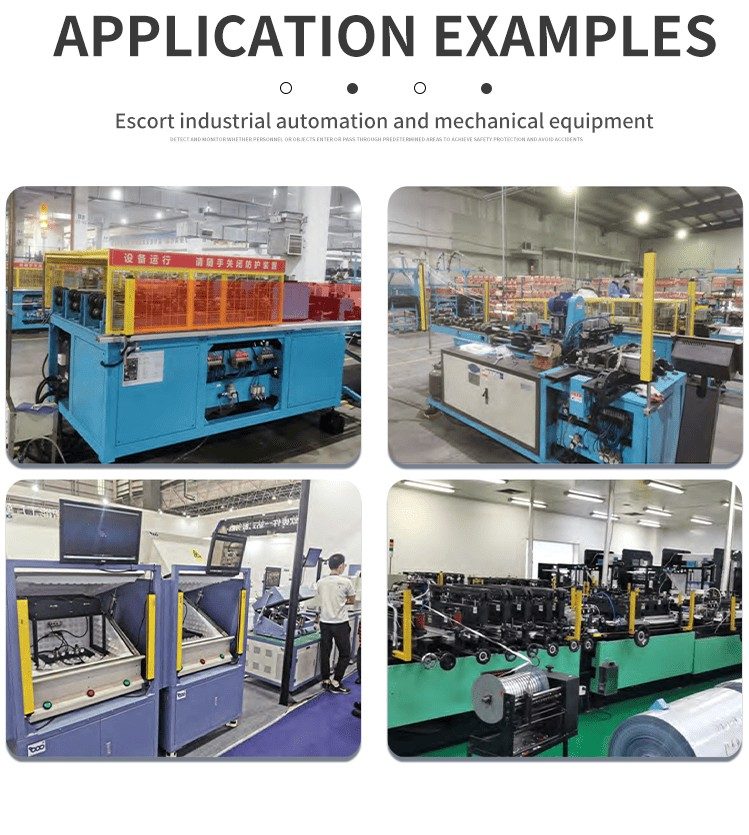

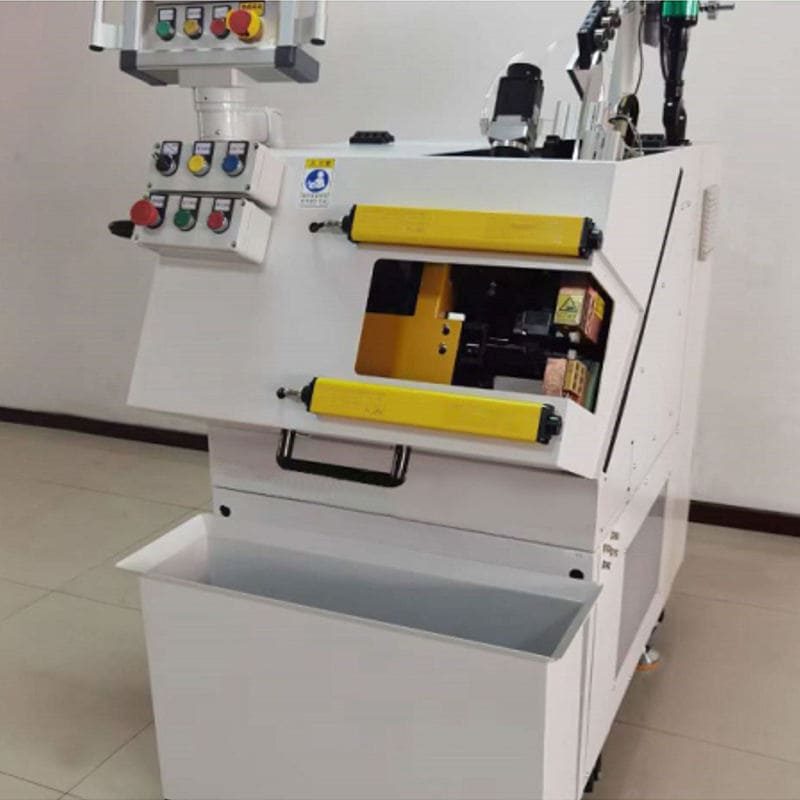

Machine safety protection |
| Description |

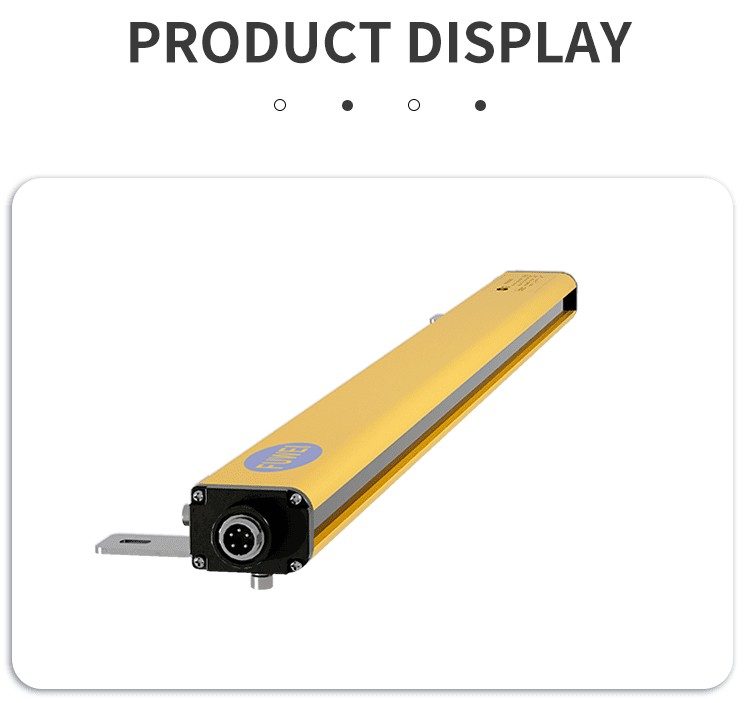

Safety light curtain sensors |
| Type |
Infrared Safety Light Sensor |
| Series |
FGM-SN series |
| Place of Origin |
Guangdong, China |
| Theory |
Correlation infrared sensor |

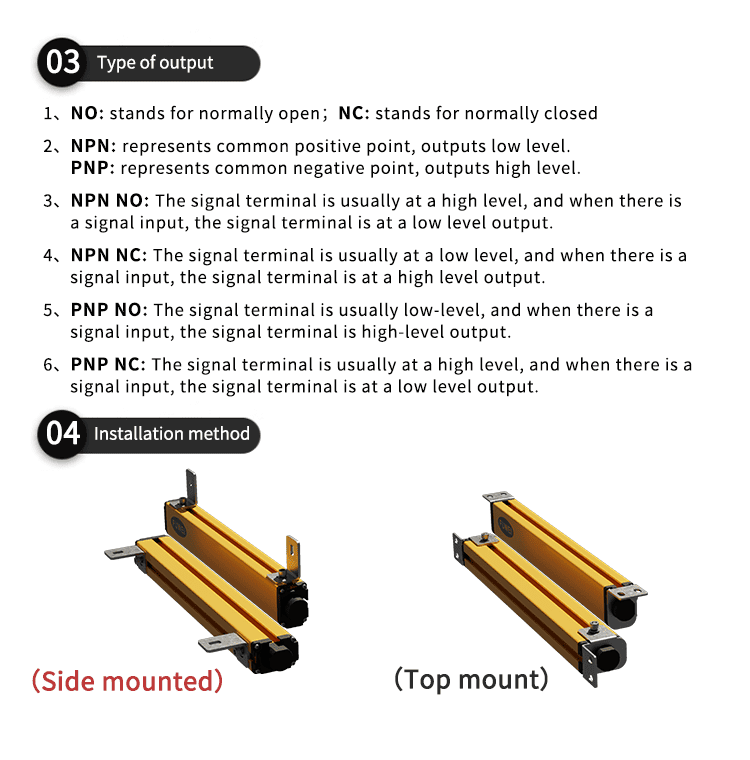

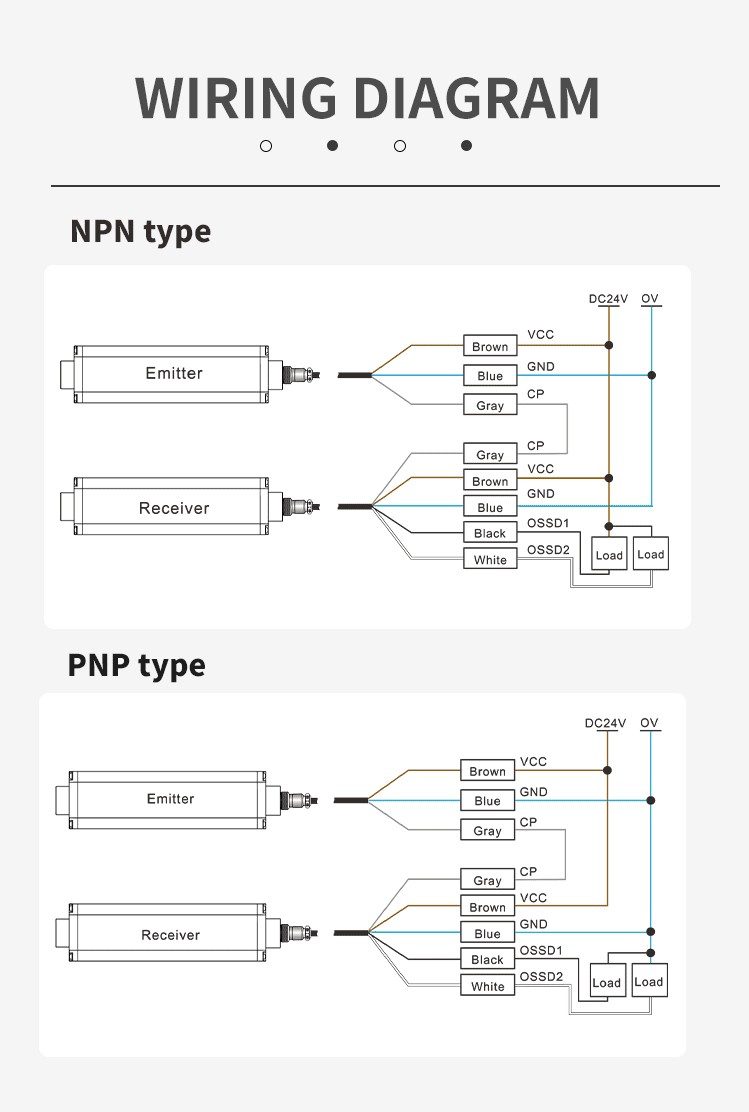

| Output |
NPN/PNP |
| Power Supply |
DC10-30V |

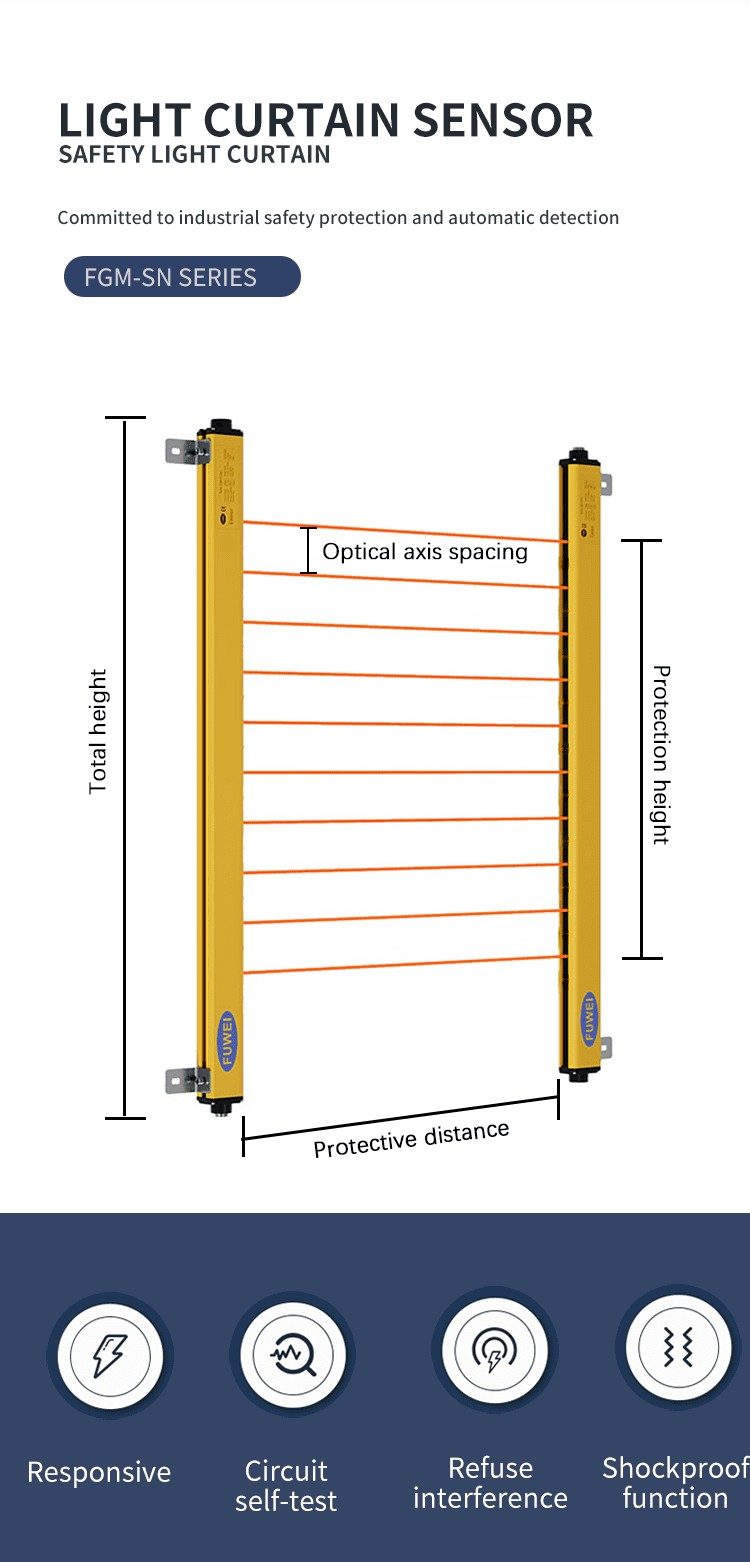

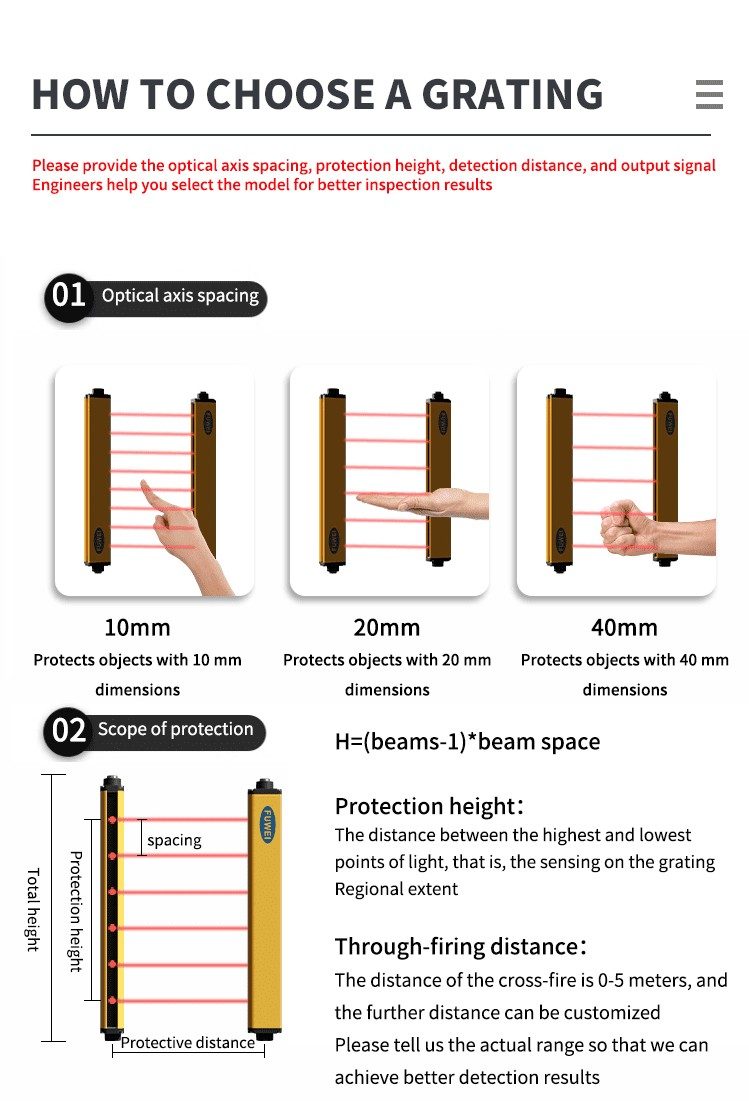

| Beam Space |
10mm / 20mm / 40mm |
| Resolution |
20mm / 30mm / 50mm |
| Sensing Distance |
0.1~5m |
| Anti-optical Interference |
10000 Lux (angle > 5°) |

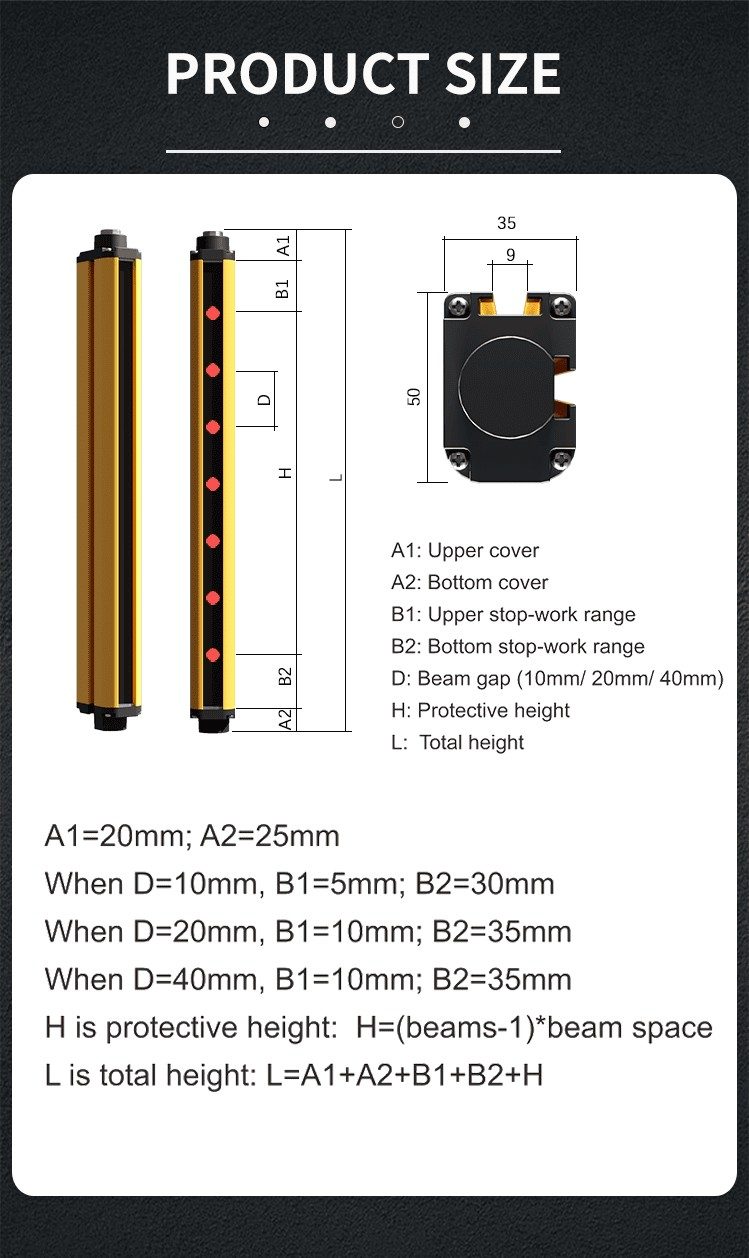

| Housing Cross-section |
35 × 50mm |
| Enclosure Rating |
IP65 |
| Ambient Operating Temperature |
-10°C ~ 55°C (no freezing) |
| Packaging and Delivery |
| Selling Units |
Single item |
| Single Package Size |
100 × 15 × 10 cm |
| Single Gross Weight |
1.000 kg |
