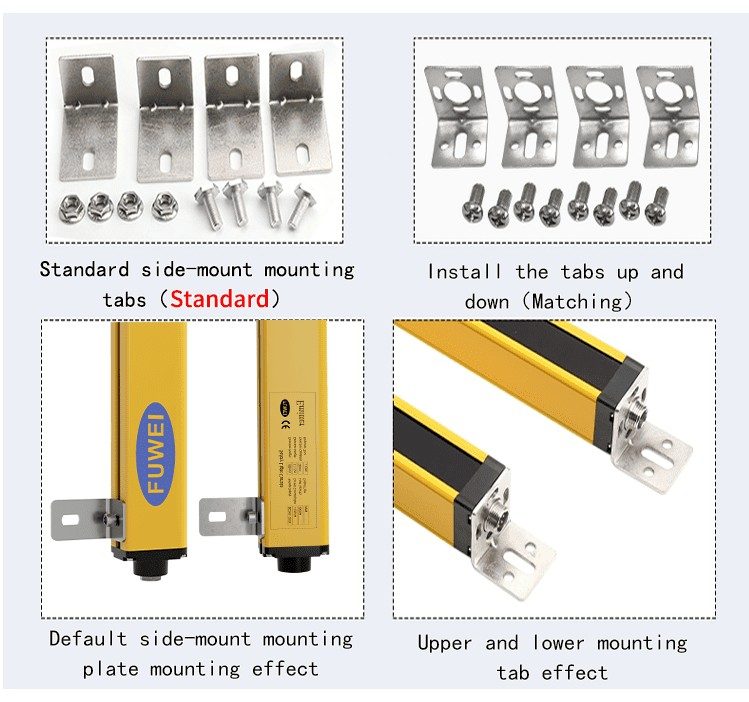

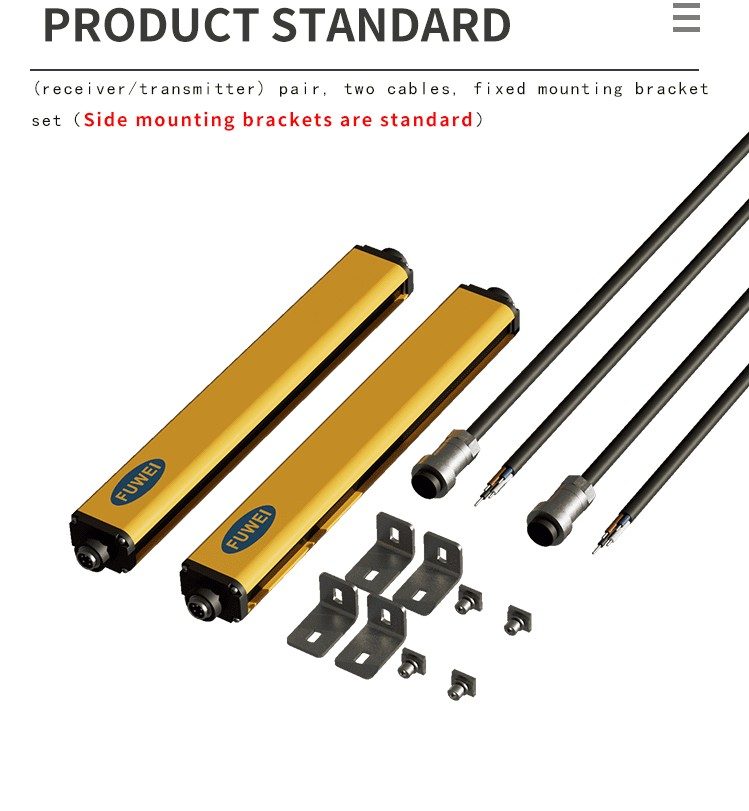

| Mounting Type |
Bolt bracket fixing installation |
| Manufacturing Date Code |
2025 |
| Model Number |

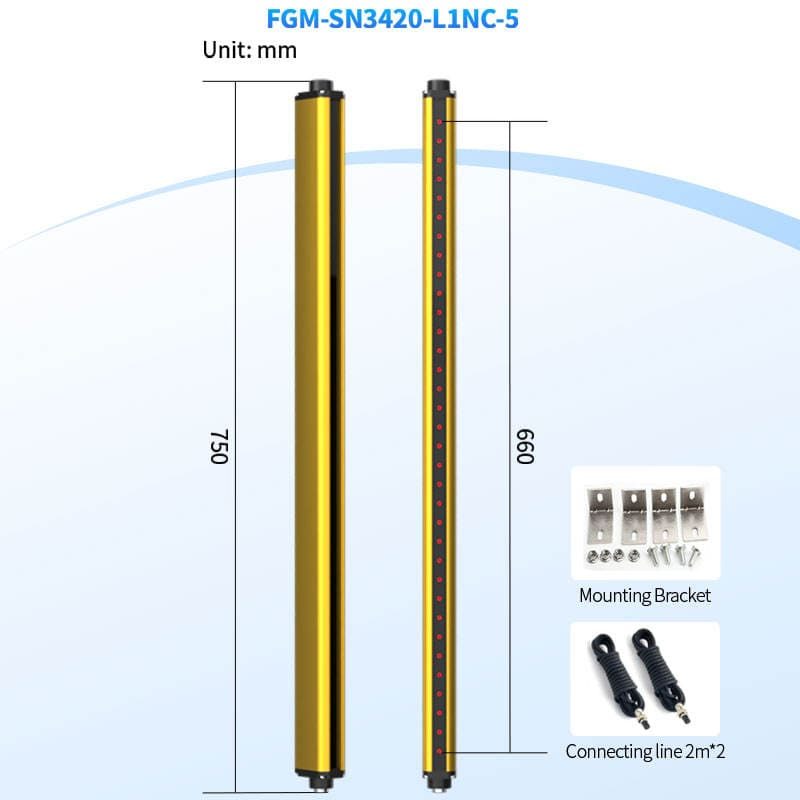

FGM-SN3420-L1NC-5 |
| Brand Name |
FUWEI |
| Usage |

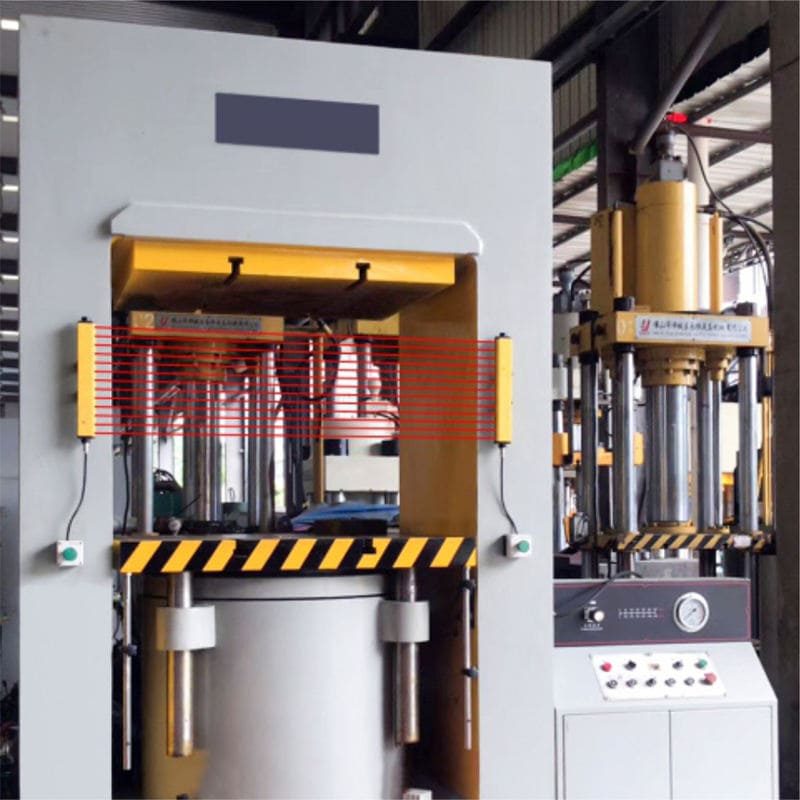

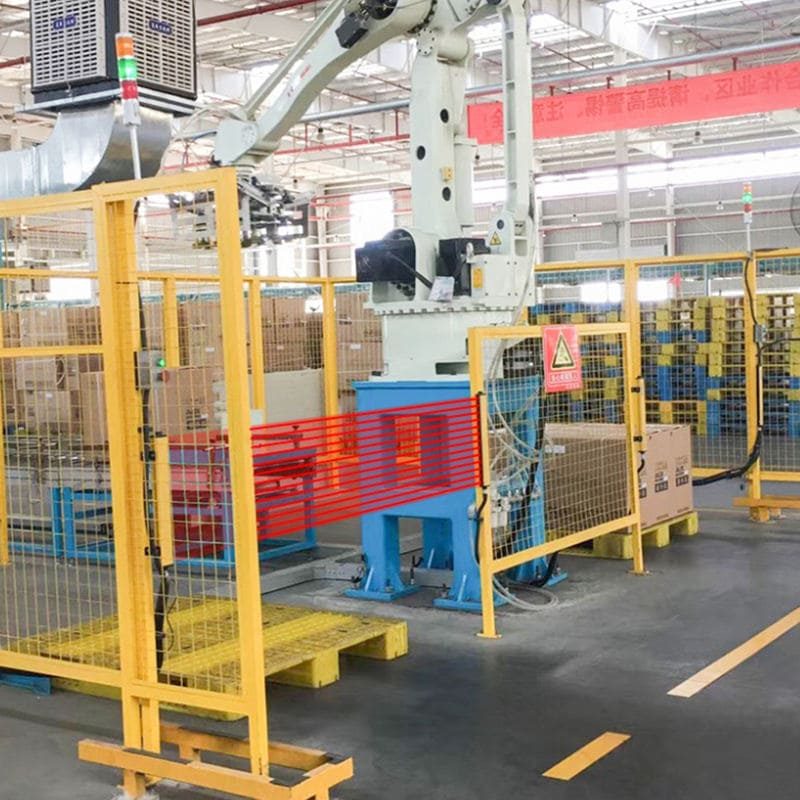

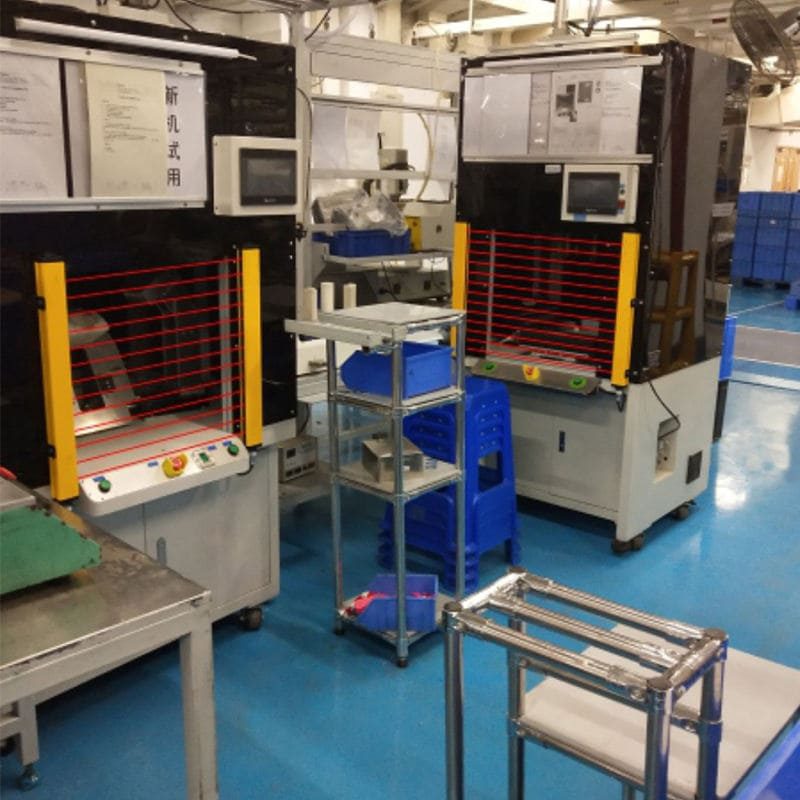

Safety protection device |
| Description |

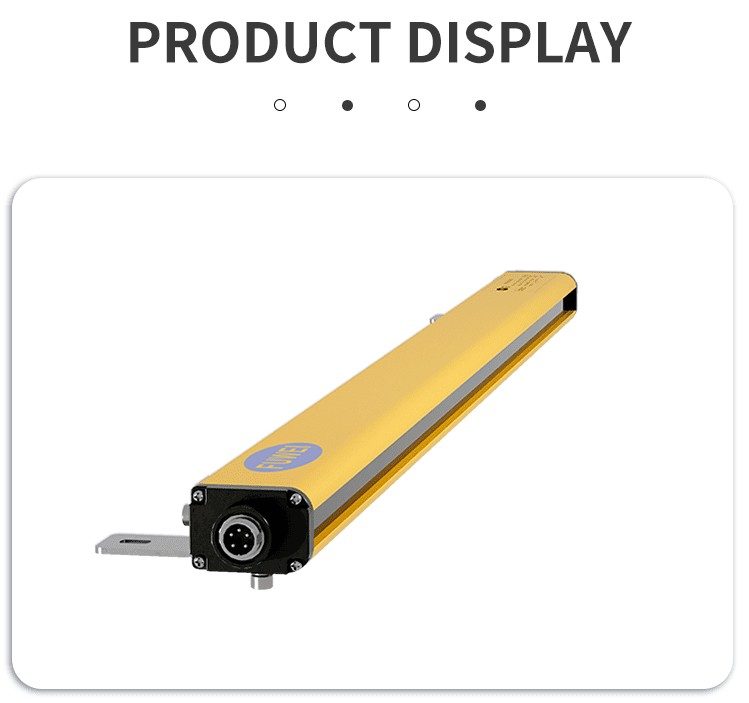

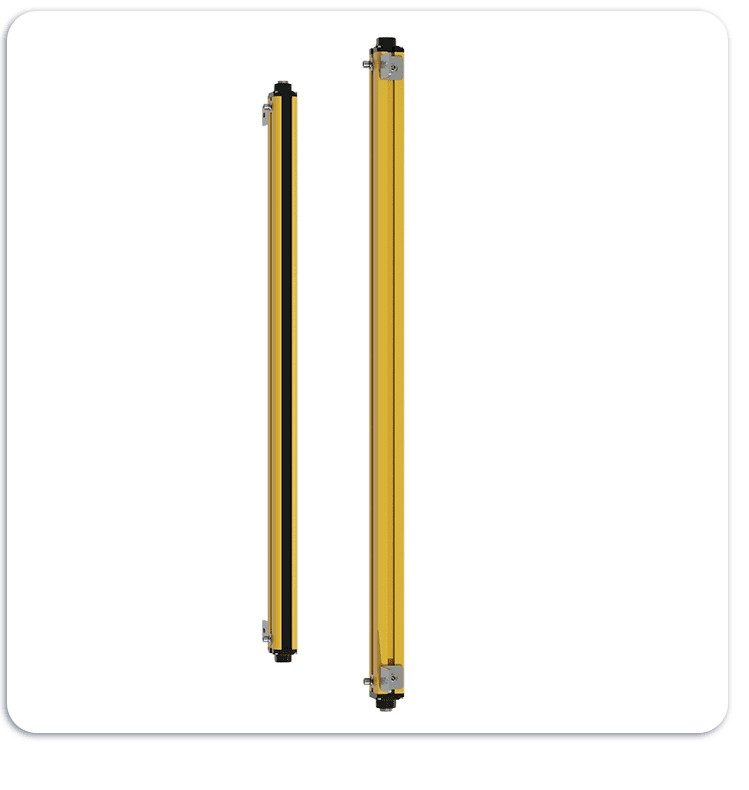

Safety light curtain |
| Type |
Photoelectric Sensor |
| Series |
FGM-SN |
| Features |
Sensing sensitivity |
| Place of Origin |
Guangdong, China |
| Theory |
Principles of Infrared Optics |

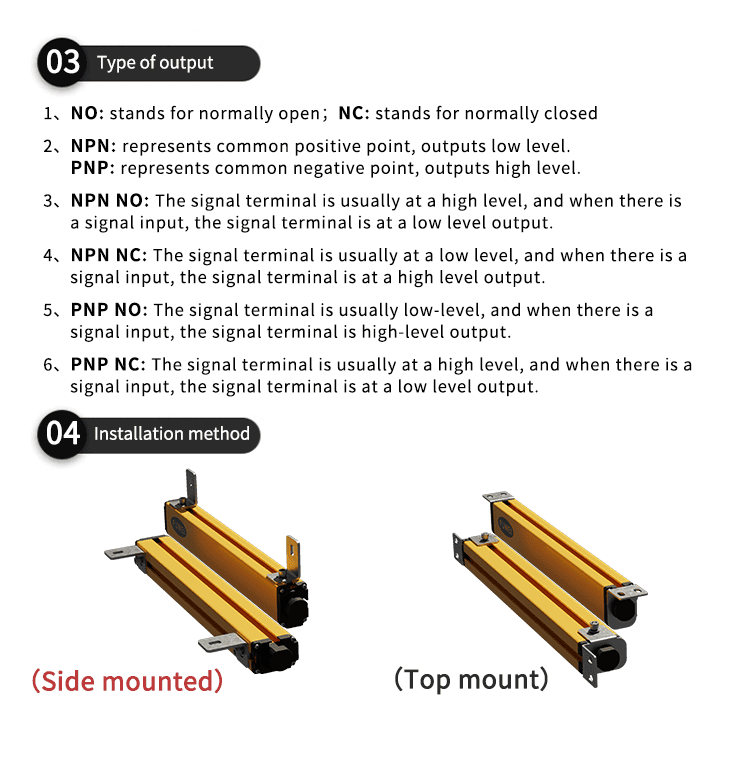

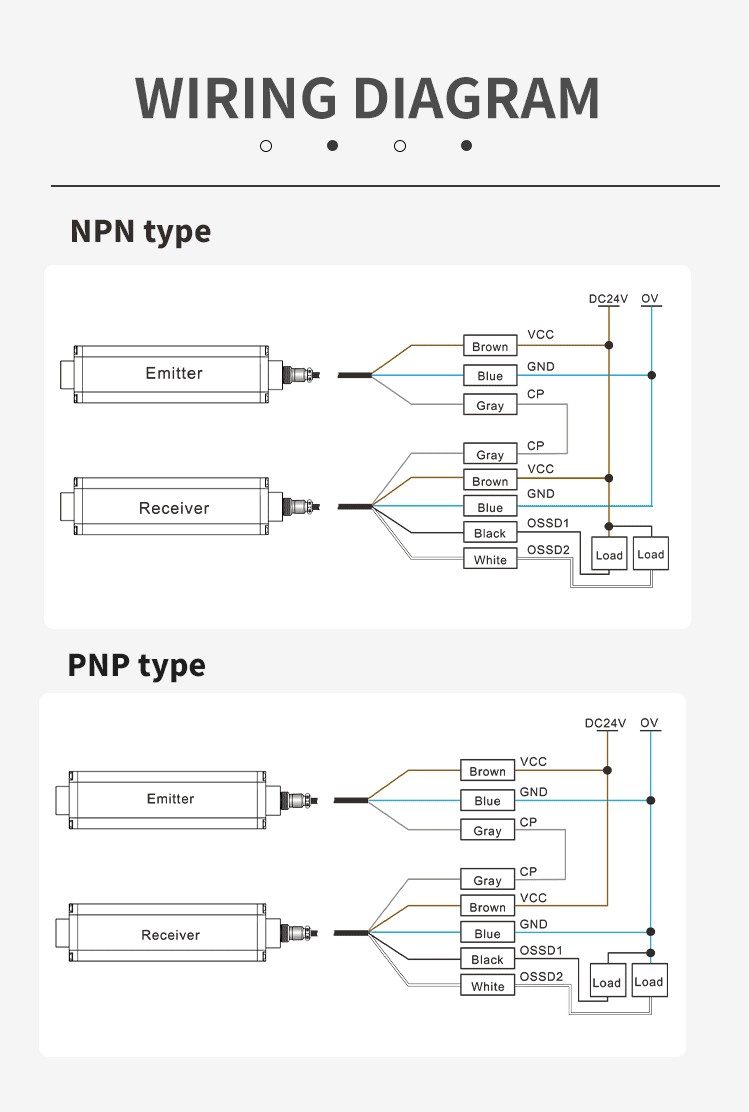

| Output |
NPN/PNP |
| Working Power Supply |
DC10V~30V |

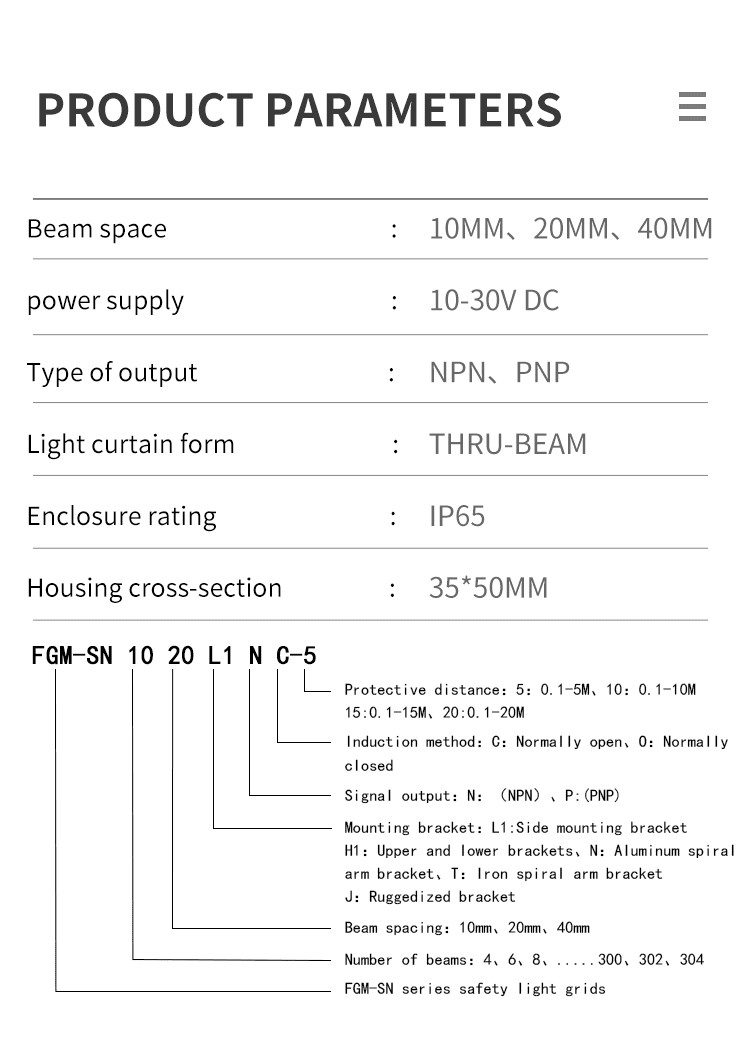

| Beam Pitch |
10/20/40mm |
| Resolution Ratio |
20mm/30mm/50mm |
| Shooting Distance |
0.1~0.5m, 0.1~2m, 0.1~5m, 0.1~10m, 0.1~20m, 0.1~30m |

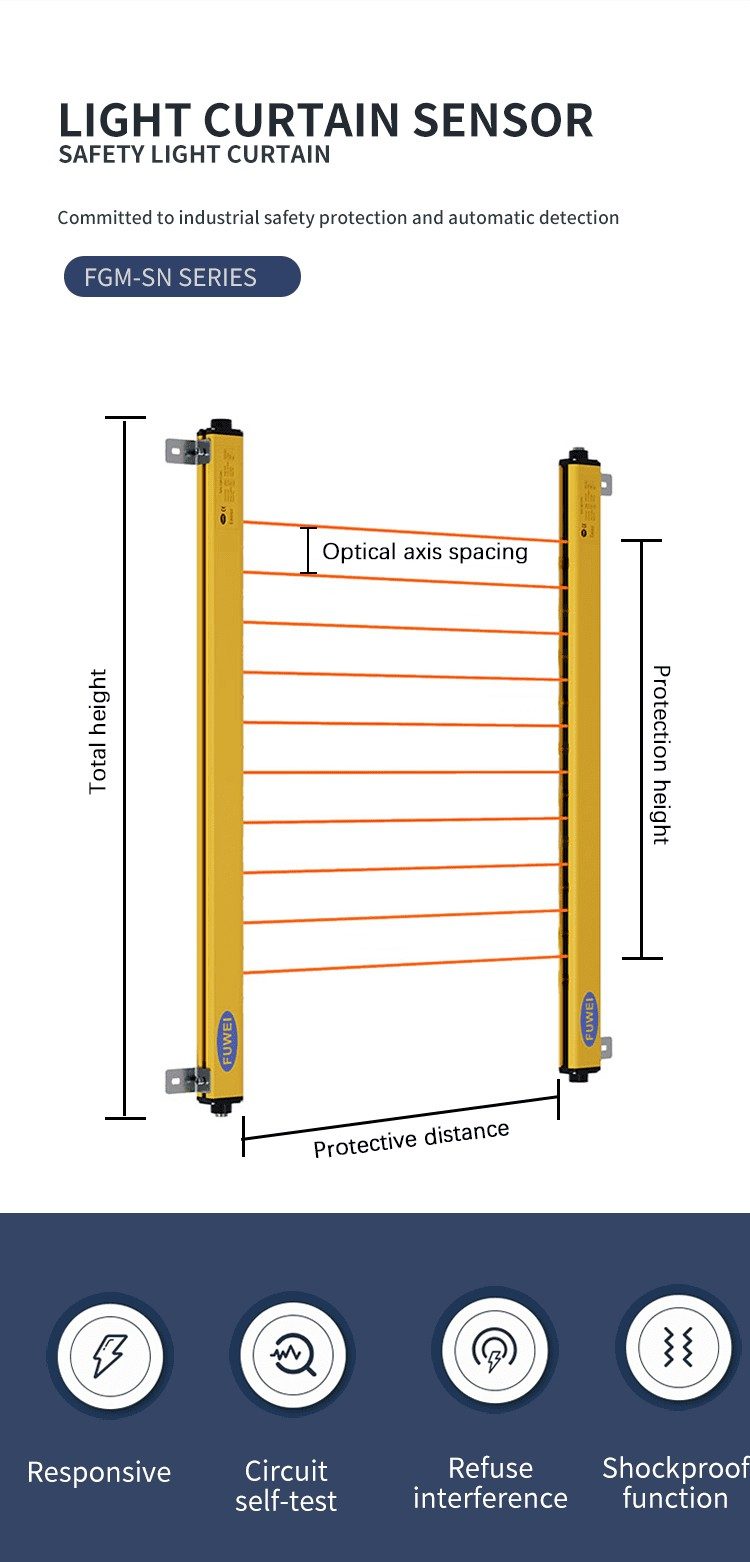

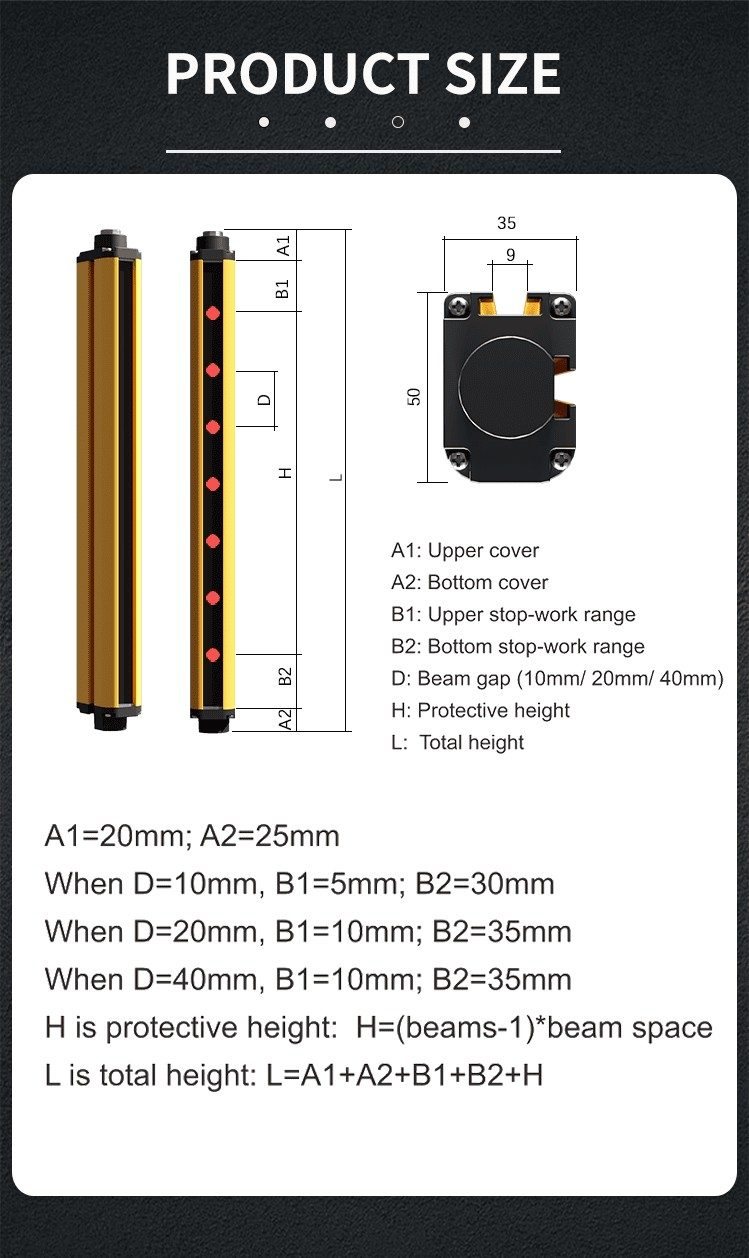

| Protective Height |
(N-1) beam gap, N is beam quantity |
| Response Time |
(N × 0.1ms) + 0.4ms (N is the number of optical axes) |

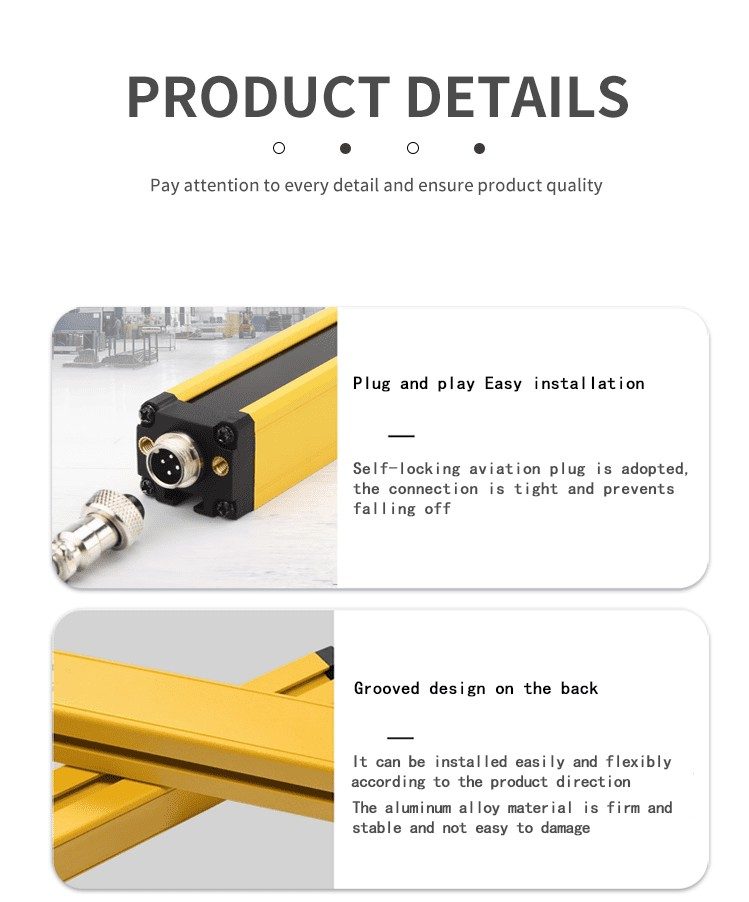

| Enclosure Material |
Aluminum alloy |

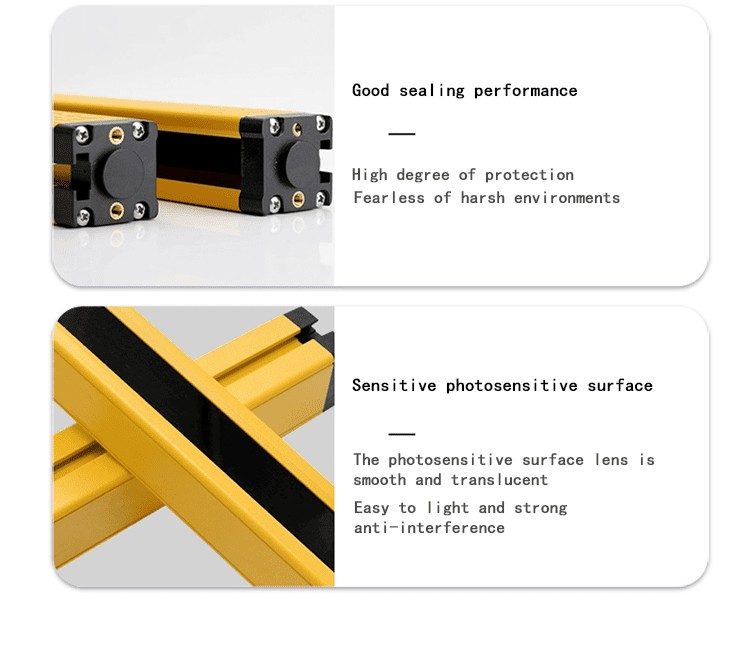

| Enclosure Rating |
IP65 |
| Packaging and Delivery |
| Selling Units |
Single item |
| Single Package Size |
110 × 11 × 8 cm |
| Single Gross Weight |
2.000 kg |
